ZPI-E36BG290
Head On IsoDownload

Range Hood

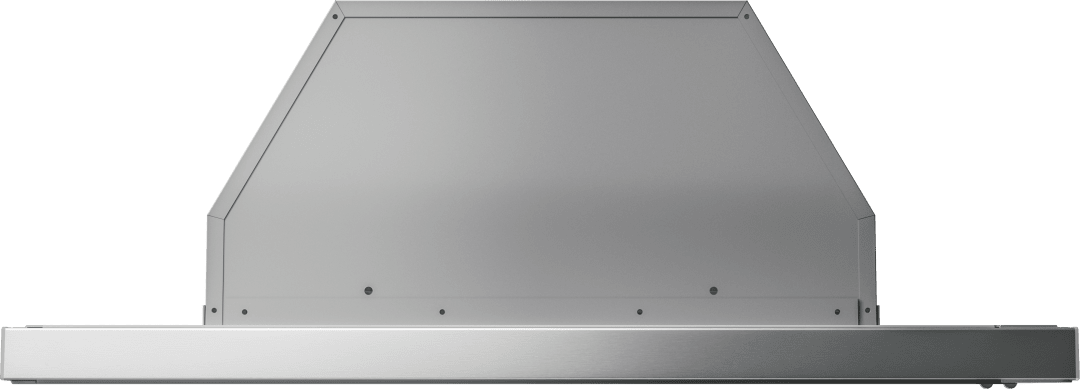

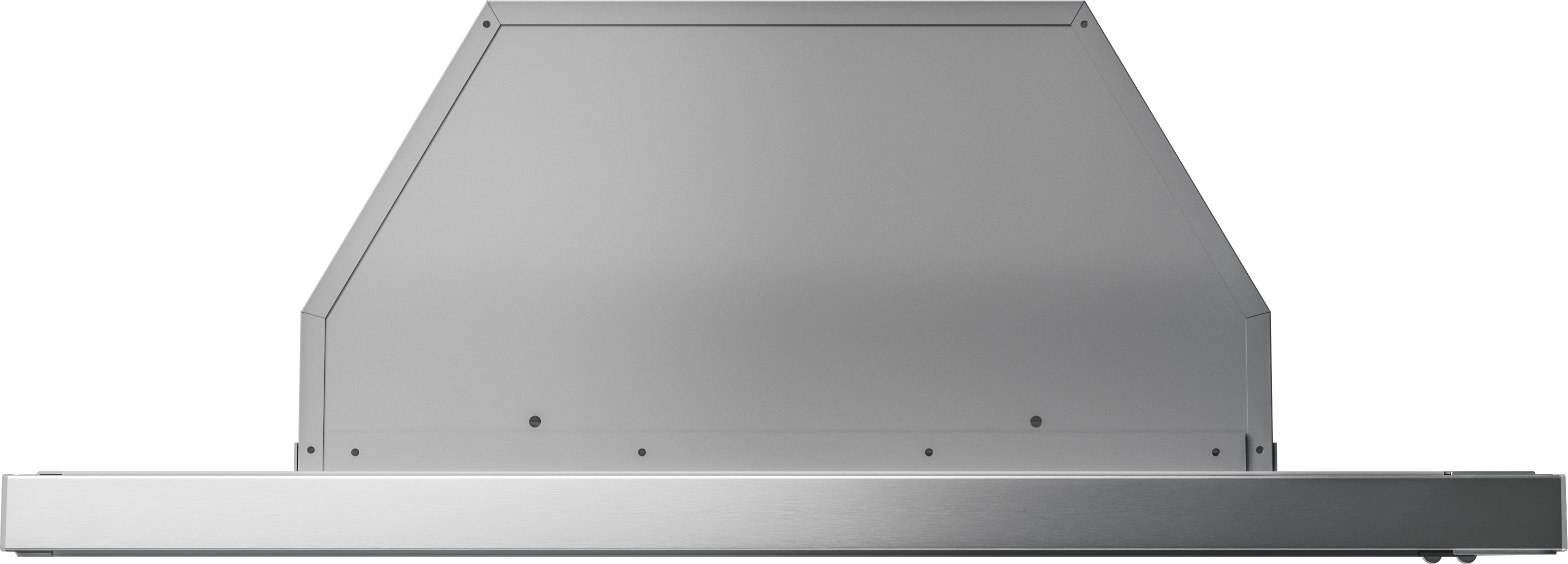

ZPI-E36BG290

Pisa Under-Cabinet

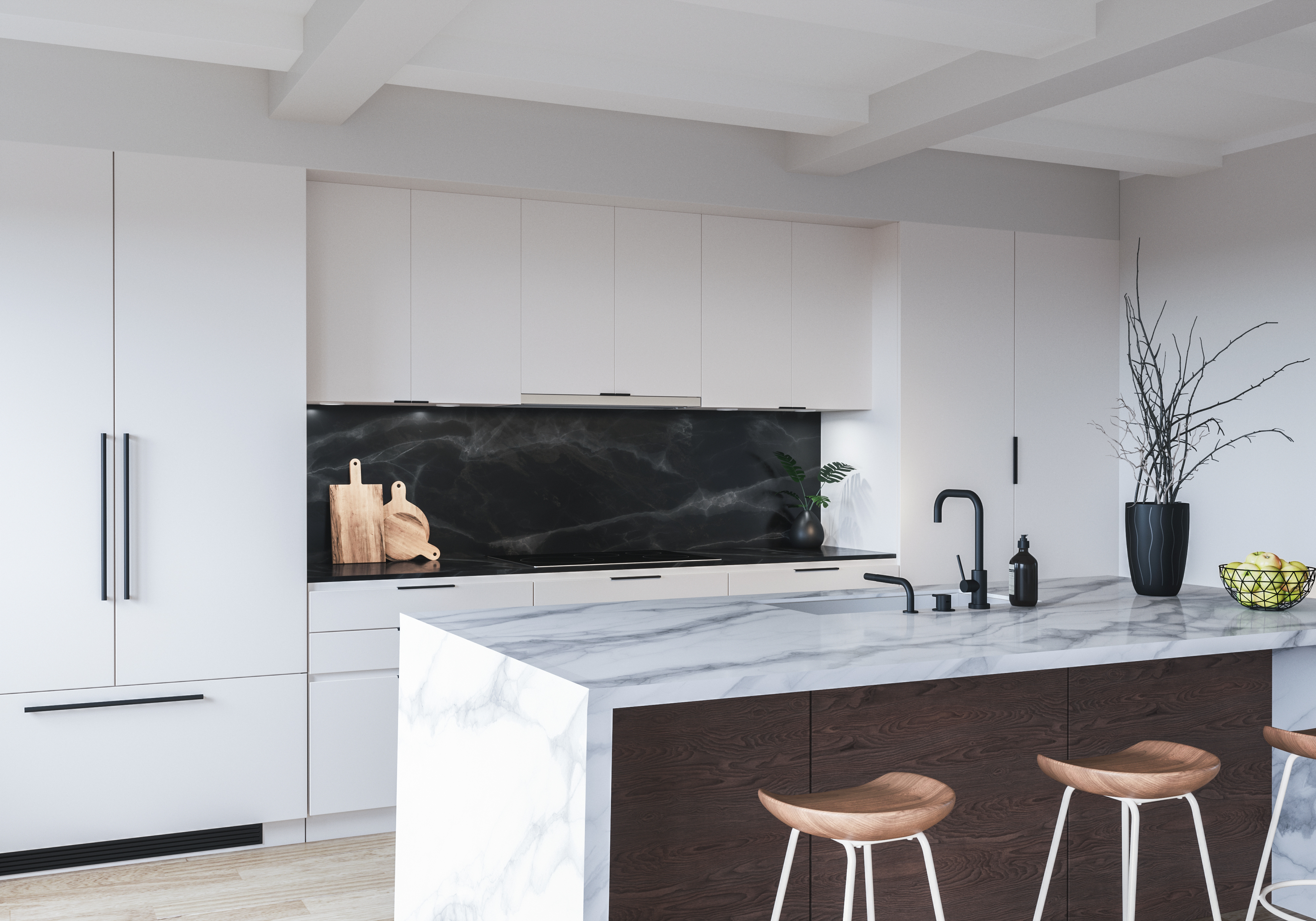

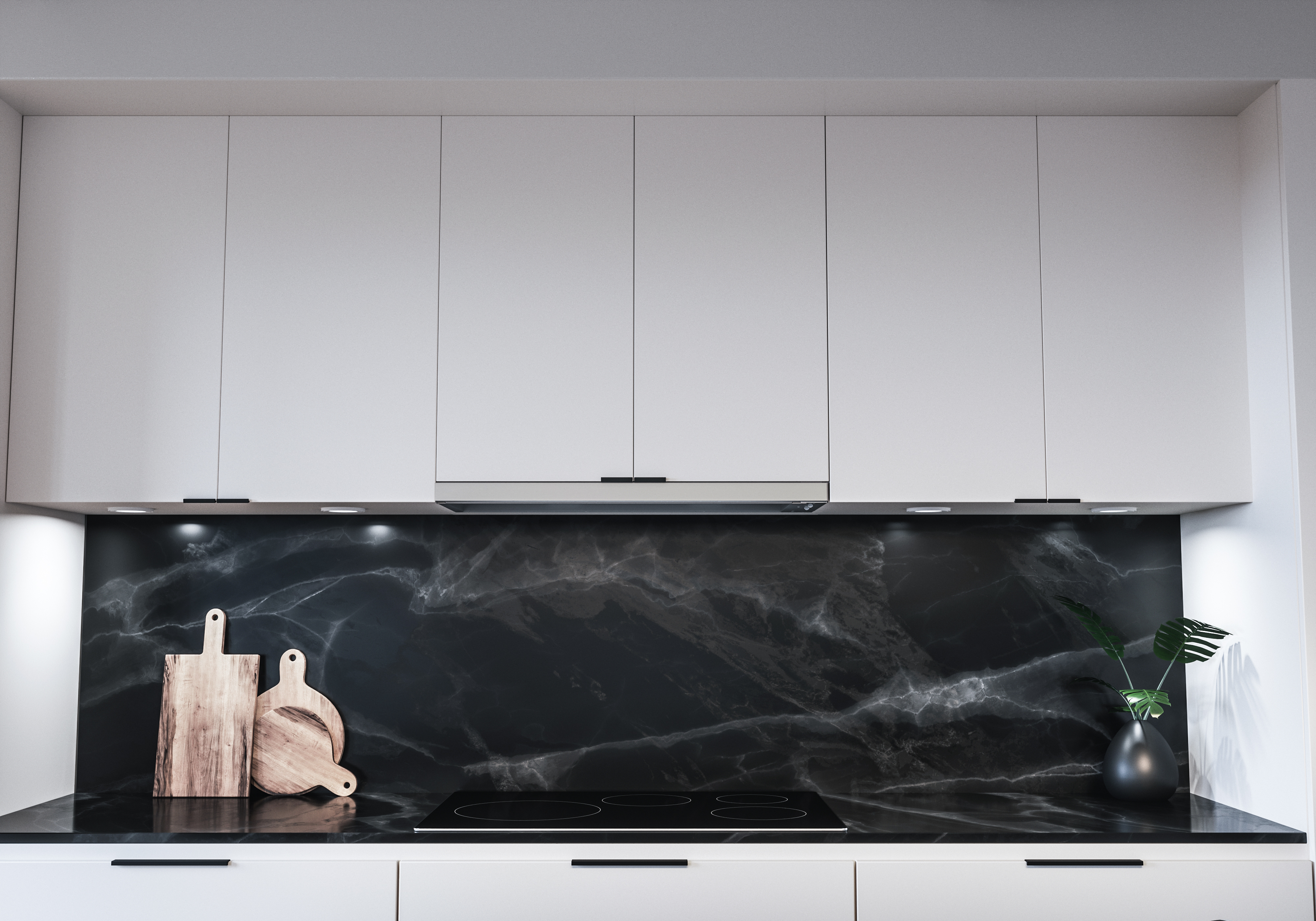

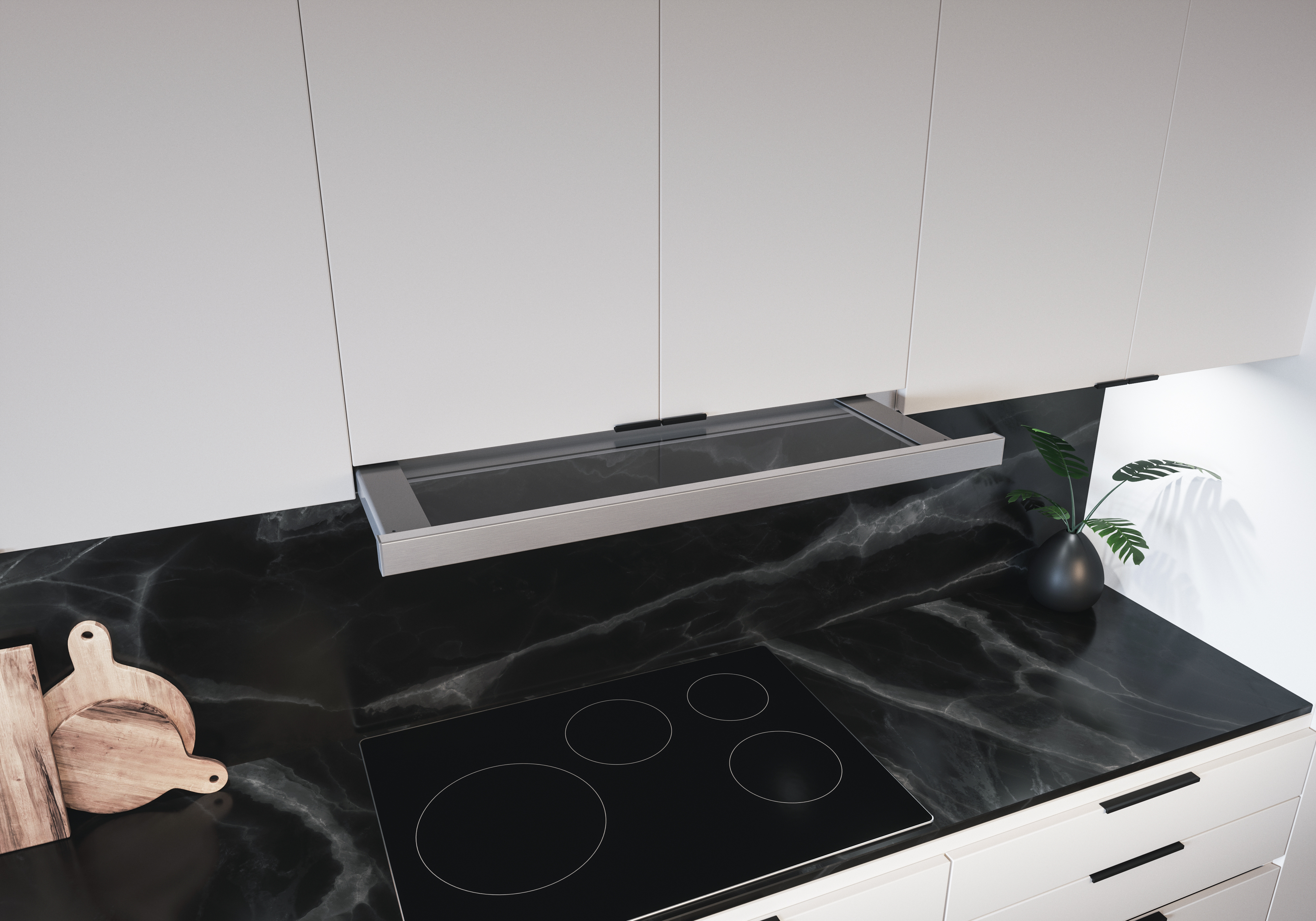

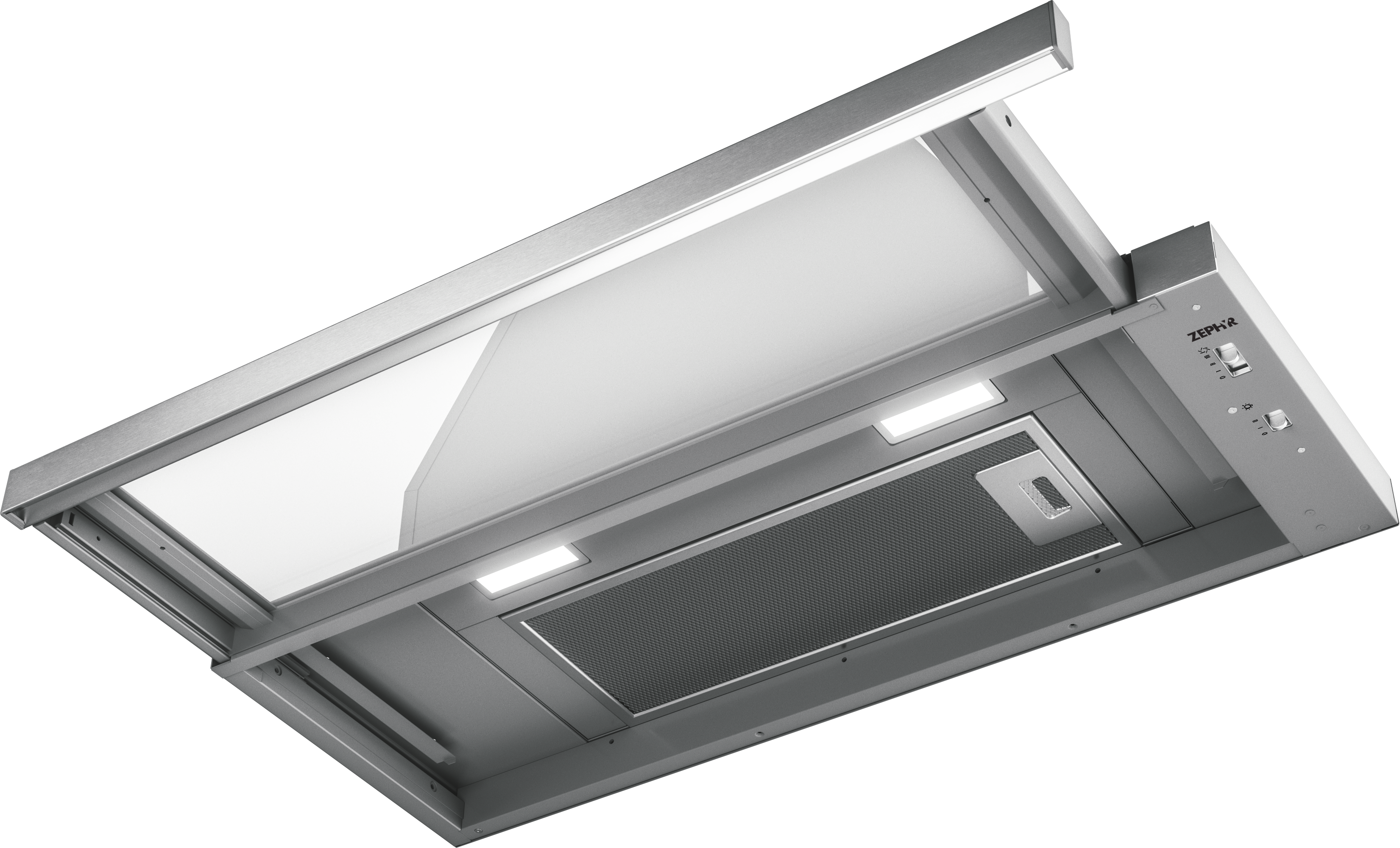

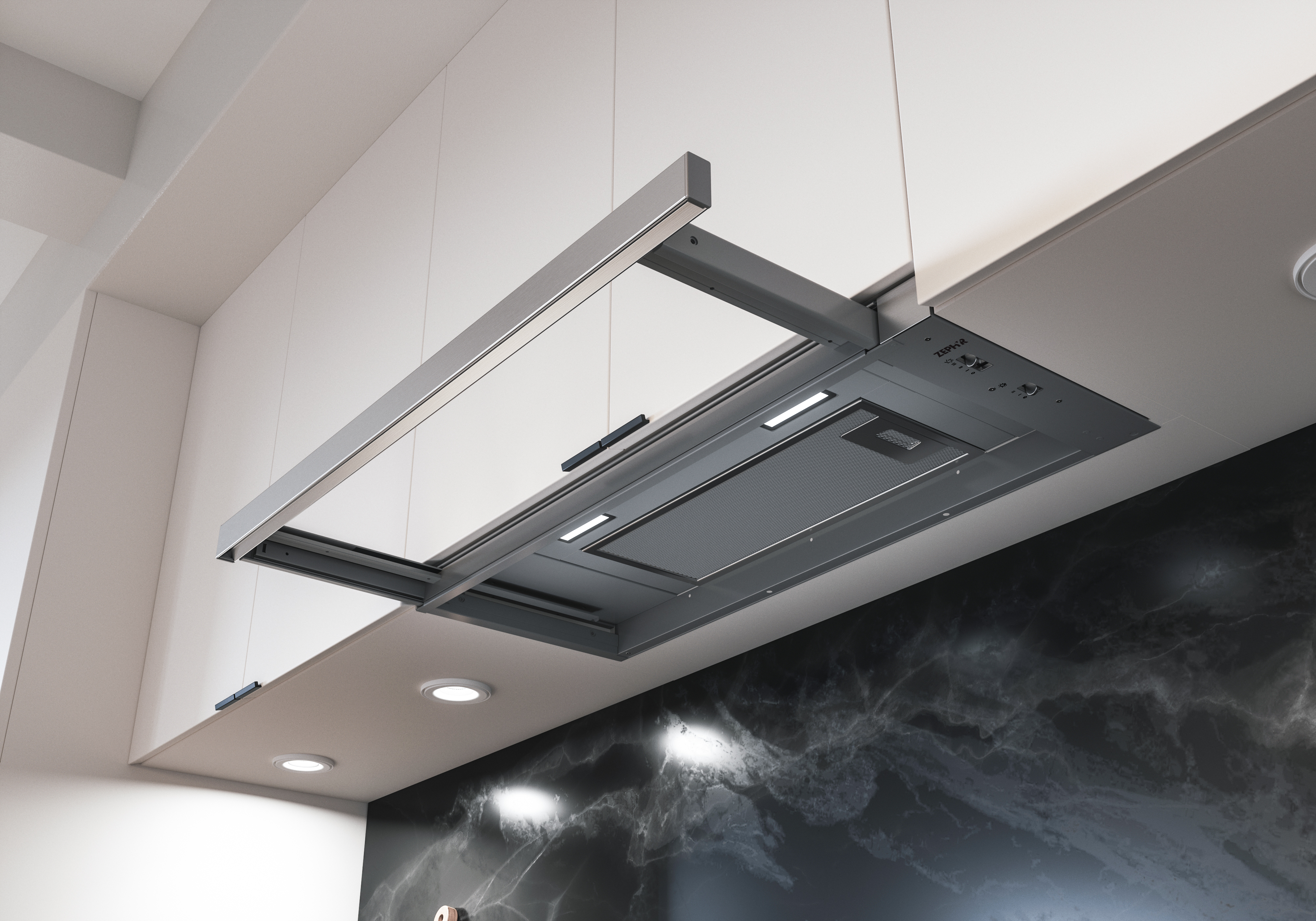

  • Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Adorned with LumiLight LED Lighting and powered by the strength of a 500-CFM or 290-CFM blower, Pisa’s low-profile body delivers stunning design and quality performance. Its retractable visor helps with the capture of air and puts control at your fingertips. Pisa is ideal for kitchens that require a more discreet, sophisticated look.
Size
Color/Finish
  • Product StatusActive
    BrandZephyr
    Model #ZPI-E36BG290
    MSRP ($)$999
    Short DescriptionPisa, Under Cabinet, 36", SS, 290 CFM
    CollectionCore Collection
    UPC646328009716
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeLED
    Lights Quantity2
    Voltage120
    Maximum Amperage2
    ColorStainless Steel
    Blower Speeds3
    Watts Per Bulb6
    Lights Levels2
    Mounting Height Above Cooktop; IN20 - 32
    Compatible ModelsZRC-00PI, Z0F-C0PI, AK1716
    Country of OriginTaiwan
    Grease Filter TypeMesh
    Compatible Mesh or Baffle Filter Part Number50200054
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantNo
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN6
    Duct Size; Vertical; IN6
  • Net Height; IN11.25
    Net Width; IN35.875
    Nominal Width; IN36
    Net Depth; IN11.125
    Weight; LBS36
  • Feature 1Mechanical Slide Controls
    Feature 1 Definition3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
    Feature 23 Speed Levels
    Feature 2 DefinitionQuiet and efficient, three speed levels allow you to control proper airflow depending on your cooking needs.
    Feature 3LumiLight LED Lighting
    Feature 3 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 4Dual-Level Lighting
    Feature 4 DefinitionThe dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 5Dishwasher Safe Aluminum Mesh Filters
    Feature 5 DefinitionHigh-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
    Feature 6Recirculating Option
    Feature 6 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 7Low-profile body
    Feature 7 DefinitionLow-profile body for a minimalist appearance.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM290
    Internal Blower 1 Min. Sones1.3
    Internal Blower 1 Max Sones3.2
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN16
    Shipping Length; IN39
    Shipping Width; IN15
    Shipping Weight; LBS39
  • Optional Accessory 1ZRC-00PI
    Optional Accessory 2Z0F-C0PI
    Optional Accessory 3AK1716
