ZPY-E30AS
Head On IsoDownload

Range Hood

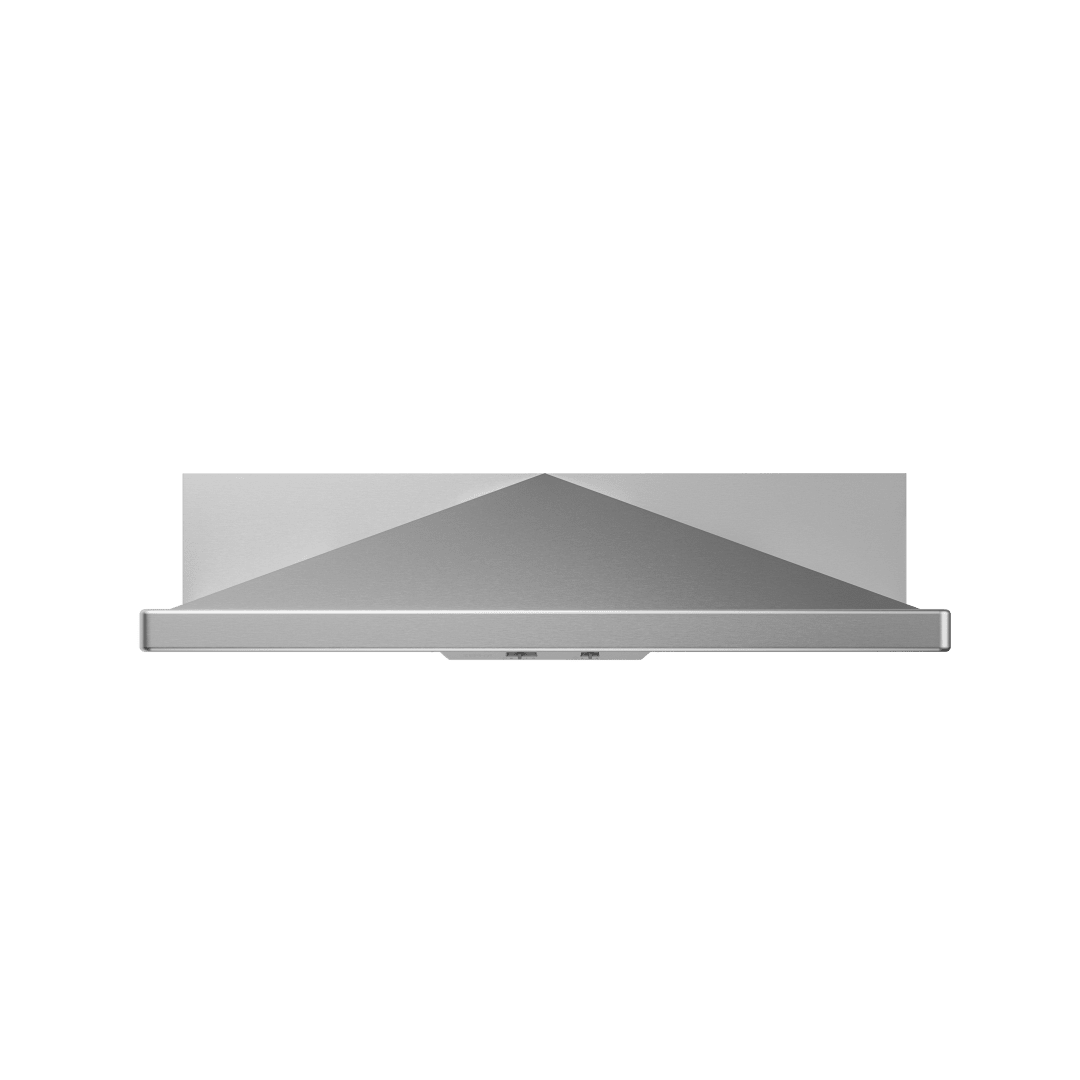

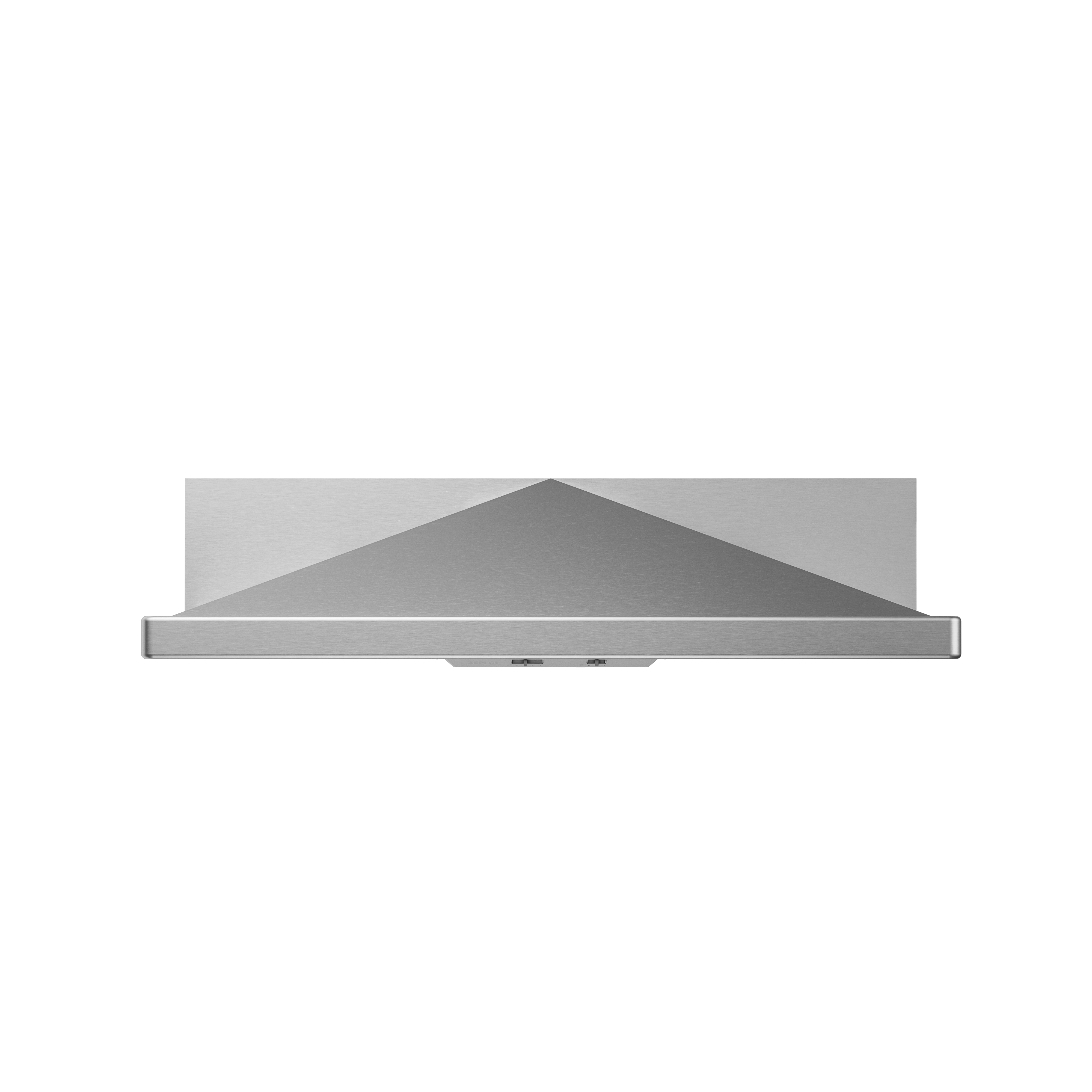

ZPY-E30AS

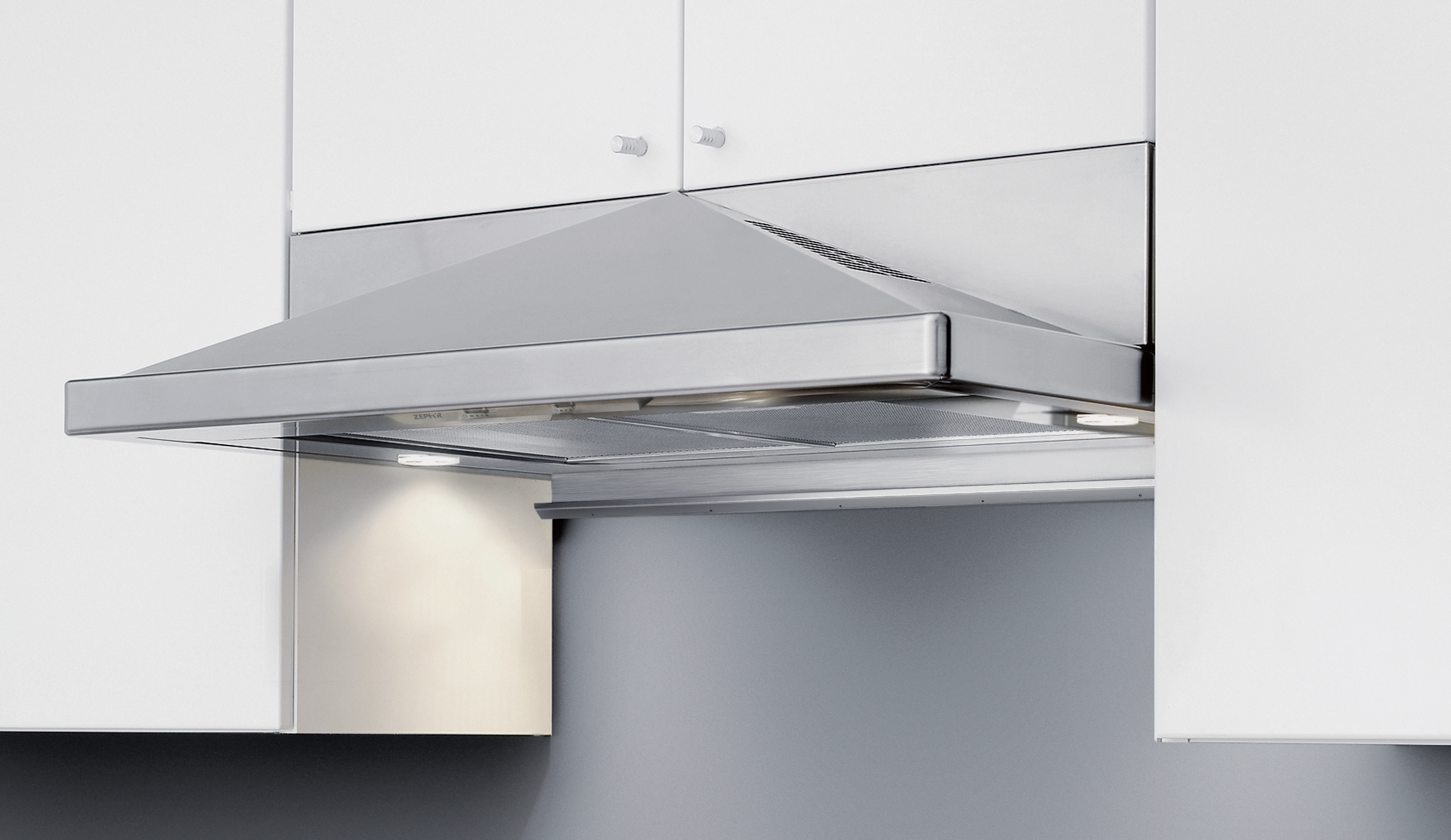

Pyramid Under-Cabinet

  • Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive yet utilitarian design also features an adjustable back-panel utensil bar that accommodates a variety of cabinet depths to put cooking utensils within easy reach. New control configuration and 12″ depth ensure simple operation and a true fit with popular cabinet styles.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelZPY-E30BS
    Model #ZPY-E30AS
    MSRP ($)$489
    Short DescriptionPyramid, UC, 30", SS
    CollectionCore Collection
    UPC646328080036
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage2
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsZRC-0200, MUA006A, Z0B0040, Z0F-C002
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffNo
  • ZPY-E30BS
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200030
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN24 - 32
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeHalogen
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
  • Net Height; IN7.375
    Net Width; IN29.9375
    Nominal Width; IN30
    Net Depth; IN21
    Weight; LBS27.9
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.

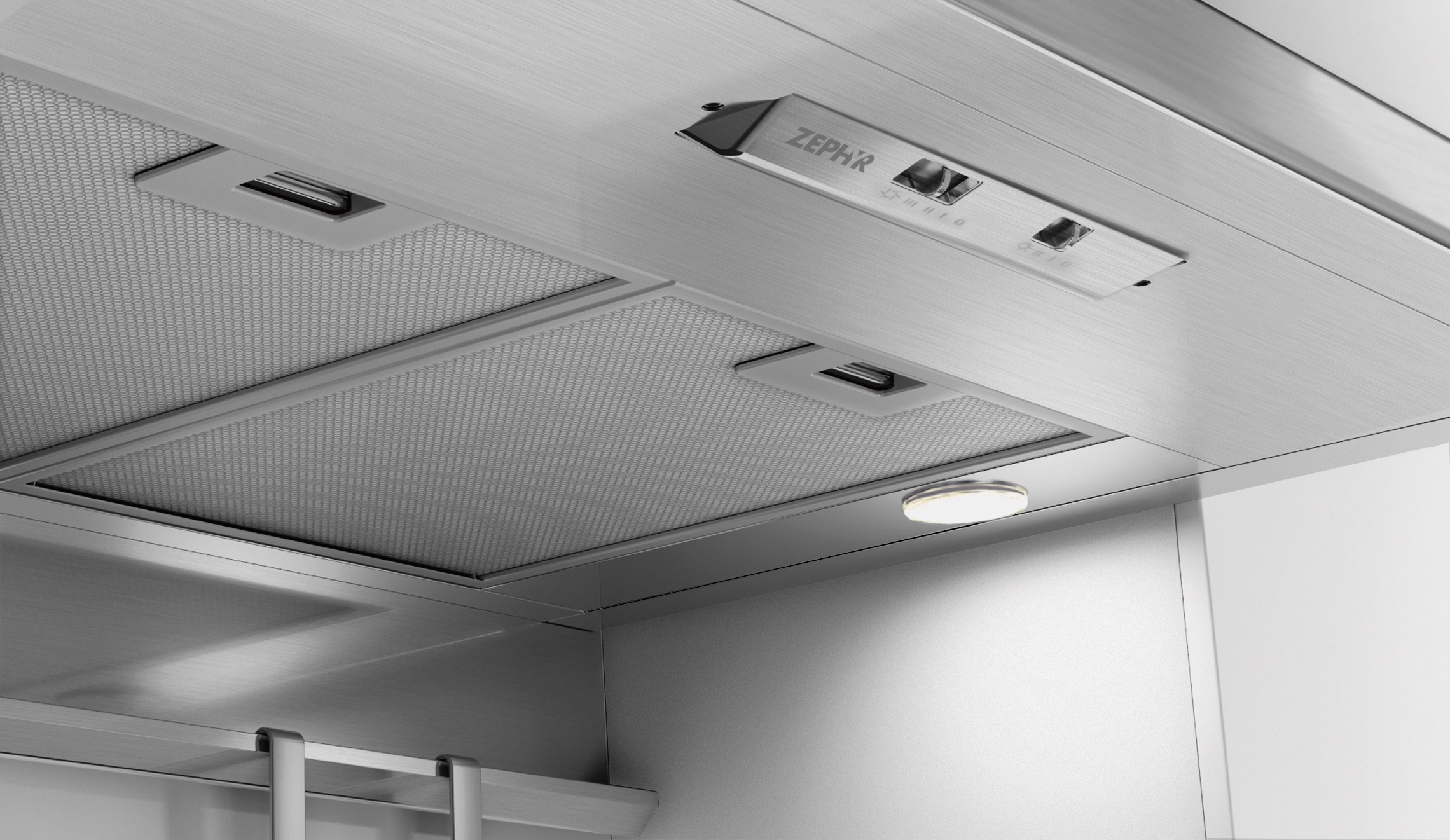

  • Feature 1Mechanical Slide Controls
    Feature 1 Definition3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
    Feature 2Adjustable Utensil Bar
    Feature 3Vertical or horizontal ducting
    Feature 3 DefinitionThis hood has the ability to vent either out the top or out the back.
    Feature 4Dishwasher Safe Aluminum Mesh Filter
    Feature 5Dual Level Halogen Lighting
    Feature 63 Year Parts, 1 Year Labor Warranty
    Feature 6 DefinitionWith service at the forefront, we back our products with a generous 1-year labor and 3-year parts warranty.
    Feature 7Optional Ductless Recirculating Kit
    Feature 7 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM400
    Internal Blower 1 Min. Sones2
    Internal Blower 1 Max Sones5
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN26.14
    Shipping Length; IN12.6
    Shipping Width; IN34.13
    Shipping Weight; LBS35.7
  • Optional Accessory 1ZRC-0200
    Optional Accessory 2MUA006A
    Optional Accessory 3Z0B0040
    Optional Accessory 4Z0F-C002
