ZPY-E30BS

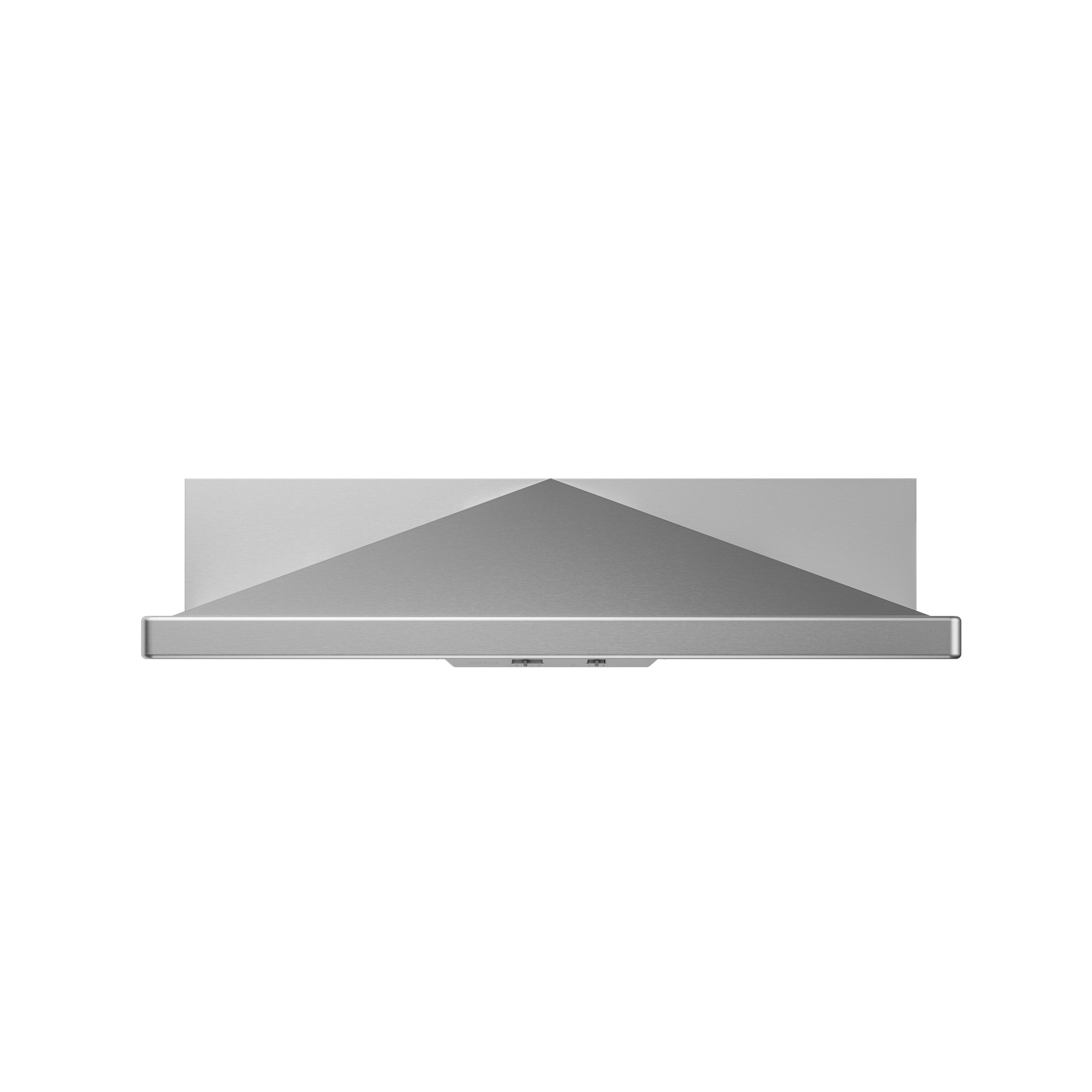

Head On IsoDownload

Range Hood

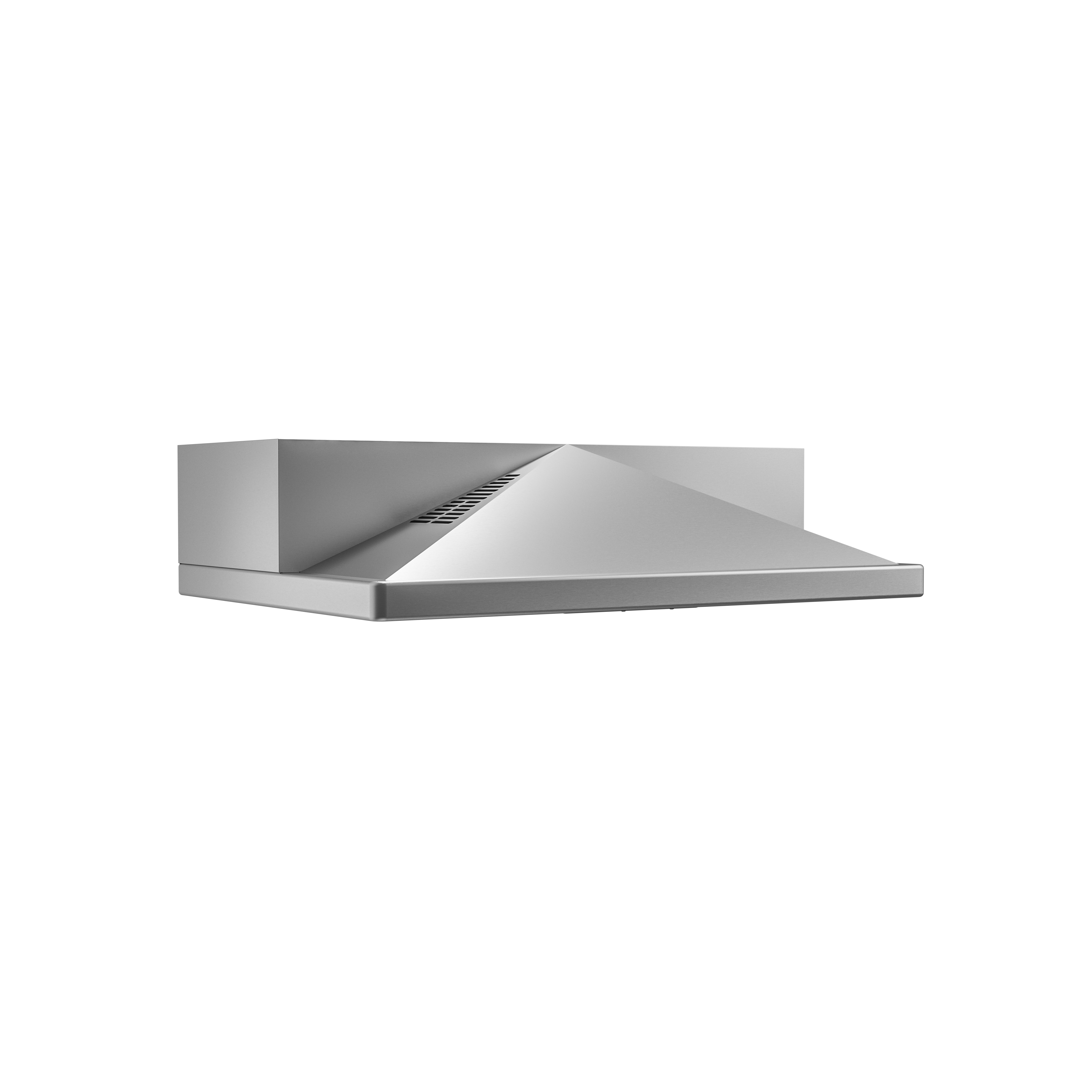

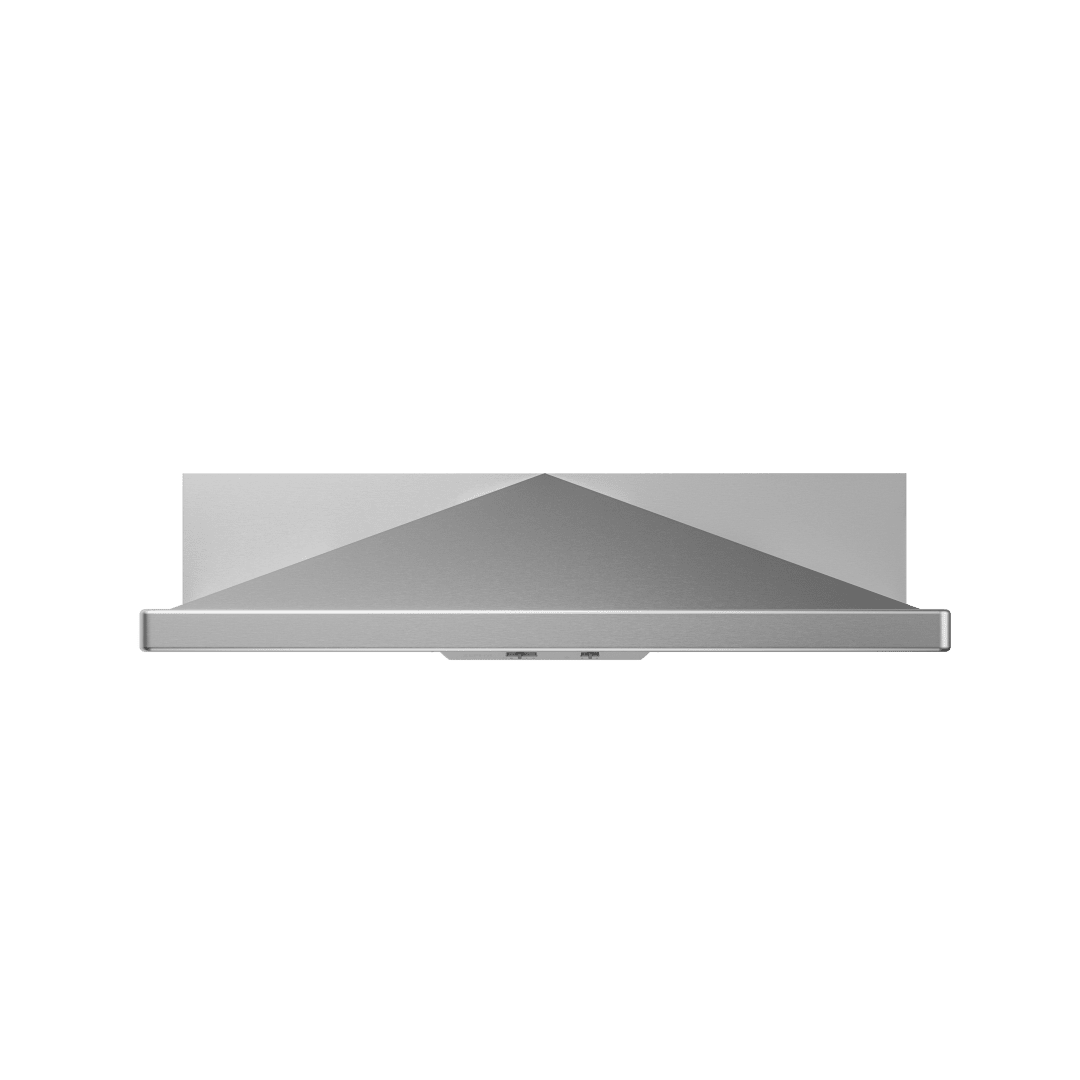

ZPY-E30BS

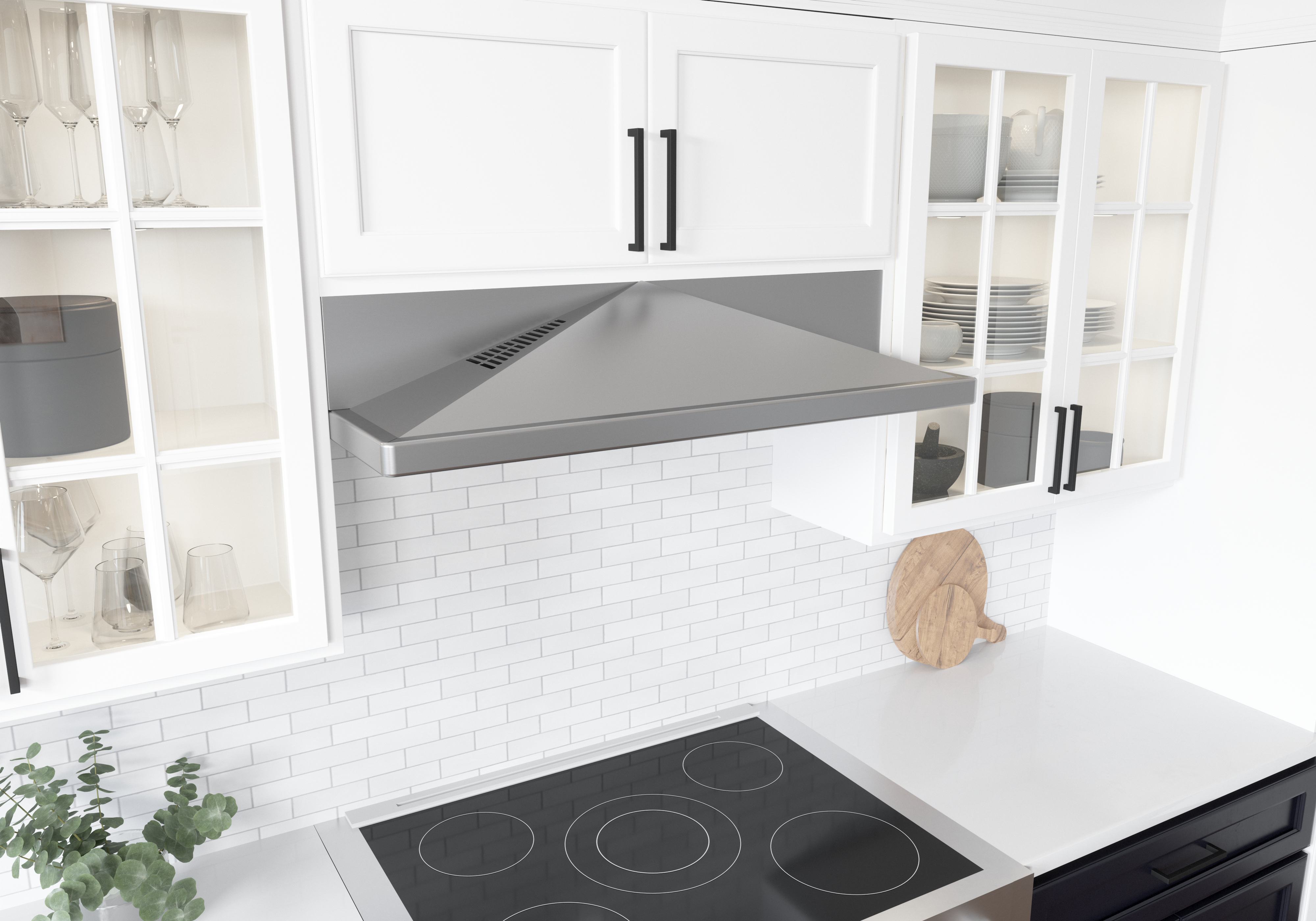

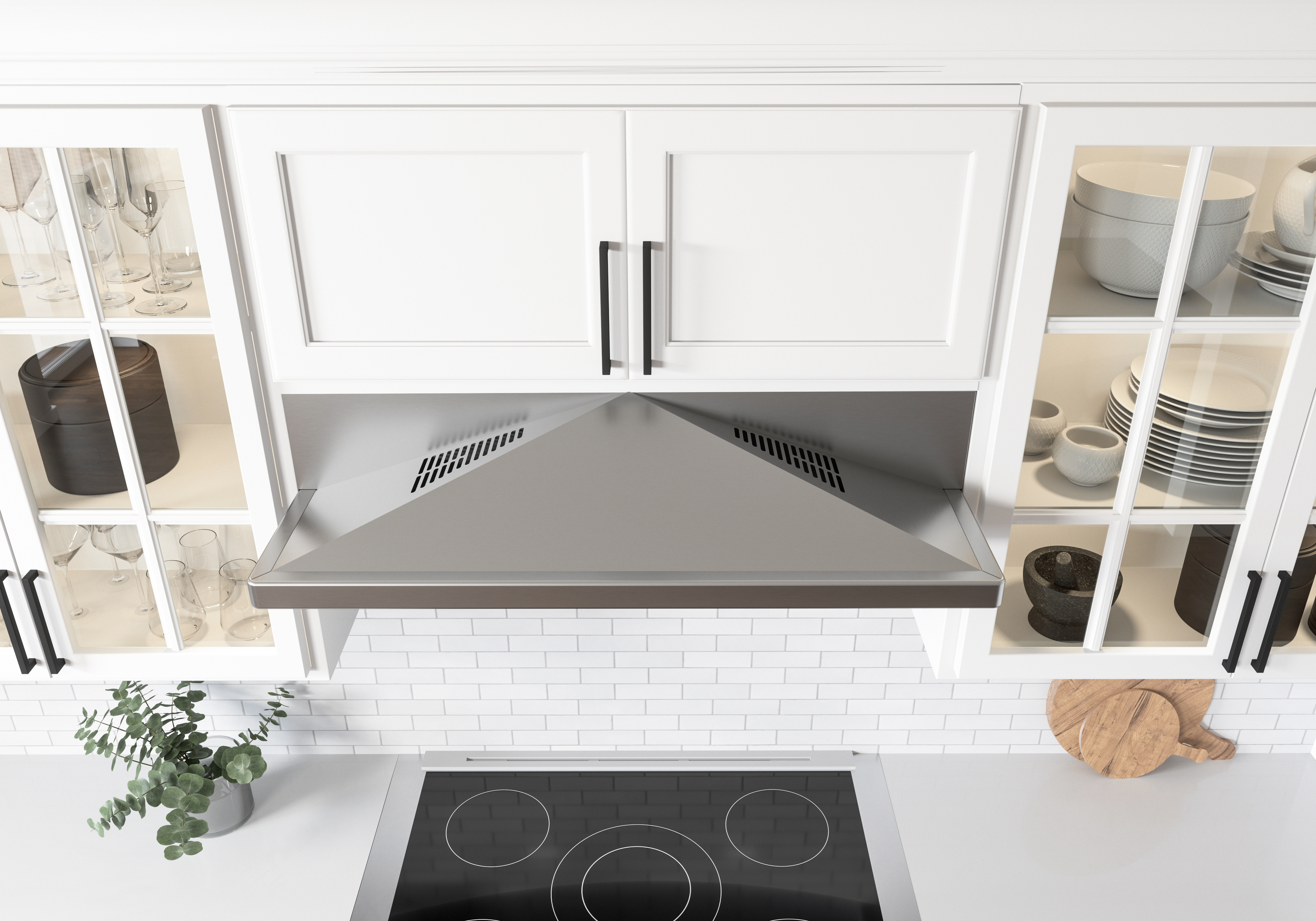

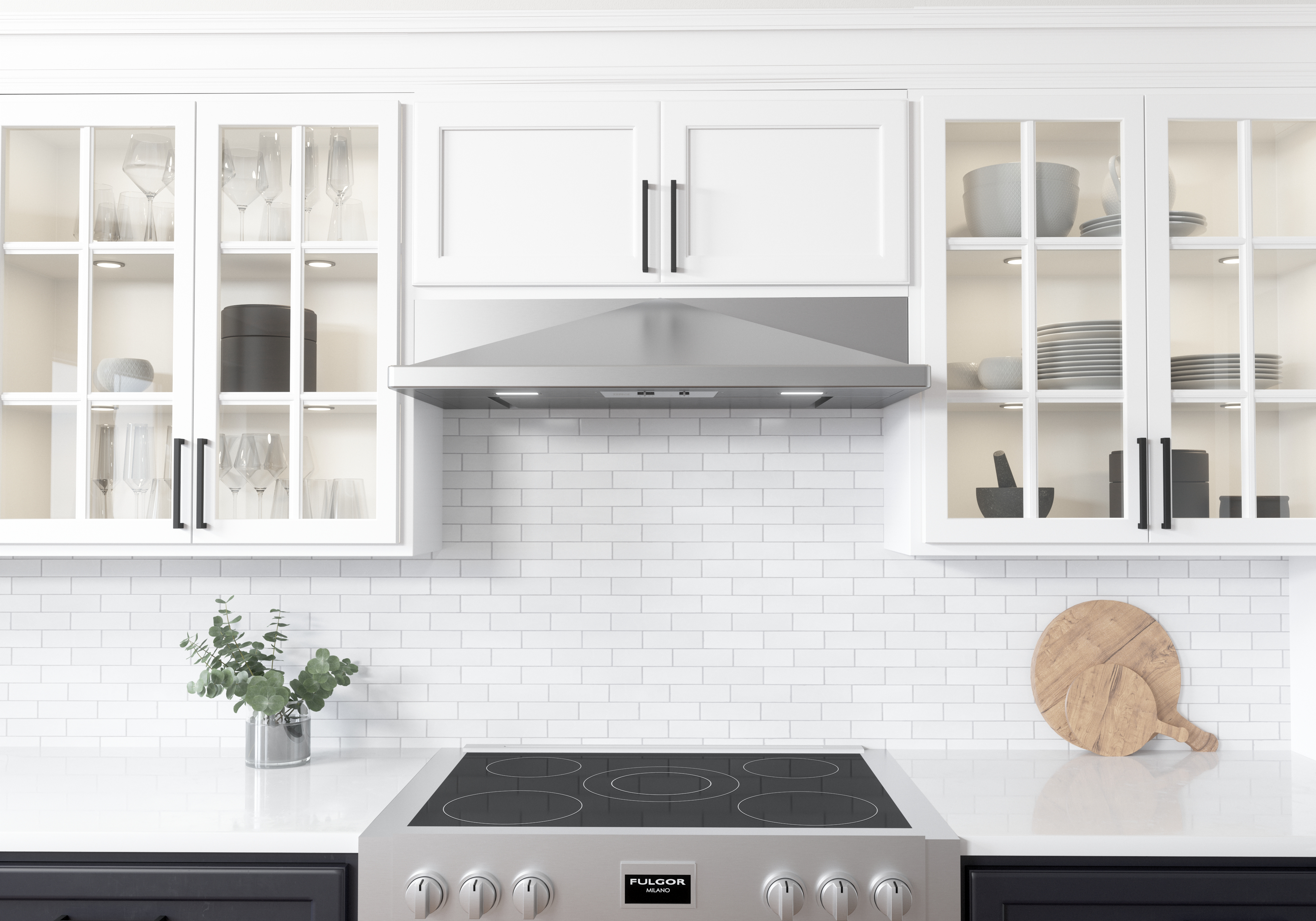

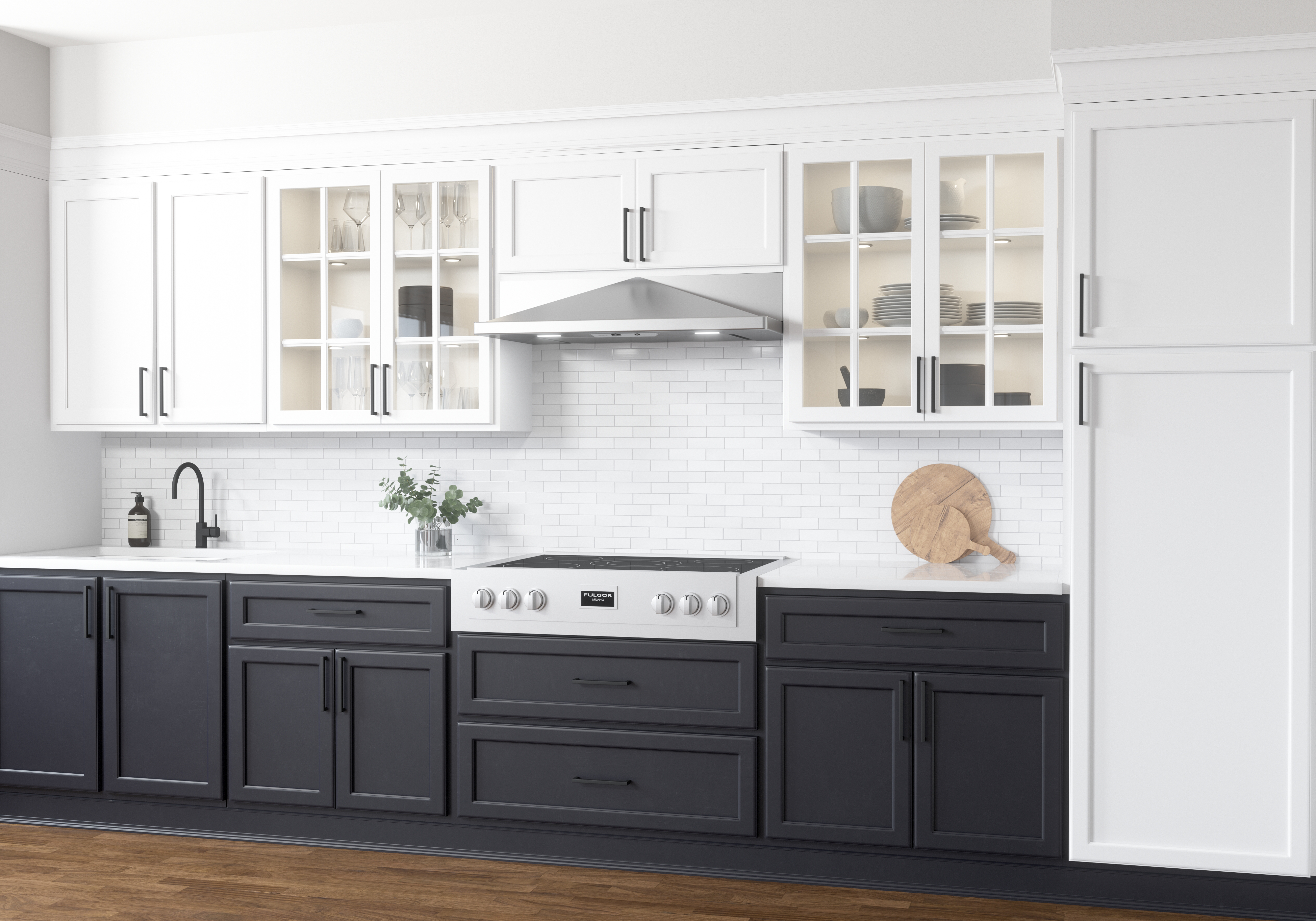

Pyramid Under-Cabinet

  • Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive-yet-utilitarian design is upgraded with our Perimeter Aspiration System for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below while the 12″ depth ensures a true fit with popular cabinet styles.
  • Product StatusActive
    BrandZephyr
    Model #ZPY-E30BS
    MSRP ($)$649
    Short DescriptionPyramid, 30in, SS, LED, PAS
    CollectionCore Collection
    UPC646328009945
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage2
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsZRC-00PY, Z0F-C009, AK1710
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffNo
  • Blower Speeds3
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200068
    Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
    Duct Type
    • Vertical
    • Horizontal
    Mounting Height Above Cooktop; IN24 - 32
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
  • Net Height; IN7.375
    Net Width; IN29.9375
    Nominal Width; IN30
    Net Depth; IN21
    Weight; LBS31.2
    Ceiling Height Maximum12 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1LumiLight LED Lighting
    Feature 1 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.

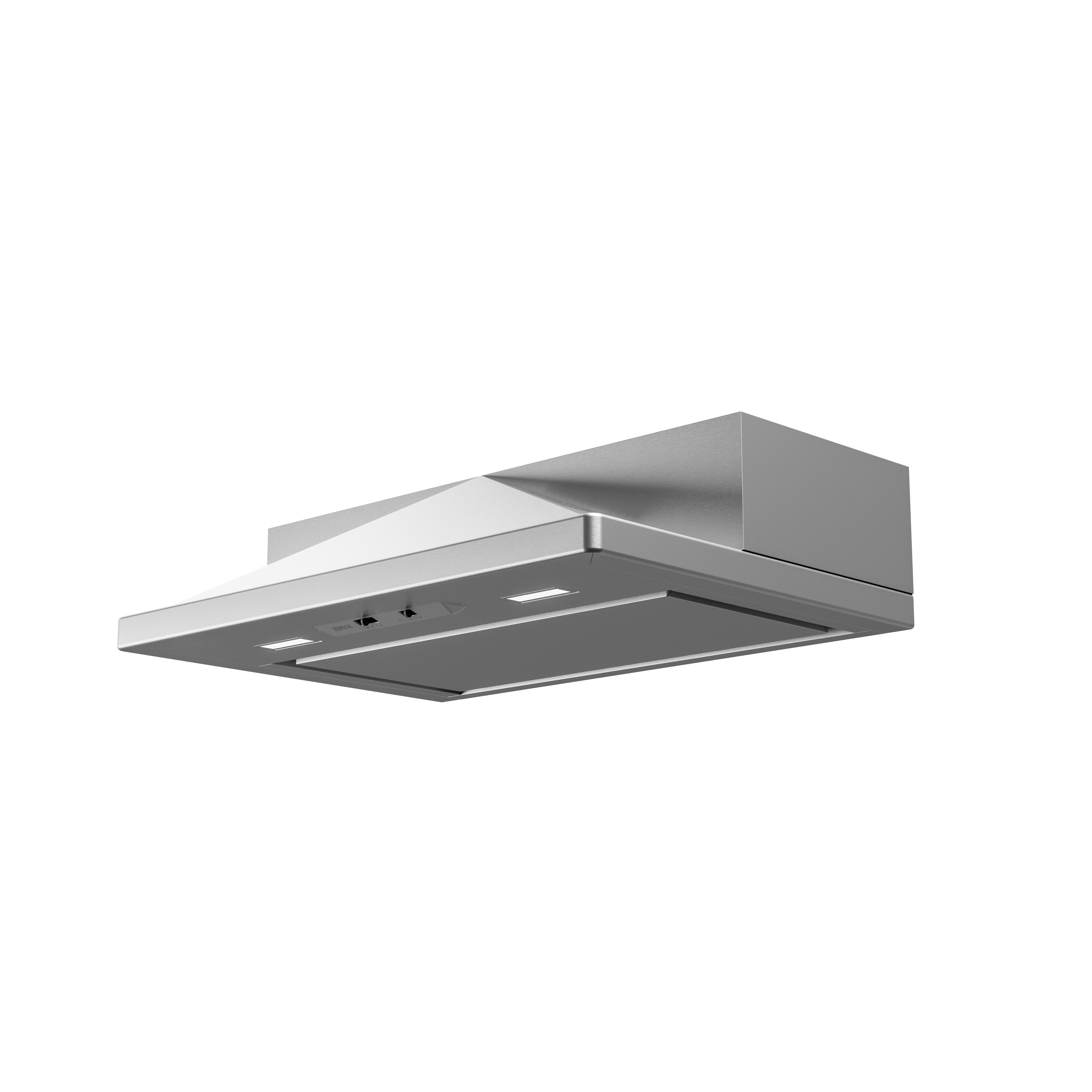

    Feature 2Mechanical Slide Controls
    Feature 2 Definition3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
    Feature 3Vertical or horizontal ducting
    Feature 3 DefinitionThis hood has the ability to vent either out the top or out the back.

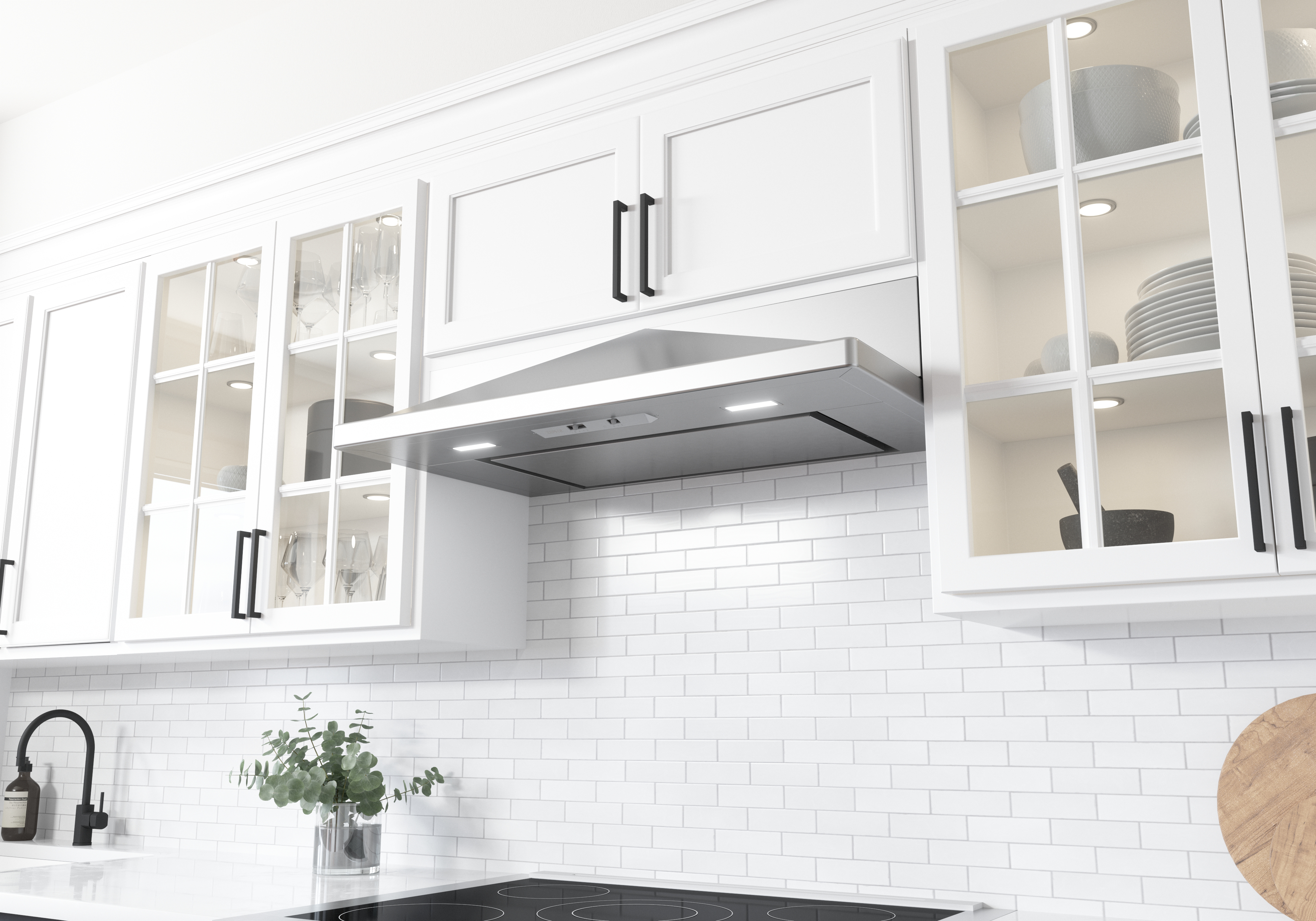

    Feature 4Dual-Level Lighting
    Feature 4 DefinitionThe dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 5Dishwasher Safe Aluminum Mesh Filters
    Feature 5 DefinitionHigh-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.

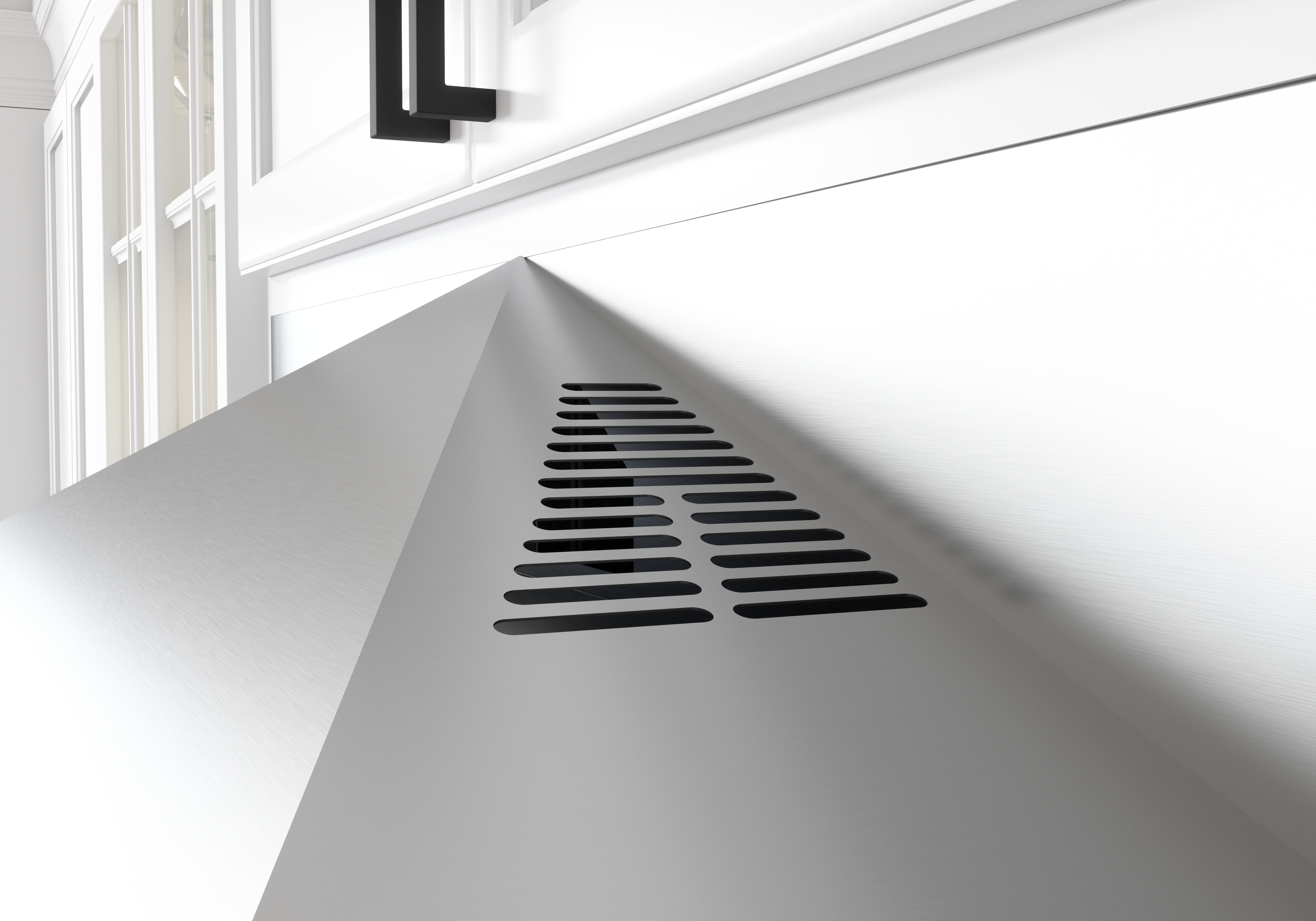

    Feature 6Perimeter Aspiration System
    Feature 6 DefinitionThis form of ventilation moves airflow away from the central area and evenly distributes it around the perimeter of the hood. This technique increases air velocity and improves the capture of cooking contaminates.
    Feature 7Optional Ductless Recirculating Kit
    Feature 7 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM400
    Internal Blower 1 Min. Sones2
    Internal Blower 1 Max Sones5
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN26
    Shipping Length; IN34
    Shipping Width; IN13
    Shipping Weight; LBS36
  • Optional Accessory 1ZRC-00PY
    Optional Accessory 2Z0F-C009
    Optional Accessory 3AK1710
