ZRE-M90BBSGG
Head On IsoDownload

Range Hood

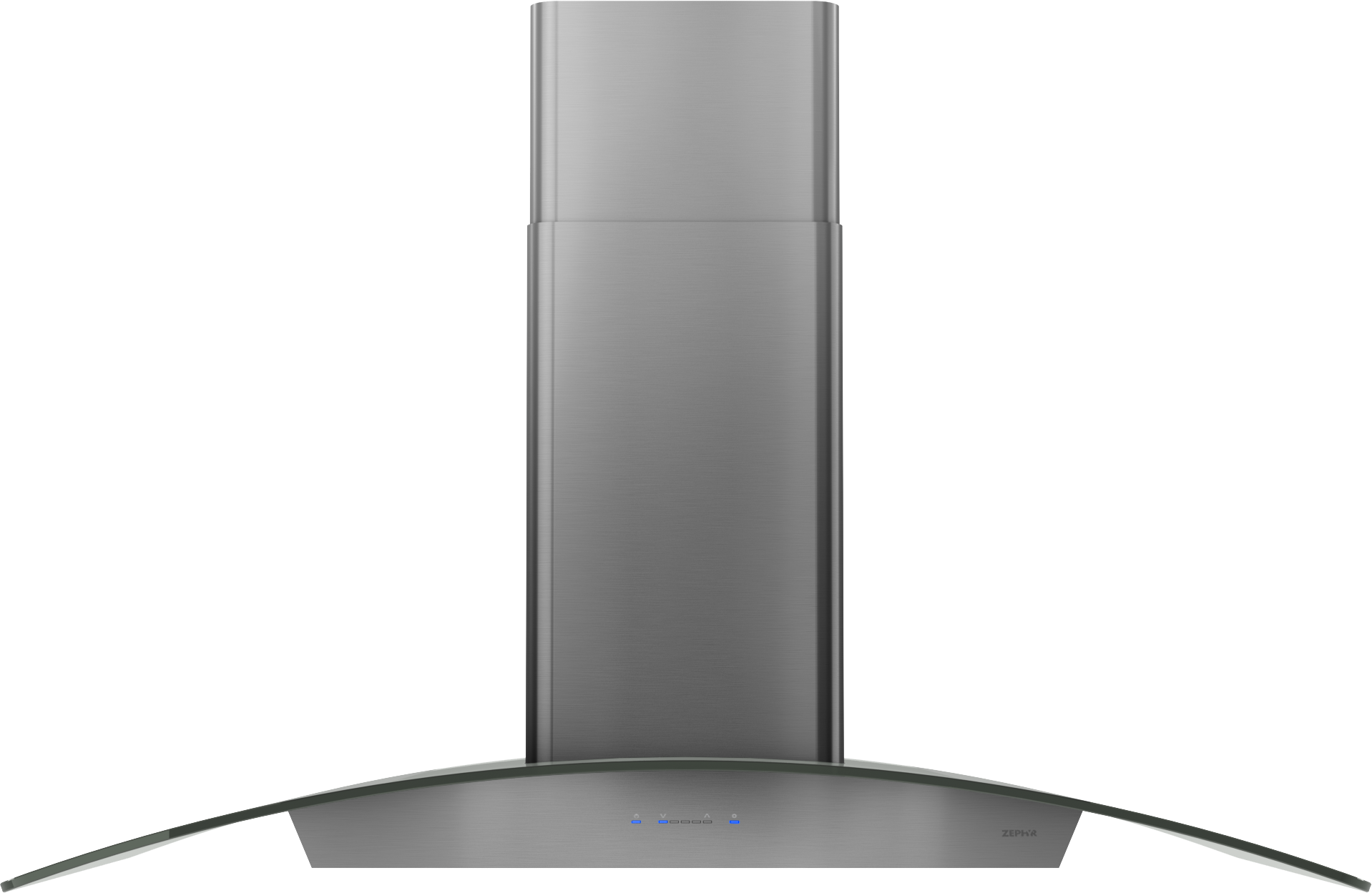

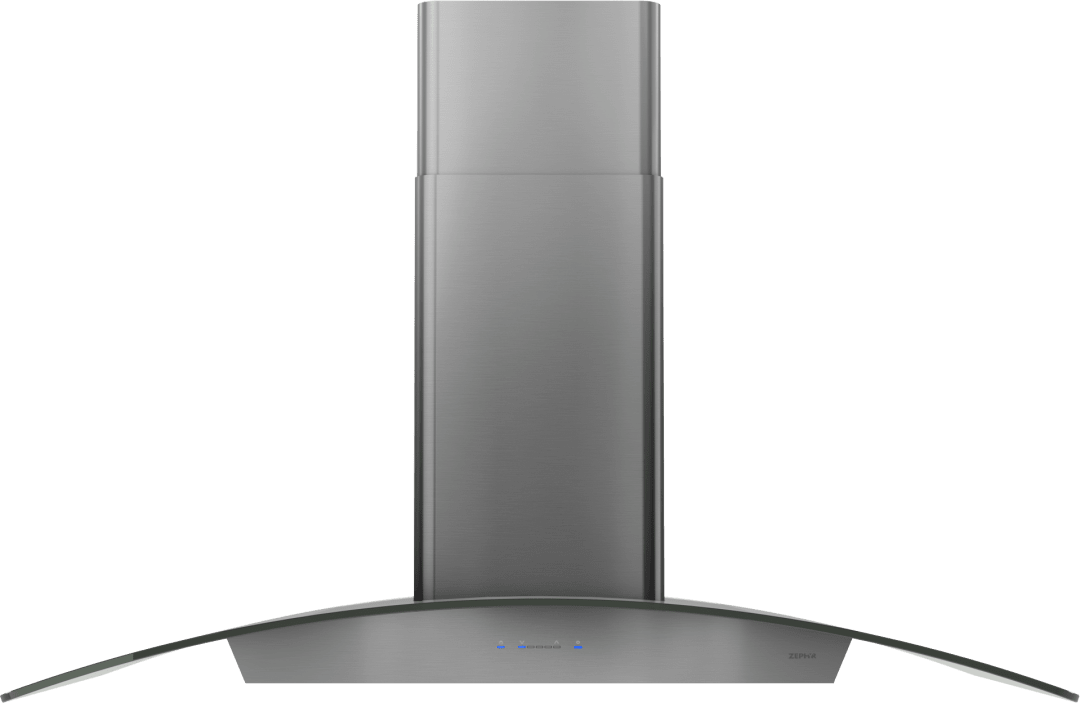

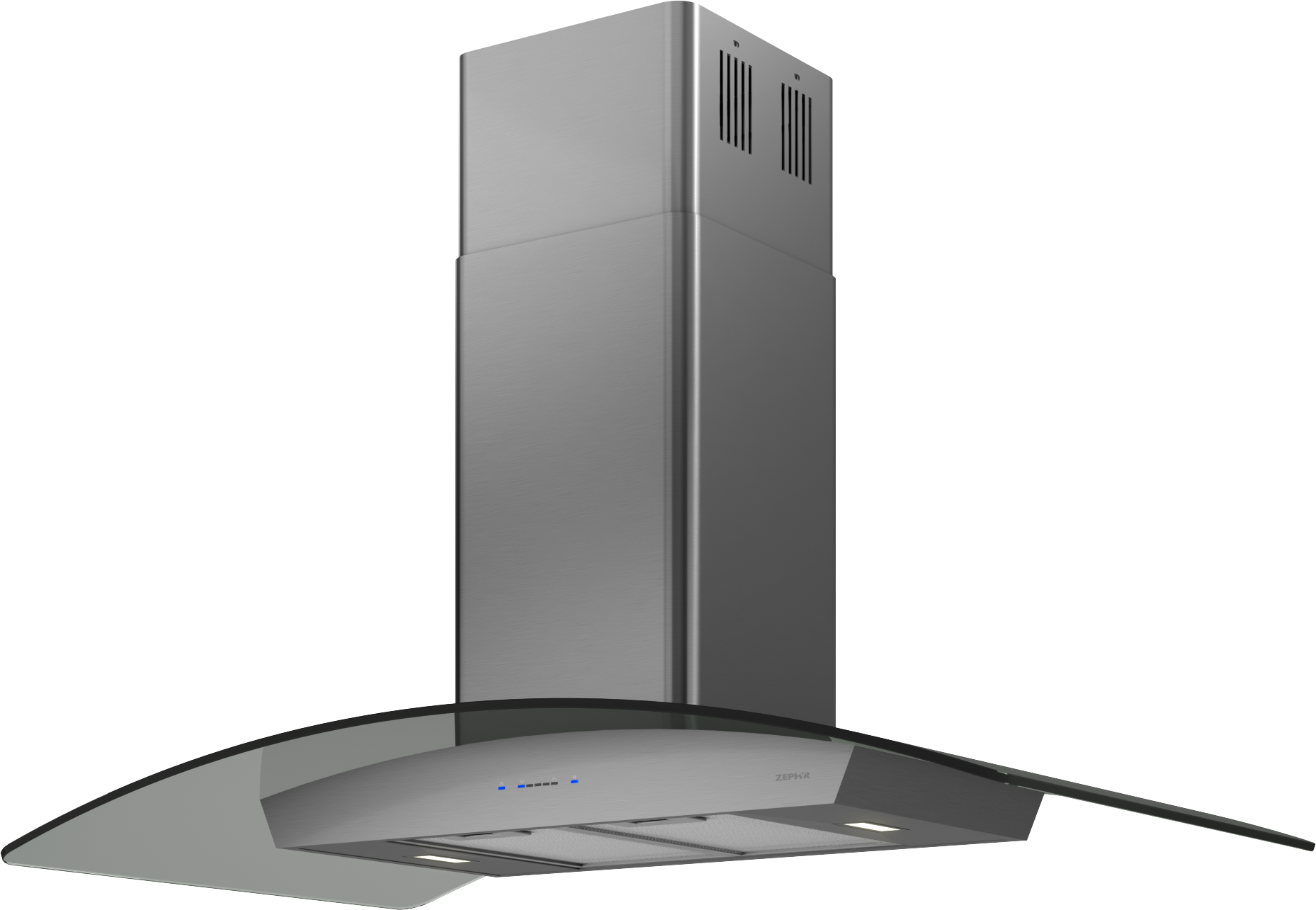

ZRE-M90BBSGG

Ravenna Island

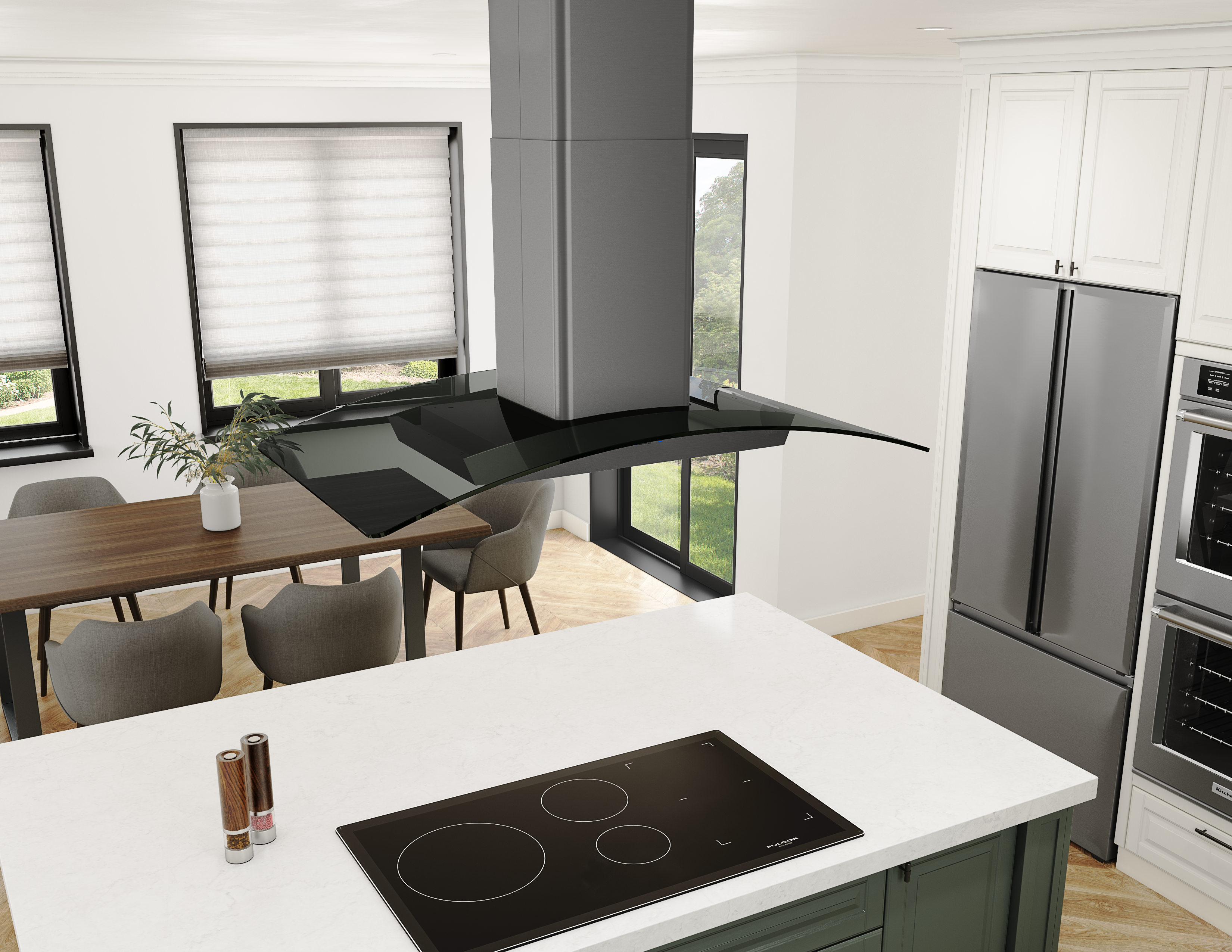

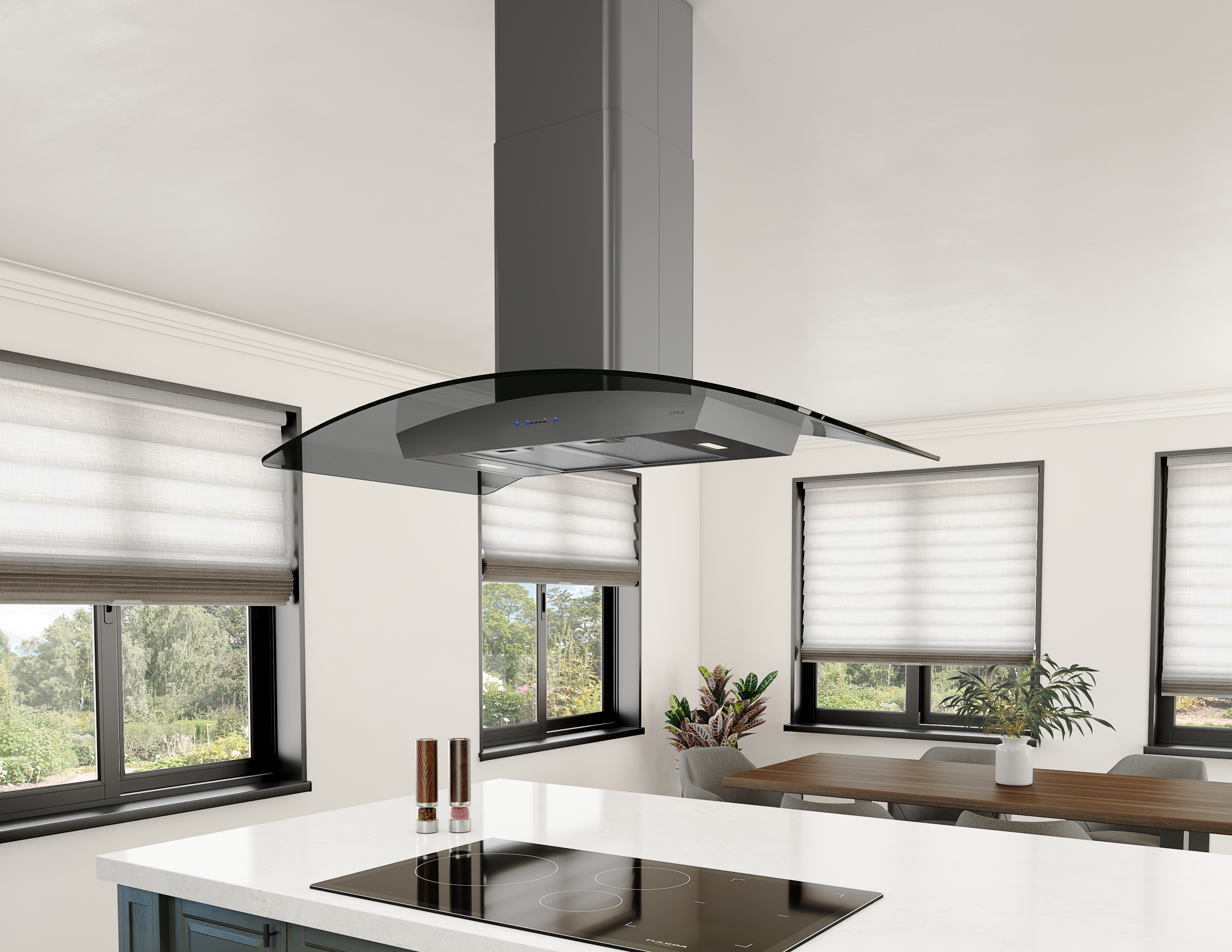

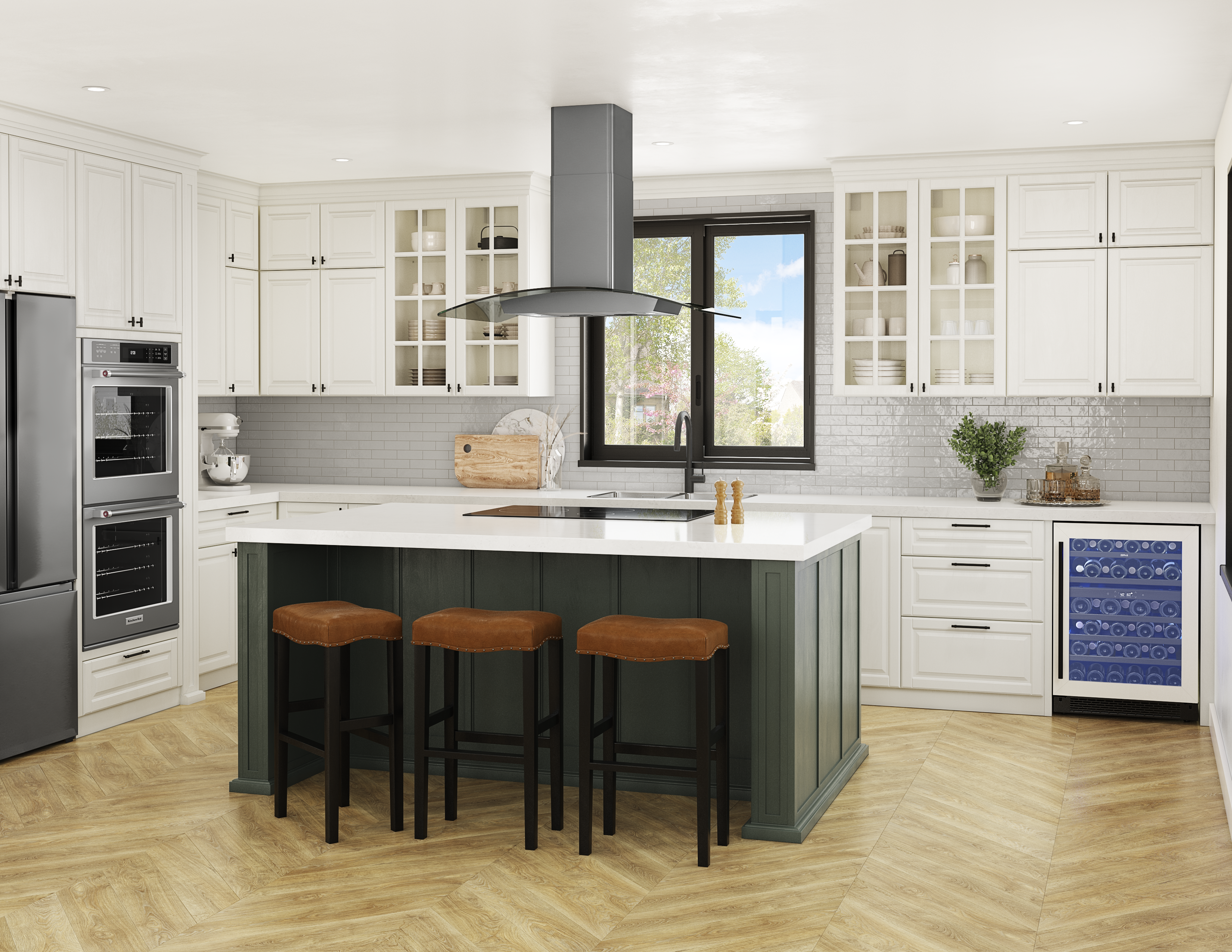

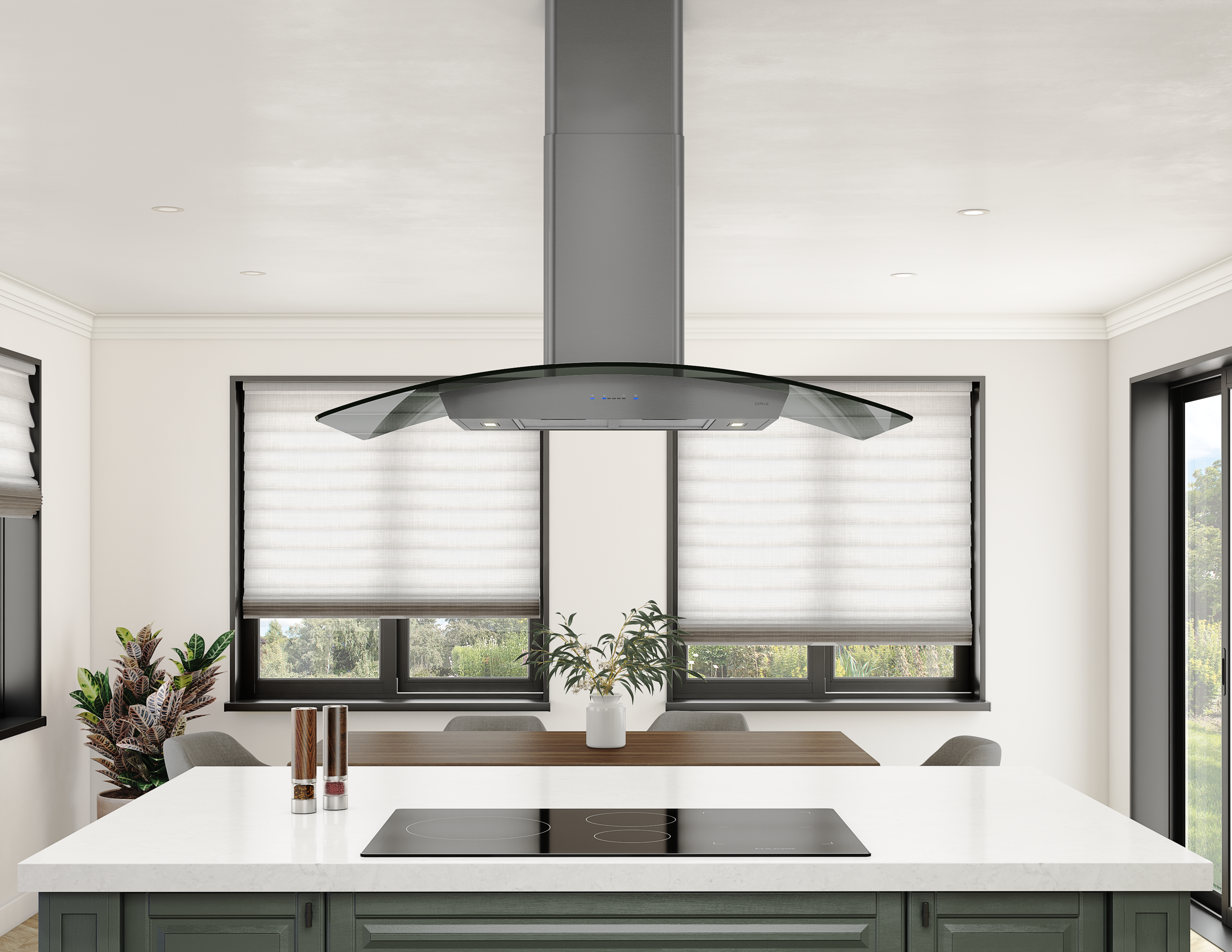

  • The delicate curve of a smoke-gray glass canopy arching over your island cooktop will add an elegance to your everyday cooking experience. The Ravenna features our sleek black stainless steel finish with an anti-smudge Titanium coating for extra durability and easy cleaning. Complete with our exclusive Airflow Control Technology™ (ACT™), ICON Touch® controls, LumiLight LED lighting, and a powerful — yet quiet — 600-CFM blower. Now available with an optional ADA-compliant remote control.
Size
Color/Finish
  • Product StatusActive
    BrandZephyr
    Model #ZRE-M90BBSGG
    MSRP ($)$2249
    Short DescriptionRavenna Island, 90cm, Black SS+Gray Glass, LED
    CollectionCore Collection
    UPC646328010781
    CategoryRange Hood
    Installation TypeIsland
    For Outdoor UseNo
    Controls TypeICON Touch®
    Lighting TypeLED
    Lights Quantity2
    Voltage120
    Maximum Amperage4
    ColorBlack Stainless Steel
    Blower Speeds5
    Watts Per Bulb6
    Lights Levels2
    Mounting Height Above Cooktop; IN24 - 34
    Compatible ModelsZRC-00RE, Z1C-00REBS, MUA006A, Z0F-C002, RC-0002
    Country of OriginTaiwan
    Grease Filter TypeMesh
    Compatible Mesh or Baffle Filter Part Number50200043
    CEC Title 20 CompliantYes
    ADA CompliantYes, with optional remote
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
  • Net Height; IN28.5 - 38
    Net Width; IN35.1875
    Nominal Width; IN36
    Net Depth; IN25.5625
    Weight; LBS86
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2ICON Touch® Controls
    Feature 2 DefinitionICON Touch Controls seamlessly integrate into the hoods stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders. With its blue LED indicator lights and sleek modern aesthetic, the ICON Touch Controls are the future of ventilation control technology.
    Feature 3LumiLight LED Lighting
    Feature 3 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 4Dual-Level Lighting
    Feature 4 DefinitionThe dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 5Curved Glass Canopy
    Feature 5 DefinitionThe delicate curve of a glass canopy arching over your cooktop will add an elegance to your everyday cooking experience.
    Feature 6Optional Ductless Recirculating Kit
    Feature 6 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 7Optional Extension Duct Cover Kit
    Feature 7 DefinitionExtension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM600
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones6
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN24.2
    Shipping Length; IN31.2
    Shipping Width; IN43.1
    Shipping Weight; LBS104.9
  • Optional Accessory 1ZRC-00RE
    Optional Accessory 2Z1C-00REBS
    Optional Accessory 3MUA006A
    Optional Accessory 4Z0F-C002
    Optional Accessory 5RC-0002
