Head On Iso
Range Hood

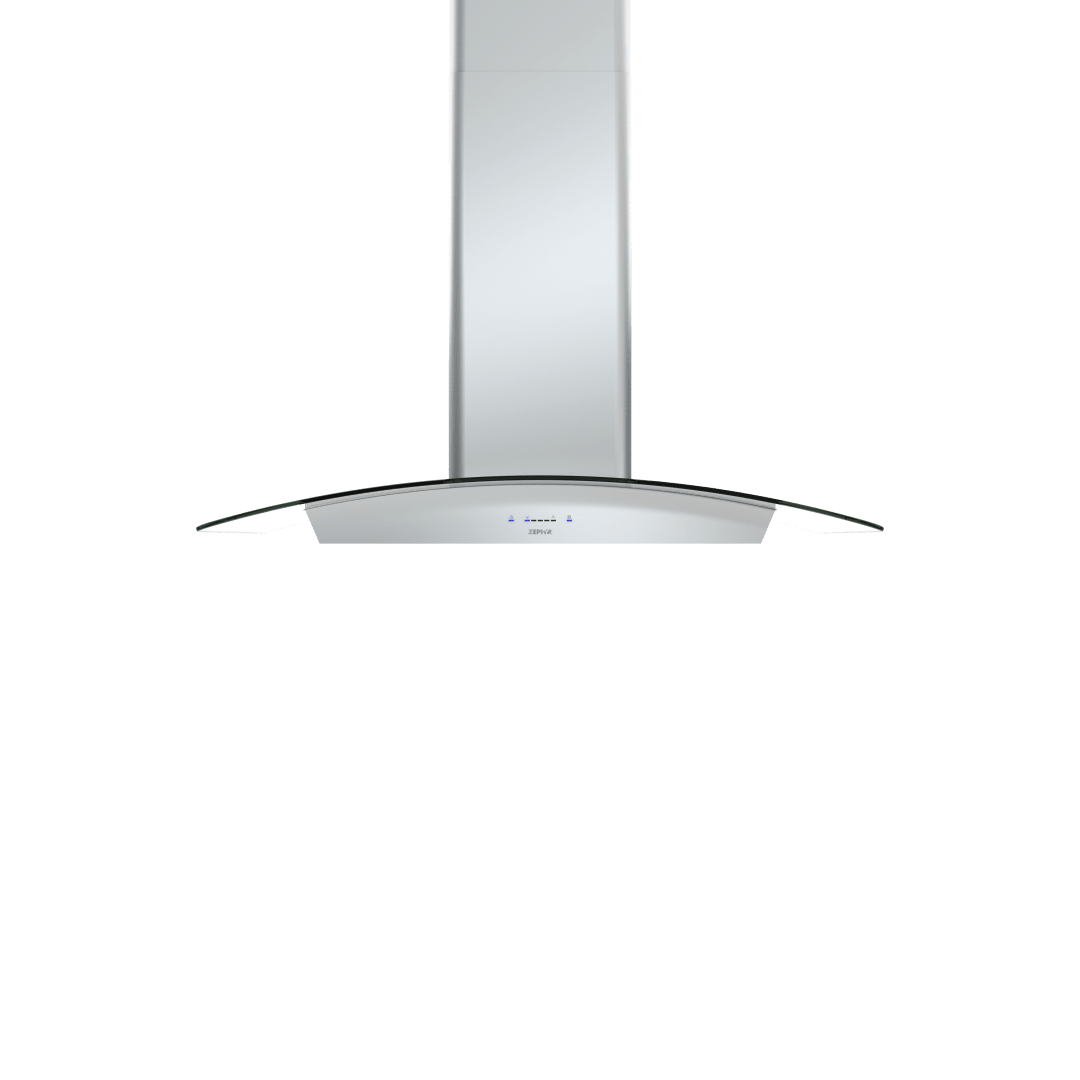

ZRV-M90BBSGG
Ravenna Wall

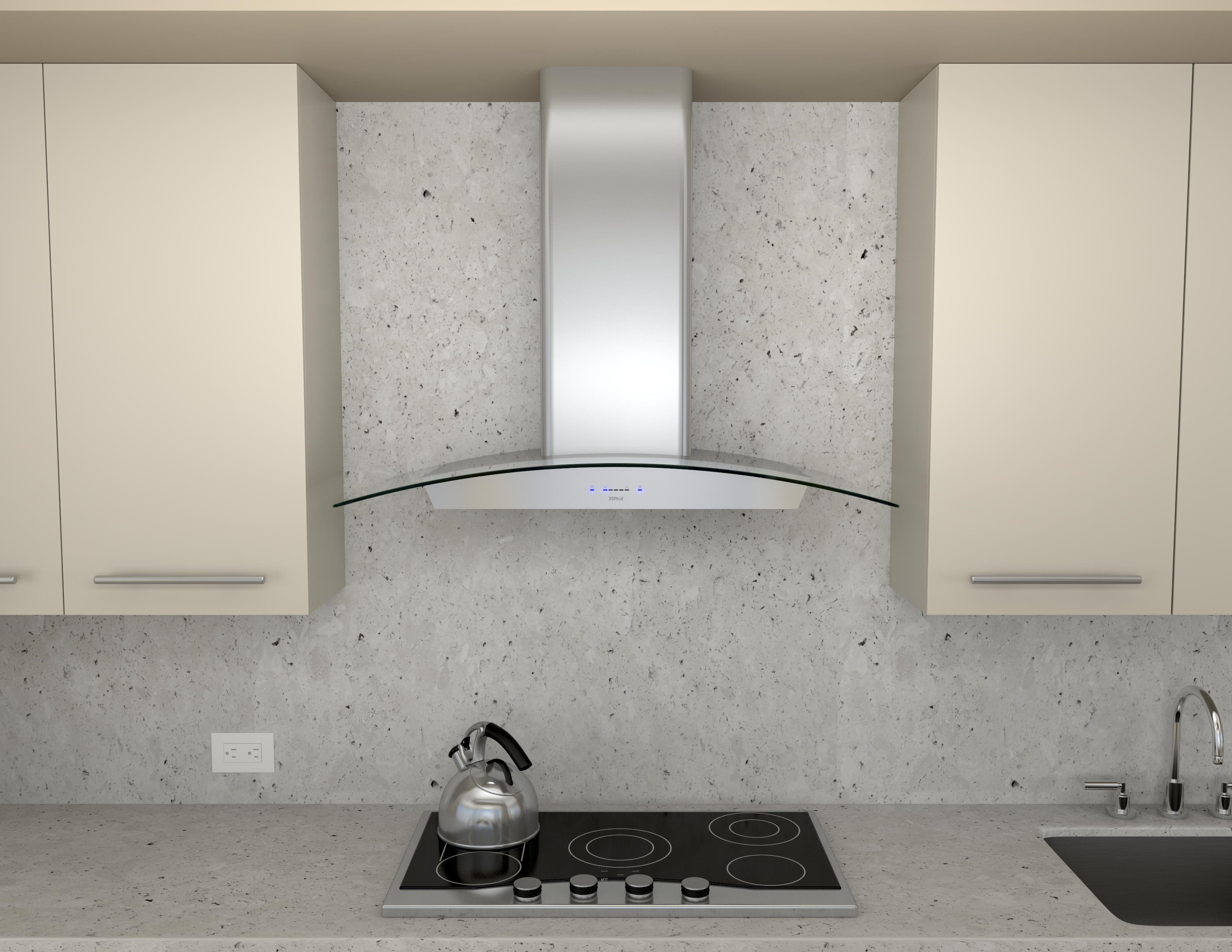

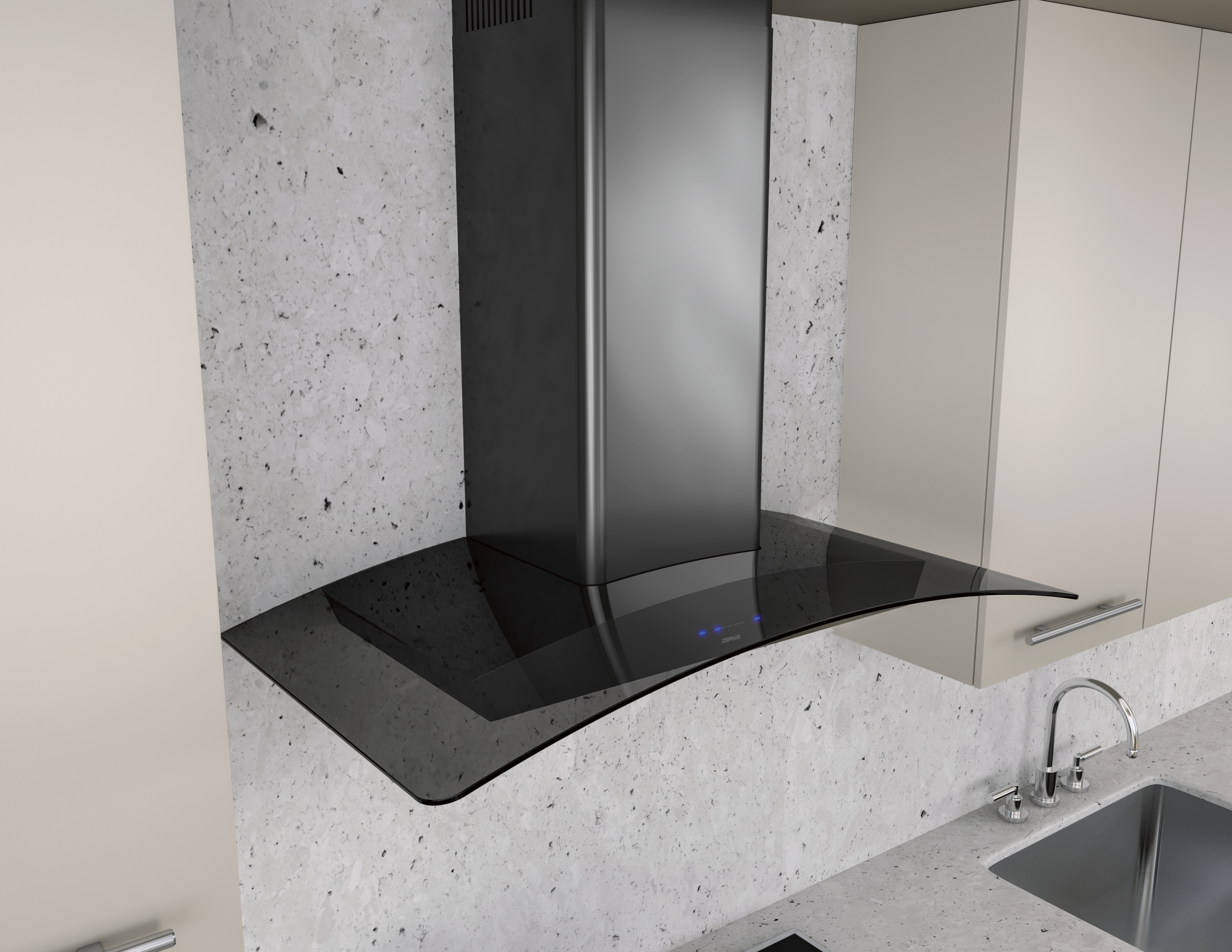

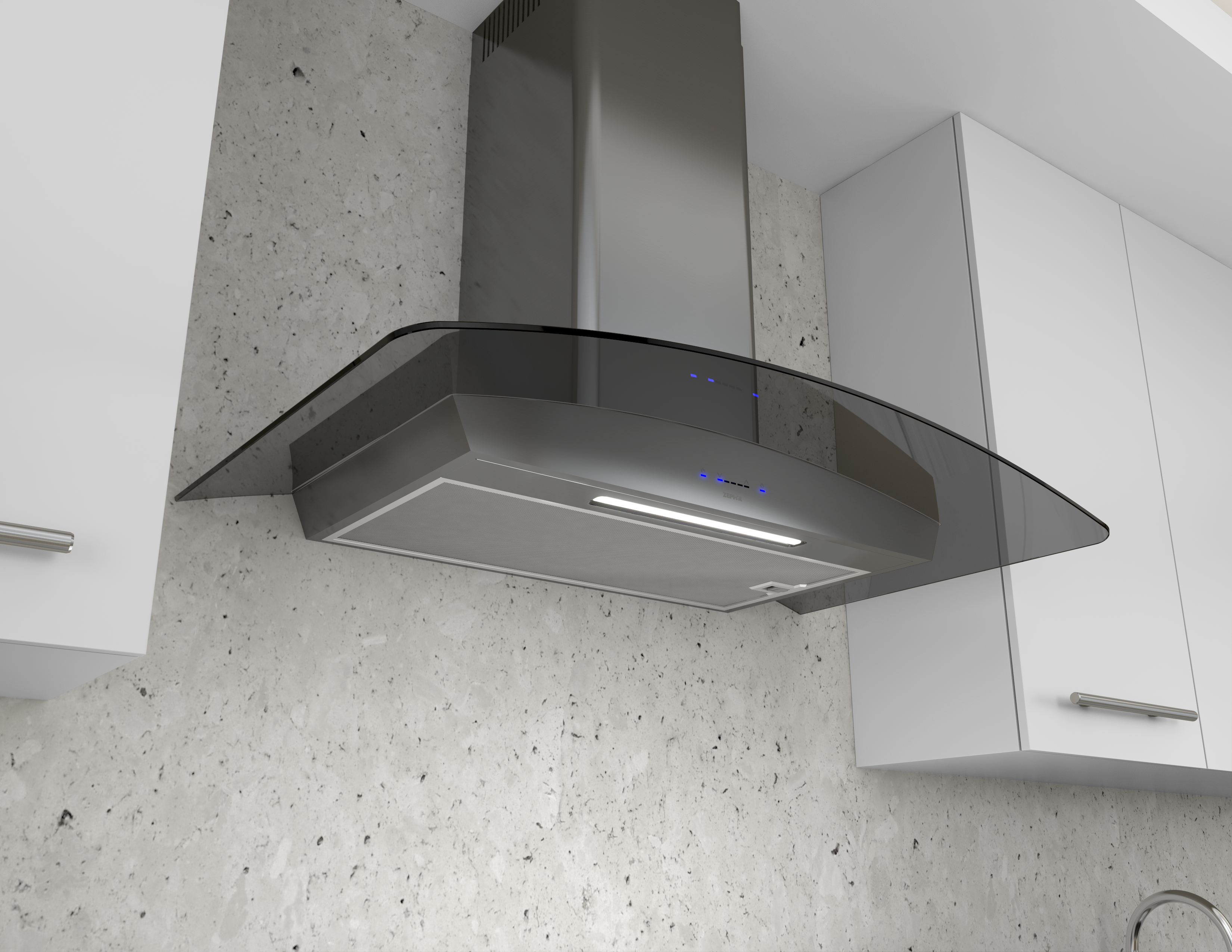

- The delicate curve of a glass canopy arching over your cooktop will add an elegance to your everyday cooking experience. Updated with Zephyr’s trend-setting Black Stainless Steel, the Ravenna combines 21st century know-how with timeless beauty. Featuring clear and smoke-gray glass canopy options, as well as ACT™ technology, ICON Touch® Controls, BriteStrip™ LED lighting and a powerful, yet quiet, 600 CFM blower.
Product Status Discontinued Brand Zephyr Replacement Model ZRV-M90CBSGG Model # ZRV-M90BBSGG MSRP ($) $1349 Short Description Ravenna, Wall, 90cm, Blk SS+Gray Glass, ACT, LED Collection Core Collection UPC 646328005336 Category Range Hood Installation Type Wall For Outdoor Use No Controls Type ICON Touch® Lighting Type LED Lights Quantity 1 Voltage 120 Maximum Amperage 5 Color Stainless Steel + Glass Blower Speeds 5 Watts Per Bulb 9 Lights Levels 2 Mounting Height Above Cooktop; IN 26 - 34 Compatible Models ZRC-00RV, Z1C-00RVBS, MUA006A, Z0F-C002 Country of Origin Taiwan Grease Filter Type Mesh Compatible Mesh or Baffle Filter Part Number 50200044 CEC Title 20 Compliant Yes ADA Compliant No Duct Discharge Vertical Duct Size; Horizontal; IN N/A Duct Size; Vertical; IN 6 Net Height; IN 23 - 42.5 Net Width; IN 35.1875 Nominal Width; IN 36 Net Depth; IN 19.75 Weight; LBS 43.5 Feature 1 Airflow Control Technology™ (ACT™) Feature 1 Definition Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements. Feature 2 ICON Touch® Controls Feature 2 Definition ICON Touch Controls seamlessly integrate into the hoods stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders. With its blue LED indicator lights and sleek modern aesthetic, the ICON Touch Controls are the future of ventilation control technology. Feature 3 BriteStrip™ LED Lighting Feature 3 Definition The future just got brighter. BriteStrip LED lighting includes key features such as being dimmable, lasts 25,000 hours, has a 3,000K warm white color and evenly distributes light over your cooking surface. Feature 4 Dual-Level Lighting Feature 4 Definition The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution. Feature 5 Curved Glass Canopy Feature 5 Definition The delicate curve of a glass canopy arching over your cooktop will add an elegance to your everyday cooking experience. Feature 6 Optional Ductless Recirculating Kit Feature 6 Definition Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen. Feature 7 Optional Extension Duct Cover Kit Feature 7 Definition Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details. Energy Star Certified No Blower Included Yes Blower CFM w/ACT 390, 290 Internal Blower 1 CFM 600 Internal Blower 1 Min. Sones 1 Internal Blower 1 Max Sones 6 Warranty Parts / Labor 3 / 1 Shipping Height; IN 25 Shipping Length; IN 38.58 Shipping Width; IN 21.65 Shipping Weight; LBS 60.1 Optional Accessory 1 ZRC-00RV Optional Accessory 2 Z1C-00RVBS Optional Accessory 3 MUA006A Optional Accessory 4 Z0F-C002
