ZSA-E30CW
Head On IsoDownload

Range Hood

ZSA-E30CW

Savona Wall

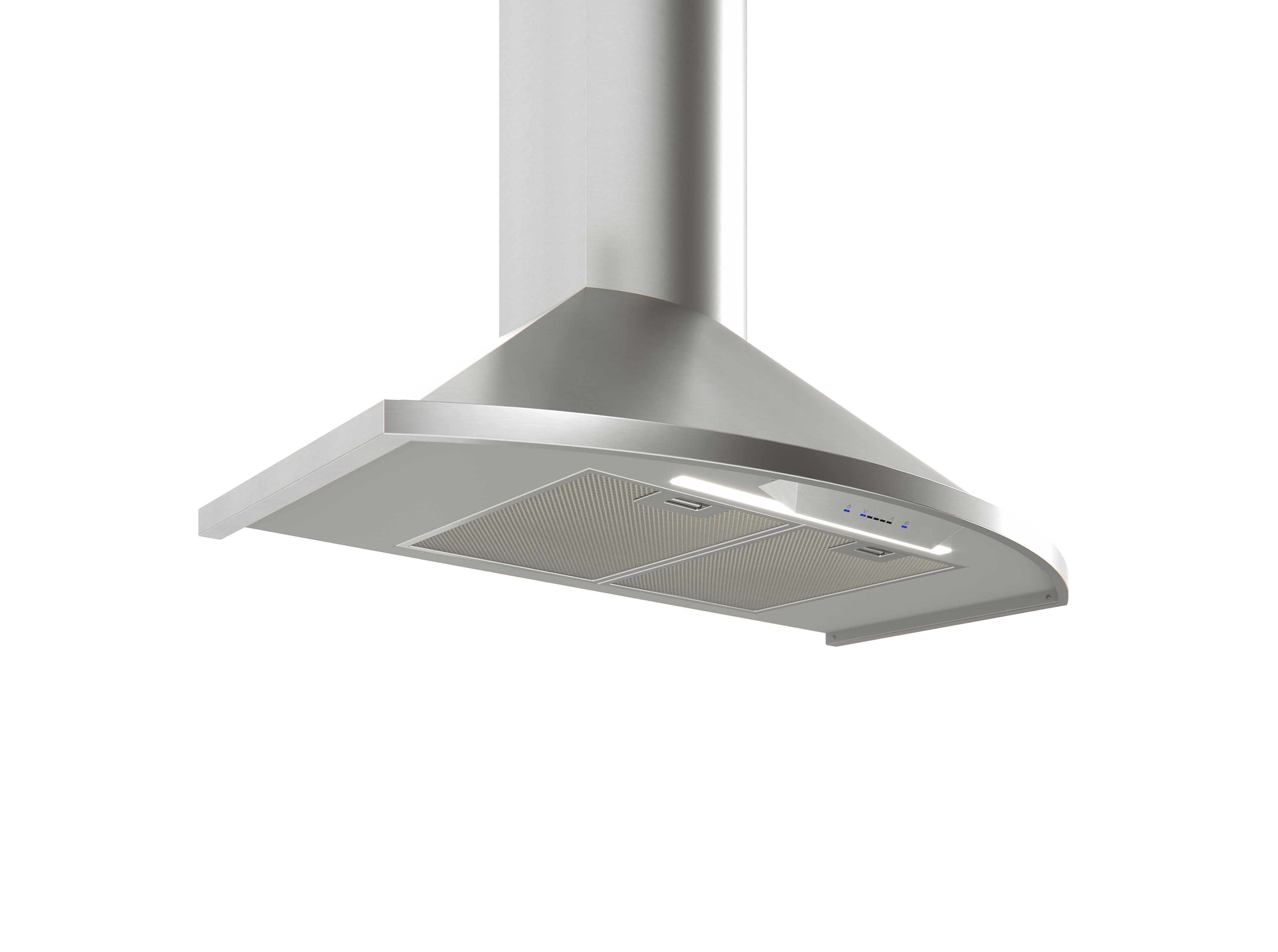

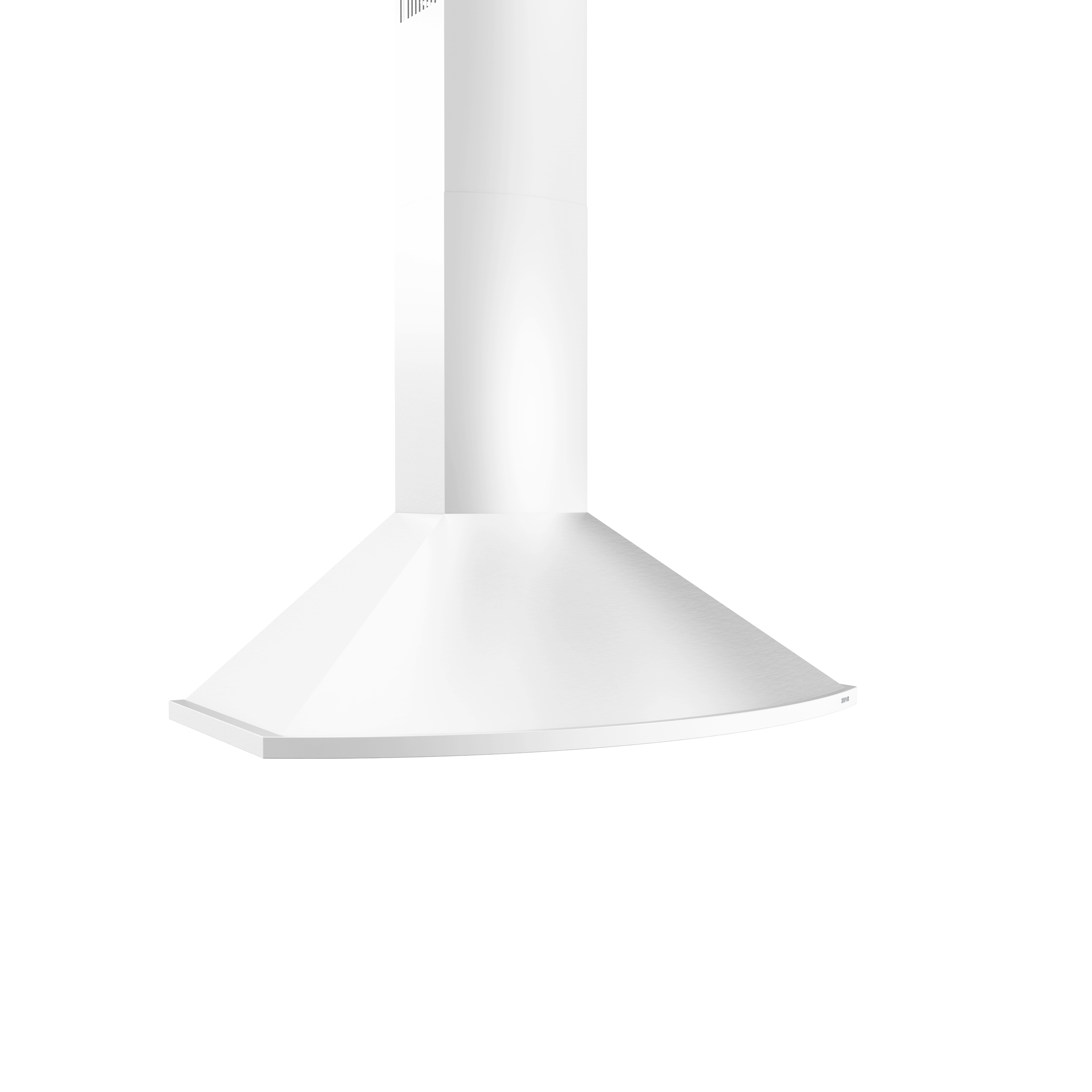

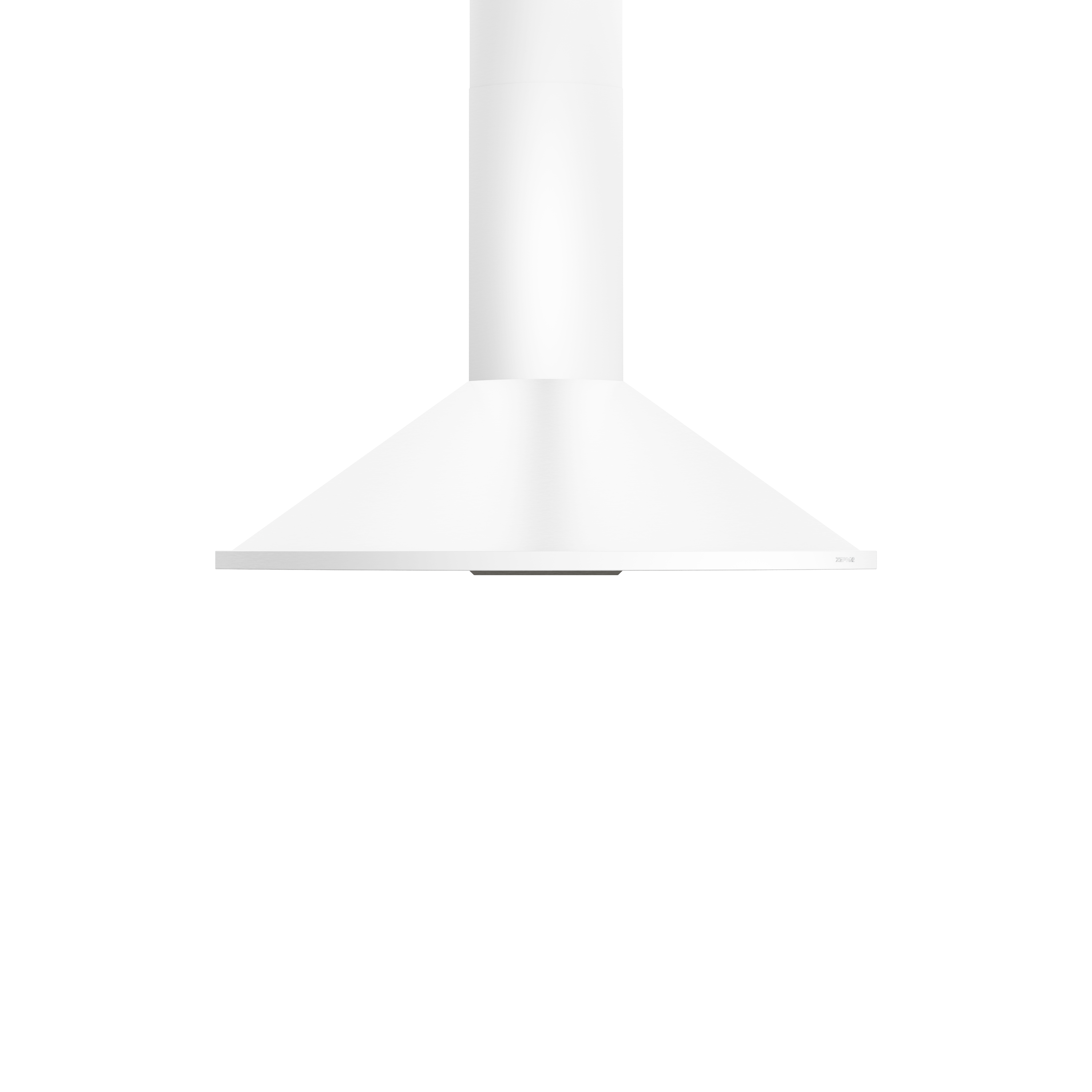

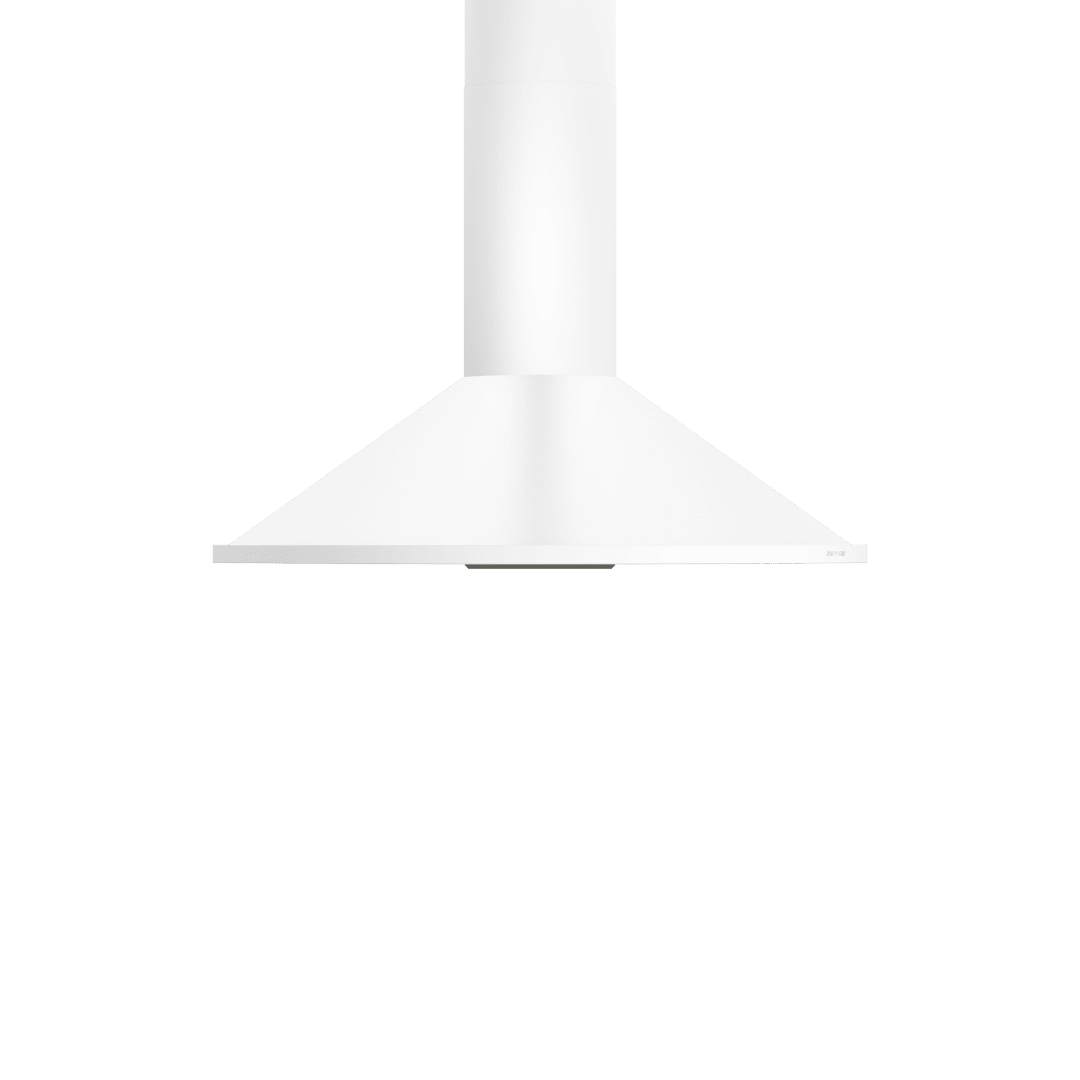

  • Savona’s semi-circular surfaces accentuate this range hood’s European design with delicate reflections of light and shadows. Underneath the 11” tall body, Savona features a robust 685-CFM fan that operates at an ultra quiet 1 sone on normal working speed. ICON Touch™ controls with 5 speeds and our exclusive ACT™ technology make this hood a standout choice. Also available in powder-coated black and white.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelZSA-E30DW
    Model #ZSA-E30CW
    Short DescriptionSavona, Wall, 30", Wht, 685CFM, ACT
    CollectionCore Collection
    UPC646328003615
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeICON Touch®
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage5
    ColorWhite
    Lights Levels2
    Compatible ModelsZRC-00SV, Z1C-01SAW, MUA008A, Z0B0040, Z0F-C002
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Replacement ModelZSA-E30FW
    ZSA-E30DW
  • Blower Speeds5
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200011
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
    Duct TypeVertical
    Mounting Height Above Cooktop; IN26 - 34
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeHalogen
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
  • Net Height; IN28 - 45
    Net Width; IN29.9375
    Nominal Width; IN30
    Net Depth; IN19.5
    Weight; LBS29.8
    Ceiling Height Maximum9.5 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2ICON Touch® controls
    Feature 3Multiple color options
    Feature 3 DefinitionMultiple colors available to match your kitchen decor.
    Feature 4Optional Ductless Recirculating Kit
    Feature 4 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 5Optional extension duct cover kit
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM685
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones6
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN25.59
    Shipping Length; IN16.61
    Shipping Width; IN33.31
    Shipping Weight; LBS41.9
  • Optional Accessory 1ZRC-00SV
    Optional Accessory 2Z1C-01SAW
    Optional Accessory 3MUA008A
    Optional Accessory 4Z0B0040
    Optional Accessory 5Z0F-C002
