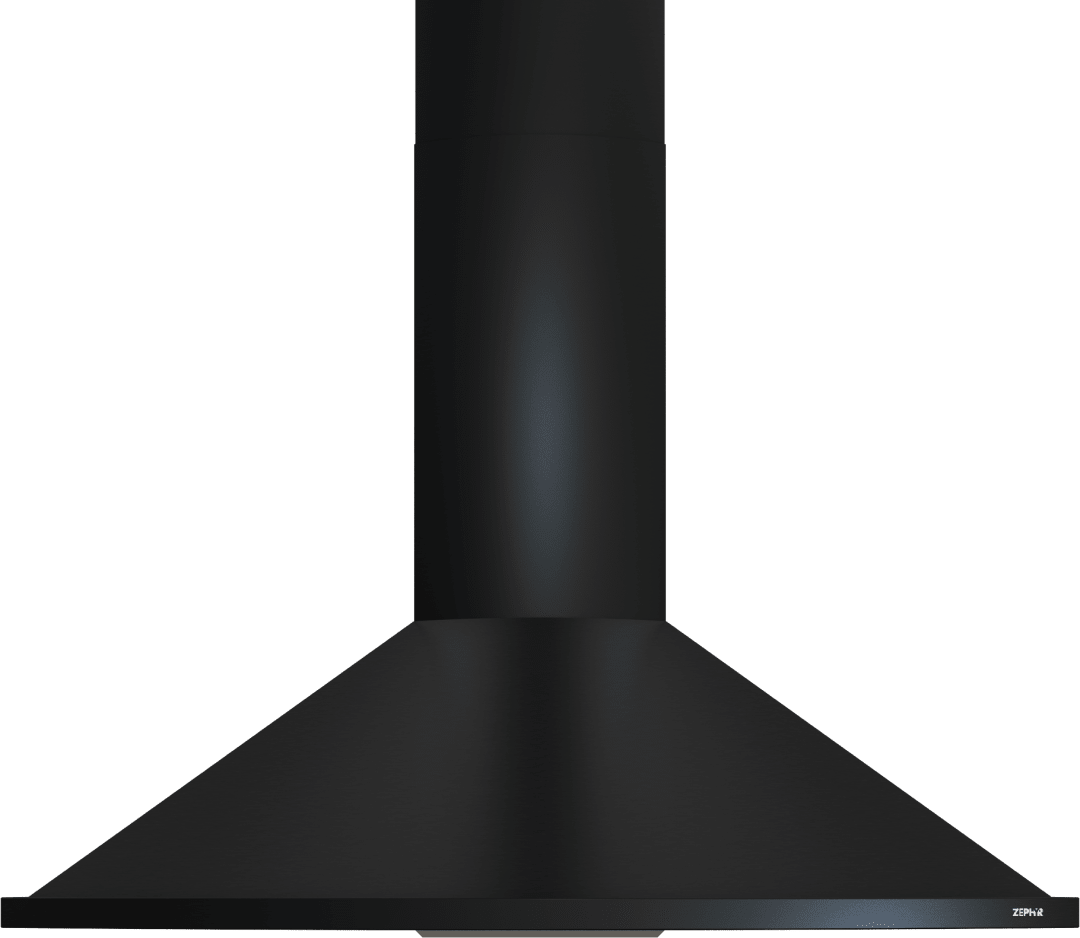

ZSA-E30FB
Head On IsoDownload

Range Hood

ZSA-E30FB

Savona Wall

  • Savona’s semi-circular surfaces accentuate this range hood’s European design with delicate reflections of light and shadows. Available in stainless steel, powder-coated black, white, and the sleek alternative to stainless steel: black stainless steel. Savona features a robust 600-CFM blower, dual-level LumiLight LED lighting, ICON Touch® controls and our exclusive Airflow Control Technology (ACT™). Now available with an optional ADA-compliant remote control.
  • Product StatusActive
    BrandZephyr
    Model #ZSA-E30FB
    MSRP ($)$1049
    Short DescriptionSavona Wall, 30in, Black, LED, 600 CFM w/ACT
    CollectionCore Collection
    UPC646328010941
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeICON Touch®
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage4
    ColorBlack
    Lights Levels2
    Compatible ModelsZRC-00SV, Z1C-01SAB, MUA006A, Z0F-C002, RC-0002, Z0F-B001, AK1710
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    CEC Title 24 CompliantYes
    ADA CompliantYes, with optional remote
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Blower Speeds5
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200011
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
    Duct TypeVertical
    Mounting Height Above Cooktop; IN24 - 34
    Remote IncludedNo
    Remote OptionalYes
    Vent TypeConvertible
  • Lighting TypeLED
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN6
  • Net Height; IN28 - 45
    Net Width; IN29.9375
    Nominal Width; IN30
    Net Depth; IN19.5
    Weight; LBS29.8
    Ceiling Height Maximum9.5 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2LumiLight LED Lighting
    Feature 2 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 3Dual-Level Lighting
    Feature 3 DefinitionThe dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 4ICON Touch® Controls
    Feature 4 DefinitionICON Touch Controls seamlessly integrate into the hoods stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders. With its blue LED indicator lights and sleek modern aesthetic, the ICON Touch Controls are the future of ventilation control technology.
    Feature 5Dishwasher Safe Aluminum Mesh Filters
    Feature 5 DefinitionHigh-quality, dishwasher-safe aluminum mesh filters for improved capture and performance.
    Feature 6Optional Ductless Recirculating Kit
    Feature 6 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 7Optional Extension Duct Cover Kit
    Feature 7 DefinitionExtension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM600
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones6
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN26
    Shipping Length; IN34
    Shipping Width; IN17
    Shipping Weight; LBS42
  • Optional Accessory 1ZRC-00SV
    Optional Accessory 2Z1C-01SAB
    Optional Accessory 3MUA006A
    Optional Accessory 4Z0F-C002
    Optional Accessory 5RC-0002
    Optional Accessory 6Z0F-B001
    Optional Accessory 7AK1710
