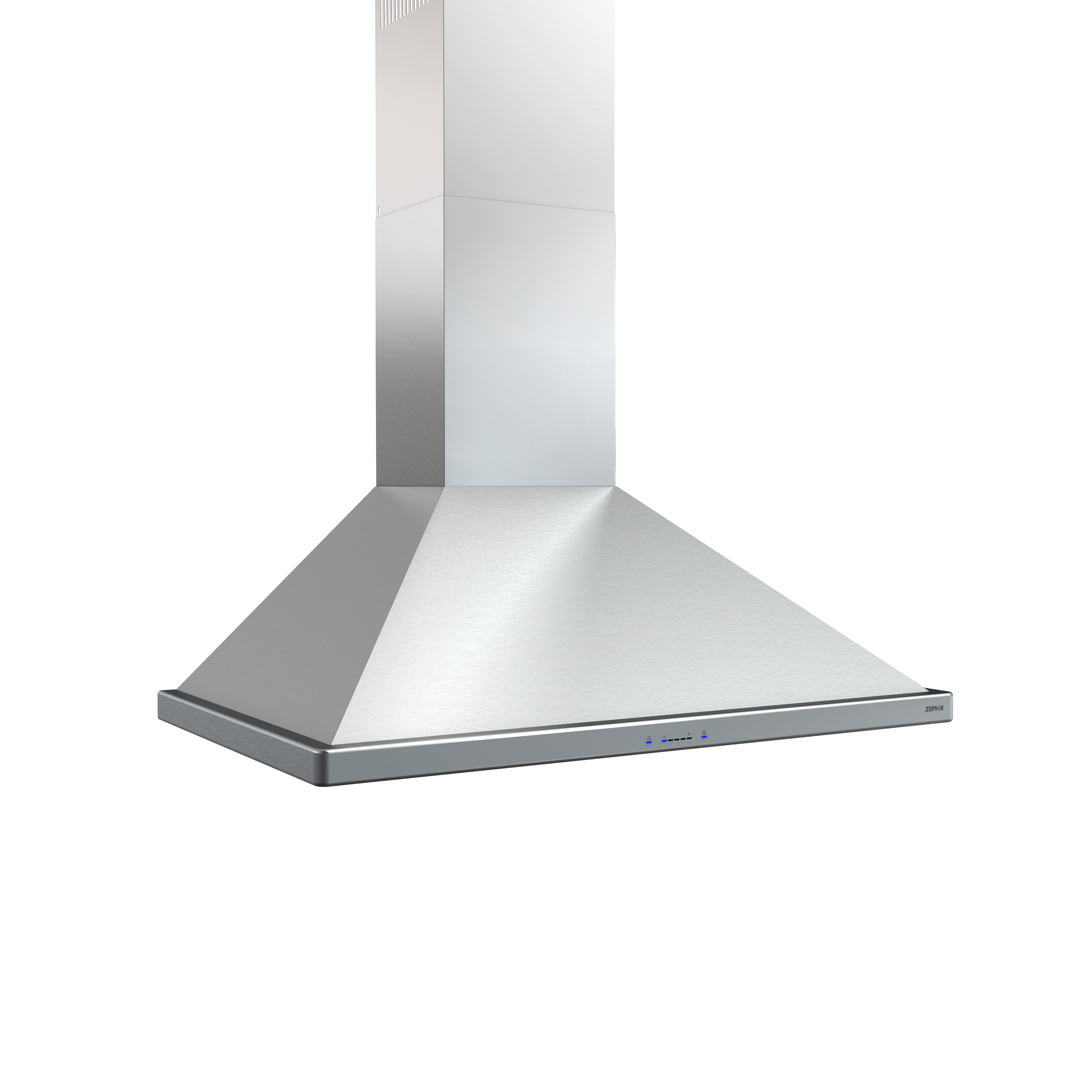

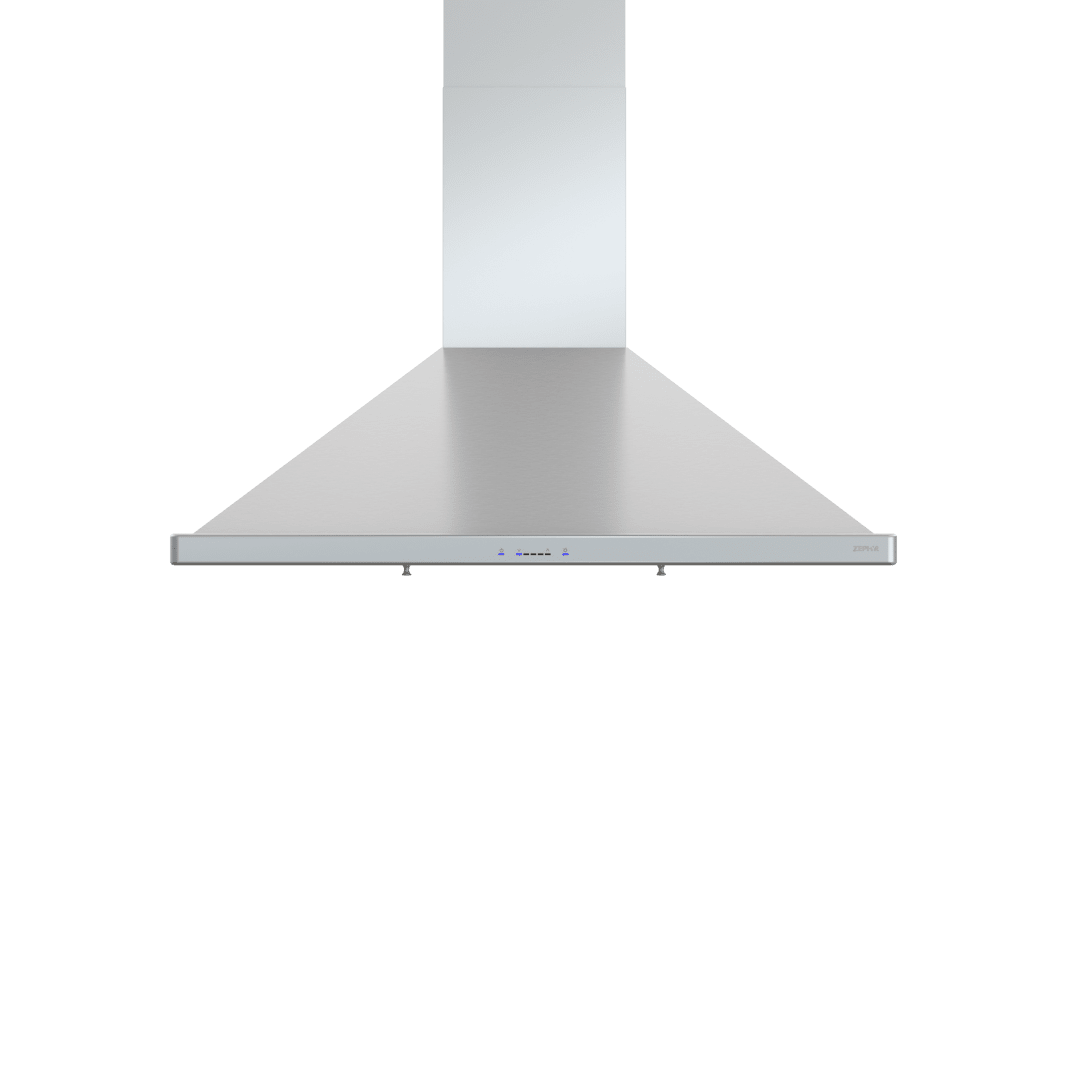

ZSI-E36AS
Head On IsoDownload

Range Hood

ZSI-E36AS

Siena Wall

  • Siena is packed with power. With a 650-CFM blower and ACT™ technology this is a hood with a versatile range of features perfect for any kitchen. With dual-level halogens, a recirculating option and Zephyr’s new ICON Touch™ controls, clearing the air is as simple as the touch of a button.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelZSI-E36BS
    Model #ZSI-E36AS
    Short DescriptionSiena, Wall, 36", SS, 650 CFM, ACT, Hybrid Baffles
    CollectionCore Collection
    UPC646328003066
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeICON Touch®
    Lighting TypeHalogen
    Lights Quantity2
    Maximum Amperage5
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsZRC-00SI, Z1C-00SI, MUA008A, Z0B0040
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantNo
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • Replacement ModelZSI-E36CS
    ZSI-E36BS
  • Blower Speeds5
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50200050
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN8
    Duct TypeVertical
    Mounting Height Above Cooktop; IN26 - 34
    Remote IncludedNo
    Remote OptionalNo
    Vent TypeConvertible
  • Lighting TypeHalogen
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN8
  • Net Height; IN27.5 - 42
    Net Width; IN35.875
    Nominal Width; IN36
    Net Depth; IN21.9375
    Weight; LBS41.1
    Ceiling Height Maximum9 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1Airflow Control Technology™ (ACT™)
    Feature 1 DefinitionAirflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
    Feature 2ICON Touch® controls
    Feature 3Hybrid baffle filters
    Feature 4Optional Ductless Recirculating Kit
    Feature 4 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Feature 5Optional extension duct cover kit
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT390, 290
    Internal Blower 1 CFM650
    Internal Blower 1 Min. Sones1
    Internal Blower 1 Max Sones6
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN29.13
    Shipping Length; IN18.5
    Shipping Width; IN41.65
    Shipping Weight; LBS54.2
  • Optional Accessory 1ZRC-00SI
    Optional Accessory 2Z1C-00SI
    Optional Accessory 3MUA008A
    Optional Accessory 4Z0B0040
