Head On Iso
Range Hood

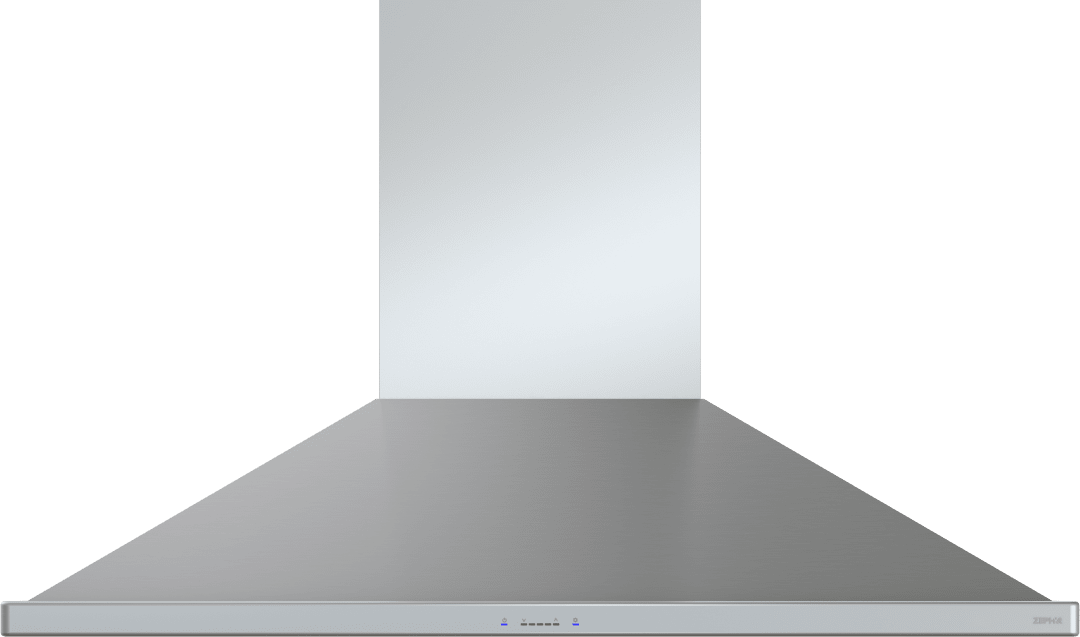

ZSL-E42CS
Siena Pro Island
- With its classic, professional-style design, Siena Pro island manages to encompass a wealth of features perfect for the culinary pro or any aspiring home chef. Equipped with magnetic duct covers, the unique Quick-Lock Installation System is easier than ever. Featuring a 1200-CFM blower, LumiLight LED lighting, Airflow Control Technology (ACT™), and an optional ADA-compliant remote control.
Product Status Discontinued Brand Zephyr Replacement Model ZSL-E42DS Model # ZSL-E42CS MSRP ($) $2749 Short Description Siena Pro Island, 42in, SS, LED, ACT Collection Core Collection UPC 646328011078 Category Range Hood Installation Type Island For Outdoor Use No Controls Type ICON Touch® Lighting Type LED Lights Quantity 2 Maximum Amperage 8 Color Stainless Steel Lights Levels 2 Compatible Models Z1C-01SL, MUA010A, RC-0002 Country of Origin Taiwan CEC Title 20 Compliant Yes ADA Compliant Yes, with optional remote Wi-Fi Connected No Bluetooth Connected No Automatic Delay-Off Yes Blower Speeds 5 Blower Included Yes Clean Air Function No Compatible Mesh or Baffle Filter Part Number 50200050 Duct Discharge Vertical Duct Size; Horizontal; IN N/A Duct Size; Vertical; IN 10 Duct Type Vertical Mounting Height Above Cooktop; IN 24 - 34 Remote Included No Remote Optional Yes Vent Type Ducted Lighting Type LED Duct Discharge Vertical Duct Size; Horizontal; IN N/A Duct Size; Vertical; IN 10 Net Height; IN 32.5 Net Width; IN 41.875 Nominal Width; IN 42 Net Depth; IN 28 Weight; LBS 118 Ceiling Height Maximum 9 ft. Ceiling Height Minimum 8 ft. Feature 1 Airflow Control Technology™ (ACT™) Feature 1 Definition Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements. Feature 2 ICON Touch® Controls Feature 2 Definition ICON Touch Controls seamlessly integrate into the hoods stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders. With its blue LED indicator lights and sleek modern aesthetic, the ICON Touch Controls are the future of ventilation control technology. Feature 3 LumiLight LED Lighting Feature 3 Definition LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours. Feature 4 Dual-Level Lighting Feature 4 Definition The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution. Feature 5 Quick-Lock Installation System Feature 5 Definition Zephyrs Quick-Lock Installation System is an innovative, hassle-free method for installing island range hoods. A quick-lock motion lets the user assemble the frame, lift the hood and lock it into place on the frame and then assemble the 4-piece duct covers. This easy three-step process ensures the island hood is securely installed without additional build-out required. While most island range hood installations require at least three people, Zephyrs Quick-Lock Installation can be completed by one or two people. Feature 6 Hybrid Baffle Filters Feature 6 Definition Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration. Feature 7 Optional Extension Duct Cover Kit Feature 7 Definition Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details. Energy Star Certified No Blower Included Yes Blower CFM w/ACT 590, 390 Internal Blower 1 CFM 1200 Internal Blower 1 Min. Sones 3.5 Internal Blower 1 Max Sones 9 Warranty Parts / Labor 3 / 1 Shipping Height; IN 32.4 Shipping Length; IN 32.3 Shipping Width; IN 46.3 Shipping Weight; LBS 126.5 Optional Accessory 1 RC-0002 Optional Accessory 2 Z1C-01SL Optional Accessory 3 MUA010A
