Head On Iso
Range Hood

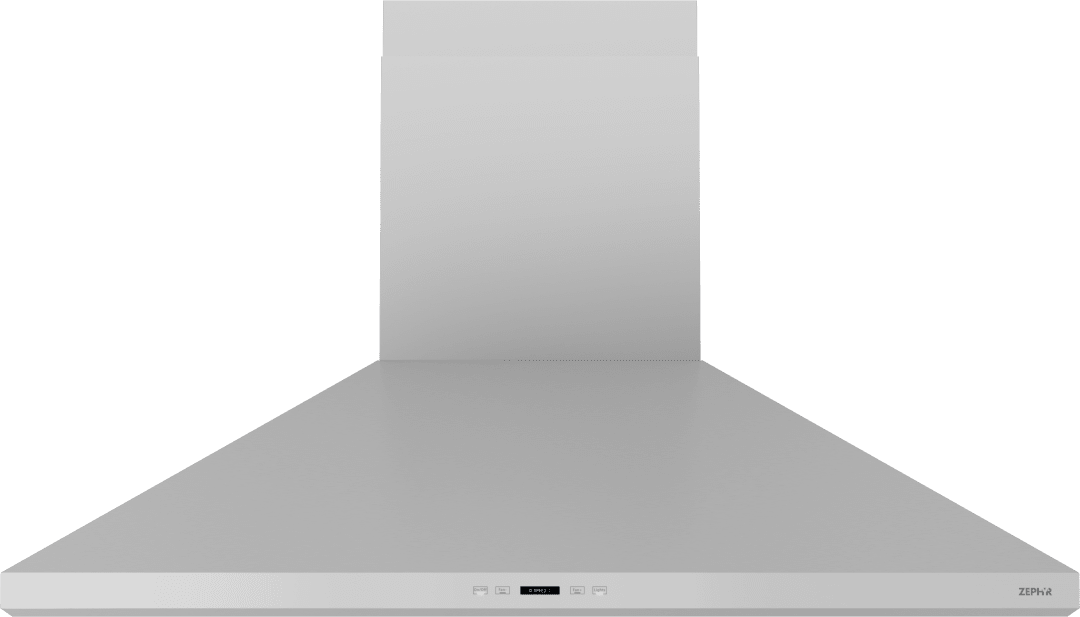

ZSL-E48DS
Siena Pro Island
- With its classic, professional-style design, Siena Pro Island encompasses a wealth of features perfect for the culinary pro or any aspiring home chef. Equipped with magnetic duct covers, the unique Quick-Lock Installation System is easier than ever. Featuring a welded, polished and seamless body as well as dual-level LumiLight LED lighting with TruHue™ technology to match your hood lights to your primary lighting. Also houses a 1200-CFM blower, new ICON Touch® LCD controls, and Airflow Control Technology (ACT™). Available with an optional ADA-compliant remote control.
Product Status Active Brand Zephyr Model # ZSL-E48DS MSRP ($) $2799 Short Description Siena Pro, Island, 48", SS, LED, ACT Collection Core Collection UPC 646328012358 Category Range Hood Installation Type Island For Outdoor Use No Controls Type ICON Touch® Lighting Type LED Lights Quantity 4 Maximum Amperage 8 Color Stainless Steel Lights Levels 2 Compatible Models RC-0002, Z1C-02SL, MUA010A Country of Origin Taiwan CEC Title 20 Compliant Yes CEC Title 24 Compliant Yes ADA Compliant Yes, with optional remote Wi-Fi Connected No Bluetooth Connected No Automatic Delay-Off Yes Blower Speeds 5 Blower Included Yes Clean Air Function No Compatible Mesh or Baffle Filter Part Number 50210041 Duct Discharge Vertical Duct Size; Horizontal; IN N/A Duct Size; Vertical; IN 10 Duct Type Vertical Mounting Height Above Cooktop; IN 24 - 34 Remote Included No Remote Optional Yes Vent Type Ducted Lighting Type LED Duct Discharge Vertical Duct Size; Horizontal; IN N/A Duct Size; Vertical; IN 10 Net Height; IN 34 - 49.5 Net Width; IN 47.9375 Nominal Width; IN 48 Net Depth; IN 28 Weight; LBS 54.2 Ceiling Height Maximum 9.5 ft. Ceiling Height Minimum 8 ft. Feature 1 Airflow Control Technology™ (ACT™) Feature 1 Definition Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements. Feature 2 ICON Touch® LCD Controls Feature 2 Definition ICON Touch controls include a convenient LCD screen that displays fan speed level, light level, clean filter reminders, and TruHue info control at a glance. Feature 3 Hybrid Baffle Filters Feature 3 Definition Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration. Feature 4 LumiLight LED Lighting with TruHue™ Feature 4 Definition A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K. Feature 5 Quick-Lock Installation System Feature 5 Definition Zephyrs Quick-Lock Installation System is an innovative, hassle-free method for installing island range hoods. A quick-lock motion lets the user assemble the frame, lift the hood and lock it into place on the frame and then assemble the 4-piece duct covers. This easy three-step process ensures the island hood is securely installed without additional build-out required. While most island range hood installations require at least three people, Zephyrs Quick-Lock Installation can be completed by one or two people. Feature 6 Dual-Level Lighting Feature 6 Definition The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution. Feature 7 Optional Extension Duct Cover Kit Feature 7 Definition Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details. Energy Star Certified No Blower Included Yes Blower CFM w/ACT 590, 390 Internal Blower 1 CFM 1200 Internal Blower 1 Min. Sones 2 Internal Blower 1 Max Sones 9 Warranty Parts / Labor 3 / 1 Shipping Height; IN 37 Shipping Length; IN 58 Shipping Width; IN 45 Shipping Weight; LBS 169 Optional Accessory 1 RC-0002 Optional Accessory 2 Z1C-02SL Optional Accessory 3 MUA010A
