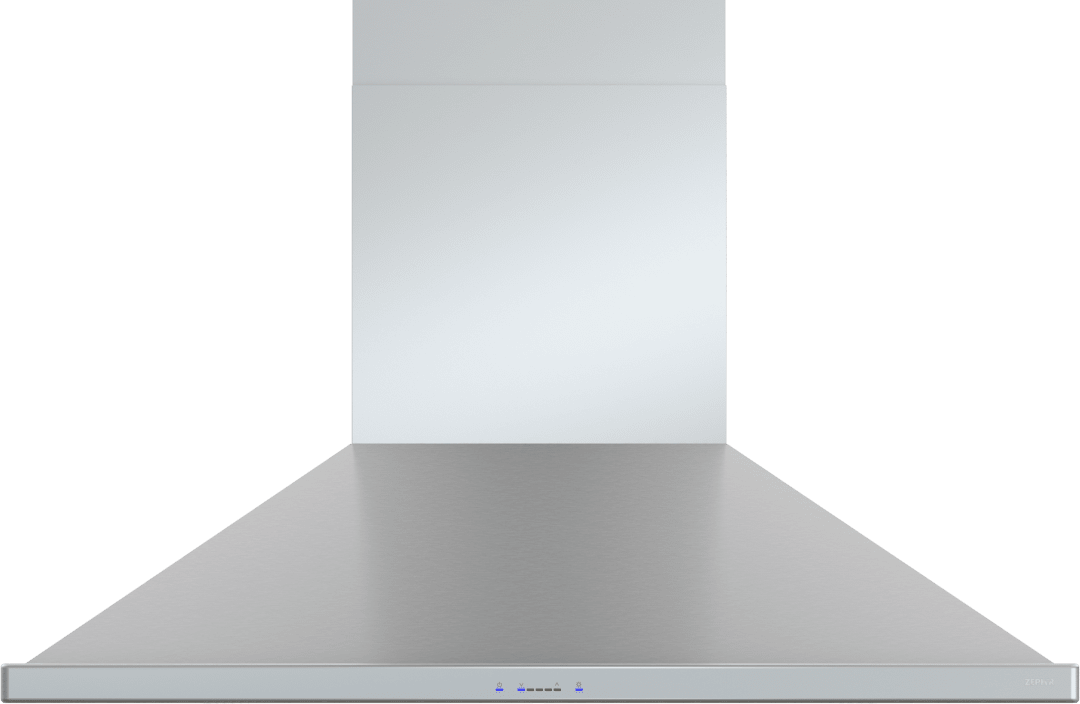

ZSP-E42CS
Head On IsoDownload

Range Hood

ZSP-E42CS

Siena Pro Wall

  • With its classic, professional-style design, Siena Pro manages to encompass a wealth of features perfect for the culinary pro or any aspiring home chef. Equipped with a 1200-CFM blower, Zephyr’s ICON Touch® controls, the new LumiLight LED lighting, and our exclusive Airflow Control Technology (ACT™). Clean, efficient power is just a touch away.
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Replacement ModelZSP-E42DS
    Model #ZSP-E42CS
    MSRP ($)$1699
    Short DescriptionSiena Pro Wall, 42in, SS, LED, 1200 CFM w/ACT
    CollectionCore Collection
    UPC646328011108
    CategoryRange Hood
    Installation TypeWall
    For Outdoor UseNo
    Controls TypeICON Touch®
    Lighting TypeLED
    Lights Quantity2
    Maximum Amperage9
    ColorStainless Steel
    Lights Levels2
    Compatible ModelsZ1C-00SP, MUA010A, AK1712, RC-0002
    Country of OriginTaiwan
    CEC Title 20 CompliantYes
    ADA CompliantYes, with optional remote
    Wi-Fi ConnectedNo
    Bluetooth ConnectedNo
    Automatic Delay-OffYes
  • ZSP-E42DS
  • Blower Speeds5
    Blower IncludedYes
    Clean Air FunctionNo
    Compatible Mesh or Baffle Filter Part Number50210041
    Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN10
    Duct TypeVertical
    Mounting Height Above Cooktop; IN24 - 34
    Remote IncludedNo
    Remote OptionalYes
    Vent TypeDucted
  • Lighting TypeLED
  • Duct DischargeVertical
    Duct Size; Horizontal; INN/A
    Duct Size; Vertical; IN10
  • Net Height; IN27.5 - 42
    Net Width; IN41.875
    Nominal Width; IN42
    Net Depth; IN21.9375
    Weight; LBS61.3
    Ceiling Height Maximum9 ft.
    Ceiling Height Minimum8 ft.
  • Feature 1ICON Touch® Controls
    Feature 1 DefinitionICON Touch Controls seamlessly integrate into the hoods stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders. With its blue LED indicator lights and sleek modern aesthetic, the ICON Touch Controls are the future of ventilation control technology.
    Feature 2LumiLight LED Lighting
    Feature 2 DefinitionLumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
    Feature 3Hybrid baffle filters
    Feature 4Dual-Level Lighting
    Feature 4 DefinitionThe dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
    Feature 5Powerful 1200-CFM Blowers
    Feature 5 DefinitionThe range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
    Feature 6Optional Extension Duct Cover Kit
    Feature 6 DefinitionExtension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
    Feature 7Optional Make-Up Air Kit
    Feature 7 DefinitionA make-up air kit is a system installed to introduce fresh, outside air to compensate for the air removed by the range hood. This helps maintain balanced indoor air pressure and ensures the efficient operation of the range hood. Check your local codes for more information.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Blower CFM w/ACT590, 390
    Internal Blower 1 CFM1200
    Internal Blower 1 Min. Sones3.5
    Internal Blower 1 Max Sones9
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN28.42
    Shipping Length; IN17.99
    Shipping Width; IN48.42
    Shipping Weight; LBS71
  • Optional Accessory 1Z1C-00SP
    Optional Accessory 2MUA010A
    Optional Accessory 3AK1712
    Optional Accessory 4RC-0002
