ZTE-E30AS
Head On IsoDownload

Range Hood

ZTE-E30AS

Terazzo Under-Cabinet

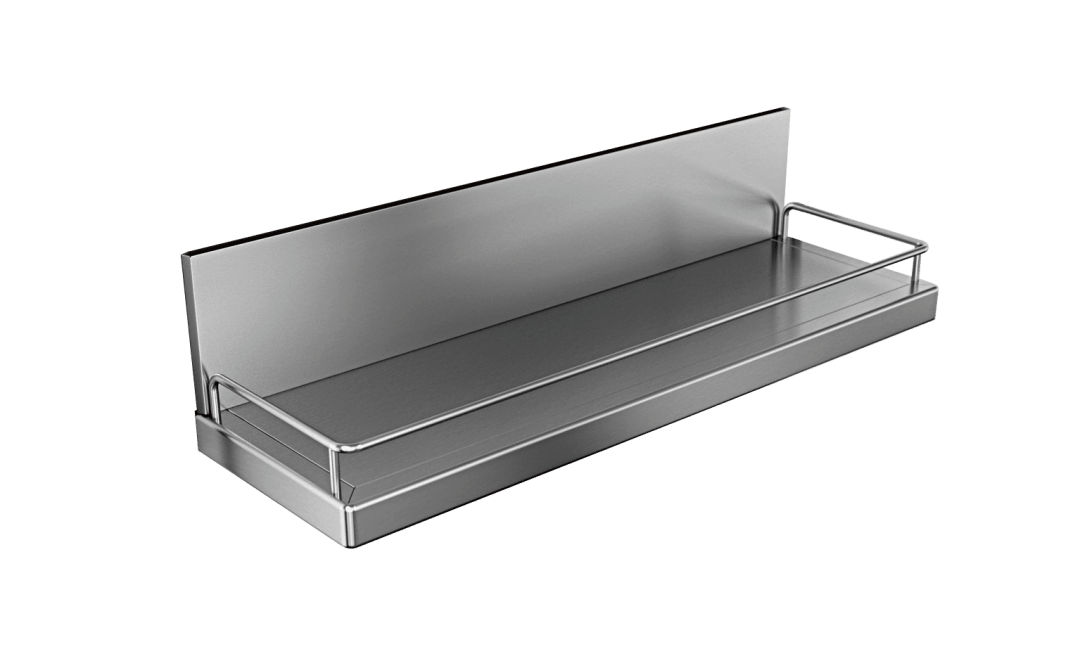

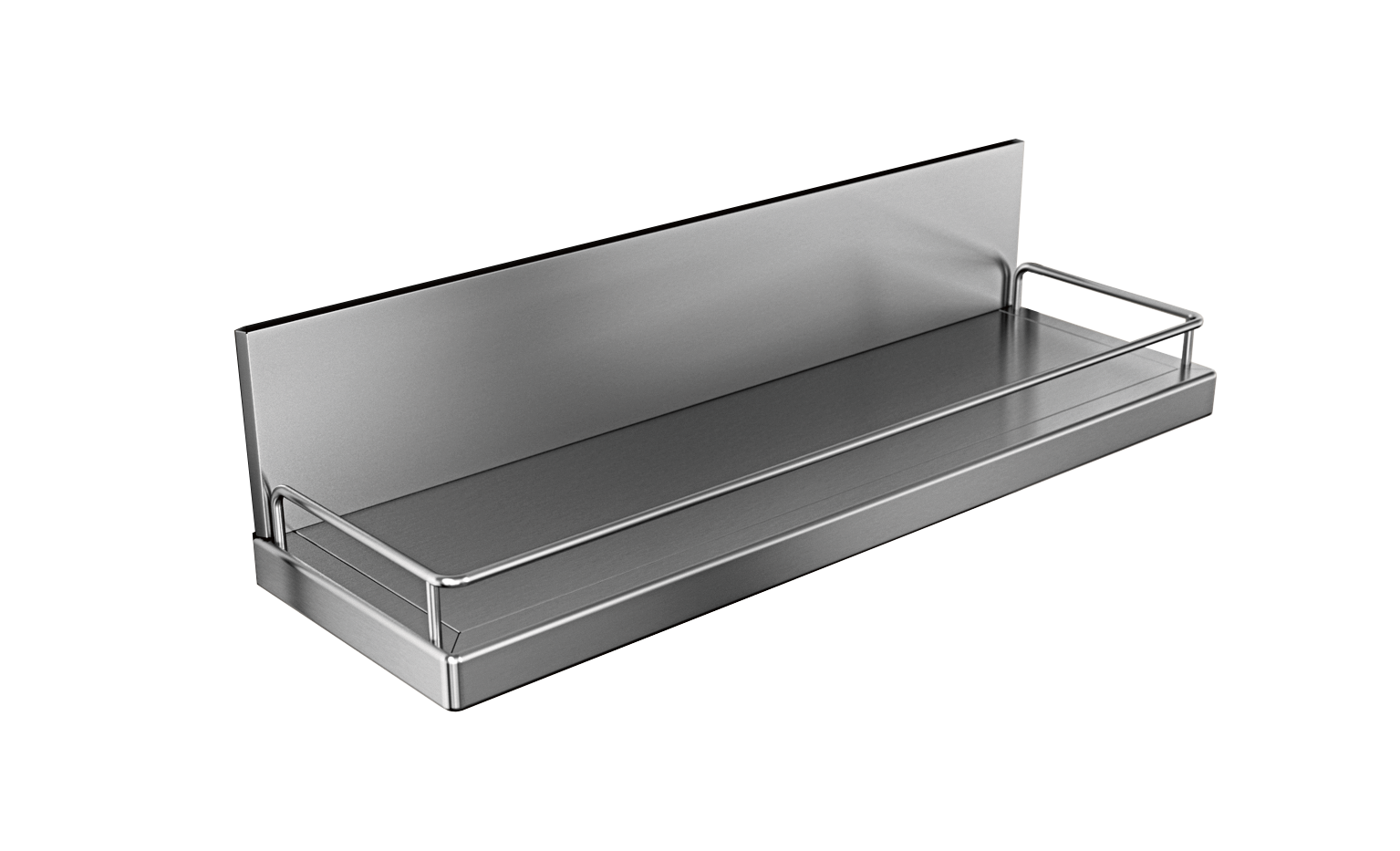

  • Terazzo comes to the party bearing gifts of style, convenience and innovation. Starting with its 12-inch cabinet mounting-depth and the ingenious terraced display rack, Terazzo makes a perfect addition to any kitchen. Did we mention it also comes with an adjustable utensil rail to help keep your cooking tools within reach?
Size
Color/Finish
  • Product StatusDiscontinued
    BrandZephyr
    Model #ZTE-E30AS
    Short DescriptionTerazzo, UC, 30", SS, 400 CFM
    CollectionCore Collection
    UPC646328001833
    CategoryRange Hood
    Installation TypeUnder Cabinet
    For Outdoor UseNo
    Controls TypeMechanical Slide
    Lighting TypeHalogen
    Lights Quantity2
    Voltage120
    Maximum Amperage2
    ColorStainless Steel
    Blower Speeds3
    Watts Per Bulb50
    Lights Levels2
    Mounting Height Above Cooktop; IN24 - 32
    Compatible ModelsZRC-0200, MUA006A, Z0B0040, Z0F-C002
    Country of OriginTaiwan
    Grease Filter TypeMesh
    Compatible Mesh or Baffle Filter Part Number50200030
    CEC Title 20 CompliantYes
    ADA CompliantNo
  • Duct DischargeVertical or Horizontal
    Duct Size; Horizontal; IN3.25 x 10
    Duct Size; Vertical; IN7, 3.25 x 10
  • Net Height; IN7.375
    Net Width; IN29.9375
    Nominal Width; IN30
    Net Depth; IN21
    Weight; LBS27.9
  • Feature 1Adjustable utensil bar
    Feature 1 DefinitionThis utensil bar can be installed at multiple heights to accommodate hanging utensils.
    Feature 2Optional Ductless Recirculating Kit
    Feature 2 DefinitionDuctless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
    Energy Star CertifiedNo
  • Blower IncludedYes
    Internal Blower 1 CFM400
    Internal Blower 1 Min. Sones2
    Internal Blower 1 Max Sones5
  • Warranty Parts / Labor3 / 1
  • Shipping Height; IN25.98
    Shipping Length; IN12.44
    Shipping Width; IN33.94
    Shipping Weight; LBS35.5
  • Optional Accessory 1ZRC-0200
    Optional Accessory 2MUA006A
    Optional Accessory 3Z0B0040
    Optional Accessory 4Z0F-C002
