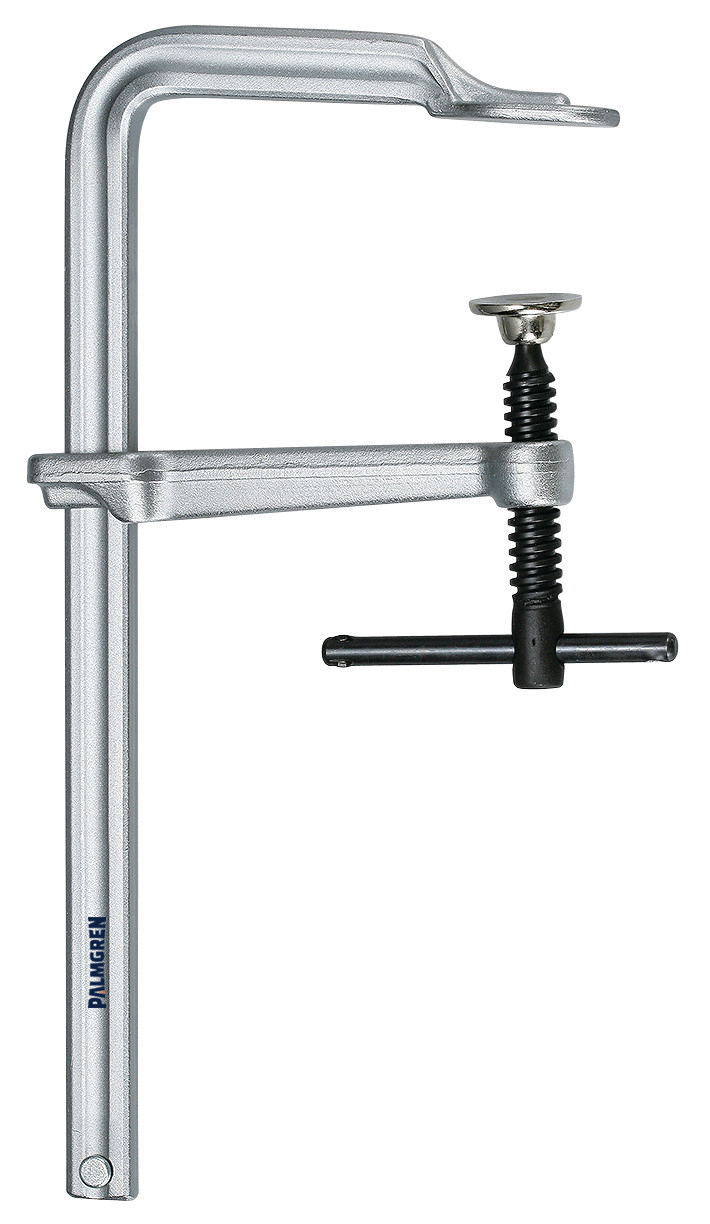

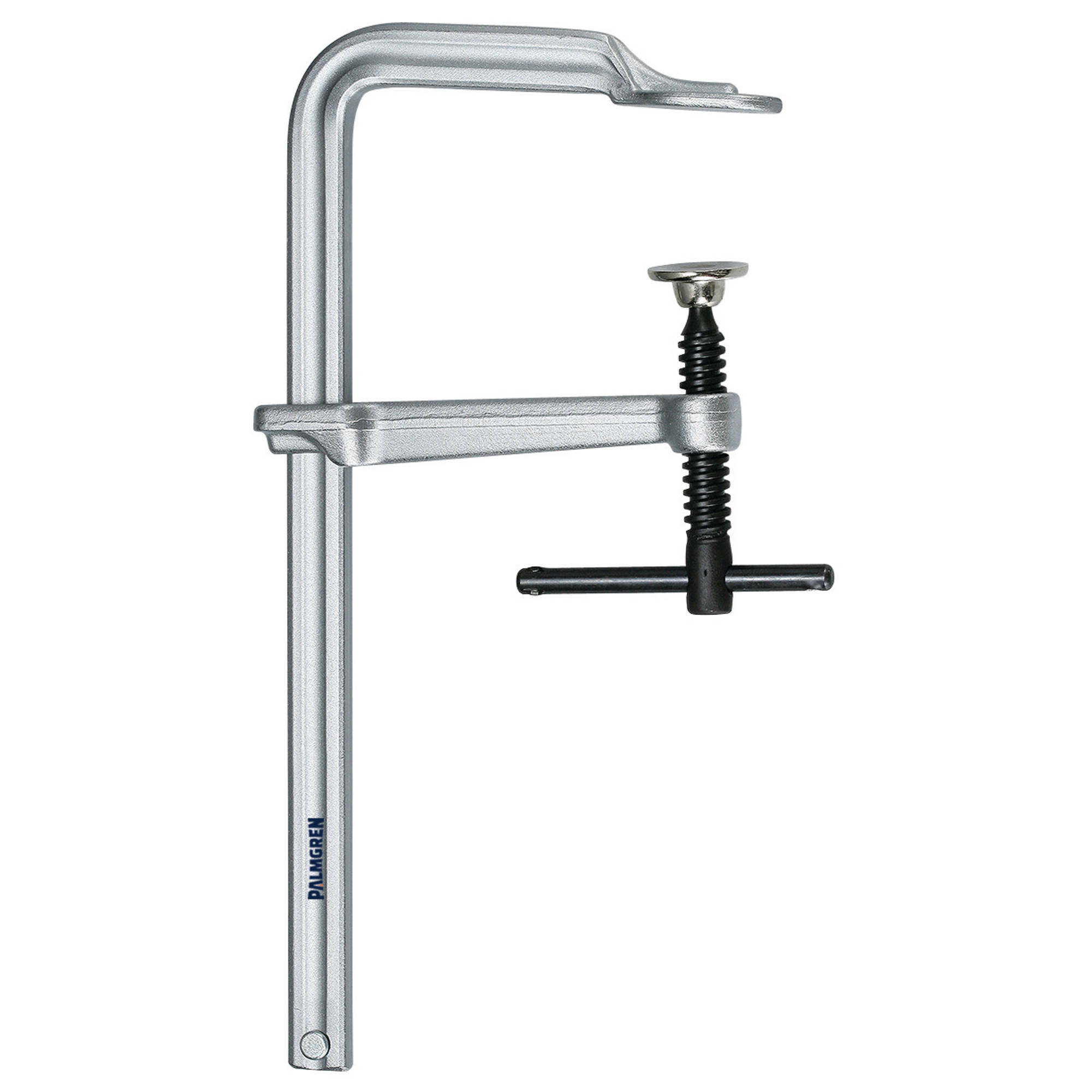

0-6" Regular Duty L-Clamp/Black Oxide Spindle
Main ImageDownload

0-6" Regular Duty L-Clamp/Black Oxide Spindle

9629306

    • Product ID9629306
      Product Name0-6" Regular Duty L-Clamp/Black Oxide Spindle
      UPC726896293066
      Model Number9629306
      Product CopyPalmgren’s L-clamps save time, labor and increase productivity making them a perfect value. Just slide the clamping arm to the workpiece and tighten. When the job is complete simply loosen the spindle and slide the clamping arm back. L-clamps handle a wide variety of work sizes and shapes allowing you to clamp the workpiece quicker while using fewer clamps on each job.
      Product FeaturesInnovative spring tempered and hardened steel frames optimizes high static stress loadings. Dropped forged sliding clamping arm for added strength and durability. Fully hardened steel spindles for greater loading capabilities and longer service life. Black-oxide plated spindles that resist wear while impeding rust. Replaceable swivel pads. One clamp accommodates a wide variety of sizes and shapes of workpieces. Lifetime guarantee against breakage
      CategoryWorkhold-Clamps & Vises
      Sub CategoryClamps
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)1
      Product Length (inches)11.8
      Product Width (inches)6.3
      Product Weight (lbs)1.5
      Inner Pack Height (inches)4.000
      Inner Pack Length (inches)10.500
      Inner Pack Width (inches)6.750
      Inner Pack Weight (lbs)11.620
    • Capacity0"-6"
      Clamps TypeL-Clamps
    • Max Open Capacity (in.)6"
    • Spindle Diameter9/16"
    • Throat Capacity3-5/32"
    • WarrantyLimited lifetime warranty
