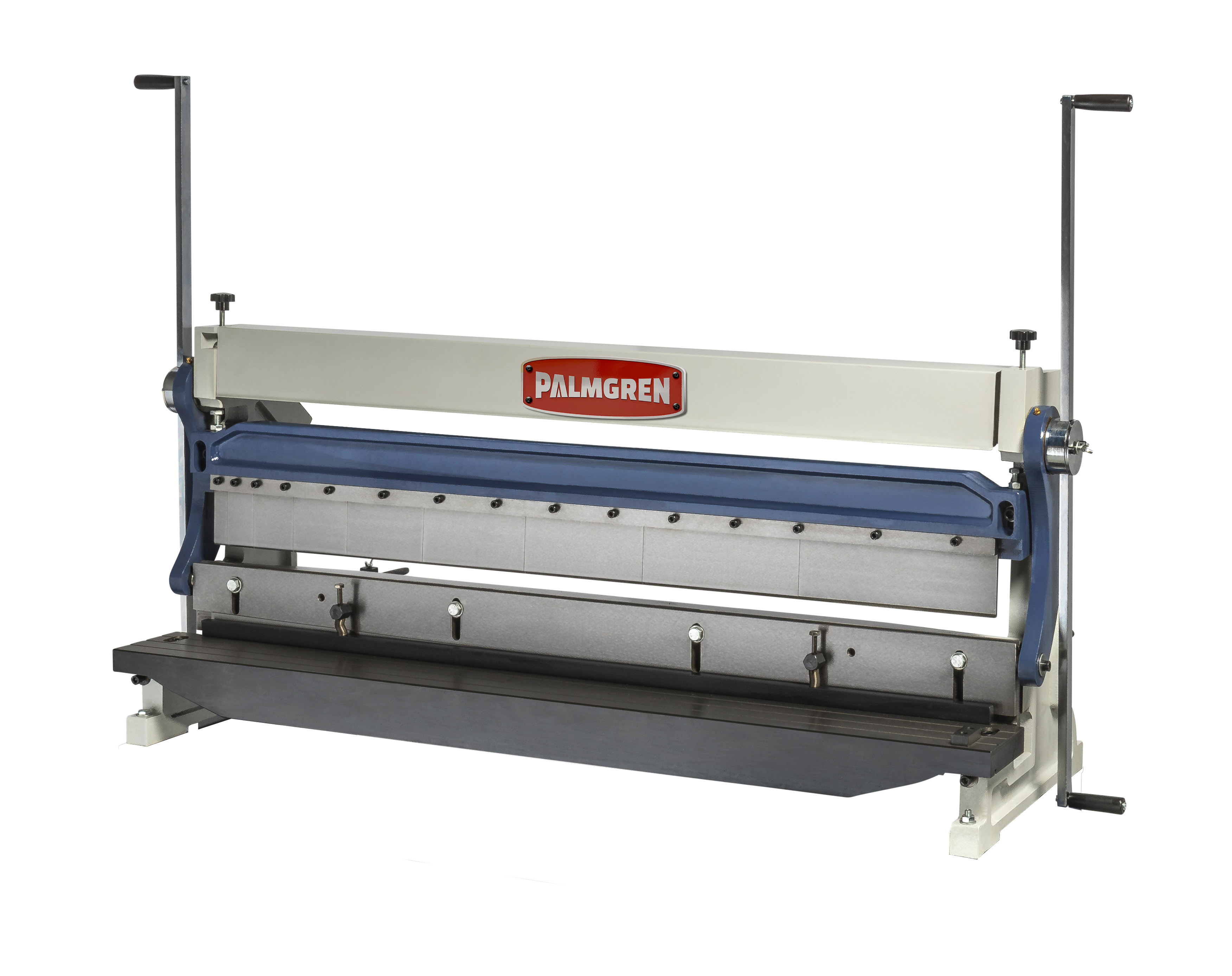

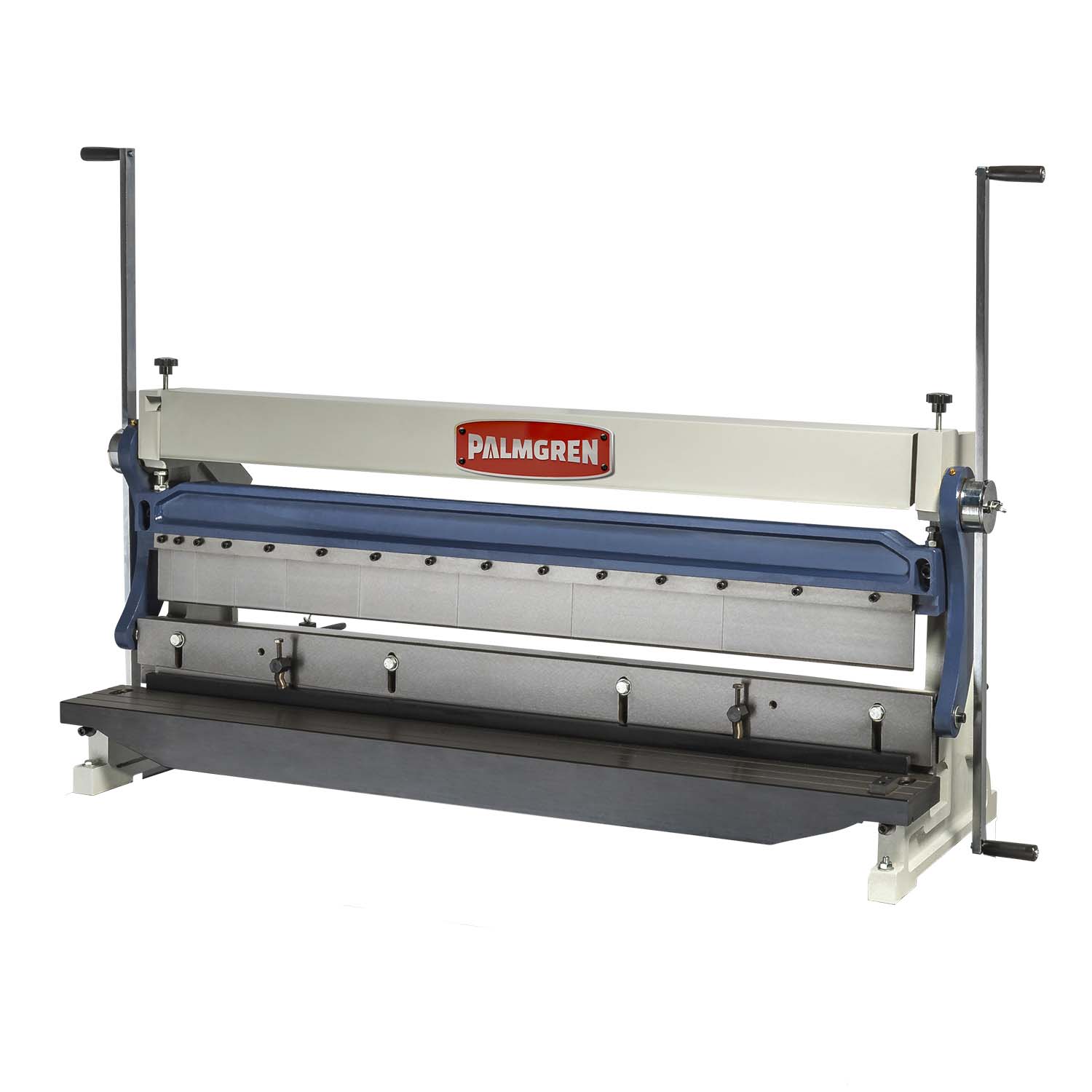

40" 3-in-1 Shear, Brake & Roll Machine
Main ImageDownload

40" 3-in-1 Shear, Brake & Roll Machine

9629622

    • Product ID9629622
      Product Name40" 3-in-1 Shear, Brake & Roll Machine
      UPC726896296227
      Product CopyPalmgren’s new line of Shear, Brake & Roll 3-in-1 machines are the ultimate in shop floor space savings. Available in 30-, 40- and 52-in. widths, these machines can roll, bend and cut sheet steel up to 16-gauge thick. The perfect tool for small shops and one-off projects.
      Product FeaturesRolls also include grooves for rolling wire. Heavy-duty cast-iron frame and bed construction. Spring loaded sheet hold down. Hinged slip roll guard covers the rollers for increased safety when not in use. Rolling Capacity Mild Steel: 20 Ga. Rolling Capacity Stainless Steel: 24 Ga. Sheer Capacity Mild Steel: 20 Ga. Sheet Capacity Stainless Steel: 240 Ga. Minimum Rolling Diameter: 1-5/8"
      CategoryMachine-Metal Forming
      Country of OriginChina
      Stock UOMEA
    • Product Height (inches)53.2
      Product Length (inches)27.6
      Product Width (inches)18.1
      Product Weight (lbs)440
    • Bed Width40"
    • Machine Weight440 lbs.
    • Overall Dimensions (LxWxH)50.4" x 17" x 56.4"
    • Warranty3 years
