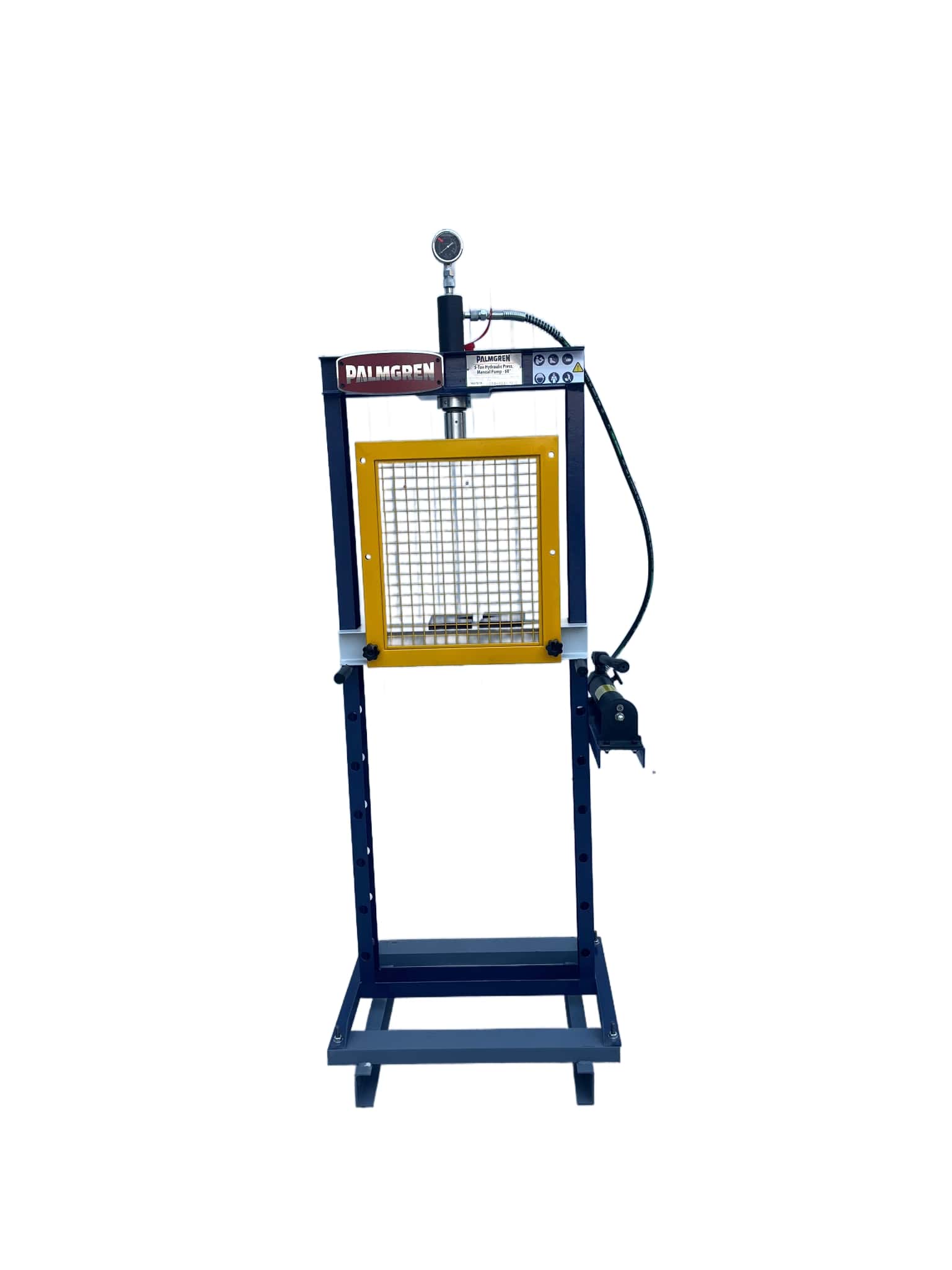

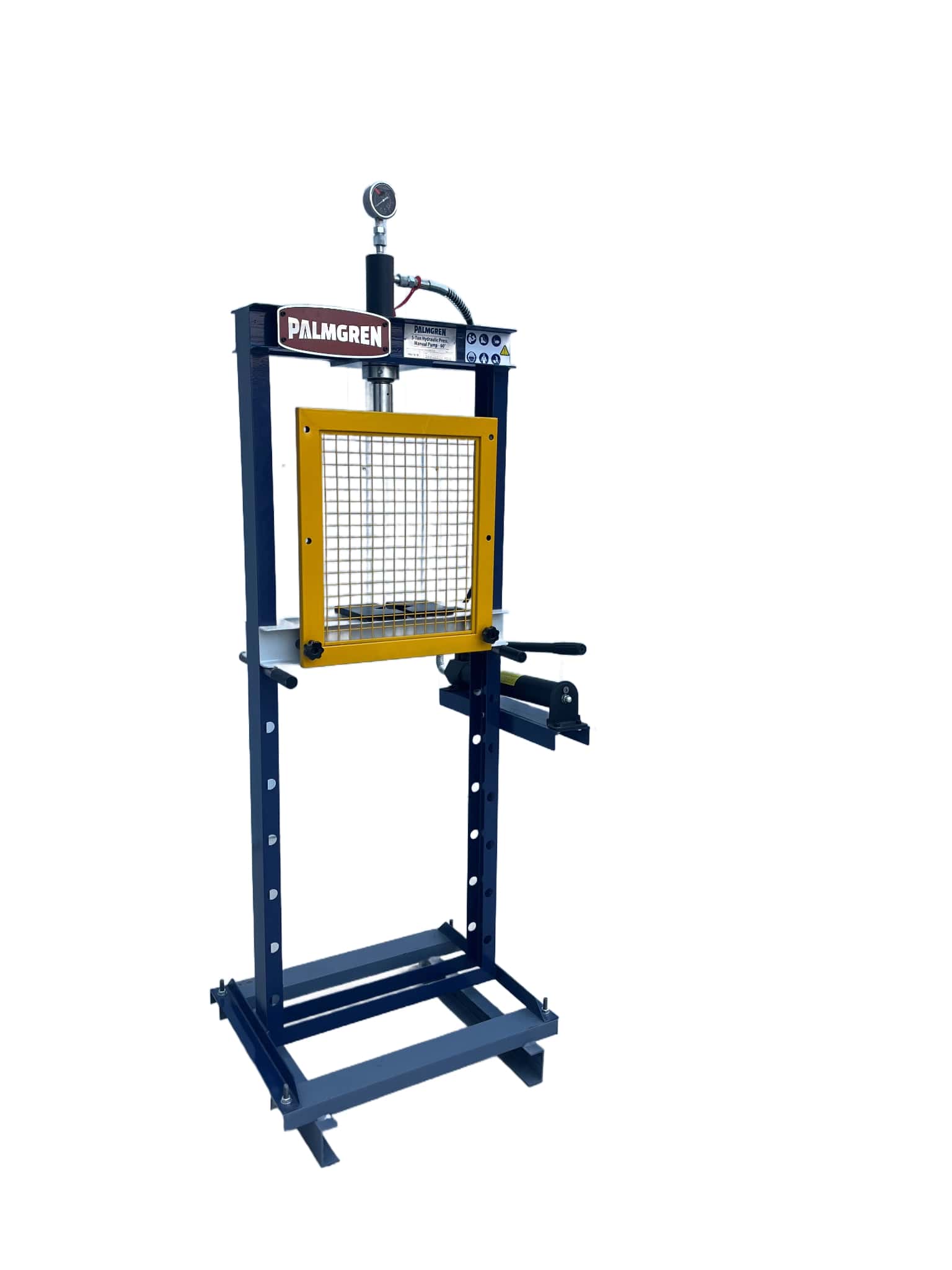

H-Press 5 Ton Manual Pump 60 IN
9661618
Product ID 9661618 Product Name H-Press 5 Ton Manual Pump 60 IN UPC 726896616186 Product Copy Palmgren’s Hand Operated 5-Ton H-Frame Presses are constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s 5-Ton H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands only the best quality from his operation. Product Features Pressure gauge for direct pressure readings. Easily adjustable table for quick height changes between applications. Holes in side frames allow for insertion of long material. Hand operation for economic performance. Efficient hand pump is conveniently located for reduced operator fatigue. Fully-welded heavy steel plate frame for maximum rigidity. Factory preset relief valve to prevent exceeding maximum pressure capacity. By-pass hole prevents excessive ram extension. Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve. Single acting cylinder design for improved operation. Table Weight Capacity: 500lbs. Adj. between Table Pin to Holes: 4.72 in. Distance between channels: 3.39 in. V-Block Weight: 6.6 lbs Category Workhold-Arbor Presses Country of Origin China Stock UOM Each Product Height (inches) 70 Product Length (inches) 20.5 Product Width (inches) 23 Product Weight (lbs) 171 Shipping Height 65.75 Shipping Length 29 Shipping Width 22.8 Shipping Weight 176 Application Fabrication Base Dimension 20 x 26 Bed Height 3.5 Bed Width 19.5 H-frame Press Type Electronic Pump Lever Ratio 400/1 Color Blue Cylinder Type Manual Hydraulic Machine Weight 145 Max Pressure 5 Ton Max distance ram to table 38.4 Overall Dimensions (LxWxH) 30" x 20" x 65" Ram Diameter 1.57 Table Weight 500 Throat Capacity 19.7" x 14.2" Warranty 3 years
