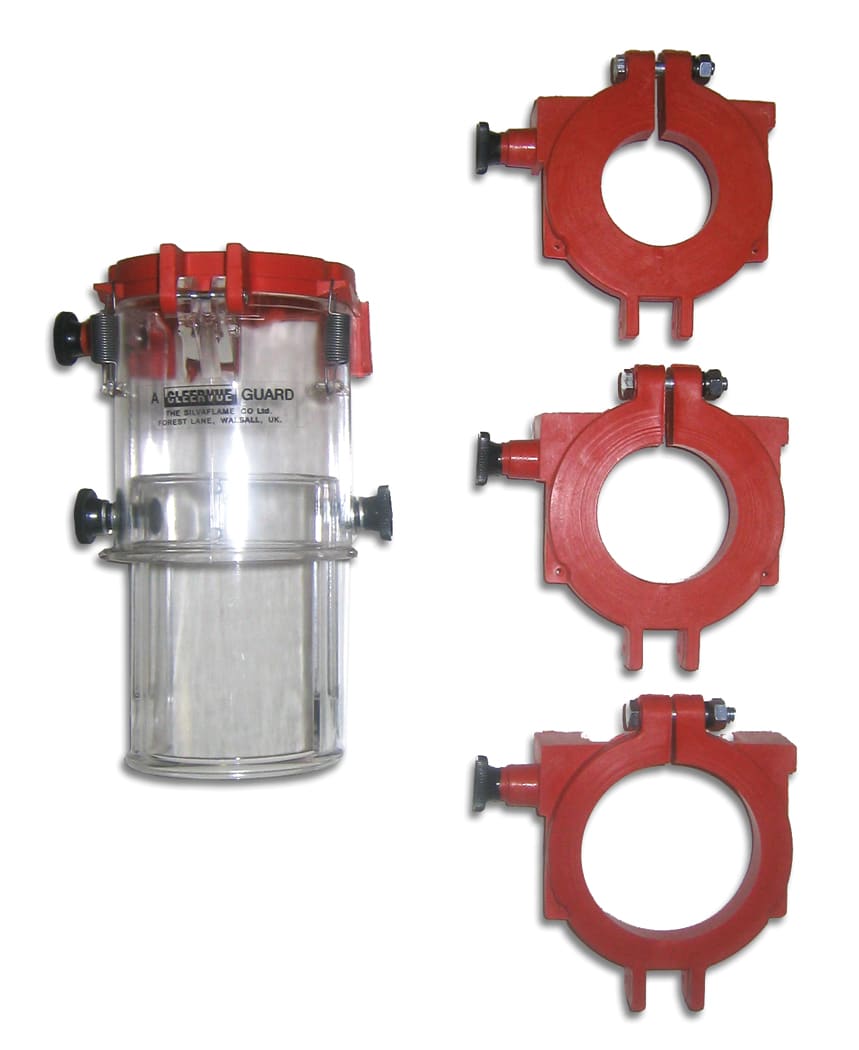

2-1/8" Drill Press Guard
Main ImageDownload

2-1/8" Drill Press Guard

9615025

    • Product ID9615025
      Product Name2-1/8" Drill Press Guard
      UPC726896150253
      Model Number15025
      Product CopyThis specially designed drill guard gives full protection from quill to drill point by the smooth telescopic action of the guard, which collapses as the drill penetrates the workpiece, returning to the extended position when the spindle is raised. This unit is made from strong, injection molded, high impact polycarbonate which offers clear and safe vision through body and visor. In the operating position the guard is securely locked in the closed position by a spring-loaded plunger pin assembly. When released, the guard hinges up, allowing instant access for cutting tool and/or chuck change. Complies fully with all ANSI and OSHA guidelines.
      Product FeaturesClear vision for safe operation. Rapid adjustment for drill length. Fast access for cutting tool changes
      CategoryMachine Options-Accessories
      Sub CategoryDrilling Accessories
      Country of OriginUnited Kingdom
      Stock UOMEach
    • Product Height (inches)5.6
      Product Length (inches)5.5
      Product Width (inches)6.3
      Product Weight (lbs)1.5
    • Max. Chuck Dia.2-1/8"
      Max. Stroke6-1/4"
    • Min. Stroke4-1/2"
    • Warranty3 years
