Multi-Purpose Swing Away Drill Press Guard
Main ImageDownload

Multi-Purpose Swing Away Drill Press Guard

9615035

    • Product ID9615035
      Product NameMulti-Purpose Swing Away Drill Press Guard
      UPC726896150352
      Model Number15035

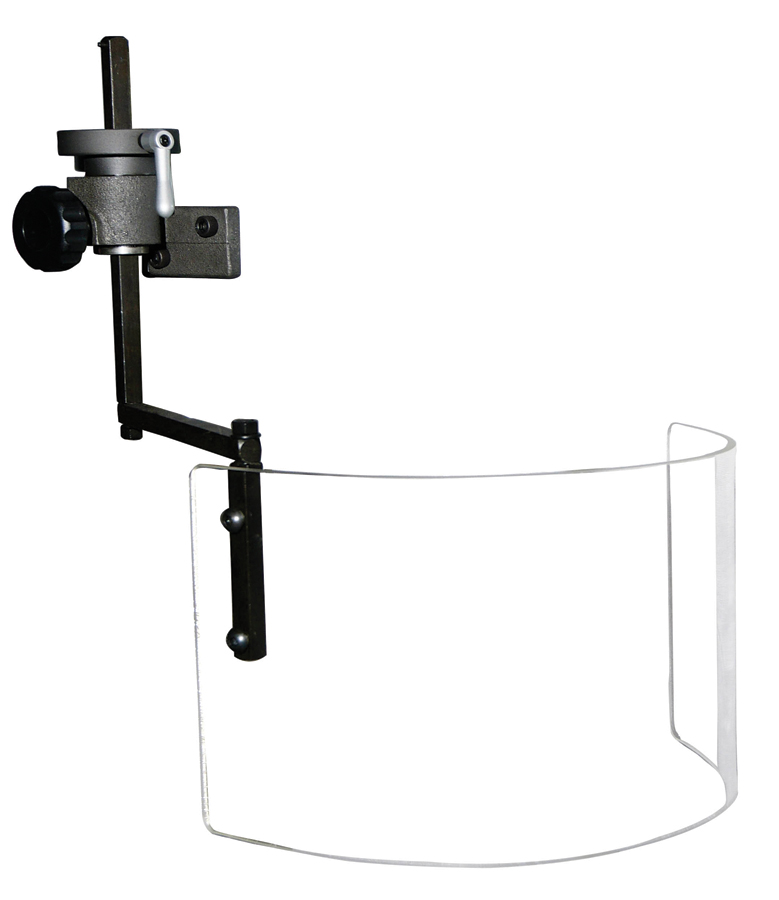

      Product CopyDesigned specifically for use on mill/drill machines, vertical turret milling machines and larger size drilling machines, these shields are intended to deliver protection by deflecting chips, sparks, coolant or lubricants away from the operator and others in the work area. The unit is made of strong cast iron brackets and high impact polycarbonate which offers the operator clear and safe vision during the machining process. The height clearance is easily adjusted with convenient locking knobs located on the mounting bracket and the large shield easily swings in or out allowing instant access for cutting tool and tool holder changes. Complies with all ANSI and OSHA guidelines.
      CategoryMachine Options-Accessories
      Sub CategoryDrilling Accessories
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)8.5
      Product Length (inches)15
      Product Width (inches)10.8
      Product Weight (lbs)8.5
      Shipping Height8.5
      Shipping Length15
      Shipping Width10.75
      Shipping Weight8.5
    • Warranty3 years
