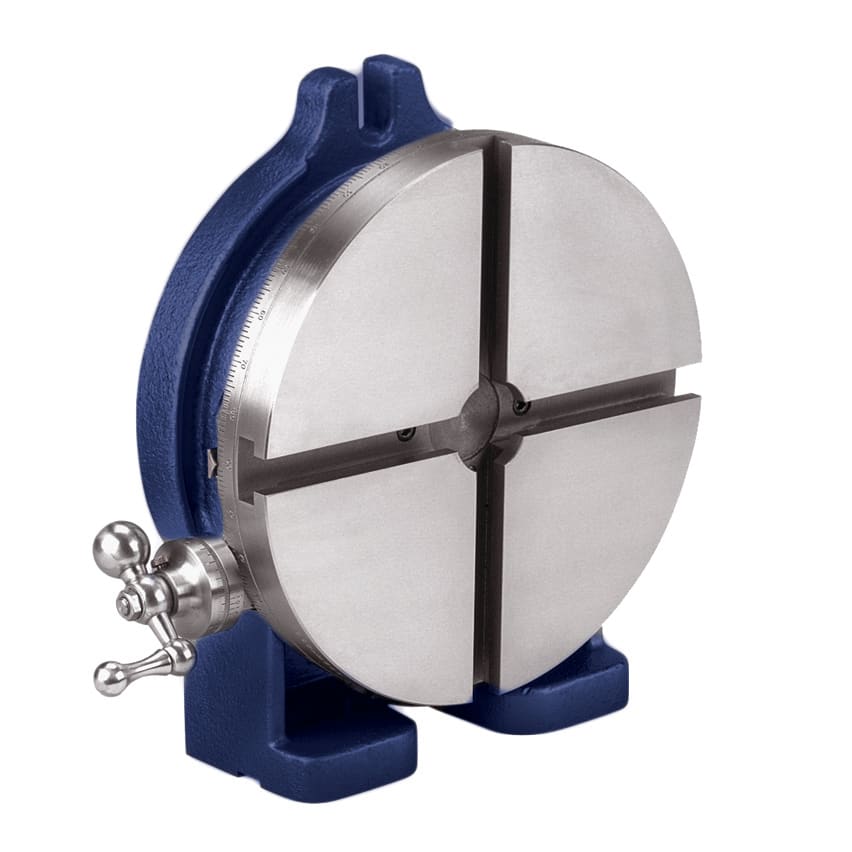

8" Horizontal/Vertical Rotary Table
Main ImageDownload

8" Horizontal/Vertical Rotary Table

9632806

    • Product ID9632806
      Product Name8" Horizontal/Vertical Rotary Table
      UPC726896328065
      Model Number862
      Product CopyPalmgren's rotary tables perform a variety of operations. They are very useful for cutting segments or circles, circular slots, cutting irregular-shaped slots as well as other similar operations. There tables permit accurate positioning or work under the machine spindle or for inspection and layout applications.
      Product FeaturesUse in either the vertical or horizontal position. The table top and the vertical and horizontal bases are ground for overall squareness. Precision ground table top to 0 001" total indicator reading. A 5/8" keyway and mounting lugs are provided on both the ­vertical and horizontal mounting surfaces. Smooth worm gear drive provides positive rotary feed. Balanced ball crank feed handle does not exceed below the base to eliminate interference with the machine table. Rotary dial is graduated in 3 minute increments and 1 minute­ ­increments on the vernier
      CategoryWorkhold-Positioning Tables
      Sub CategoryPositioning Tables
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)6.3
      Product Length (inches)14.8
      Product Width (inches)14.8
      Product Weight (lbs)44
      Shipping Height3.88
      Shipping Length14.75
      Shipping Width14.75
      Shipping Weight44
    • Base Dimension12 in x 9-1/2 in
    • Positioning Tables TypeRotary
    • Table Diameter8"
    • WarrantyLimited lifetime warranty
