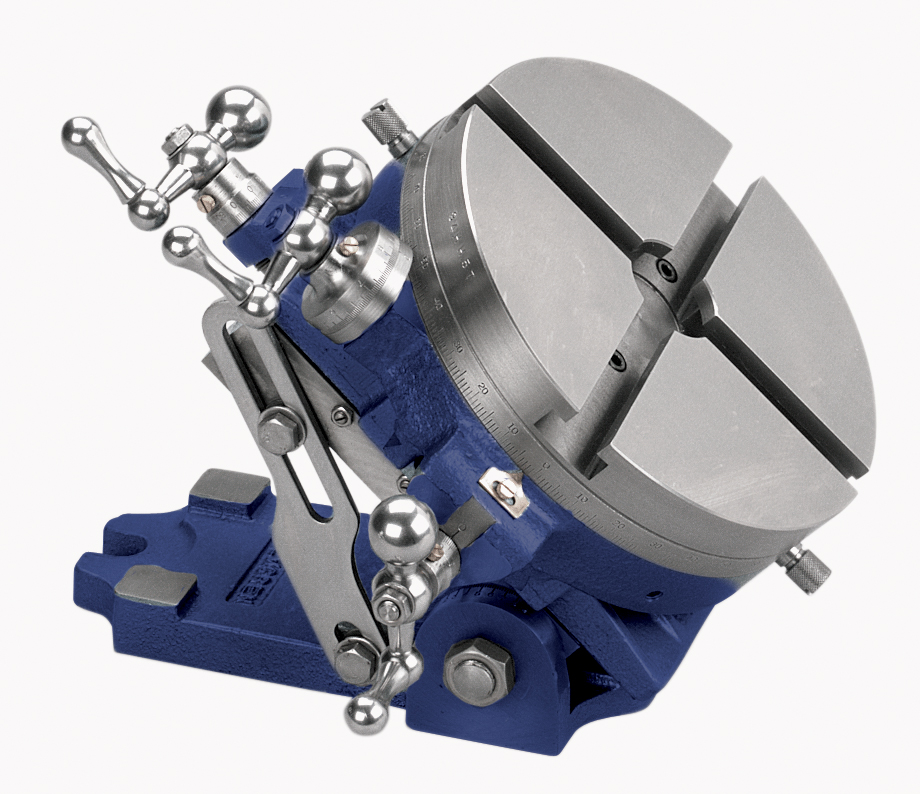

10" Rotary Cross Slide Table W/Angle
Main ImageDownload

10" Rotary Cross Slide Table W/Angle

9634103

    • Product ID9634103
      Product Name10" Rotary Cross Slide Table W/Angle
      UPC726896341033
      Model Number184
      Product CopyThese remarkably precise tilting rotary tables provide all the combination of movements and positioning necessary to add increased versatility on drill presses, milling machines, surface grinders, or a layout table. Rotary indexing, lateral and transverse cross feed, and graduated angle settings all in one table.
      Product FeaturesAccurately position work on the X and Y axis as well as 360 degree table rotation. Cross slide dials are calibrated in 0 001 in increments and provide 4 in cross slide travel. Angular inclination from 0 degree horizontal to 90 degree vertical. Angular position is indicated in 1 degree increments and locked via 4 bolts and 2 side plates. Rotary dials are graduated in 3 minute increments and 1 minute increments on the vernier. A 5/8 in keyway and mounting lugs are provided for secure mounting
      CategoryWorkhold-Positioning Tables
      Sub CategoryPositioning Tables
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)7
      Product Length (inches)14.8
      Product Width (inches)14.8
      Product Weight (lbs)53
    • Base Dimension9 in x 5 in
    • Positioning Tables TypeRotary
    • Table Diameter10"
      Travel (X x Y)4" x 4"
    • WarrantyLimited lifetime warranty
