4" Heavy Duty Rotary Table

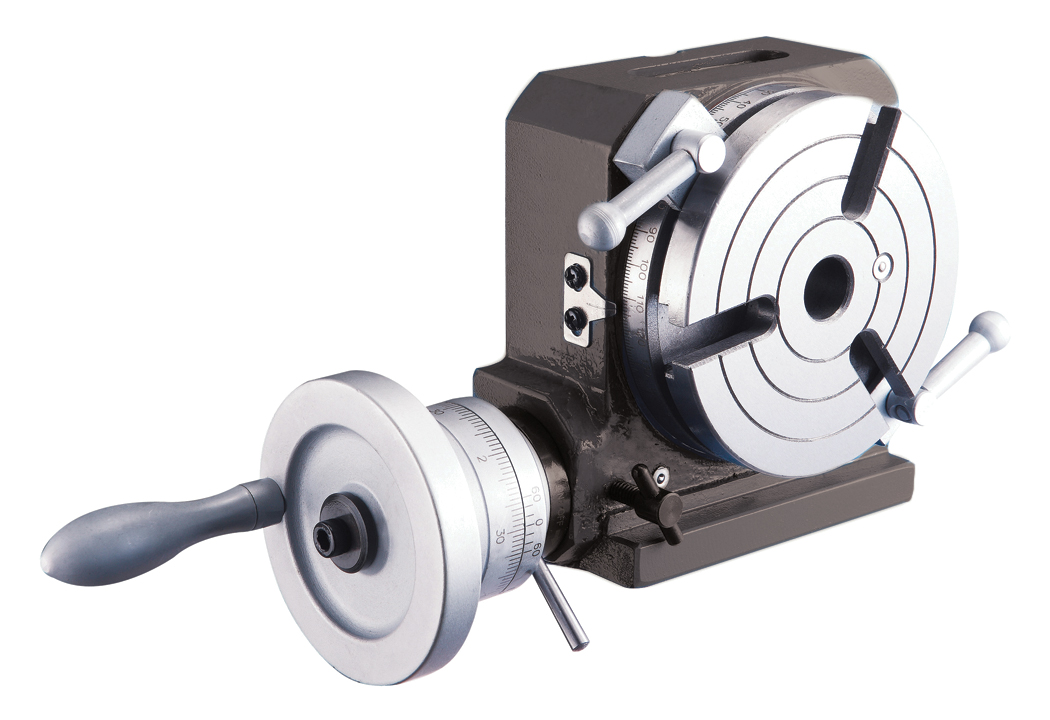

Main ImageDownload

4" Heavy Duty Rotary Table

9634114

    • Product ID9634114
      Product Name4" Heavy Duty Rotary Table
      UPC726896341149
      Model Number9634114
      Product CopyFor those more demanding circular cutting and positioning operations, Palmgren’s heavy duty series of rotary indexing tables are the right choice. These tables permit rapid positioning of work under the ­machine spindle or for inspection and layout applications. Use in either the horizontal or vertical position.
      Product FeaturesUse in either the horizontal or vertical position. Low profile dimensions. The table top and the vertical and horizontal bases are ground for overall squareness. Gear drive is immersed in oil. Dual positive action locks. Hardened and ground worm gear. The work table is graduated a full 360° - One turn on the handle moves the table 4 inches. The micro collar is graduated in steps of 1 minute on the dial and 10 down to 10 seconds on the vernier scale. Flatness of clamping surface .0006" / Parallelism of clamping ­surface to base .0008" / Squareness of clamping surface to angle face. 0008" / Squareness of clamping surface to center hole .0008 inch
      CategoryWorkhold-Positioning Tables
      Sub CategoryPositioning Tables
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)3.2
      Product Length (inches)4.5
      Product Width (inches)5.7
      Product Weight (lbs)16.5
      Shipping Height3.15
      Shipping Length4.53
      Shipping Width5.71
      Shipping Weight16.5
    • Base Dimension5.70 in x 4.52 in
    • MaterialSteel
      Max Load Horizontal80 lbs.
      Max. Load Vertical40 lbs.
    • Positioning Tables TypeRotary
    • Table Diameter4"
    • WarrantyLimited lifetime warranty
