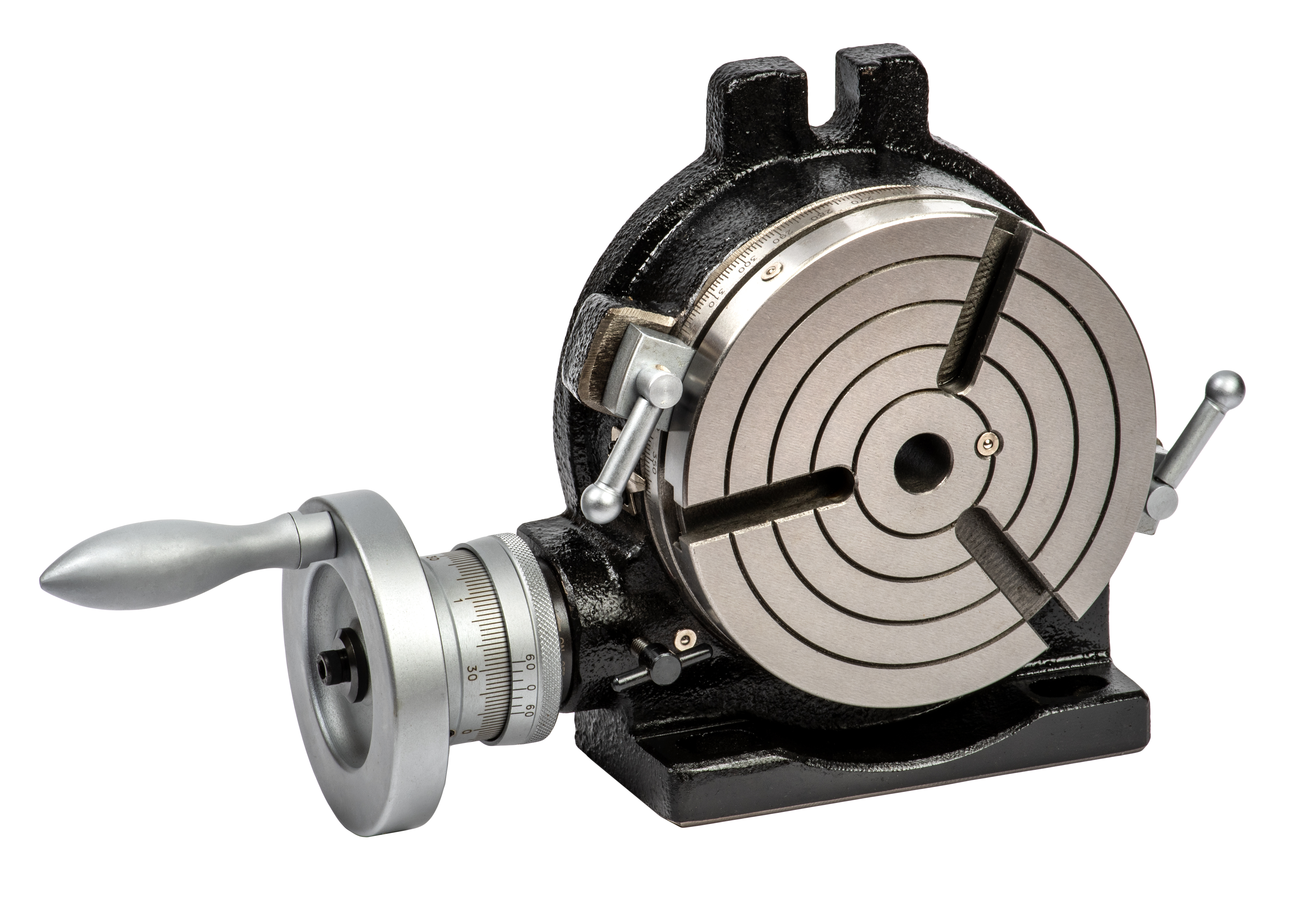

6" Heavy Duty Rotary Table
Main ImageDownload

6" Heavy Duty Rotary Table

9634116

    • Product ID9634116
      Product Name6" Heavy Duty Rotary Table
      UPC726896341163
      Model Number9634116
      Product CopyFor those more demanding circular cutting and positioning operations, Palmgren 6-inch Heavy Duty Rotary Table is the right choice. These tables permit rapid positioning of work under the ­machine spindle or for inspection and layout applications. Use in either the horizontal or vertical position.
      Product FeaturesLow profile dimensions. The table top and the vertical and horizontal bases are ground for overall squareness. Gear drive is immersed in oil. Dual positive action locks. Hardened and ground worm gear. The work table is graduated a full 360° - One turn on the handle moves the table 4°. The micro collar is graduated in steps of 1 minute on the dial and 10 down to 10 seconds on the vernier scale. Flatness of clamping surface .0006" / Parallelism of clamping ­surface to base .0008" / Squareness of clamping surface to angle face .0008" / Squareness of clamping surface to center hole .0008"
      CategoryWorkhold-Positioning Tables
      Sub CategoryPositioning Tables
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)3.1
      Product Length (inches)7.9
      Product Width (inches)6.3
      Product Weight (lbs)29
    • Base Dimension7.87 in x 6.30 in
    • MaterialSteel
      Max Load Horizontal90 lbs.
      Max. Load Vertical45 lbs.
    • Positioning Tables TypeRotary
    • Table Diameter6"
    • WarrantyLimited lifetime warranty
