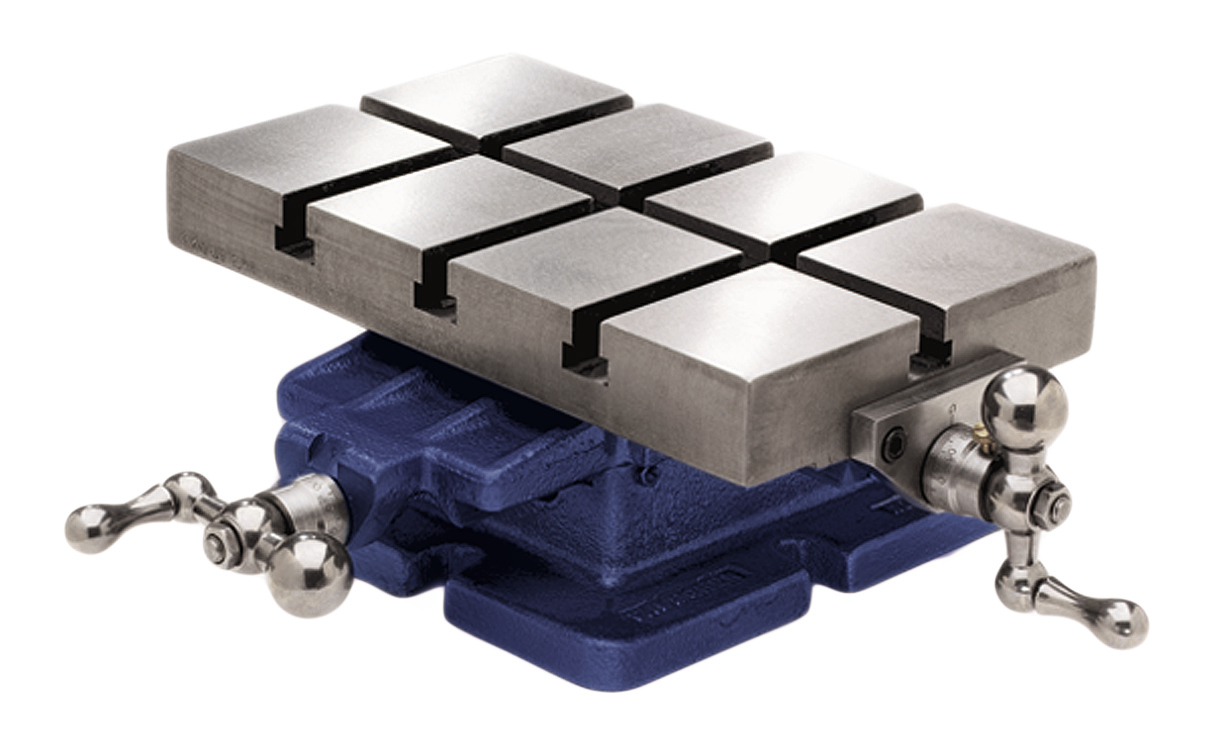

6" X 10" Dual Cross Slide Table

9636103

    • Product ID9636103
      Product Name6" X 10" Dual Cross Slide Table
      UPC726896361031
      Model Number92-10
      Product CopyPalmgren's rigid precision built slide tables are used for inspection and layout as well as various machining and positioning operations. Single axis movement in the X or the left-to-right direction. All tables are equipped with counterbalanced ball crank handles that provide rapid , accurate positioning.
      Product FeaturesPrecision ground table tops to 0 001" total indicator reading. Dials are graduated in 0 001" increments. Ball crank handles do not extend below the base to eliminate interference with the machine table. Bases have bolt lugs and 5/8" keyways for locating and accurate, secure mounting. Table tops have a longitudinal and three transverse 7/16" T-slots. Dovetailed slides have adjustable steel gibs to compensate for wear
      CategoryWorkhold-Positioning Tables
      Sub CategoryPositioning Tables
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)6
      Product Length (inches)14.3
      Product Width (inches)14.3
      Product Weight (lbs)39
    • Base Dimension9 in x 5 in
    • MaterialSteel
    • Positioning Tables TypeCross Slide
    • Table Diameter10"
      Table Dimensions10" x 6"
      Table Travel6" x 4"
      Travel (X x Y)4" x 4"
    • Vise Jaw MaterialN/A
      Vise MaterialIron
      WarrantyLimited lifetime warranty
