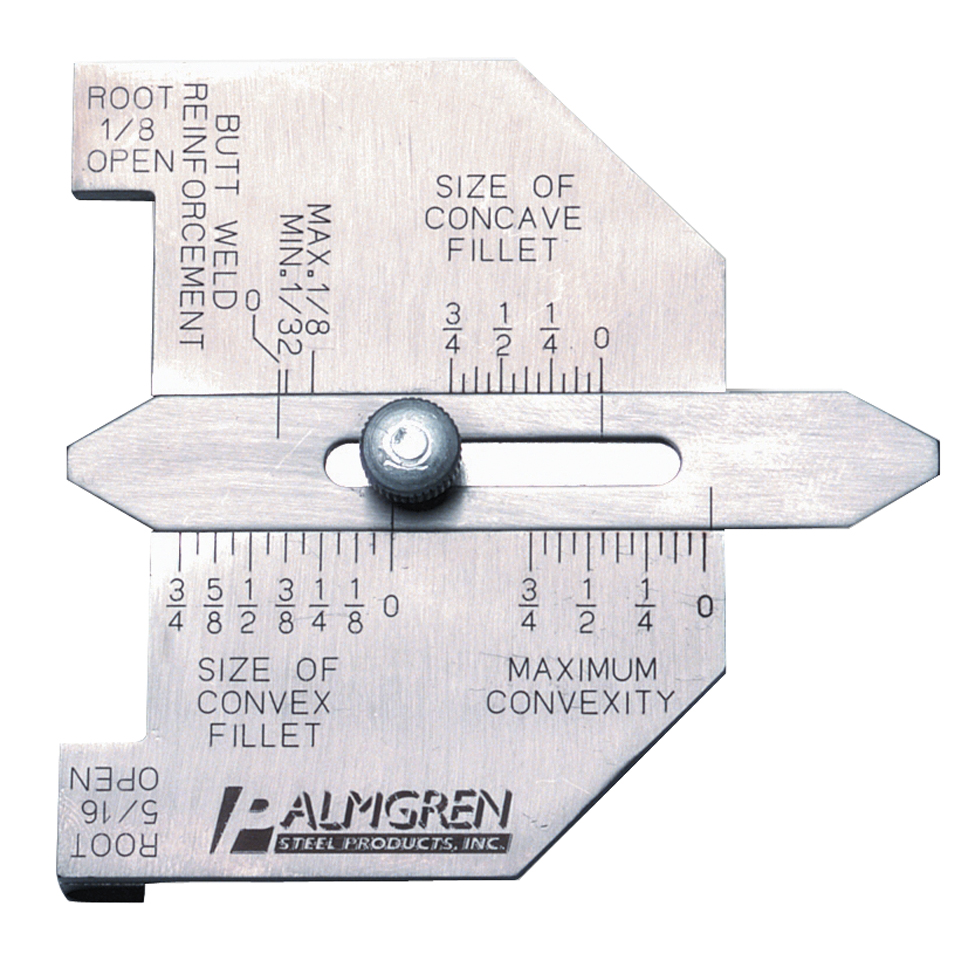

Butt-Weld and Fillet-Weld Gauge
Main ImageDownload

Butt-Weld and Fillet-Weld Gauge

9655501

    • Product ID9655501
      Product NameButt-Weld and Fillet-Weld Gauge
      UPC726896555010
      Product CopyUsed for accurately checking butt and fillet welds. This handy tool may be used for measuring the size of convex and concave fillets, maximum convexity, the limit of reinforcement of butt welds and root openings.
      Product FeaturesMade of stainless steel. Laser etched. Features a threaded pin and finger knob for easy locking of center slide
      CategoryMachine Options-Accessories
      Sub CategoryWelding Gauge
      Country of OriginChina
      Stock UOMEach
    • Product Height (inches)0.8
      Product Length (inches)3.1
      Product Width (inches)3.4
      Product Weight (lbs)1
    • Butt Weld Size1/32" - 1/8"
    • Max. Converity0" - 3/4"
    • Root Opening1/8", 5/8"
    • Warranty3 years
