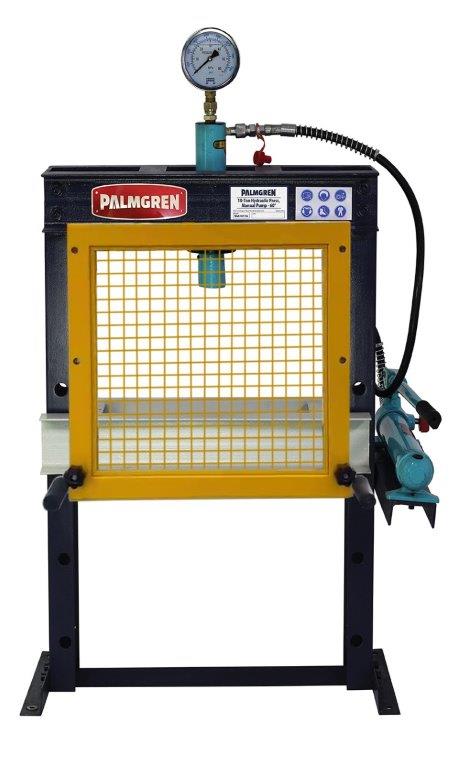

10 Ton Manual Pump Floor Hydraulic Press
Main ImageDownload

10 Ton Manual Pump Floor Hydraulic Press

9661611

    • Product ID9661611
      Product Name10 Ton Manual Pump Floor Hydraulic Press
      UPC726896616117
      Product CopyPalmgren’s Hand Operated H-Frame Press Line consists of 10, 25- and 75-ton presses. Each machine is constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands only the best quality from his operation.
      Product FeaturesPressure gauge for direct pressure readings. Easily adjustable table for quick height changes between applications. Holes in side frames allow for insertion of long material. Hand operation for economic performance. Efficient hand pump is conveniently located for reduced operator fatigue. Fully-welded heavy steel plate frame for maximum rigidity. Factory preset relief valve to prevent exceeding maximum pressure capacity. By-pass hole prevents excessive ram extension. Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve. Single acting cylinder design for improved operation. Table Weight Capacity: 1000 lbs. Adj. between Table Pin to Holes: 7.08 in. Distance between channels: 4.17 in. V-Block Weight: 8.8 lbs
      CategoryWorkhold-Arbor Presses
      Sub CategoryH-Press Manual Pump
      Country of OriginChina
      Stock UOMEach
    • Product Height (inches)60
      Product Length (inches)30.3
      Product Width (inches)17
      Product Weight (lbs)130
      Shipping Height63
      Shipping Length27.5
      Shipping Width20
      Shipping Weight209
    • Base Dimension24 in x 17 in
    • Max Pressure10 Ton
      Max distance ram to table38.3
      Max. Distance Spindle To Table38.4
      Maximum Work Diameter19 x 40
      Max workpiece width11.81"
    • Minimum Work Diameter19 x 0.04
      Overall Dimensions (LxWxH)31.5" x 21.6" x 71"
      Pressure (tons)10
      Pump TypeMANUAL
    • Ram Bore (inches)5
      Ram Diameter1.8
      Ram Dimensions6.3
      Ram Size6.3
      Reservoir Capacity2L
    • Size of Ram Face (inches)1.5 Dia.
    • Table Weight1000
      Throat Capacity19.5" x 11.8"
    • Warranty3 years
      Working Height（inch）8.30
      Working Width（in）19.5
