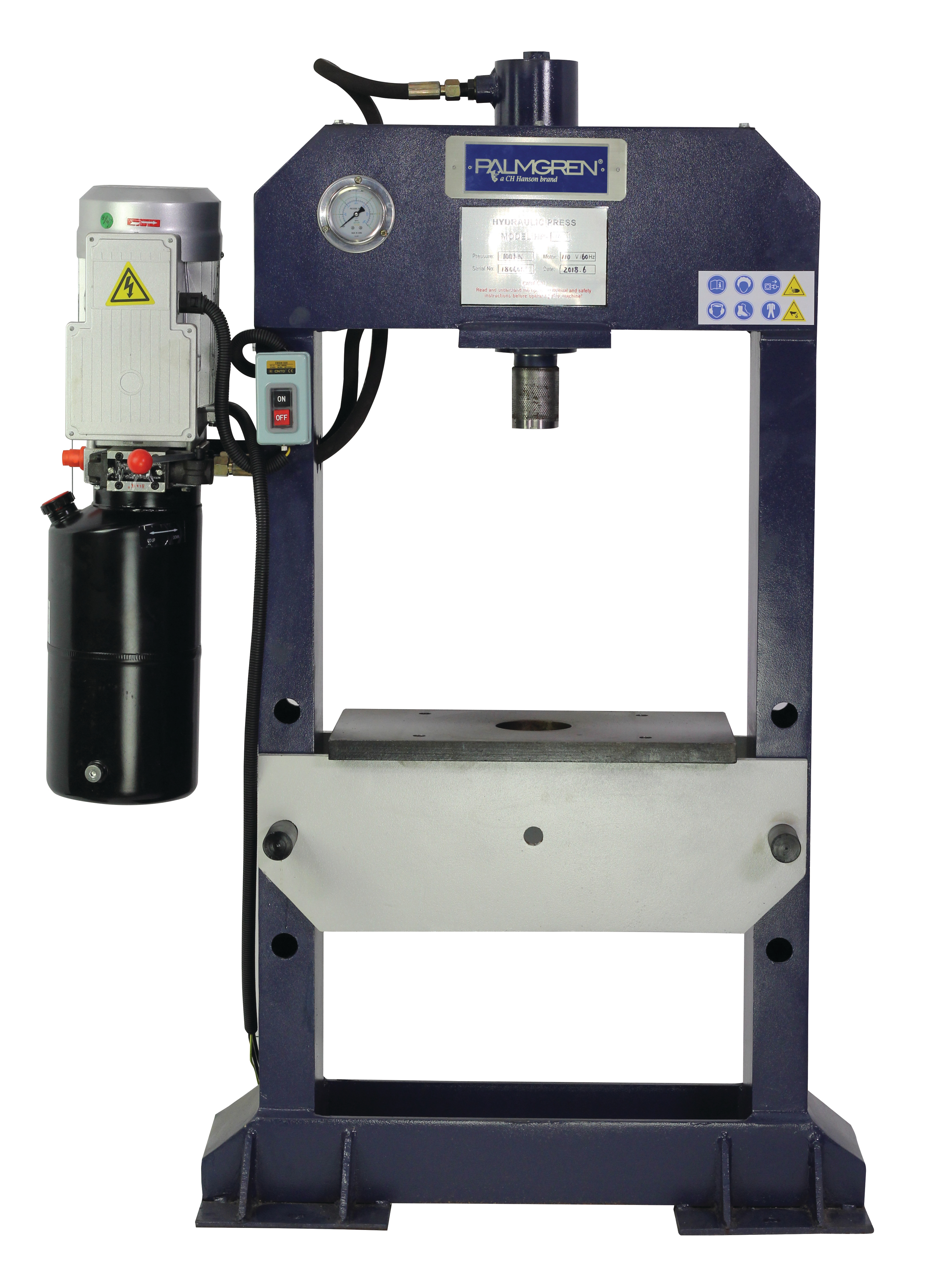

10 Ton Electric Pump Floor Hydraulic Press
Main ImageDownload

10 Ton Electric Pump Floor Hydraulic Press

9661612

    • Product ID9661612
      Product Name10 Ton Electric Pump Floor Hydraulic Press
      UPC726896616124
      Product CopyPalmgren’s Electronic Pump H-Frame Presses come in a variety of shapes and sizes. The Electronic H-Frame line consists of 10-ton, 25-ton and 50-ton, with varying frame heights to suit all applications. The electronic H-Frame presses are the premier solution to any application from fabrication shops to prototype labs.
      Product FeaturesPressure gauge for direct pressure readings. Easily adjustable table for quick height changes between applications. Holes in side frames allow for insertion of long material. Electronic operation for increased performance. Fully-welded heavy steel plate frame for maximum rigidity. Factory preset relief valve to prevent exceeding maximum pressure capacity. By-pass hole prevents excessive ram extension. Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve. Single acting cylinder design for improved operation. Table Weight Capacity: 1000 lbs. Adj. between Table Pin to Holes: 5.3 in. Distance between channels: 6.61 in. V-Block Weight: 5.9 lbs
      CategoryWorkhold-Arbor Presses
      Sub CategoryH-Frame Presses
      Country of OriginChina
      Stock UOMEach
    • Product Height (inches)52
      Product Length (inches)14
      Product Width (inches)34
      Product Weight (lbs)682
      Shipping Height65
      Shipping Length42
      Shipping Width17
      Shipping Weight618
    • Base Dimension28 in x 17 in
    • Max Pressure10 Ton
      Max distance ram to table18.11
      Maximum Work Diameter19.5 x 19.5
      Max workpiece width12"
    • Minimum Work Diameter19.5 x 0.75
      Motor HP3HP
      Overall Dimensions (LxWxH)37.4" x 13.3" x 57"
      PhaseSingle
      Pressure (tons)10
      Pump TypeELECTRIC
    • Ram Bore (inches)2.3
      Ram Diameter2.3
      Ram Size10
      Ram Speed-Press1.18
      Reservoir Capacity2 GAL 8L
    • Size of Ram Face (inches)2.3 Dia.
    • Table to Center of Spindle3.15
      Table Weight1000
      Throat Capacity19" x 12"
    • Voltage230V
      Warranty3 years
      Working Height（inch）8.40
      Working Width（in）19.5
