H-Press 5 Ton Manual Pump 36 IN
Main ImageDownload

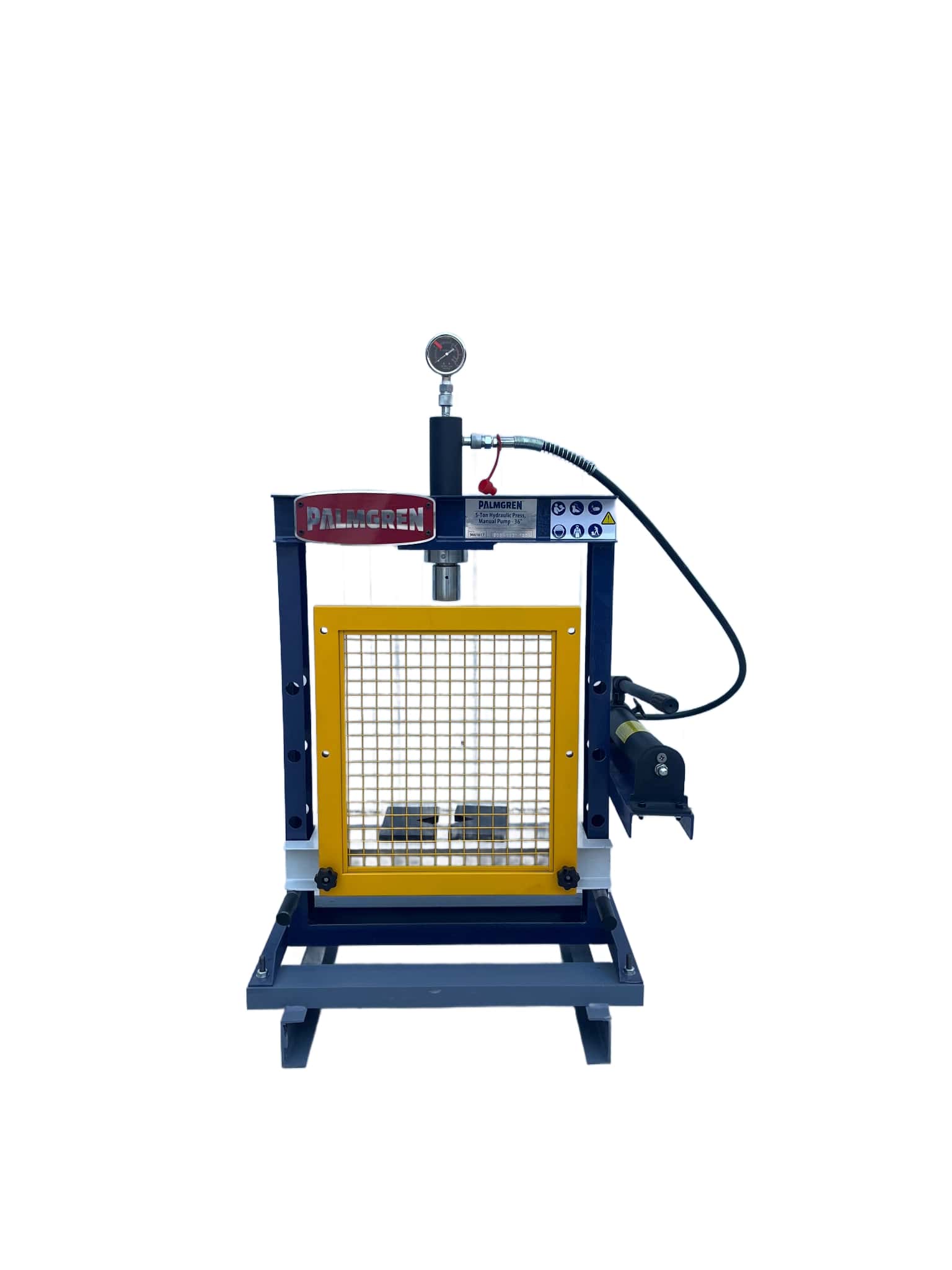

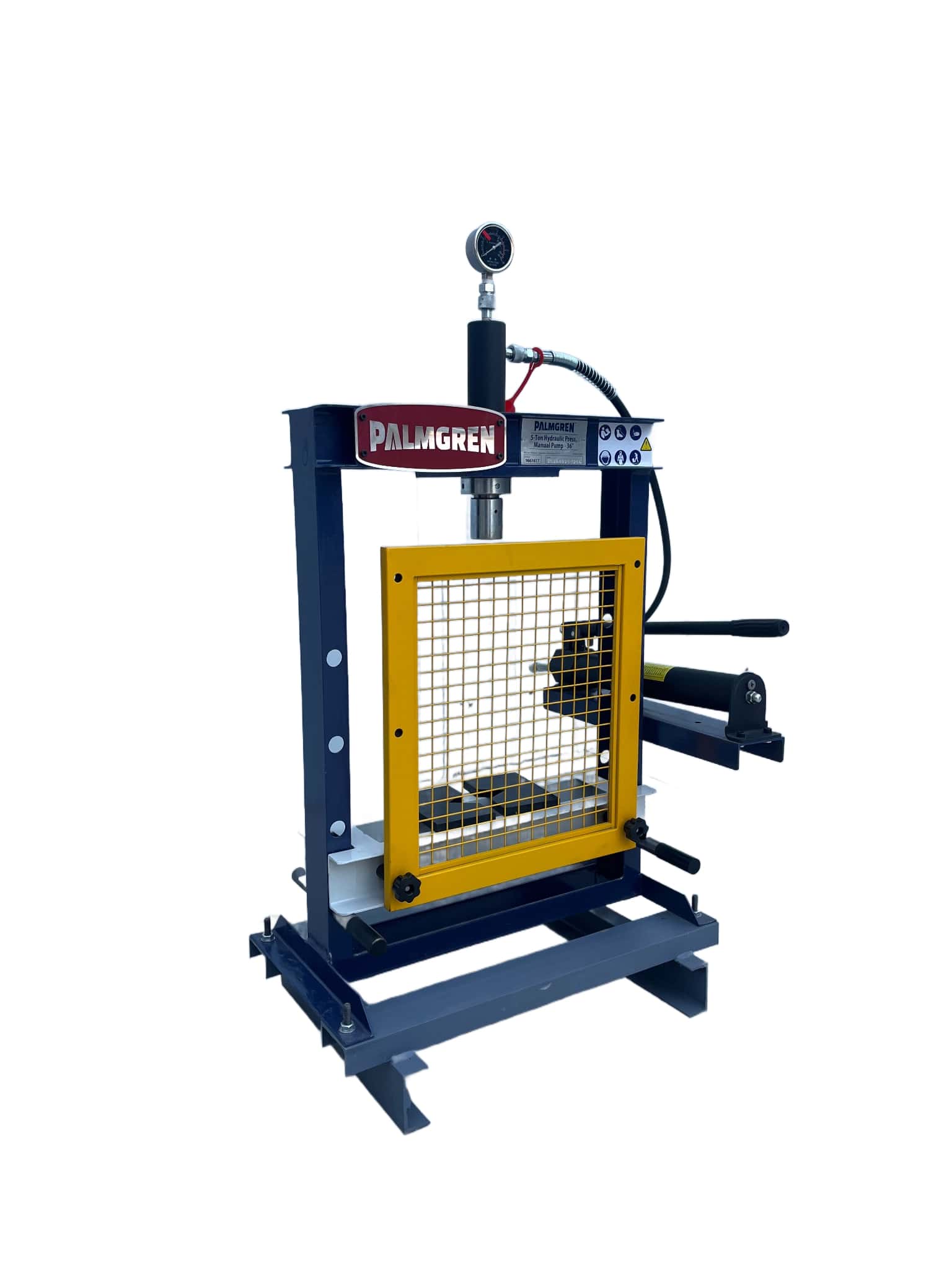

H-Press 5 Ton Manual Pump 36 IN

9661617

    • Product ID9661617
      Product NameH-Press 5 Ton Manual Pump 36 IN
      UPC726896616179
      Product CopyPalmgren’s Hand Operated 5-Ton H-Frame Presses are constructed from heavy duty steel plate that is welded together. The combination of rigid construction and industrial grade hydraulics make Palmgren’s 5-Ton H-Frame presses the ultimate solution for the serious fabrication and machine shop owner who demands only the best quality from his operation.
      Product FeaturesPressure gauge for direct pressure readings. Easily adjustable table for quick height changes between applications. Holes in side frames allow for insertion of long material. Hand operation for economic performance. Efficient hand pump is conveniently located for reduced operator fatigue. Fully-welded heavy steel plate frame for maximum rigidity. Factory preset relief valve to prevent exceeding maximum pressure capacity. By-pass hole prevents excessive ram extension. Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve. Single acting cylinder design for improved operation. Adj. between Table Pin to Holes: 4.72 in. Distance between channels: 3.39 in. Ram Stoke in Inches: 4.7. V-Block Weight: 6.6 lbs
      CategoryWorkhold-Arbor Presses
      Country of OriginChina
      Stock UOMEach
    • Product Height (inches)44.5
      Product Length (inches)20.5
      Product Width (inches)23
      Product Weight (lbs)190
      Shipping Height37
      Shipping Length29
      Shipping Width17.3
      Shipping Weight140
    • ApplicationFabrication
      Base Dimension15.7 x 26
      Bed Height3.5
      Bed Width19.5
    • Machine Weight132
      Max Pressure5 Ton
      Max distance ram to table15.7
    • Overall Dimensions (LxWxH)30" x 15.7" x 36.5"
    • Ram Diameter1.57
    • Table Weight500
      Throat Capacity19.7" x 14.2"
    • Warranty3 years
