16 1-1/2" HP Mill/Drill Machine
Main ImageDownload

16 1-1/2" HP Mill/Drill Machine

9680113

    • Product ID9680113
      Product Name16 1-1/2" HP Mill/Drill Machine
      UPC726896801131

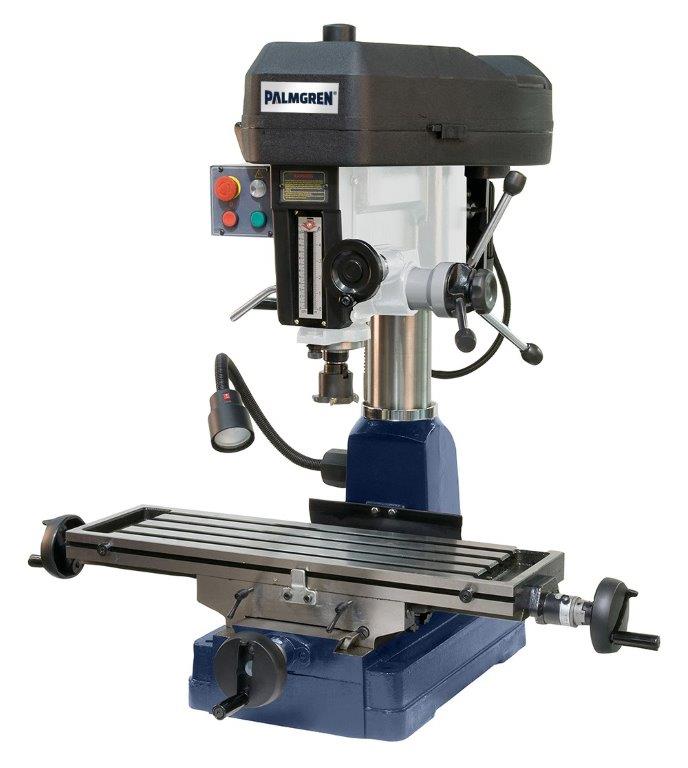

      Product CopyPalmgren 12-Speed Mill Drill Model 9680113 is a ruggedly constructed machine providing accurate milling, drilling, slotting and boring capabilities. One-piece cast-iron head rotates 360° and travels vertically by rack and pinion. Hinged pulley cover allows fast and easy speed changes. A 1-1⁄2 HP, 1725 RPM, 115/230-volt, 60 Hz single-phase motor and 115v work lamp are included. Prewired for 230V.
      Product Features16” Swing. Fully enclosed R-8 spindle has heavy-duty tapered thrust bearings at top and bottom of quill. Large 32-3⁄8 x 9-1⁄2” table has dovetail ways with adjustable gibs and bronze lead screw nuts for accurate and rigid table positioning. Table has four 5/8” T-slots, zero-setting handwheel dials with .001” graduations, adjustable stops for longitudinal feed and cross feed way cover. 12 Speeds: 150 to 3000RPM. Adjustable depth stops with scale. Draw Bar (7/16”-20) and Way Cover. Spindle Stroke 5”. Work Light. Includes: Drill Chuck Arbor, 1/2" Chuck and Key, Face Mill Arbor, 3” Face Mill, R8/MT3 Adaptor, 6-pc R8 Collet Set
      CategoryMachine-Mills
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)47
      Product Length (inches)38
      Product Width (inches)30
      Product Weight (lbs)593
    • Milling Capacity Cutter Head (max)3"
      Milling Capacity End Mill Cutter (max.)3/4"
      Milling Machines TypeGear Head
      Motor HP1-1/2
      Overall Dimensions (LxWxH)29" x 32" x 45"
      PhaseSingle
      Quill Diameter3"
      Quill Travel5"
    • Speed Range150 - 3,000 RPM
      Spindle TaperR8
      Swing16"
    • Voltage115/230V
      Warranty3 years
      X Axis Travel23"
      Y-Axis7"
