20" Vari-Spd Gear Head Floor Drill Press 460V
Main ImageDownload

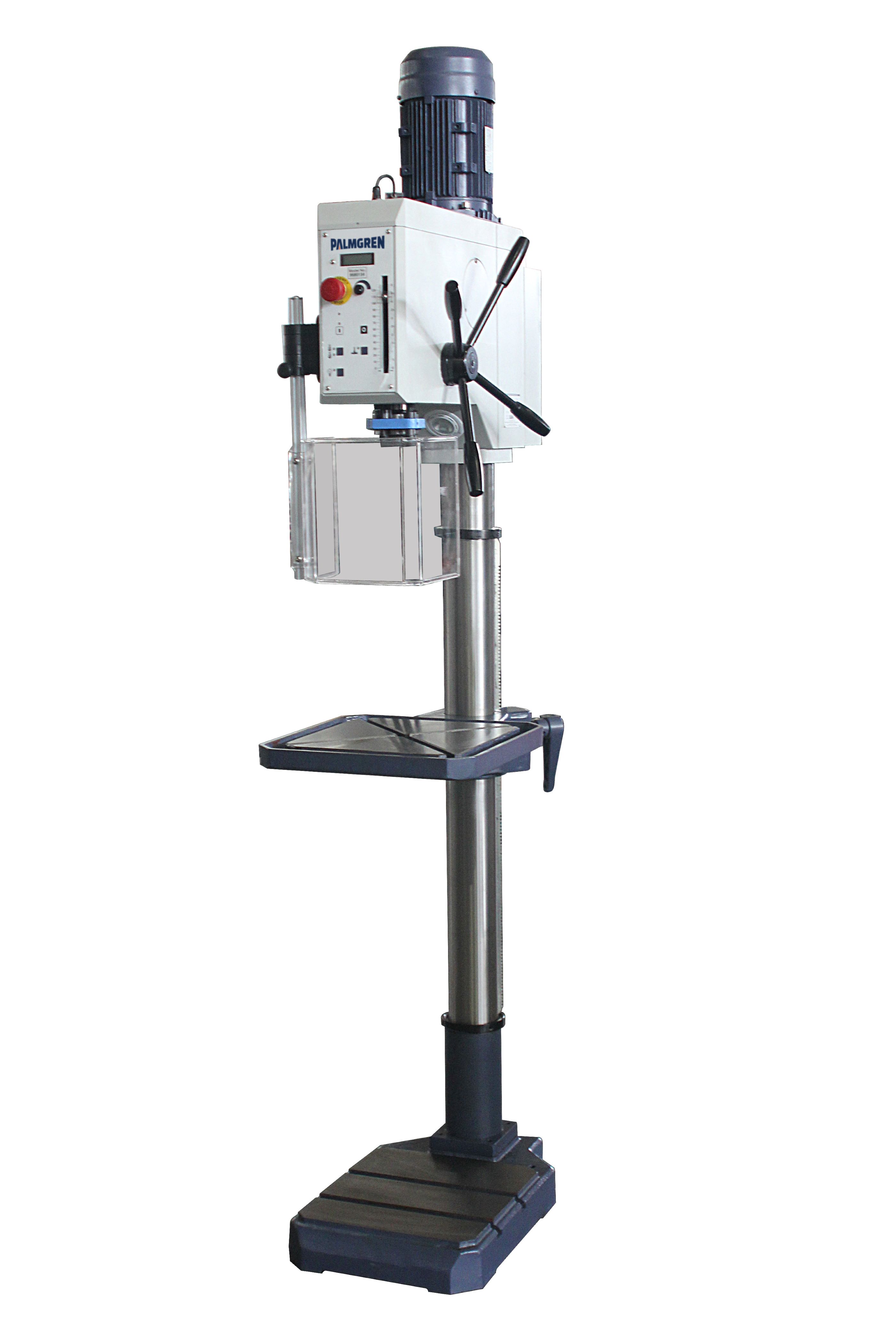

20" Vari-Spd Gear Head Floor Drill Press 460V

9680138

    • Product ID9680138
      Product Name20" Vari-Spd Gear Head Floor Drill Press 460V
      UPC726896801384
      Product CopyPalmgren Gear Head Drill Presses are ideal for precision drilling applications and continuous industrial use. These versatile, gear driven, drill presses are ruggedly constructed with an all gear driven transmission to deliver full power at any speed, driving the cutting tool at nearly 100% of the available motor horsepower. The drill ensures positive and quiet operation by the use of steel and reinforced fiber gears.
      Product FeaturesWide speed range with 4 different speed settings. Simple knob selectors for operator ease in controlling spindle speeds. Fully enclosed machine tool spindle with internal 3 MT mounted in precision bearings for maximum accuracy, minimizing deflection. Front mounted control panel designed for operator convenience. T-slotted production table and base. Rack and pinion table raiser. Front mounted dial adjusted work stop. Interlocking chuck guard. Maximum spindle runout of 0 0005". Work light
      CategoryMachine-Drill Presses
      Sub CategoryDrill Presses
      Country of OriginChina
      Stock UOMEach
    • Product Height (inches)81"
      Product Length (inches)25"
      Product Width (inches)15"
      Product Weight (lbs)405.6
    • AMPS3.2
      Base Dimension13.75 in x 12.625 in
    • Max. Spindle To Base47"
      Maximum Spindle to Table34-1/2"
    • Motor HP2
      Number of Spindle SpeedsVariable
      PhaseThree
      Quill Diameter62mm
    • Spindle TaperMT3
      Spindle Travel5"
      Swing20"
    • Table Dimensions15.5" x 14.75"
      Table Slots4
      Table Slot Size14mm
    • Voltage460
      Warranty3 years
