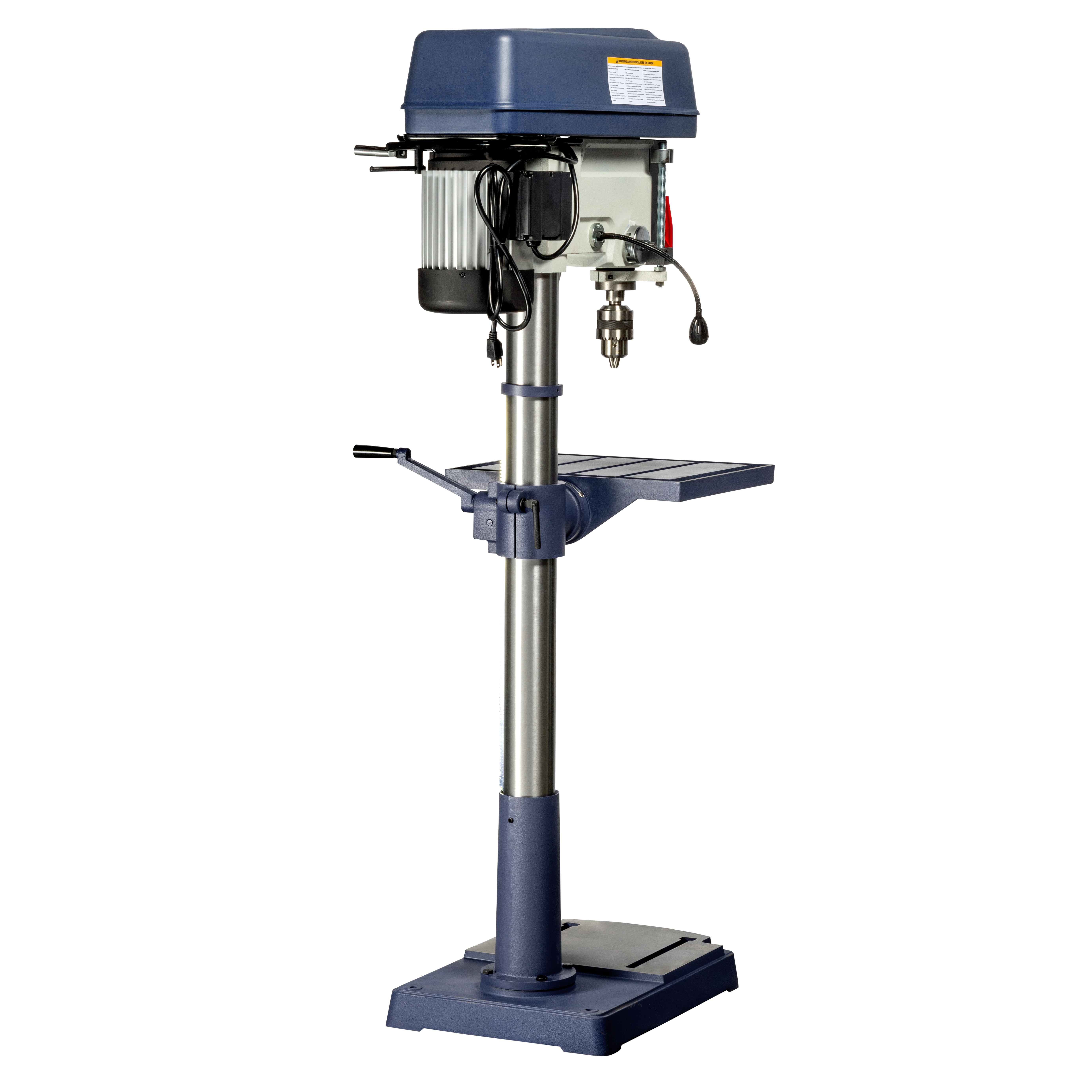

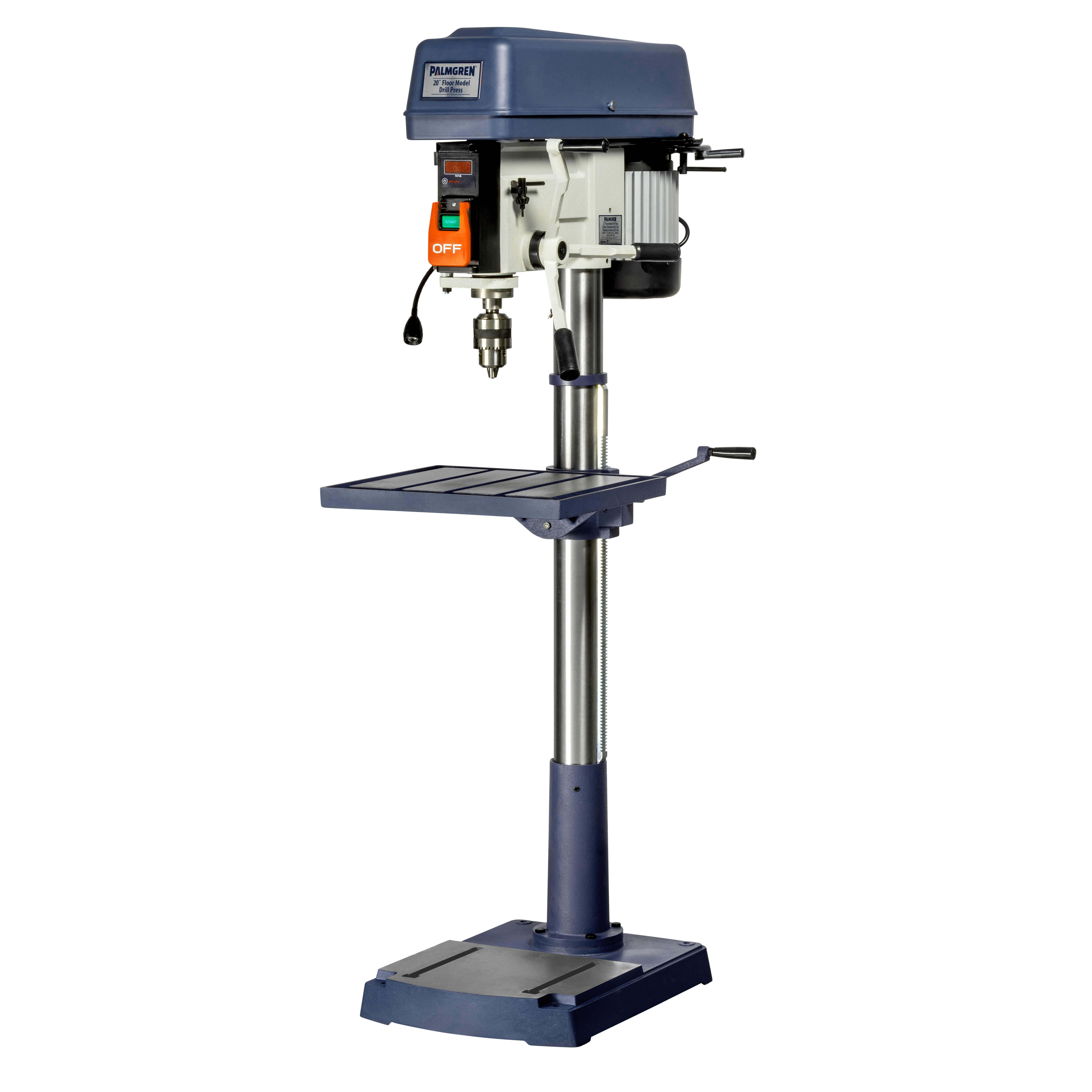

20" 16-Speed Floor Step Pulley Drill Press (120/240V 1 Phase)
Main ImageDownload

20" 16-Speed Floor Step Pulley Drill Press (120/240V 1 Phase)

9680209

    • Product ID9680209
      Product Name20" 16-Speed Floor Step Pulley Drill Press (120/240V 1 Phase)
      UPC726896802091
      Model Number80209
      Product CopyPalmgren’s step pulley drill presses are substantially constructed to provide a solid base for all your drilling operations, and offer a greater range of spindle speeds than any others in their class. They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications.
      Product FeaturesFully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operations. Maximum spindle run out of 0 005”. Extended quill/spindle travel ideal for deep hole applications. LED readout for spindle speeds. Quick change vertical depth stop for accurate, repeatable feed length. Includes chuck with key and arbor. Rack and pinion table raiser. Table tilts 45 degrees right and left and rotates 360 degrees around the column. Front mounted industrial paddle type power switch
      CategoryMachine-Drill Presses
      Sub CategoryDrill Presses
      Country of OriginChina
      Stock UOMEach
    • Product Height (inches)12.7
      Product Length (inches)58
      Product Width (inches)29
      Product Weight (lbs)250
      Shipping Height70
      Shipping Length30
      Shipping Width19.5
      Shipping Weight274
    • AMPS14.2/7.1
    • Maximum Spindle to Table26"
    • Motor HP1.5
      Overall Dimensions (LxWxH)70" H x 19-1/2" W x 30" D
      PhaseSingle
    • RPM140-3600
    • Spindle TaperMT3/JT4
      Spindle Travel6"
      Swing20"
    • Table Dimensions18-3/4" x 16-3/4"
      Table Slots5/8"
    • Voltage120/240
      Warranty3 years
