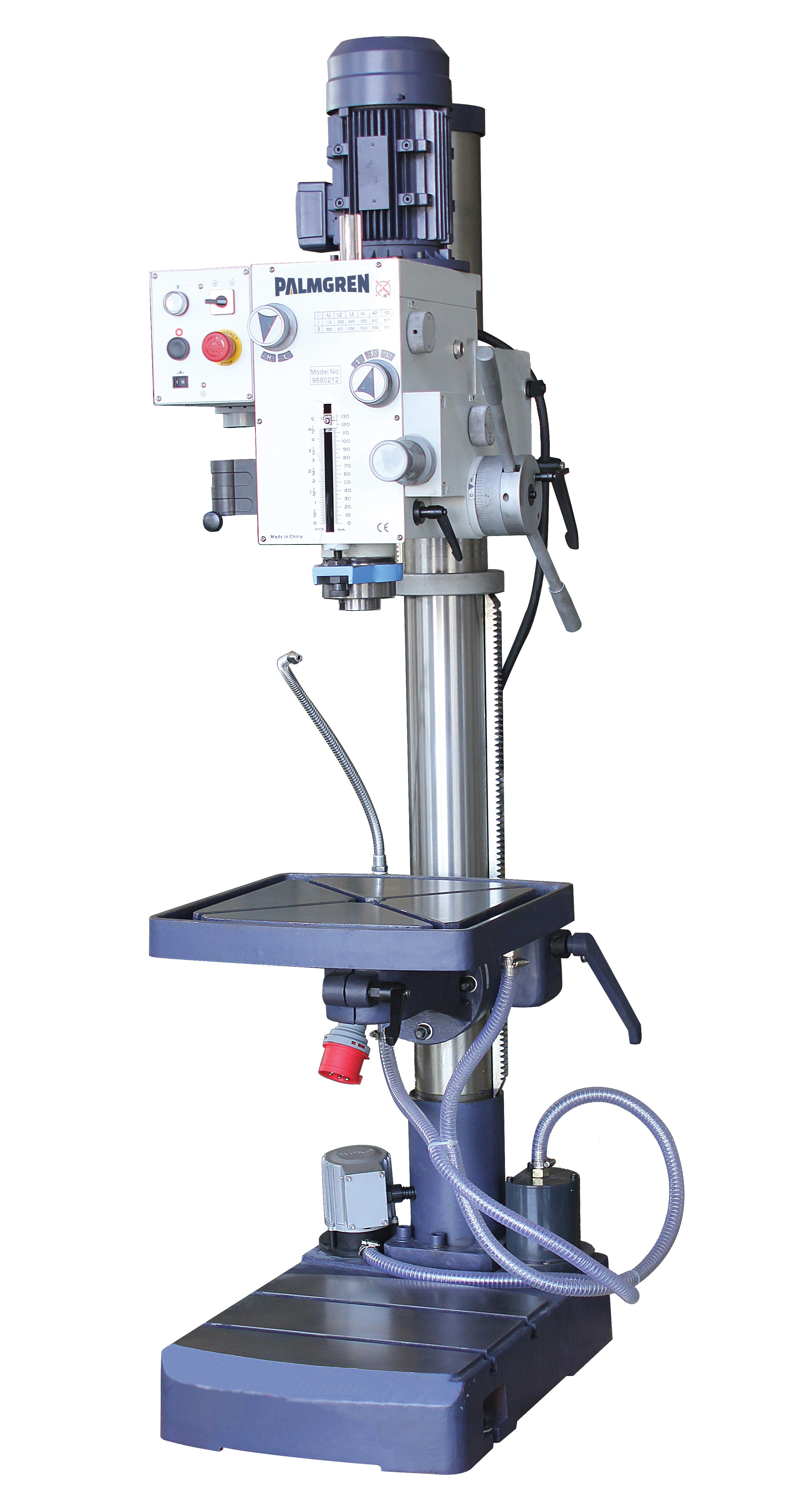

22" Gear Head Drill Press: 2 Horsepower (240V 3 Phase)
Main ImageDownload

22" Gear Head Drill Press: 2 Horsepower (240V 3 Phase)

9680212

    • Product ID9680212
      Product Name22" Gear Head Drill Press: 2 Horsepower (240V 3 Phase)
      UPC726896802121
      Model NumberB40PTE
      Product CopyRuggedly constructed Palmgren’s 22” gear head drill press delivers full power at any speed and has the operational features to withstand continuous industrial use. This heavy duty drill press uses a mechanical clutch system for the power feed and is built to handle all you drilling, reaming, chamfering, tapping, spot facing and counter boring applications with ease.
      Product FeaturesSpindle gear box is equipped with hardened and ground steel gears and shafts lubricated on a continuous oil bath for long term quite, smooth operation. Fully enclosed machine tool ground spindle with internal 4 MT mounted in precision bearings for maximum accuracy, minimizing deflection. Front mounted control panel designed for operator convenience. Forward & reverse spindle switch. Mechanical clutch spindle power feed. Fine feed wheel for small hole and finishing operations. Rack and pinion head and table raiser system. T-slotted production table and base. Front mounted dial adjusted work stop. 4 1/2” column provides maximum head, table and base support and stability. Safety electrical package with emergency push button stop switch, 24 volts at the switch and interlocking chuck guard. Flood coolant system
      CategoryMachine-Drill Presses
      Sub CategoryDrill Presses
      Country of OriginChina
      Stock UOMEach
    • Product Height (inches)80
      Product Length (inches)28
      Product Width (inches)23.5
      Product Weight (lbs)780
      Shipping Height80
      Shipping Length28
      Shipping Width23.5
      Shipping Weight715
    • Base Dimension16 in x 20 in
    • Max. Spindle To Base46-1/4"
      Maximum Spindle to Table29-3/4"
    • Motor HP1-1/2
      Number of Spindle Speeds12
      Number of Table Slots:2
      Overall Dimensions (LxWxH)23-1/2" x 28" x 80"
      PhaseThree
      Power FeedYes
      Quill Diameter2 - 61/64"
    • Spindle TaperMT4/JT3
      Spindle Travel4-3/4"
      Swing22"
    • Table Dimensions16-3/4" x 17-1/2"
      Table Slot Size1/2"
    • Warranty3 years
