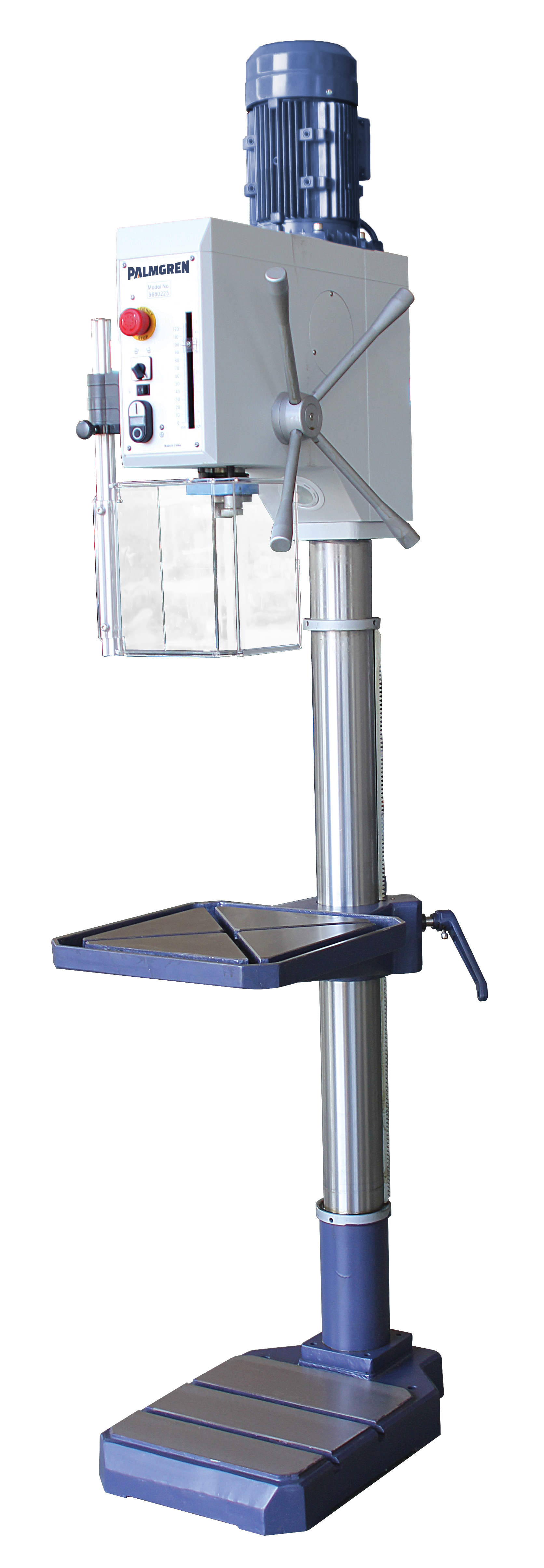

20" Gear Head Floor Drill Press
9680223
Product ID 9680223 Product Name 20" Gear Head Floor Drill Press UPC 726896802237 Model Number DH28GS Product Copy This versatile all gear drive drill press is ideal for precision drilling applications and continuous industrial use. The all gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower. This drill utilizes the combination of steel and reinforced fiber gears to ensure positive, quite operation. All clutches are made of ground steel for added performance and strength. The wide speed range makes this drill ideal for drilling small to large diameter holes fast and easily. Product Features Wide speed range with 8 different speeds. Simple knob selectors for operator ease in changing spindle speeds. Fully enclosed machine tool spindle with internal 3 MT mounted in precision bearings for maximum accuracy, minimizing deflection. Quick release drill ejector. Front mounted control panel designed for operator convenience. Forward & reverse spindle switch. T-slotted production table and base. Rack and pinion table raiser. Front mounted dial adjusted work stop. Interlocking chuck guard. Work light Category Machine-Drill Presses Sub Category Drill Presses Country of Origin China Stock UOM Each Product Weight (lbs) 504 Shipping Height 82 Shipping Length 25 Shipping Width 15 Shipping Weight 458 AMPS 8.6/4.3 Base Dimension 22-5/8 in x 15 3/4 in Max. Spindle To Base 47 - 13/64" Maximum Spindle to Table 34 - 13/32" Motor HP 1-1/2 - 2 Number of Spindle Speeds 8 Number of Table Slots: 2 Overall Dimensions (LxWxH) 15" x 25" x 82" Phase Three Power Feed No Quill Diameter 2 - 23/64" Spindle Taper MT3 Spindle Travel 5" Swing 20" Table Dimensions 15-1/2" x 14 - 13/16" Table Slot Size 1/2" Voltage 240 Warranty 3 years
