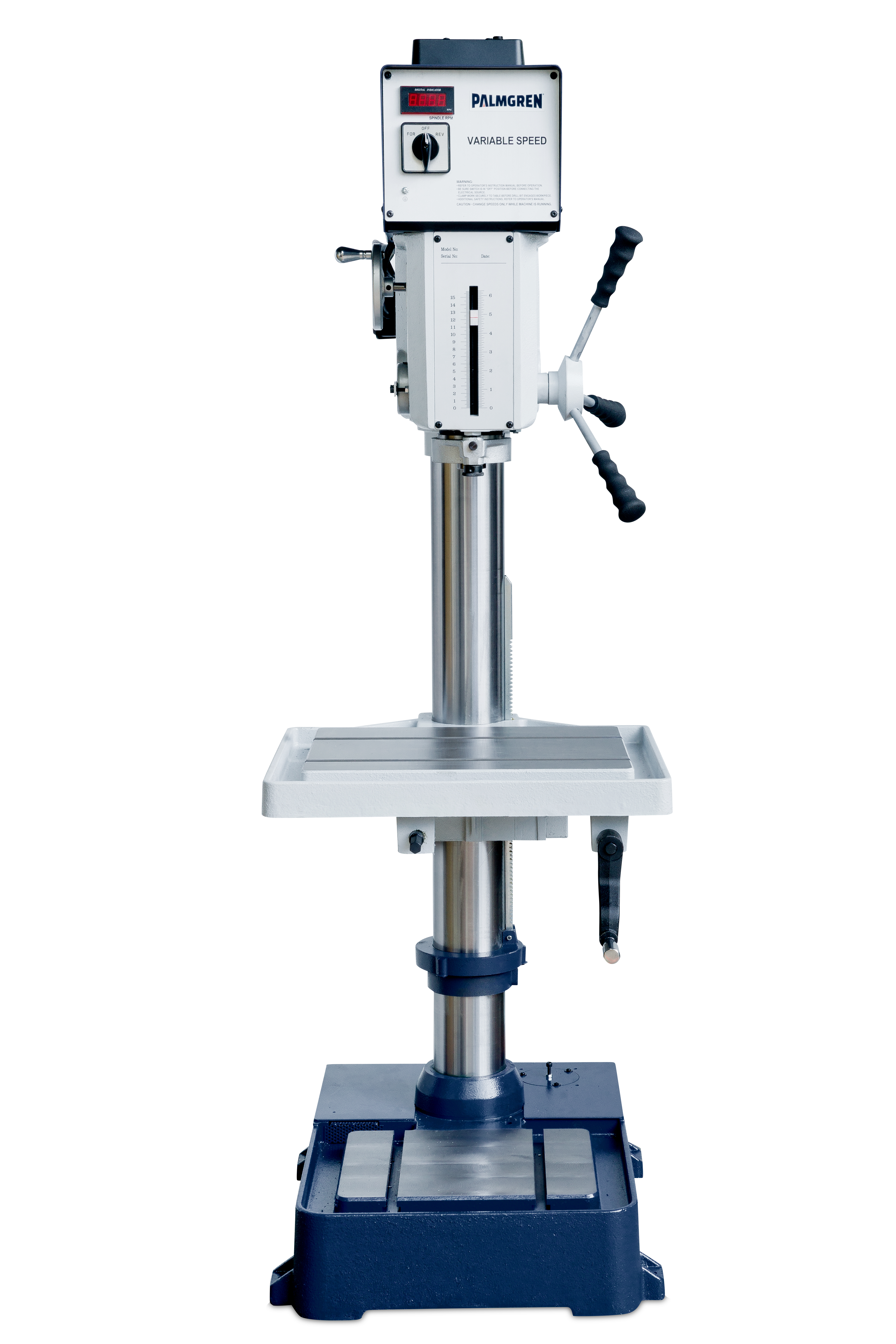

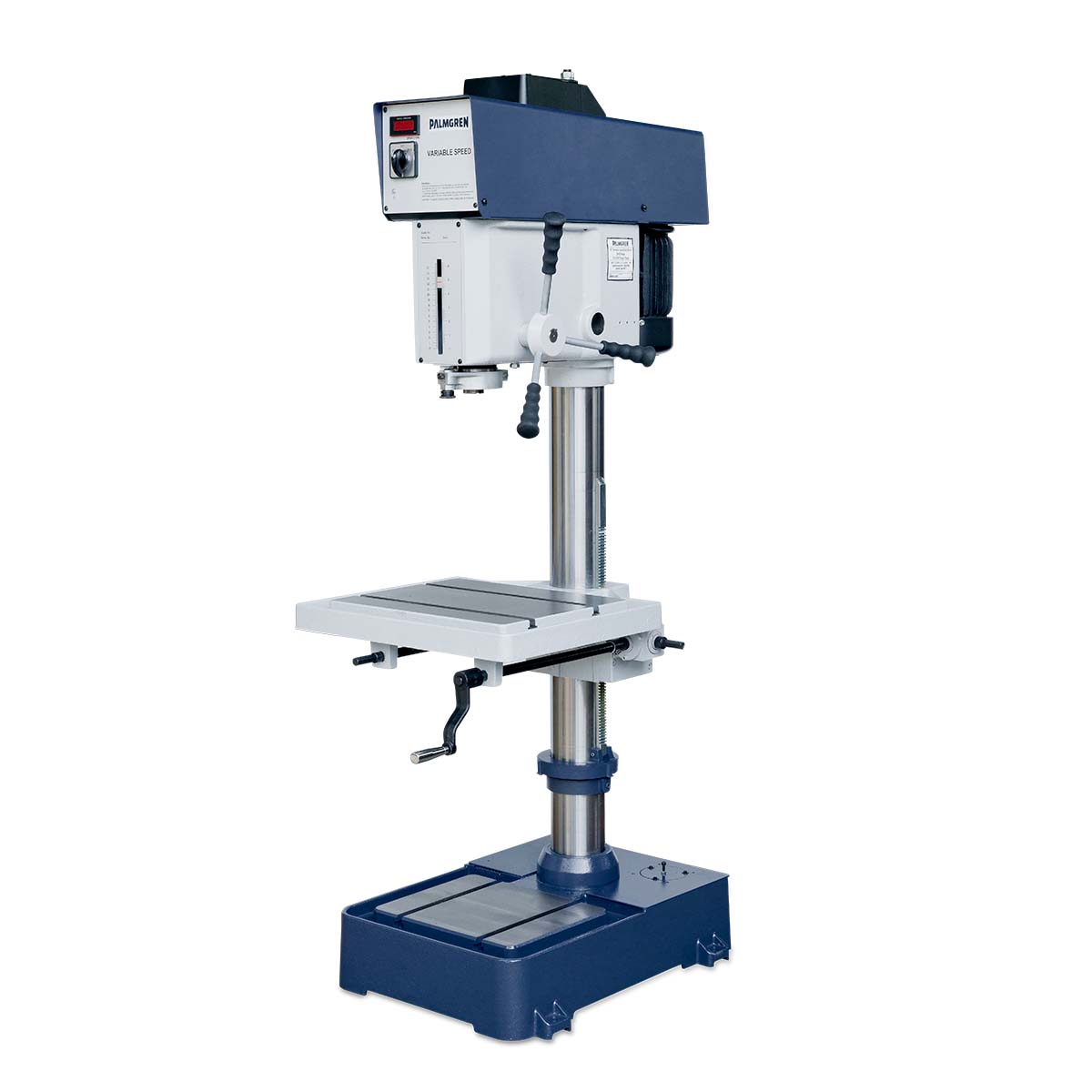

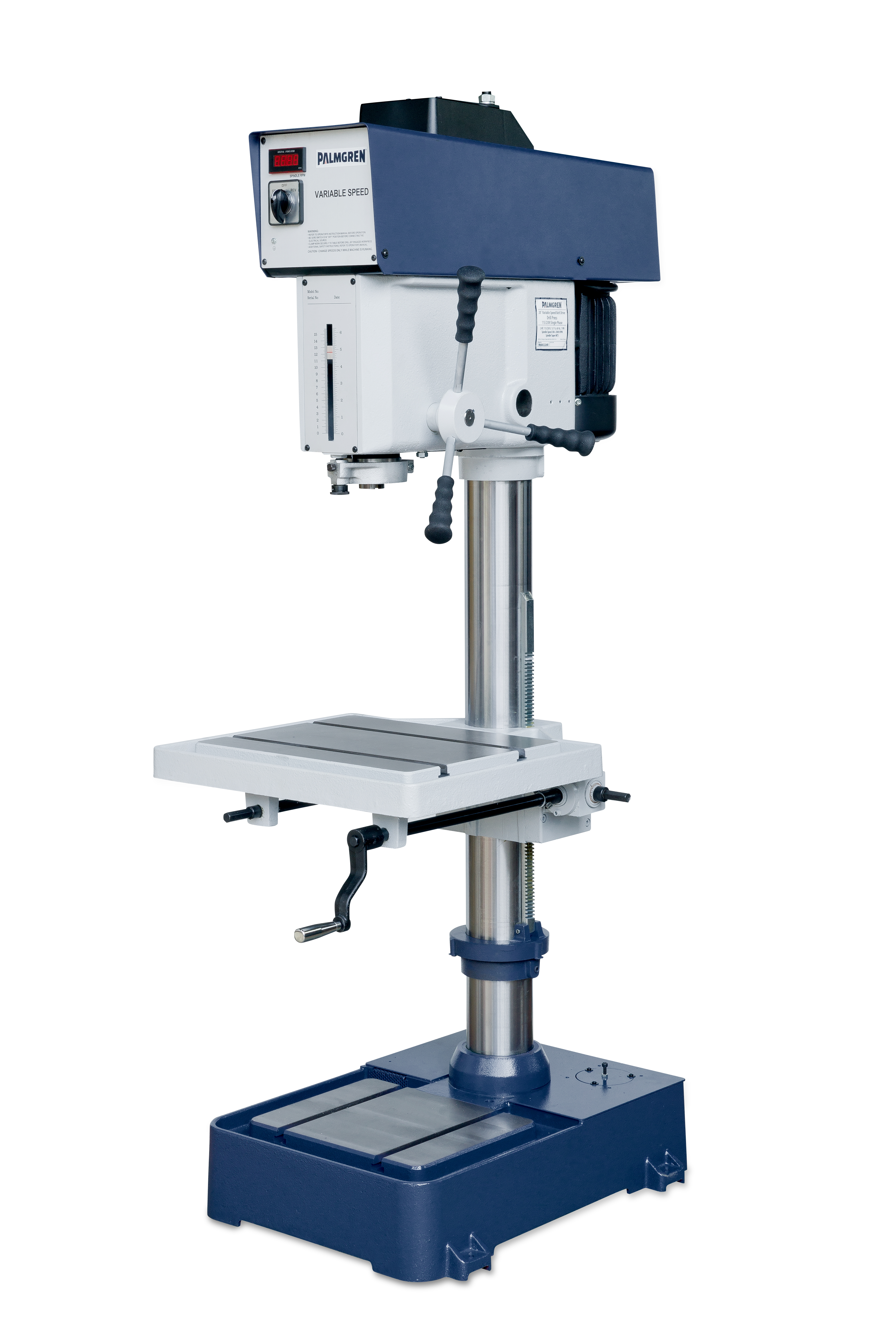

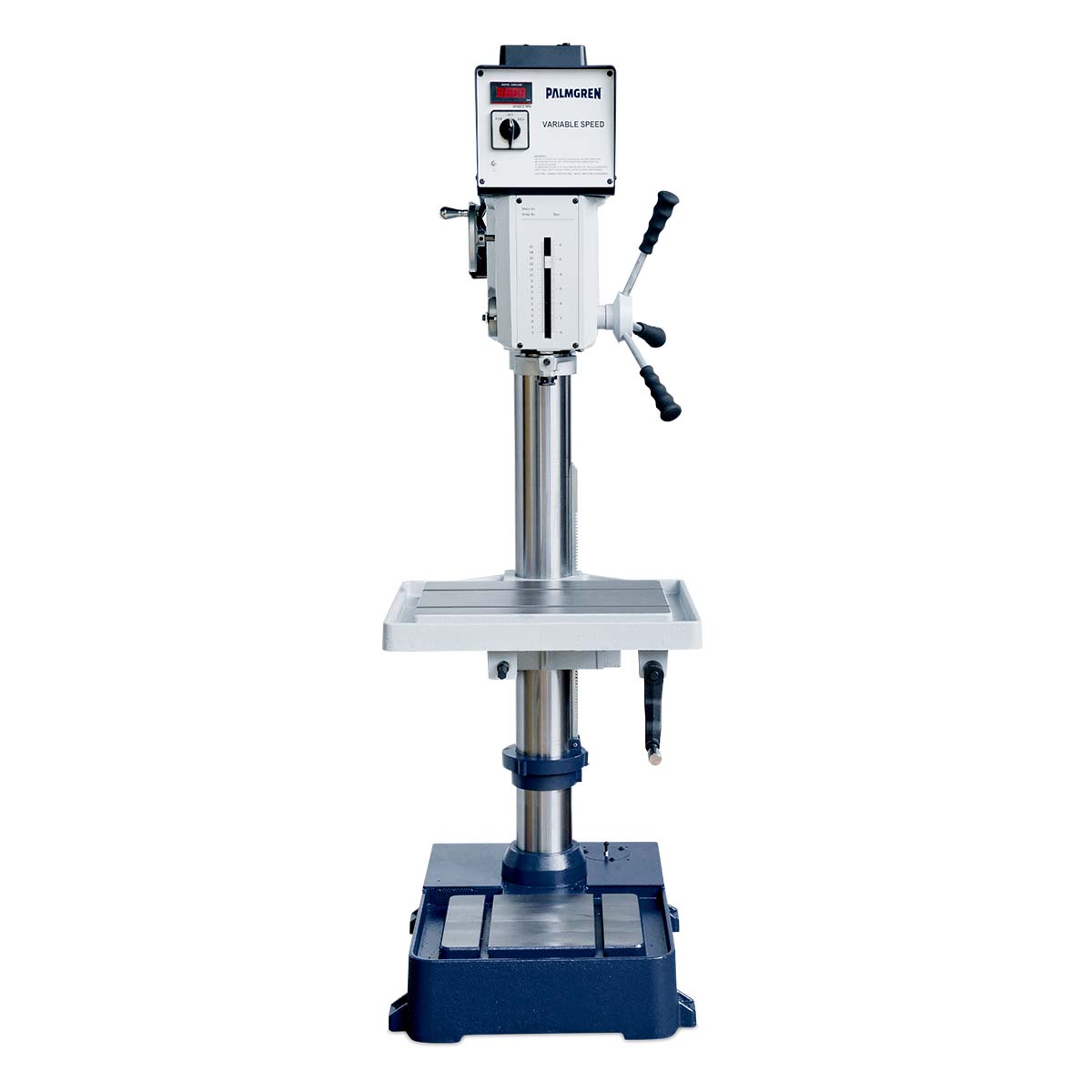

20" Variable Speed Belt Drive Drill Press (230/460V 3 Phase)
Main ImageDownload

20" Variable Speed Belt Drive Drill Press (230/460V 3 Phase)

9680227

    • Product ID9680227
      Product Name20" Variable Speed Belt Drive Drill Press (230/460V 3 Phase)
      UPC726896802275
      Product CopyPalmgren’s 20” Variable Speed Drill Presses allow the user to dial into the optimal spindle RPM for any material or tooling combination. While the machine is running, the simple hand wheel adjustments and digital RPM readout makes speed changes a breeze. The heavy-duty cast-iron construction increases the machines’ accuracy and rigidity in any drilling application.
      Product FeaturesFront mounted positive control depth stop, Oversized head construction provides for an extended quill travel of 4-1/2”. Large, ergonomic down feed hand grips designed for end user comfort during operation. Oversized 3” quill diameter. Front face LED spindle speed readout. Worktable can rotate 360° around the machine column. Precision ground base work surface with t-slots for large workpieces. Side mounted hand wheel for instant speed changes
      CategoryMachine-Drill Presses
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)75
      Product Length (inches)37.5
      Product Width (inches)25.5
      Product Weight (lbs)750
    • ApplicationMetal and Wood Drilling
      Base Dimension27.4 x 19.5 x 6.1 in
    • Machine Weight649
      Max. Distance Spindle To Table27"
      Max. Spindle To Base47"
    • Motor HP2
      Number of Spindle SpeedsVariable 300~2000 rpm
      Number of Table Slots:2
      Overall Dimensions (LxWxH)36" x 27" x 78"
      PhaseThree
      Quill Diameter3 in
    • Speed Range300 - 2,000 RPM
      Spindle TaperMT3
      Spindle Travel6 in
      Stand work surface length x width22" x 18.5"
      Swing20 in
    • Table T-slots3
      Tilting AngleNon-Tilting
      Tool Weight (Max)500
    • Voltage230/460V
      Warranty3 years
      Working surface base L x W27" x 19"
