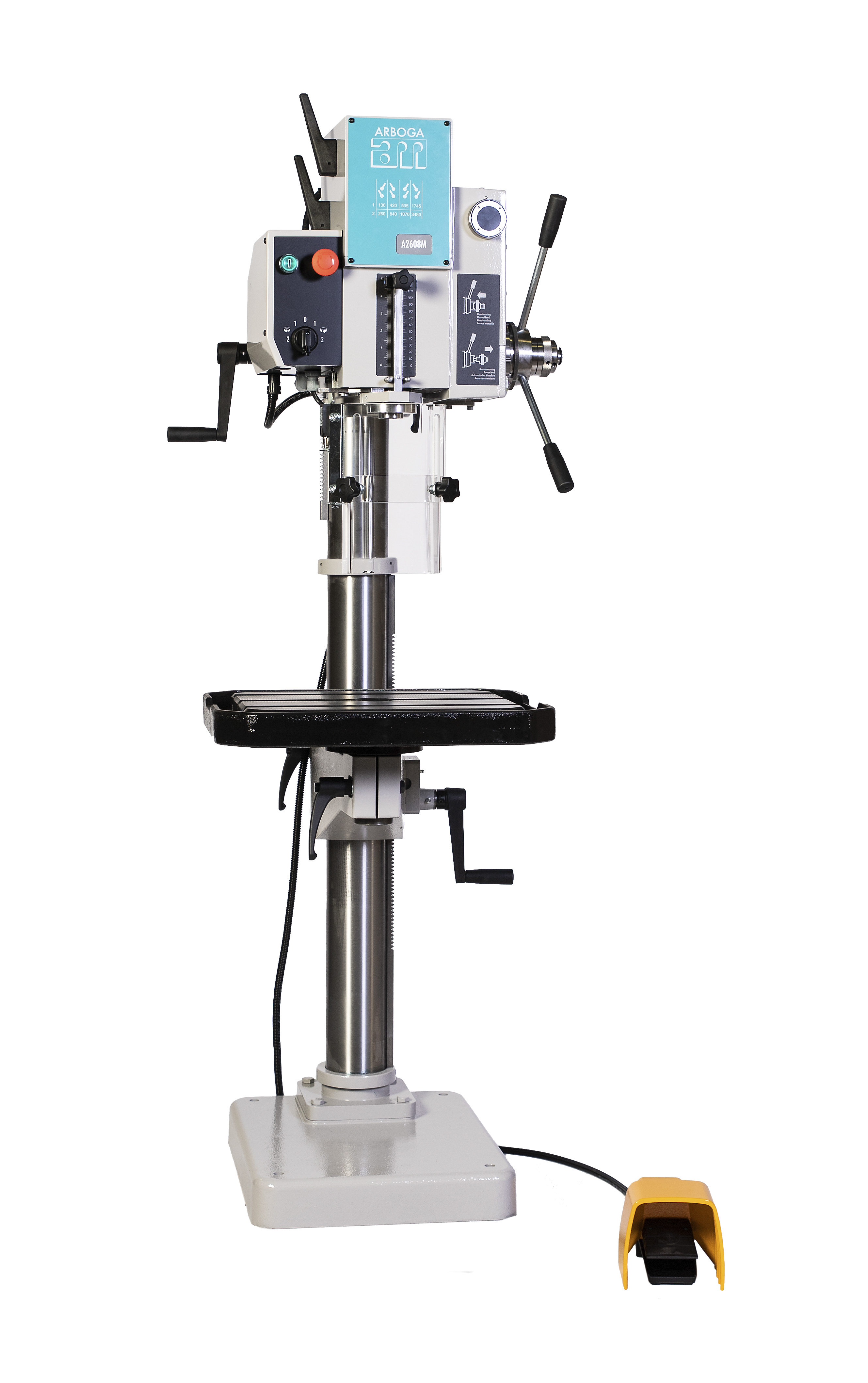

20" Gear Head Drill Press with Foot Reversing Switch & Power Feed (460V 3 Phase)
Main ImageDownload

20" Gear Head Drill Press with Foot Reversing Switch & Power Feed (460V 3 Phase)

9680247

    • Product ID9680247
      Product Name20" Gear Head Drill Press with Foot Reversing Switch & Power Feed (460V 3 Phase)
      UPC726896802473
      Product CopyThis versatile all gear drive drill press is the right choice for precision drilling applications and continuous industrial use. The gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower. Helical ground gears ensure positive, quite operation and make speed changes fast and easy. The wide speed range makes this the ideal drill for drilling large to small diameter holes fast and easy. Equipped with an all gear drive, mechanical clutch, spindle power feed for consistent feeding of the cutting tool through the workpiece.
      Product FeaturesInch/Metric depth stop. 2 speed manual forward & reverse switch. Foot reversing switch. Head & table rotates 360 degrees around the column. Machined & t-slotted table. Quick release drill ejector. Chuck guard. No-volt release prevents spindle start up when power returns after shutdown. 4" Palmgren drill press vise. Drill chuck & arbor. Made in Sweden
      CategoryMachine-Drill Presses
      Country of OriginSweden
      Stock UOMEach
    • Product Height (inches)71-1/2
      Product Length (inches)15-3/4
    • Base Dimension15-3/4 in x 20 in
    • Maximum Spindle to Table32-3/4"
    • Motor HP1-1.5
      Number of Spindle Speeds8
      Number of Table Slots:3
      Overall Dimensions (LxWxH)15-3/4" x 20" x 71-1/2"
      PhaseThree
      Power FeedYes
    • Spindle TaperMT3
      Spindle Travel5-1/8"
      Swing20"
    • Table Dimensions20" x 15-3/4"
      Table Slot Size1"
    • Voltage460
      Warranty5 Year
