55" Reach Electric Tapping Machine
Main ImageDownload

55" Reach Electric Tapping Machine

9680426

    • Product ID9680426
      Product Name55" Reach Electric Tapping Machine
      UPC726896804262

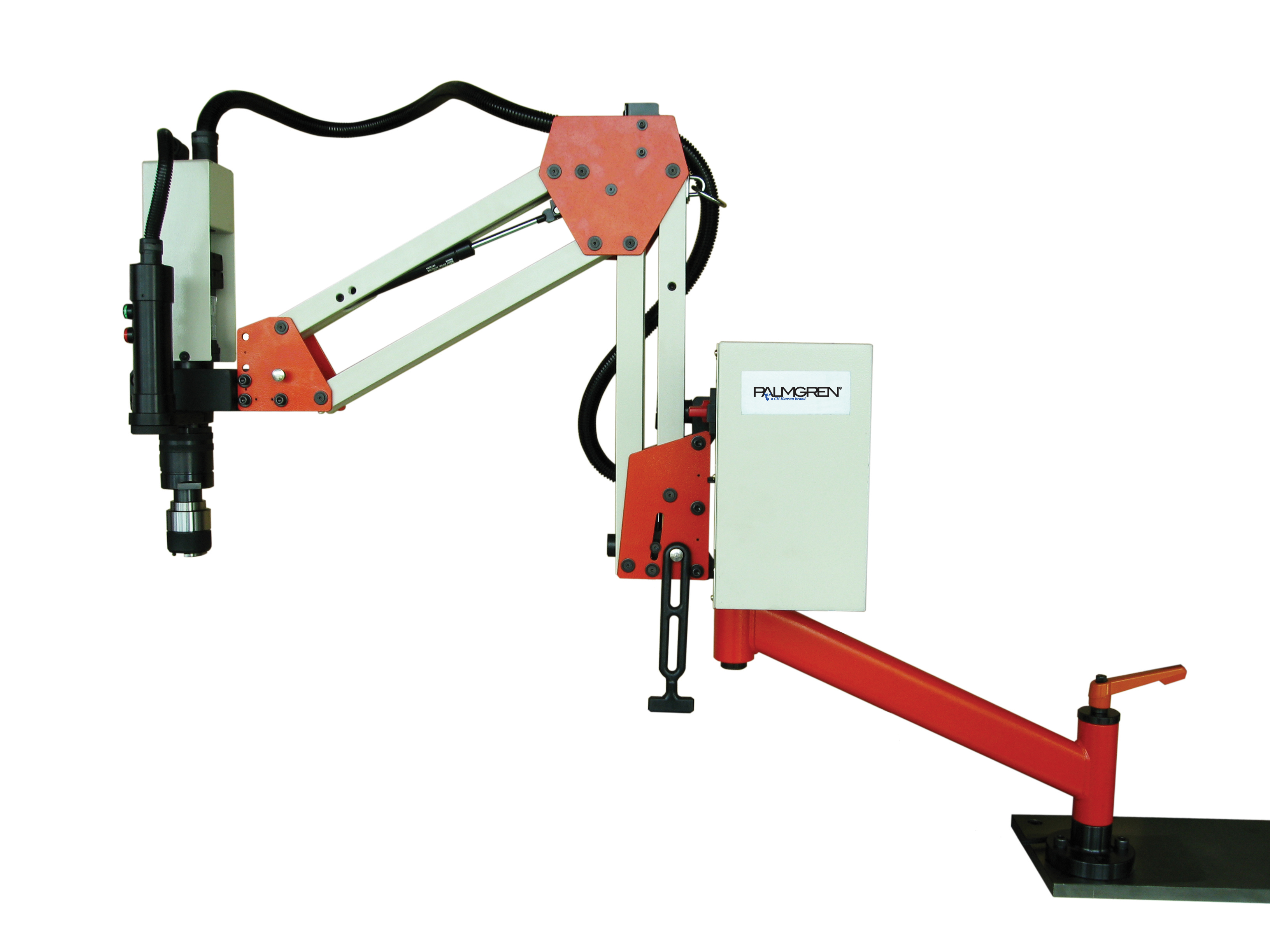

      Product CopyPalmgren’s Universal-Tap electric tapping machine is suitable for small, medium and large size taps. It utilizes a unique single articulating arm design that permits tapping as close as eight inches to the vertical mounting bracket. This feature provides a large work envelope even in confined work areas. The arm is equipped with lubricated for life bearings at all swivel points, provides weightless operation through the use of gas counter balance springs and permits the operator to bring the tap to the hole with ease.
      Product FeaturesArticulating arm with 8" to 55" reach. Stationary bench bracket. Quick change tooling adaptor. Two-speed gear reducer with variable speed control to adjust torque speed to optimize the treading process. 115 volt, 1 phase high torque reversible electric motor
      CategoryMachine-Tapping
      Sub CategoryTapping Arms and Tapping Guns
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)9.84
      Product Length (inches)46.45
      Product Width (inches)24.8
      Product Weight (lbs)65
      Shipping Height9.84
      Shipping Length46.45
      Shipping Width24.8
      Shipping Weight92.98
    • Max. Tap Capacity/ Aluminium3/4"
      Max. Tap Capacity/ Mild Steel5/8"
    • Motor HP.54 HP/115V/1PH
      Quick Change Tooling Size2
    • Warranty3 years
