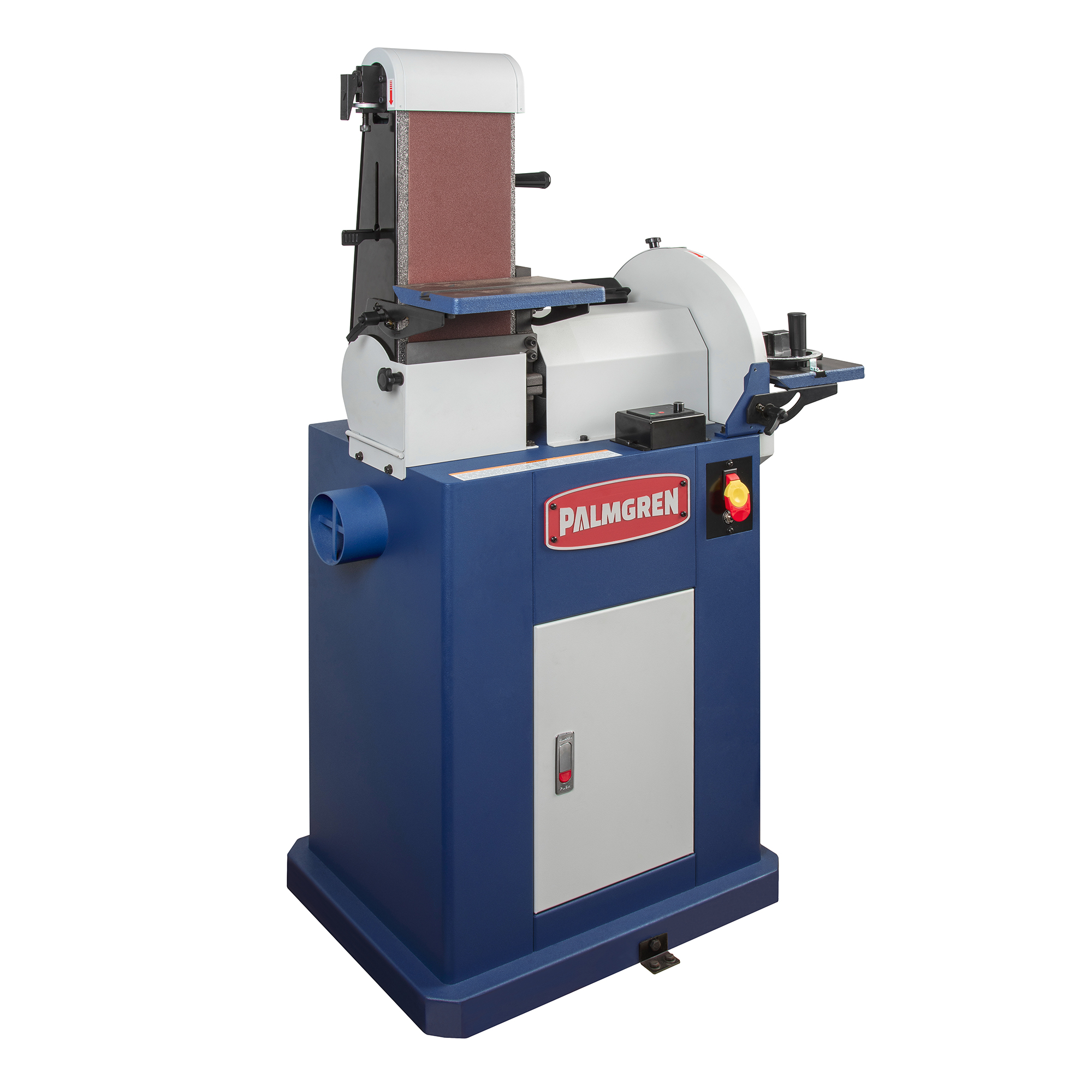

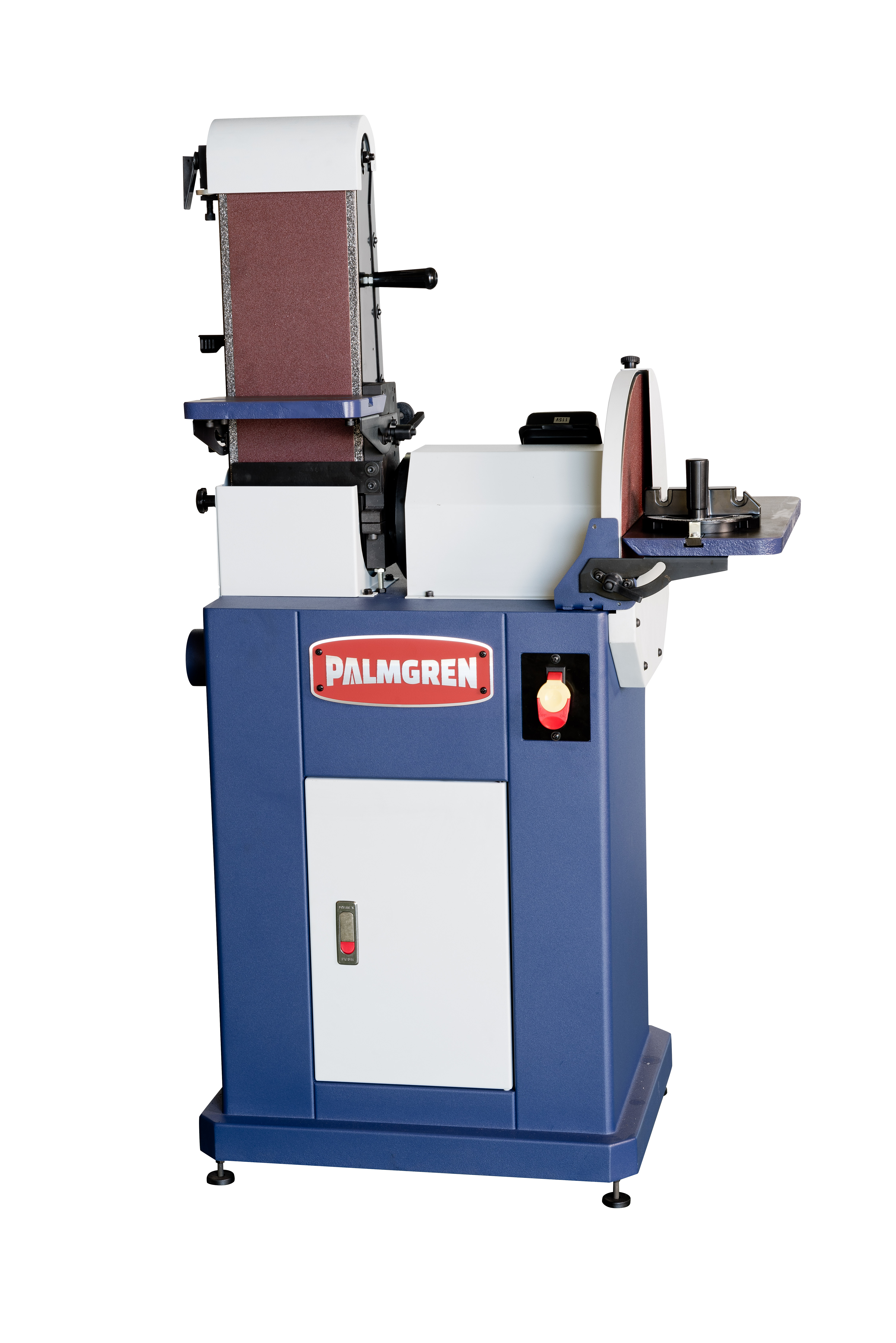

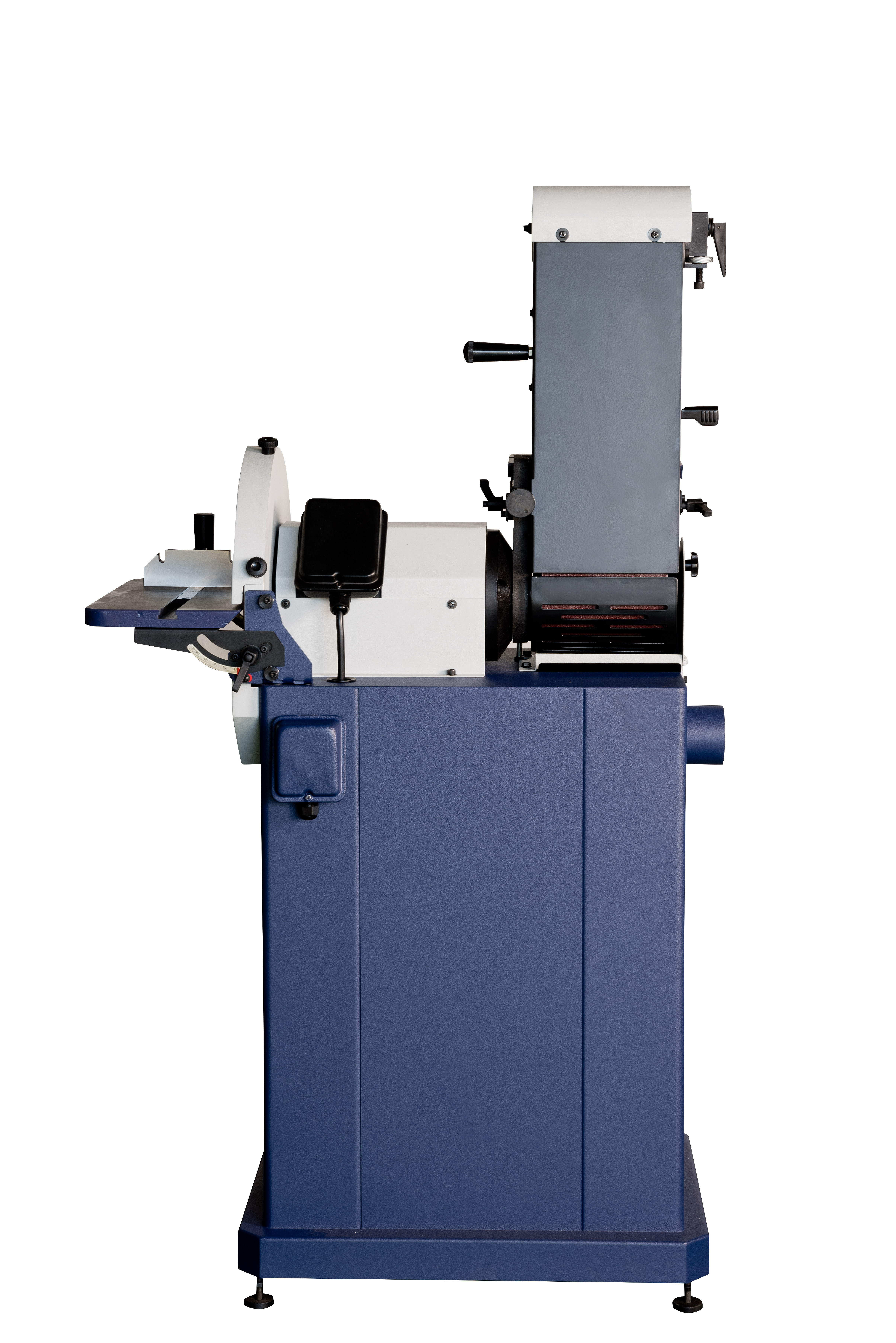

6"x48" Belt 14" Disc Floor Finishing Machine
Main ImageDownload

6"x48" Belt 14" Disc Floor Finishing Machine

9681108

    • Product ID9681108
      Product Name6"x48" Belt 14" Disc Floor Finishing Machine
      UPC726896811086
      Product CopySimplify all your finishing needs! Palmgren 6" x 48" Belt, 14" Disc Finishing Machine offers a combination of exceptional versatility and high efficiency. Designed around actual end user input; this differentiates our machine with meaningful features built around what the machine must do when it is in use to maximize user performance and safety. This 2 in 1 machine can handle a multitude of jobs: contour part finishing, flat stock finishing, polishing, grinding and deburring, handling virtually any finishing operation.
      Product FeaturesPowerful direct drive power train. Adjustable guarding for both the belt and disc sections. Single dust collection port for both sections for easy connection and cleaning. Cast iron tilting worktables with a slot for miter gauge and easy to read trunnions. Deluxe miter gauge ideal for plain and compound angles. Heavy duty, fully enclosed steel stand with storage. Safety lock out on/off switch. BELT SECTION: Belt arm adjusts vertically, horizontally and any position in-between, Upper idler drum supported on both sides with bearings, Steel platen with replaceable graphite pad, Advanced easy belt tracking, Quick, easy belt changes, Belt section mounted directly to the motor shaft. DISC SECTION: Fully machined and balanced steel disc, Disc mounted directly to the motor shaft
      CategoryMachine-Sanders
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)57
      Product Length (inches)31
      Product Width (inches)22
      Product Weight (lbs)250
      Shipping Height56
      Shipping Length31.5
      Shipping Width22
      Shipping Weight230
    • Abrasive Finishing TypeBelt and Disc Grinders
      AMPS12.5
      Belt SFPM1280-2250
      Belt Size6" x 48"
      Belt Table Size8-5/8" x 6"
      Belt Table Tilit Angle (Deg.)45 Degrees to 90 Degress
      Belt Width6"
    • Motor HP2
      PhaseSingle
      Platen Size (In.)6-1/4 x 16-3/4
    • Table MaterialAluminum
    • Voltage115
      Warranty3 years
