6” x 48” Belt & 10” Disc Combination Machine
Main ImageDownload

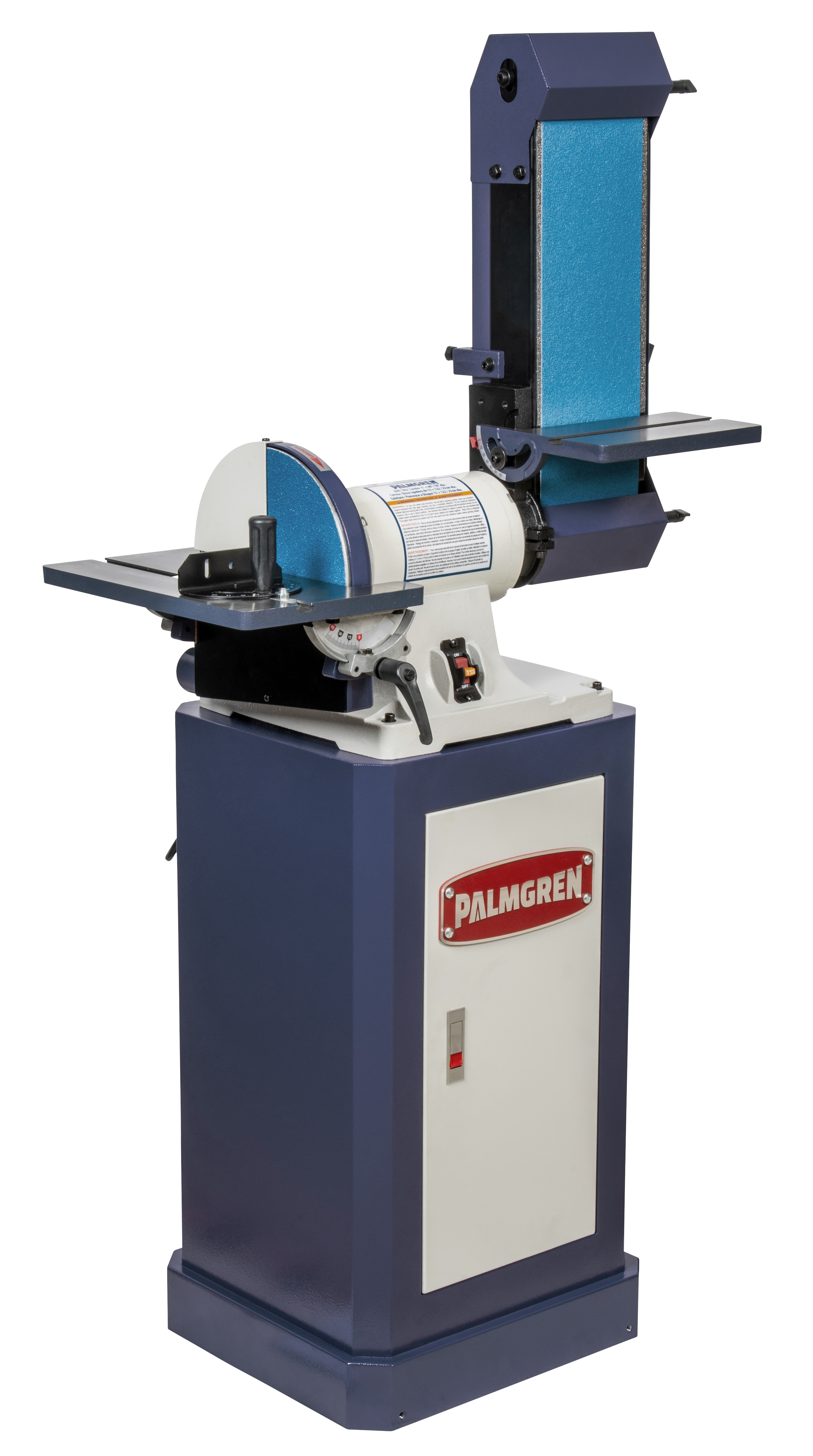

6” x 48” Belt & 10” Disc Combination Machine

9681123

    • Product ID9681123
      Product Name6” x 48” Belt & 10” Disc Combination Machine
      UPC726896811239
      Product CopyPalmgren’s combination 6” x 48" Belt and 10” Disc universal finishing machine is a versatile, economical workshop tool. This 2-in-1 machine can handle a multitude of jobs: contour part finishing, flat stock finishing, polishing, grinding and deburring handling virtually any finishing operation.

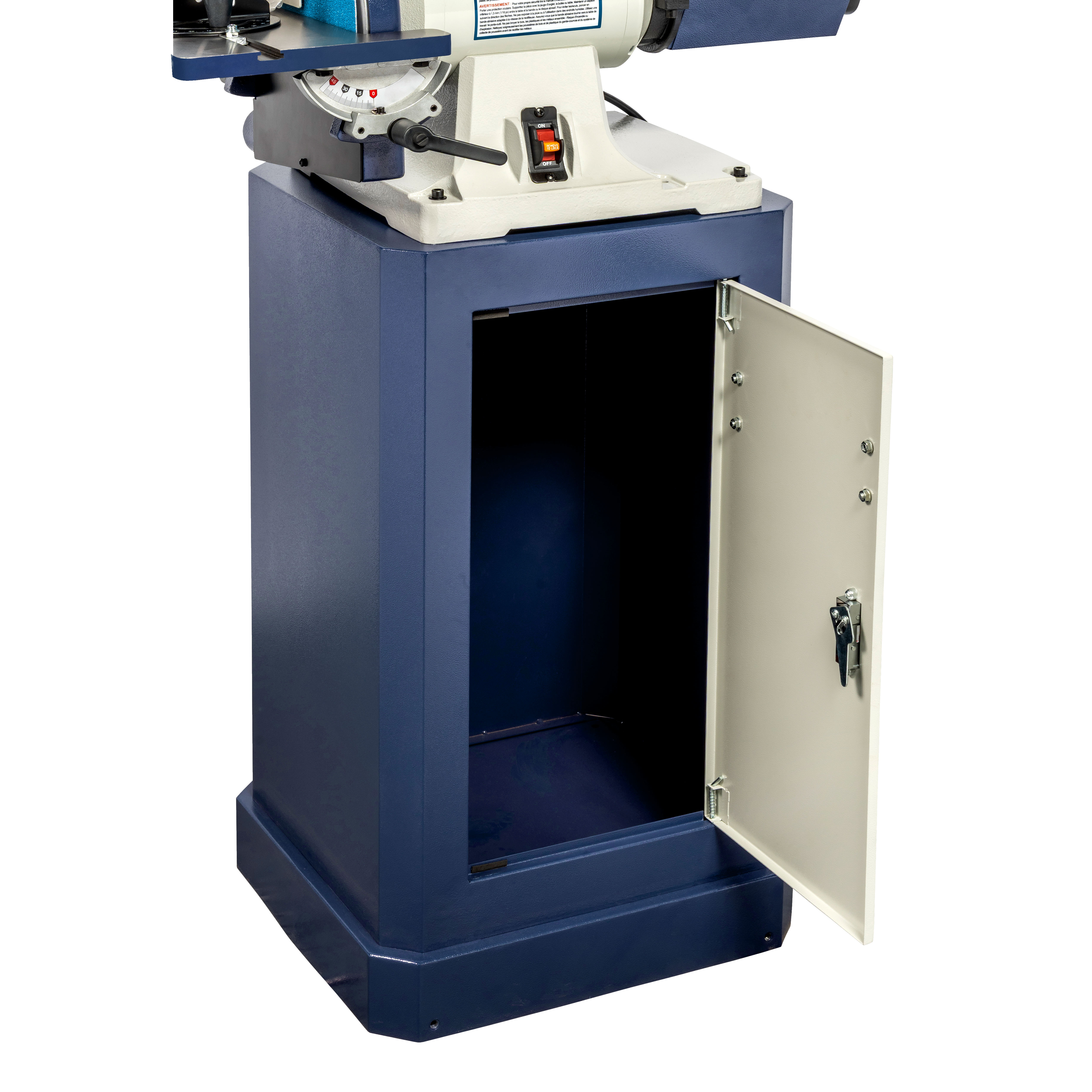

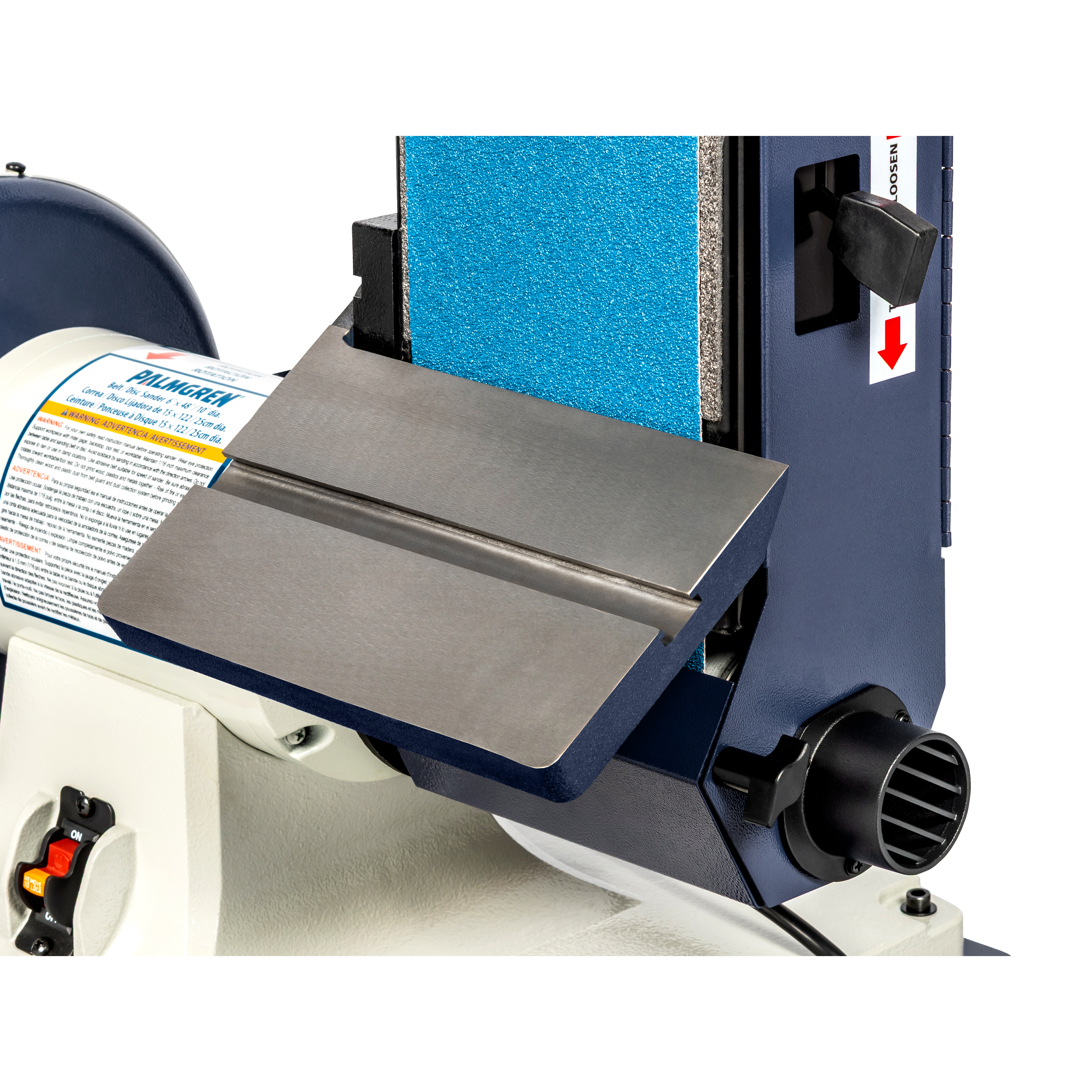

      Product FeaturesSTANDARD FEATURES: Powerful direct drive power train. Adjustable guarding for both the belt and disc sections. Dust port for both sections for easy connection and cleaning. Cast iron tilting worktables with slot for miter gauge and easy to read trunnions. Deluxe miter gauge ideal for plain and compound angles. Cast iron motor base mounted to a sturdy fully enclosed steel floor stand. Safety lock out on/off switch. BELT SECTION: Belt head adjusts vertically, horizontally and any position in-between. Steel platen with replaceable graphite pad. Advanced easy belt tracking. Easy quick belt changes. Belt section mounted directly to the motor shaft. DISC SECTION: Fully machined and balanced steel disc. Disc mounted directly to the motor shaft
      CategoryMachine-Sanders
      Country of OriginChina
      Stock UOMEach
    • Product Height (inches)45
      Product Length (inches)28
      Product Width (inches)28
      Product Weight (lbs)220
    • Abrasive Finishing TypeBelt and Disc Grinders
      AMPS13/6.5
      Belt SFPM2700
      Belt Size48
      Belt Width6
    • Motor HP1.5
      Number of Spindle Speeds1
      PhaseSingle
      Platen Size (In.)13.32 x 6
    • Tool Weight (Max)220
    • Voltage115/230
      Warranty3 years
      Wheel Speed (RPM)3450
