14" Variable Speed Cold Saw 230V, 3PH
Main ImageDownload

14" Variable Speed Cold Saw 230V, 3PH

9683151

    • Product ID9683151
      Product Name14" Variable Speed Cold Saw 230V, 3PH
      UPC726896831510

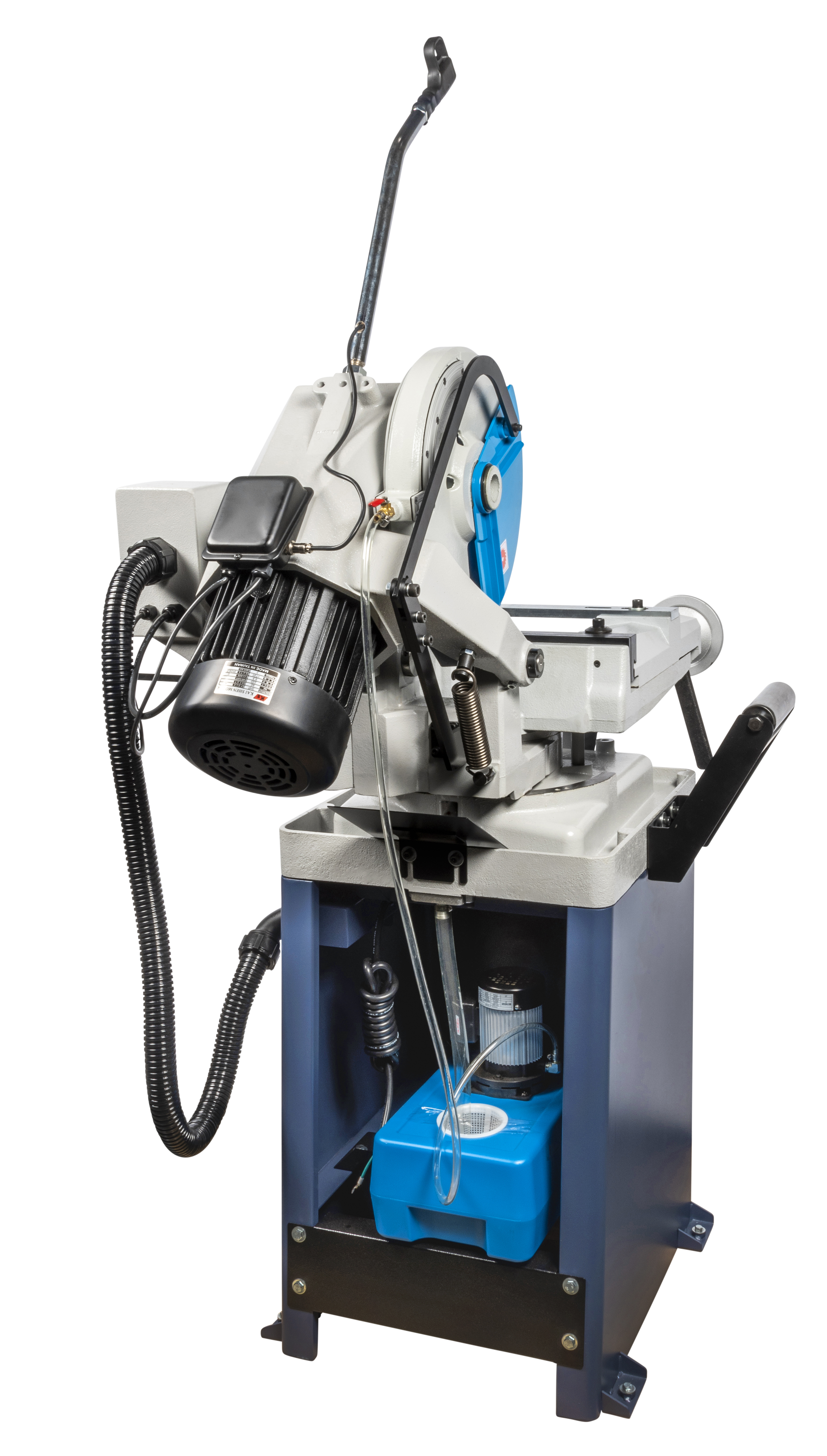

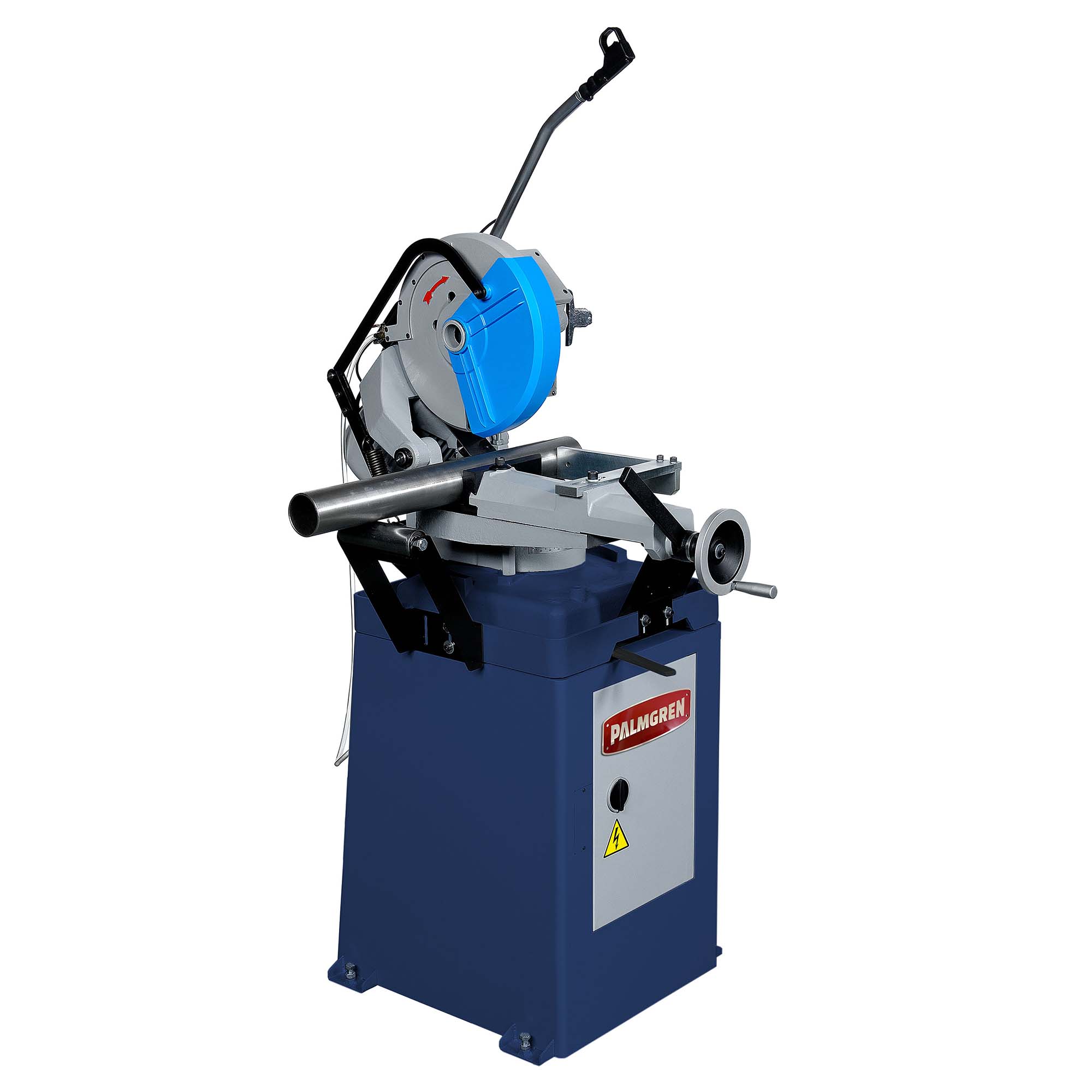

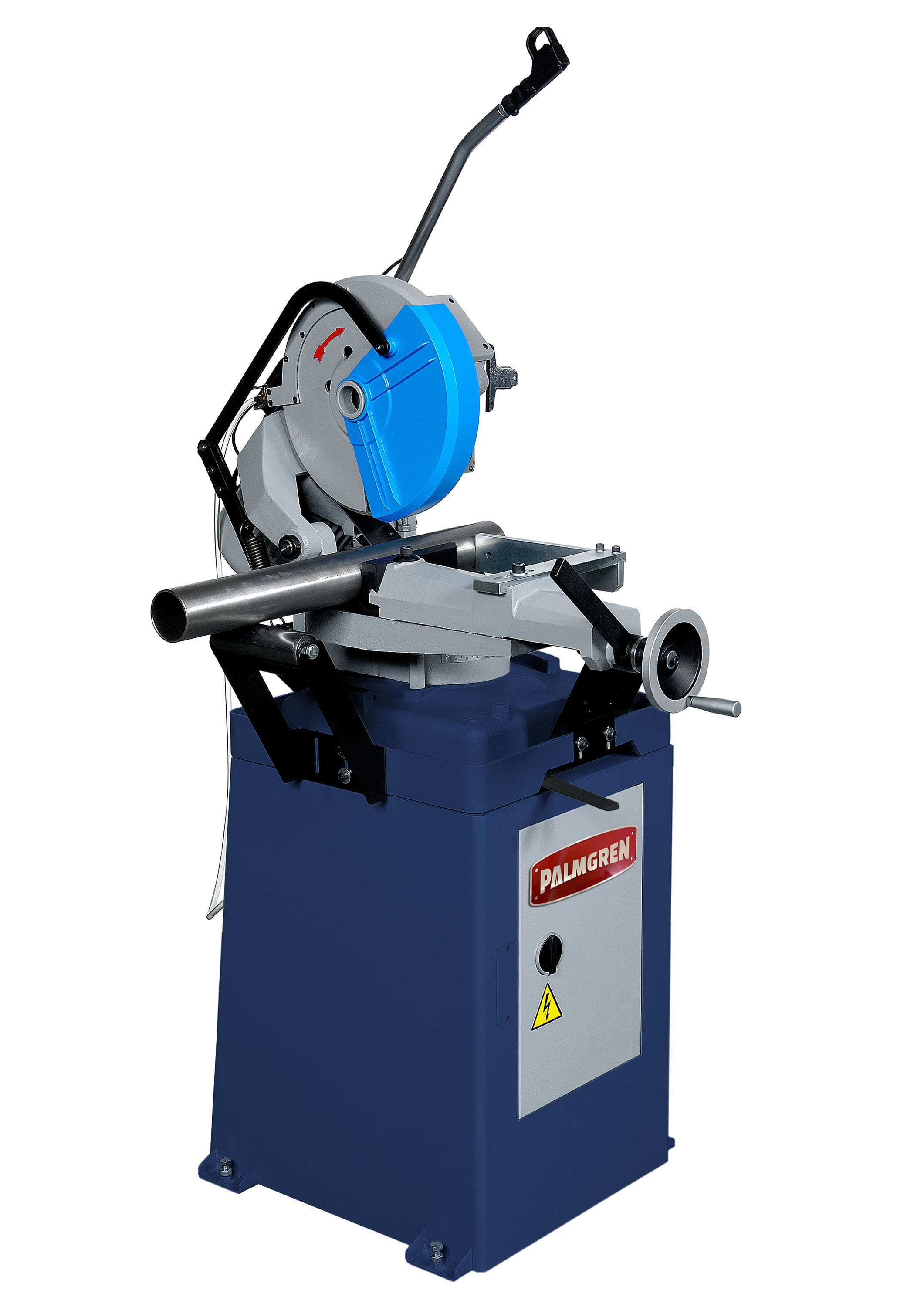

      Product CopyPalmgren’s 14" model cold saw is ideal for cutting low and high carbon steels, medium gauge tubes and profiles. It delivers precise, smooth, burr free straight or angle cuts consistently.
      Product FeaturesAdvanced gear box design utilizing taper roller bearings, hardened and ground gears with a high quality bronze worm gear in an oil bath. Rapid acting vise, adjustable, anti-burr, allows for secure clamping of the workpiece, improving accuracy and finish. Flood coolant system. Material feed support roller bracket and adjustable work stop. Safety electrical package includes overload & low voltage protection, safety spring loaded 24 volt trigger switch, emergency stop button and two speed motor switch. Cast iron base mounted to a heavy duty solid steel floor stand
      CategoryMachine-Saw-Cold
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)63
      Product Length (inches)47
      Product Width (inches)28.3
      Product Weight (lbs)594
    • Machine Weight550
    • Motor HP3
      Overall Dimensions (LxWxH)49-1/2" x 40-1/2" x 71-3/4”
      PhaseThree
    • Round Material Max. 0º3-5/16"
      Round Material Max. 45º3"
    • Saw Blade Diameter14"
      Sawing TypeVertical Band Saws
      Square Max. 0º4" x 4"
      Square Max. 45º3-5/16"x3-5/16"
    • Vise Opening6-3/4"
      Voltage230
      Warranty5 Year
