16 Inch Non-Ferroud Upcut Saw
Main ImageDownload

16 Inch Non-Ferroud Upcut Saw

9683152

    • Product ID9683152
      Product Name16 Inch Non-Ferroud Upcut Saw
      UPC726896831527

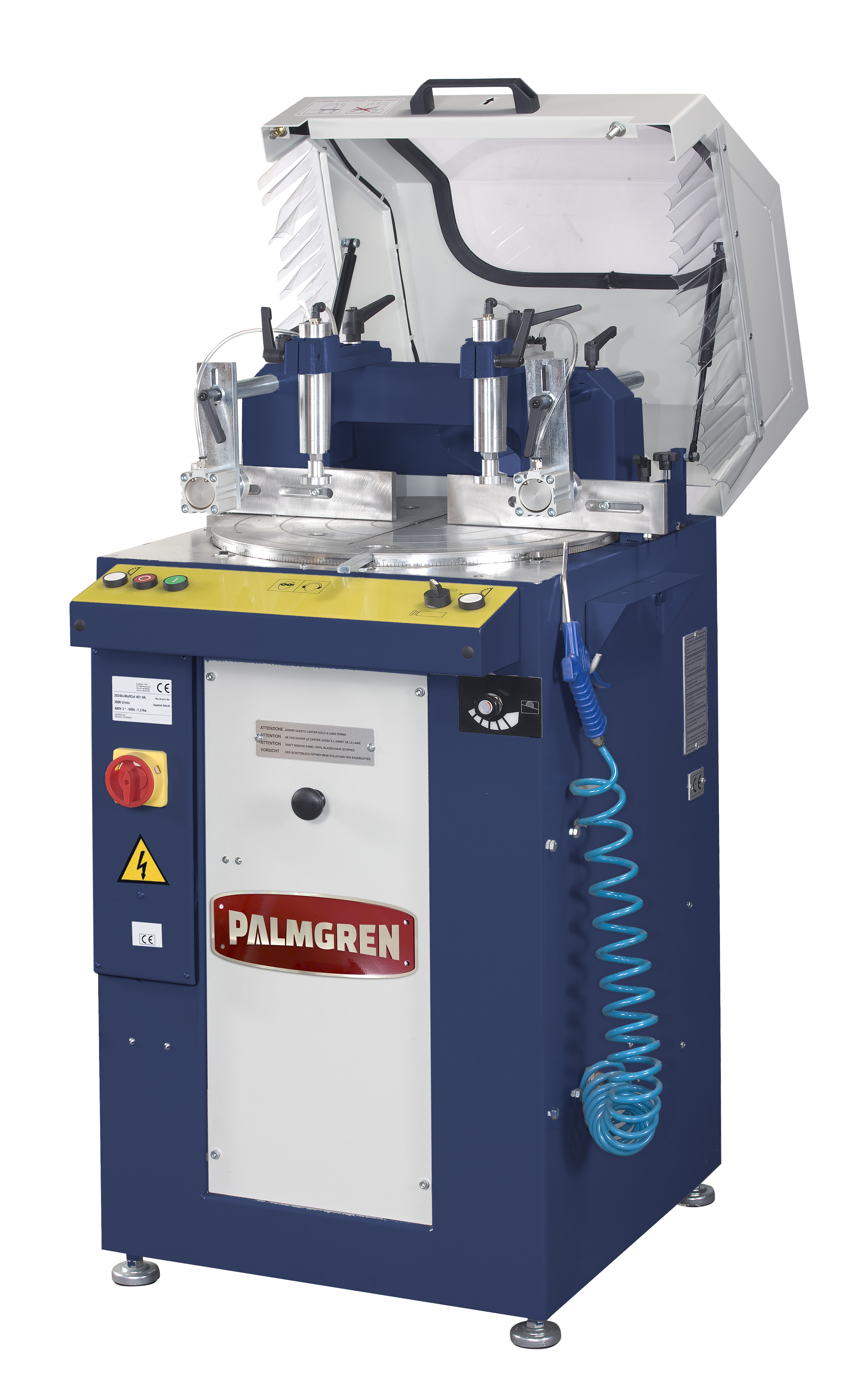

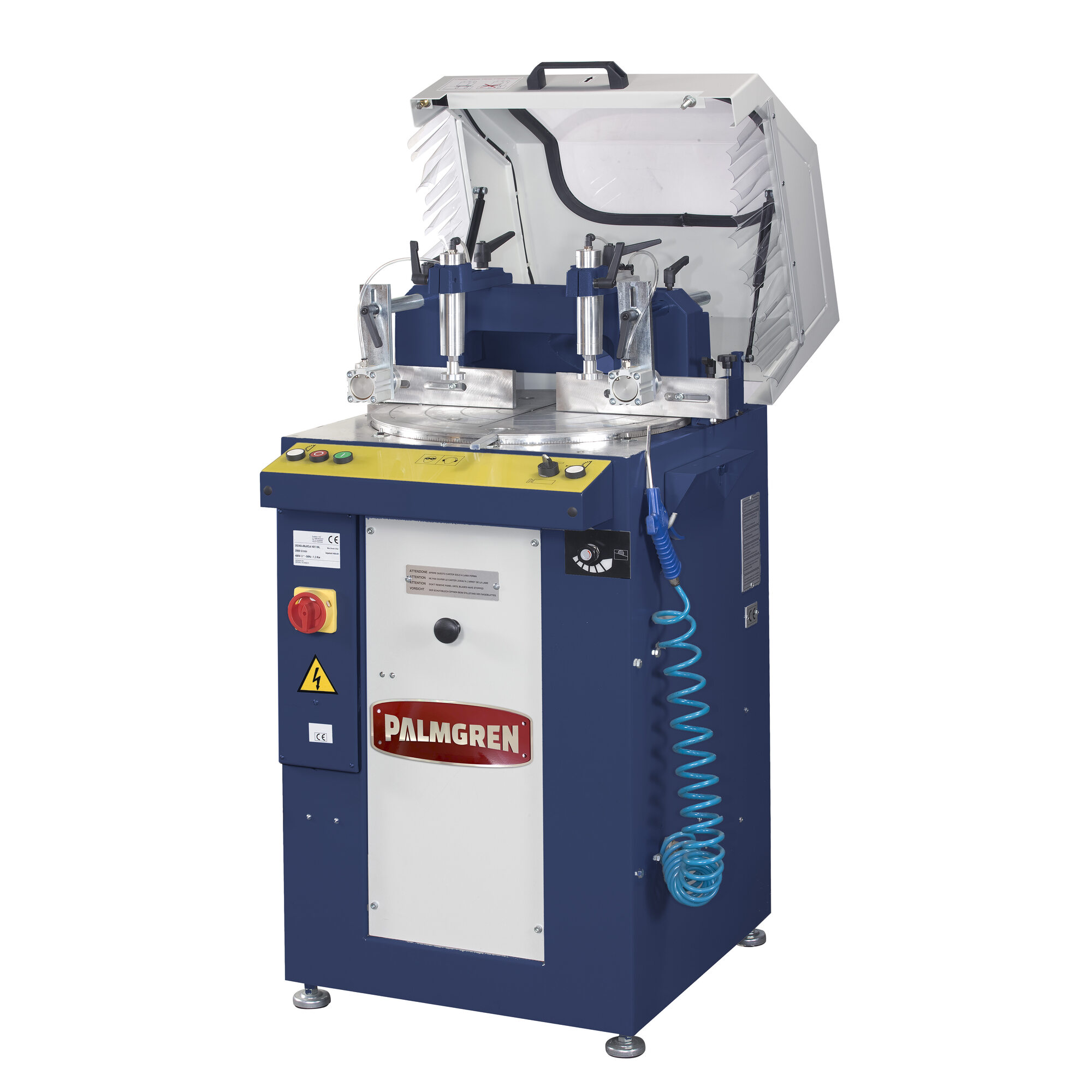

      Product CopyPalmgren’s 16” Non-Ferrous Upcut Saw is designed for cutting aluminum, copper, plastic and all other non-ferrous materials. The upcut design provides larger cutting capacities versus similarly sized pivot style machines. When used with carbide toothed blades, this saw provides a smooth, burr free cut every time.
      Product FeaturesSafety hood with safety interlocks. Adjustable saw blade feed rate. Two horizontal and two vertical pneumatic clamps hold the workpiece securely in place. Adjustable leveling pads. Air hose and nozzle to clean of work area after each cut
      CategoryMachine-Saw-Cold
      Country of OriginTaiwan
      Stock UOMEach
    • Product Height (inches)56.7
      Product Length (inches)29.5
      Product Width (inches)39.4
      Product Weight (lbs)462
    • Machine dimensions XYZ26-3/4" x 31-1/2" x 55-1/8"
      Machine Weight396 lbs.
    • Motor HP2
      Overall Dimensions (LxWxH)26-3/4" x 31-1/2" x 55-1/8"
      PhaseThree
    • Rectangle 0°2-3/8" x 7-7/8"
      Rectangle @ 45 Degrees2-3/8" x 5-1/2"
      Rectangle 60°2-3/8" x 5-1/2"
      Round @ 45 Degrees4
      Round Material Max. 0º4-3/8"
      Round Material Max. 60°4"
    • Saw Blade Diameter16"
      Sawing TypeVertical Band Saws
    • Vise Opening4.33"
      Voltage230
      Warranty3 years
