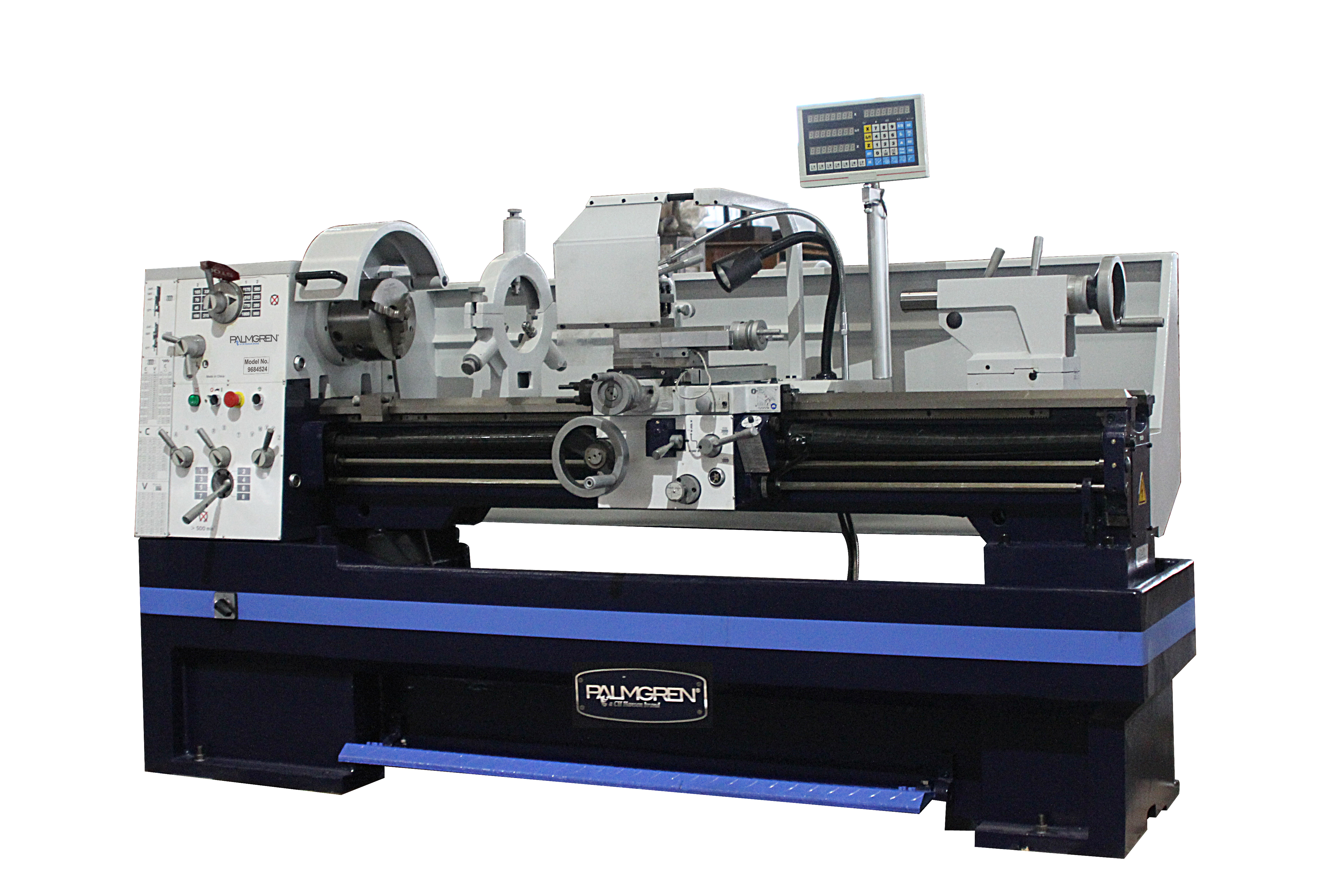

16" X 60" Engine Lathe
Main ImageDownload

16" X 60" Engine Lathe

9684524

    • Product ID9684524
      Product Name16" X 60" Engine Lathe
      UPC726896845241
      Model NumberD420x1500
      Product CopyThe Ultimate in turning machines Palmgren's 16” engine lathes has the power to deal with heavy metal removal and the accuracy and control to handle precision fi ne tolerance turning. Each machine comes standard with a DRO and glass scales for added operator convenience and accuracy. The headstock is designed to provide maximum power for roughing cuts and smooth, quiet power for fi ne fi finishing. All the gears are helical precision cut, hardened and ground running in a continual bath of oil. The main spindle is made of high alloy steel and mounted in precision taper roller bearings. The control panel is easy to use and is designed for operator convenience. The wide bed ways are made of stabilized cast iron, ground and hardened for a lifetime of use. The universal gear box delivers a broad range of feed and thread selections and each machine can do both inch and metric threads. All the gears are hardened and the shafts turn on antifriction bearings. All Palmgren lathes are built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. These all purpose lathes are ideal for turning applications requiring heavy metal removal or fi ne tolerance fi finishing applications and are used in tool rooms, die and mold shops, fabrication shops and maintenance departments.
      Product FeaturesEACH LATHE COMES STANDARD WITH: Digital Readout. 3 & 4 Jaw Chucks. Splash Guards. Chuck and 4- Way Toolpost Safety Guard. (2) MT4 Dead Centers. Inch and Metric Gears for Threading. Steady Rest. Follow Rest. Work Light
      CategoryMachine-Lathes
      Sub CategoryLathes
      Country of OriginChina
      Stock UOMEach
    • Product Height (inches)53
      Product Length (inches)97
      Product Width (inches)36
      Product Weight (lbs)3443
      Shipping Height53
      Shipping Length97
      Shipping Width36
      Shipping Weight3443
    • Bed Width9-7/8"
    • Motor HP6
      Number of Spindle Speeds16
      Overall Dimensions (LxWxH)97" x 36" x 53"
      PhaseThree
    • Spindle Bore1-1/2"
      Spindle seatCamlock ASA D 1-6
      Spindle TaperMT6
      Swing Over Bed16"
    • Tailstock TaperMT 4
      Tailstock Travel4 ¾"
      Thread Range (In.)2 - 72
      Thread Range (mm)0.2 - 14
    • Voltage230
      Warranty3 years
