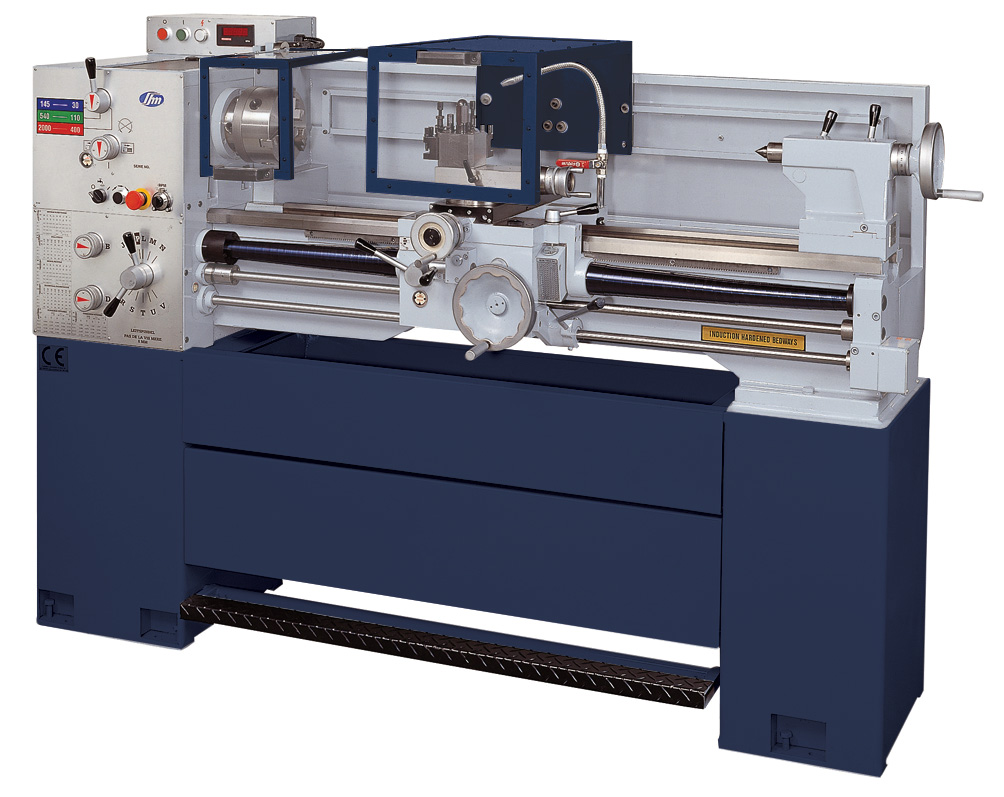

14" X 40" Variable Speed Engine Lathe
9684527
Product ID 9684527 Product Name 14" X 40" Variable Speed Engine Lathe UPC 726896845272 Product Copy Palmgren’s High Performance Electronic Variable Speed Engine Lathes are the perfect tools for all applications. Each machine provides the power and accuracy required to deal with all applications from heavy metal removal to fine tolerance turning operations. With their compact footprint, these machines are the ideal turning solution for small shops, large shops and prototyping labs. Each machine comes equipped with an electronically controlled variable speed inverter for the ultimate in spindle RPM control. The headstock is designed with hardened and ground gears within a splash lubricant system to provide maximum power and precision in every turn. The bed of the lathe is made of hardened and ground high tensile cast iron for complete rigidity. The control panel is easy to use and comes equipped with a spindle RPM readout for increased operator convenience. To provide the ultimate in machining safety, each machine is equipped with a tool post guard, a chuck guard, a full rear splash guard and has CSA certified electronics. Product Features Inverter drive system allows for infinitely variable spindle speeds. Hardened and ground gears, as well as, shafts turning on antifriction bearings in the headstock reduce vibration and deflection when machining. Equipped with CNC-style lighting for improved operator convenience. Full length splash guard for greater operator safety. Full rear splash guard. Increased rigidity and accuracy, with stabilized certified Meehanite castings. 12” & 13” Lathes include locking tool cabinet for increased storage. Front facing chip pan allows for easy chip removal LED RPM readout. CSA electrics provide increased safety. Electromagnetic assisted foot brake allows for rapid braking. Longitudinal and cross feeding systems. Heavy duty tailstock for improved rigidity. Lead screw cover protects leadscrew from chips for increased life. Follow rest. Full chuck guard. Full tool post guard. LED work lamp. Category Machine-Lathes Sub Category Lathes Country of Origin Taiwan Stock UOM Each Product Height (inches) 61 Product Length (inches) 77 Product Width (inches) 30 Product Weight (lbs) 1650 Machine Voltage & Phase 3PH 220V Max. Size Cutting Tool 7/8" Motor HP 3 Net Weight 1650 Number of Spindle Speeds 12 Step Variable Speed Overall Dimensions (LxWxH) 77" x 30" x 61" Range Of Cross Feeds 0.0008-0.0122 in/rev. Range Of Longitudinal Feeds 0.0016-0.0368 in/rev. Spindle Bore 1-1/2" Spindle Nose Mounting D1-4 Camlock Spindle Taper MT5 Swing Over Bed 14" Swing Over Cross Slide 8-5/8" Swing Over Gap 20-1/4" Taper In Tailstock Barrel MT3 Top Slide Travel 3-3/4" Total Length Of Bed 66" Total Travel Of Tailstock Barrel 3-1/2" Warranty 3 years Width In Front Of Face Plate 5-1/4" Width Of Bedway Gap Type 7-1/2"
