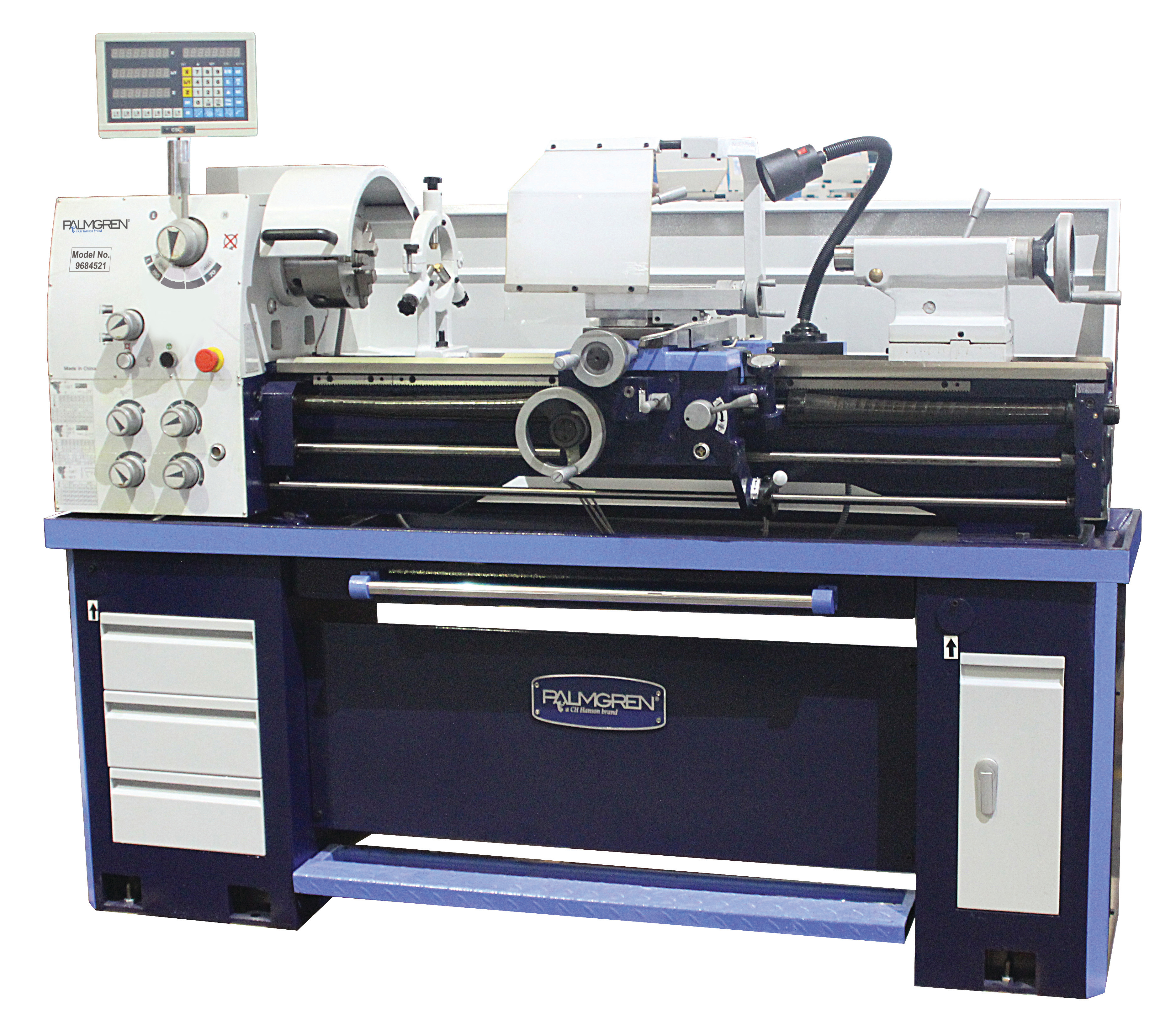

14" X 40" Engine Lathe 230V
Main ImageDownload

14" X 40" Engine Lathe 230V

9684551

    • Product ID9684551
      Product Name14" X 40" Engine Lathe 230V
      UPC726896845517
      Product CopyPalmgren’s 14” engine lathes have the power to deal with heavy metal removal and the accuracy and control to handle precision fine tolerance turning. Each machine comes standard with a DRO and glass scales for added operator convenience and accuracy. The headstock is designed to provide maximum power for roughing cuts and smooth, quiet power for fine finishing. All the gears are helical precision cut, hardened and ground running in a continual bath of oil. he main spindle is made of high alloy steel and mounted in precision taper roller bearings. The control panel is easy to use and is designed for operator convenience. The wide bed ways are made of stabilized cast iron, ground and hardened for a lifetime of use. The universal gear box delivers a broad range of feed and thread selections and each machine can do both inch and metric threads. All the gears are hardened and the shafts turn on anti-friction bearings. All Palmgren lathes are built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. These all purpose lathes are ideal for turning applications requiring heavy metal removal or fine tolerance finishing applications and are used in tool rooms, die and mold shops, fabrication shops and maintenance departments.
      Product Features3 Axis Sino DRO. 3 & 4 Jaw Chucks. Splash Guards. Chuck and Toolpost Safety Guard. (2) MT3 Dead Centers. Inch and Metric Gears for Threading. Steady Rest. Follow Rest. Work Light
      CategoryMachine-Lathes
      Sub CategoryLathes
      Country of OriginChina
      Stock UOMEach
    • Product Height (inches)52
      Product Length (inches)76
      Product Width (inches)30
      Product Weight (lbs)1650
    • Bed Width8
    • Motor HP2
      Number of Spindle Speeds8 or 16
      Number of Threads (In.)40 (7750374)
      Number of Threads (mm)22 (7750382)
      Overall Dimensions (LxWxH)76" x 30" x 52"
      PhaseThree
    • Spindle Bore2
      Spindle seatCamlock D1-4
      Spindle TaperMT-5
      Swing Over Bed14"
      Swing Over Cross Slide8-1/2
      Swing Over Gap20-1/4
    • Tailstock TaperMT-3
      Tailstock Travel4-1/2"
      Thread Range (In.)4 to 112
      Thread Range (mm)0.45 to 7
    • Voltage230
      Warranty3 years
