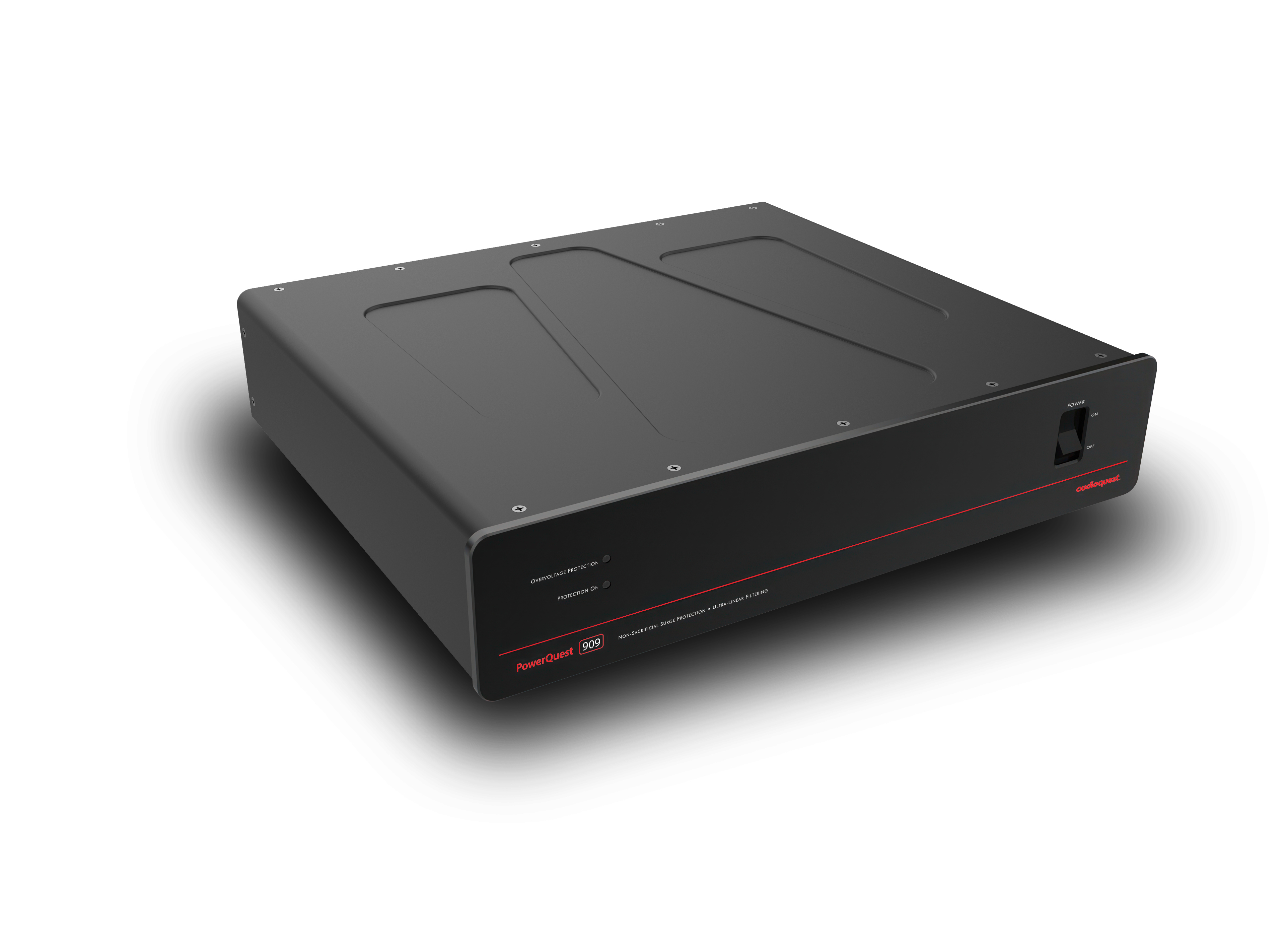

AudioQuest PowerQuest 909 20-Amp Power Conditioner with Non-Sacrificial Surge Protection
Hero ImagesDownload

AudioQuest PowerQuest 909 20-Amp Power Conditioner with Non-Sacrificial Surge Protection

  • Differential- and Common-Mode Ultra-Linear Filtering: Ensures consistent, wide-bandwidth noise reduction for black backgrounds and detailed, nuanced sound.
  • Transient Power Correction (TPC):
Low-impedance circuit provides current-starved amplification components with a reservoir of 45 amps (peak, up to 25ms) for uncompressed current on demand, enabling thrilling dynamic contrasts, bass impact, and control.

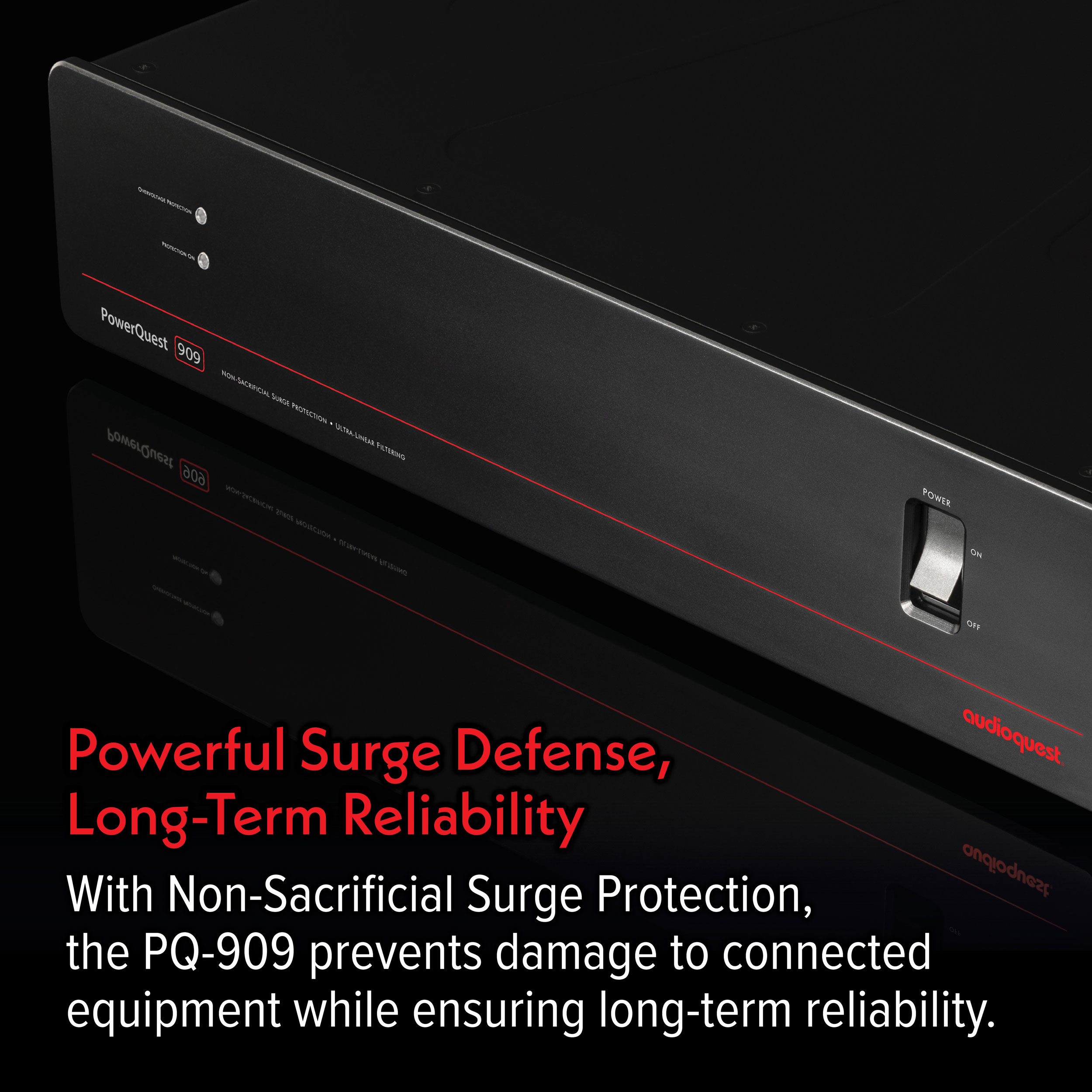

  • Non-Sacrificial Surge Protection:
Withstands multiple transient power surges and spikes up to 6000V or 3000A (the maximum that can make it through a home or office electrical panel). Damage from electrical storms or power-line interruptions is virtually impossible. Set it and forget it.
  • Extreme Voltage Shutdown: 140V AC activates main circuit relay in under 0.25 seconds and automatically resets once incoming voltage is within a safe range.
  • 12 Hospital-Grade AC outlets (4 High-Current w/ TPC for power amplifiers, powered speakers and subwoofers; 8 Ultra-Linear Filtered for source components): Provide superior retention strength; optimized for connected device.

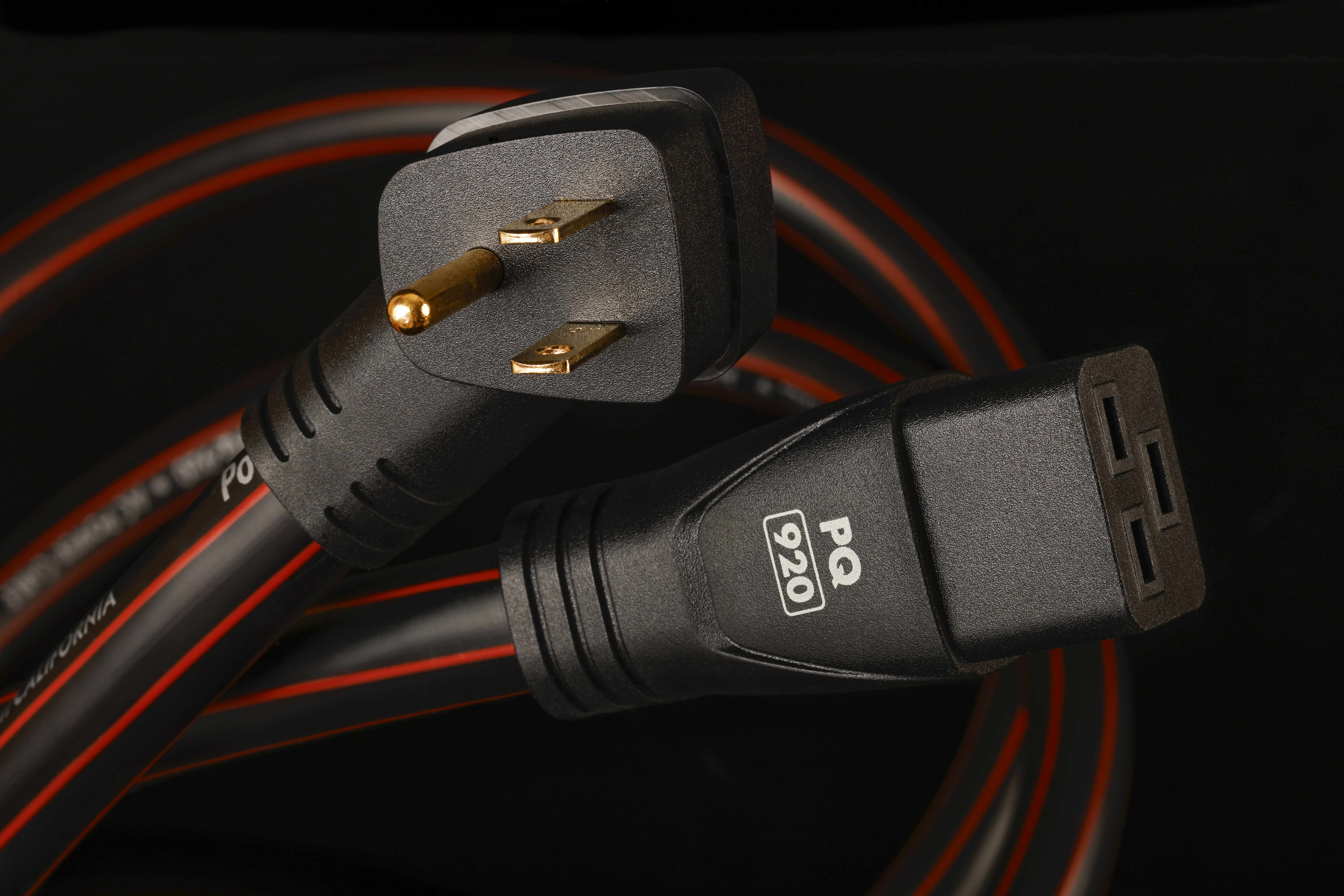

  • Detachable Power Cable Included: 2m PQ-920 detachable power cable features Semi-Solid Concentric Perfect-Surface Copper+ (PSC+) and Long-Grain Copper conductors; ZERO-Tech (No Characteristic Impedance) for uncompressed current transfer; RF/ND-Tech, which minimizes circuit misbehavior by cancelling induced RF noise; and a flat-to-wall plug to aid installation in tight places. 12AWG | 20A RMS capacity; NEMA male wall plug and IEC C-19 female connector.
  • Rack-Mountable: Includes 2-RU rack-mounting kit for simple, secure installations.
  • Part NumberPQ909NA
    UPC092592199705
    Product NameAudioQuest PowerQuest 909 20-Amp Power Conditioner with Non-Sacrificial Surge Protection
    Amazon ASINB0GSCFWNBS
    Product TierEssential
    Retail Pricing
    TaxonomyPower > Power Conditioners > Power Conditioners
    Online Merchandising
    Comparison Productspowerquest-2, powerquest-3, powerquest-303, powerquest-505-power-conditioner, powerquest-707
  • Key Feature Title
    Key Feature Description
    • Power - Noise Dissipation > Combines Common-Mode and Differential-Mode filtering over a wider range of frequencies
    • Power - Technology > Will accept multiple transient power surges and spikes up to 6000V or 3000A (the maximum that can make it through a home or office electrical panel). Damage from electrical storms or power-line interruptions is virtually impossible. Set it and forget it.
    • Power - Technology > Protects against lightning strikes and large-scale power surges.
    • Power - Technology > Protects against daily short, fast power spikes that damage equipment over time.
    • Power - Technology > Specifically designed to aid current-starved amplifiers, Transient Power Correction provides a current reservoir of over 45 amps, enabling lifelike dynamic contrast and thrilling impact.
    • Power - Features & Benefits > At 140VAC, the main power relay opens in <0.25s, resetting when power stabilizes, ensuring protection against voltage spikes for your devices.
    • Power - Features & Benefits > 4x High-Current and 8x Source outlets with superior clamping/retention strength
    • Power - AC Cable Level > 20A RMS capacity. Features RF/ND-Tech (No Characteristic Impedance) for uncompressed current transfer and ZERO-Tech, which minimizes circuit misbehavior by cancelling induced RF noise. Adds Perfect-Surface Copper+.
    • Power - Features & Benefits > Flat-to-Wall 45° Plug can be easily installed in tight spaces behind furniture or other hard-to-reach areas.
    • Power - Features & Benefits > AudioQuest power conditioners boast a space-saving rack-mountable design, seamlessly fitting into home theater A/V racks.
    Applications
    • Subwoofers
    • Monoblocks & Stereo Amplifiers
    • Line-Level & Phono Preamplifiers
    • Blu-Ray & CD Players
    • Music Streamers & Servers
    • PS5/PS5 Pro, Xbox Series X/S Gaming Consoles
    • AV Receivers & Home Theater Systems
  • Noise-DissipationDifferential-Mode: 8kHz-1GHz (>23dB); Common-Mode: 30kHz-100MHz (>23dB)
    Maximum RMS Current20 Amps (RMS) @ 120V
    Non-Sacrificial Surge ProtectionYes
    Transient Power Correction45 amps peak (up to 25ms)
    Included Power CableDetachable 20A PQ-920 / 2m Direction-Controlled with ZERO-Tech & RF/ND-Tech, PSC+ & LGC
    Joule RatingUnlimited
    Outlet Configuration12 total: (4) High-Current / (8) Source
    Plug Type
    • NEMA - North America
    • IEC C19
    Power Cord Length (m)2
    ColorBlack
  • Short DescriptionPower meets grace in the AudioQuest PowerQuest 909, a high-performance power conditioner with non-sacrificial surge protection and ultra-linear filtering. With its 20-amp (RMS) maximum current capacity and 45-amp (peak, up to 25ms) Transient Power Correction, the PQ-909 delivers the uncompressed transient current necessary to optimize all home theater and audio systems.
    Long Description
    Bullet Point Features
    • Differential- and Common-Mode Ultra-Linear Filtering: Ensures consistent, wide-bandwidth noise reduction for black backgrounds and detailed, nuanced sound.
    • Transient Power Correction (TPC):
Low-impedance circuit provides current-starved amplification components with a reservoir of 45 amps (peak, up to 25ms) for uncompressed current on demand, enabling thrilling dynamic contrasts, bass impact, and control.
    • Non-Sacrificial Surge Protection:
Withstands multiple transient power surges and spikes up to 6000V or 3000A (the maximum that can make it through a home or office electrical panel). Damage from electrical storms or power-line interruptions is virtually impossible. Set it and forget it.
    • Extreme Voltage Shutdown: 140V AC activates main circuit relay in under 0.25 seconds and automatically resets once incoming voltage is within a safe range.
    • 12 Hospital-Grade AC outlets (4 High-Current w/ TPC for power amplifiers, powered speakers and subwoofers; 8 Ultra-Linear Filtered for source components): Provide superior retention strength; optimized for connected device.
    • Detachable Power Cable Included: 2m PQ-920 detachable power cable features Semi-Solid Concentric Perfect-Surface Copper+ (PSC+) and Long-Grain Copper conductors; ZERO-Tech (No Characteristic Impedance) for uncompressed current transfer; RF/ND-Tech, which minimizes circuit misbehavior by cancelling induced RF noise; and a flat-to-wall plug to aid installation in tight places. 12AWG | 20A RMS capacity; NEMA male wall plug and IEC C-19 female connector.
    • Rack-Mountable: Includes 2-RU rack-mounting kit for simple, secure installations.
  • Included Power CableDetachable 20A PQ-920 / 2m Direction-Controlled with ZERO-Tech & RF/ND-Tech, PSC+ & LGC
    Power Cord Length (m)2
    Total # Outlets12
    ColorBlack
  • What's In The Box
    • PowerQuest 909 20-Amp Power Conditioner with Non-Sacrificial Surge Protection and Ultra-Linear Filtering
    • Detachable PowerQuest 20-Amp PQ-920 AC Power Cable (2m | 6’6”) with NEMA male wall plug and IEC C-19 female connector
    • 2RU Rack-Mounting Kit
    Country of Origin (NA Inventory)Vietnam
    Warranty5 Years Limited
    Weights & Dimensions
