MSA Winch
10154684

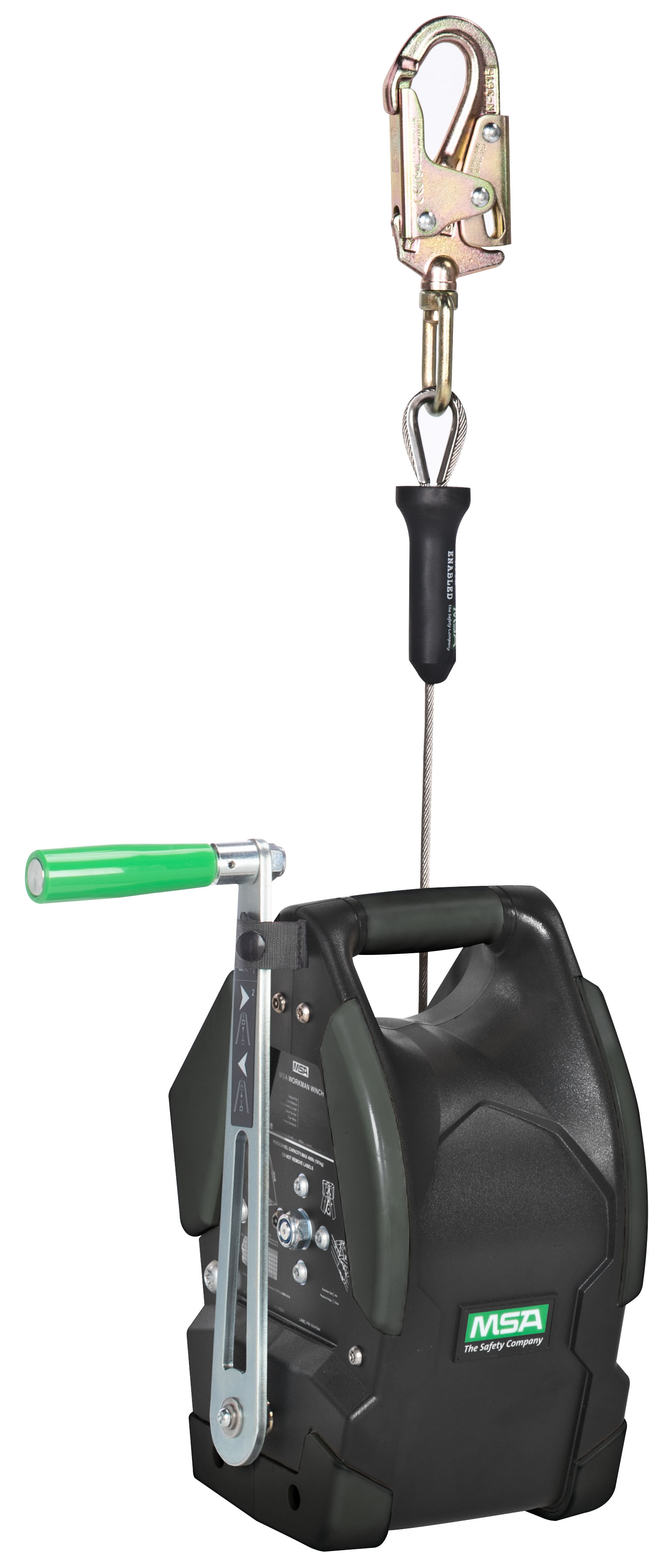

Part Number 10154684 Description Workman Winch, Stainless Steel Cable, 95' 29M UPC 6953102138819 UNSPSC 46182300 Headline Confined Space Personnel & Material Hoist Overview The MSA Winch is rugged, versatile and economical and made for lifting, lowering and positioning personnel and materials within confined space applications. Designed for a maximum 140 kg workload for personnel and 225 kg for materials, the MSA Winch is built with a tough thermoplastic housing to ensure high performance within the harshest environments. The MSA Winch offers an integral, ergonomic carrying grip and a unique, foldable handle for simple storage. The patent-pending bracket design allows for easy, rapid assembly. Product Features - Maximum ANSI/OSHA workload: 400 lbs for personnel, 620 lbs for materials
- Maximum EN workload: 140 kg for personnel, 225 kg for materials
- Patent-pending bracket attachment for easy installation
- Ergonomic carry grip
- Foldable crank handle
- Includes integral RFID technology
- Includes self-locking swivel 36C snaphook
- Steel cable or synthetic rope
- Available in various lengths from 33 ft to 95 ft (10 m to 30 m)
Color - Black
- Yellow
Composition Stainless Steel Cable Markets - Construction
- General Industry
- Oil & Gas
- Utilities
- Mining
Applications - Confined Space
- Working at Heights
Approvals/Standards ANSI/ASSP Z359.4-2013 Item Length (Imperial - INCHES) 10.63 Item Width (Imperial- INCHES) 8.27 Item Height (Imperial-INCHES) 13.39 Item Weight (Imperial-LBS) 30.86 Item Length 270 Item Width 210 Item Height 340 Dimension UOM MM Item Weight 14
