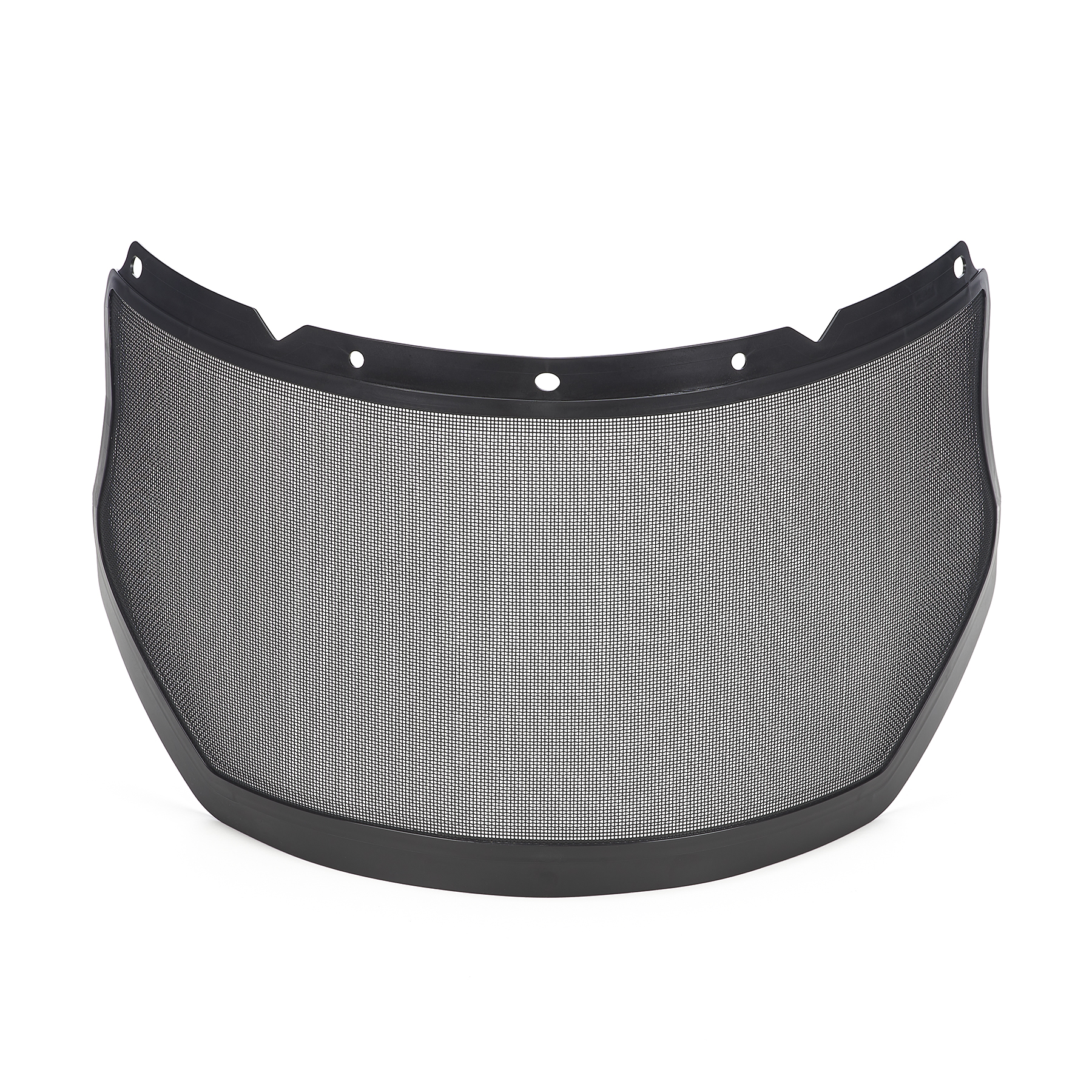

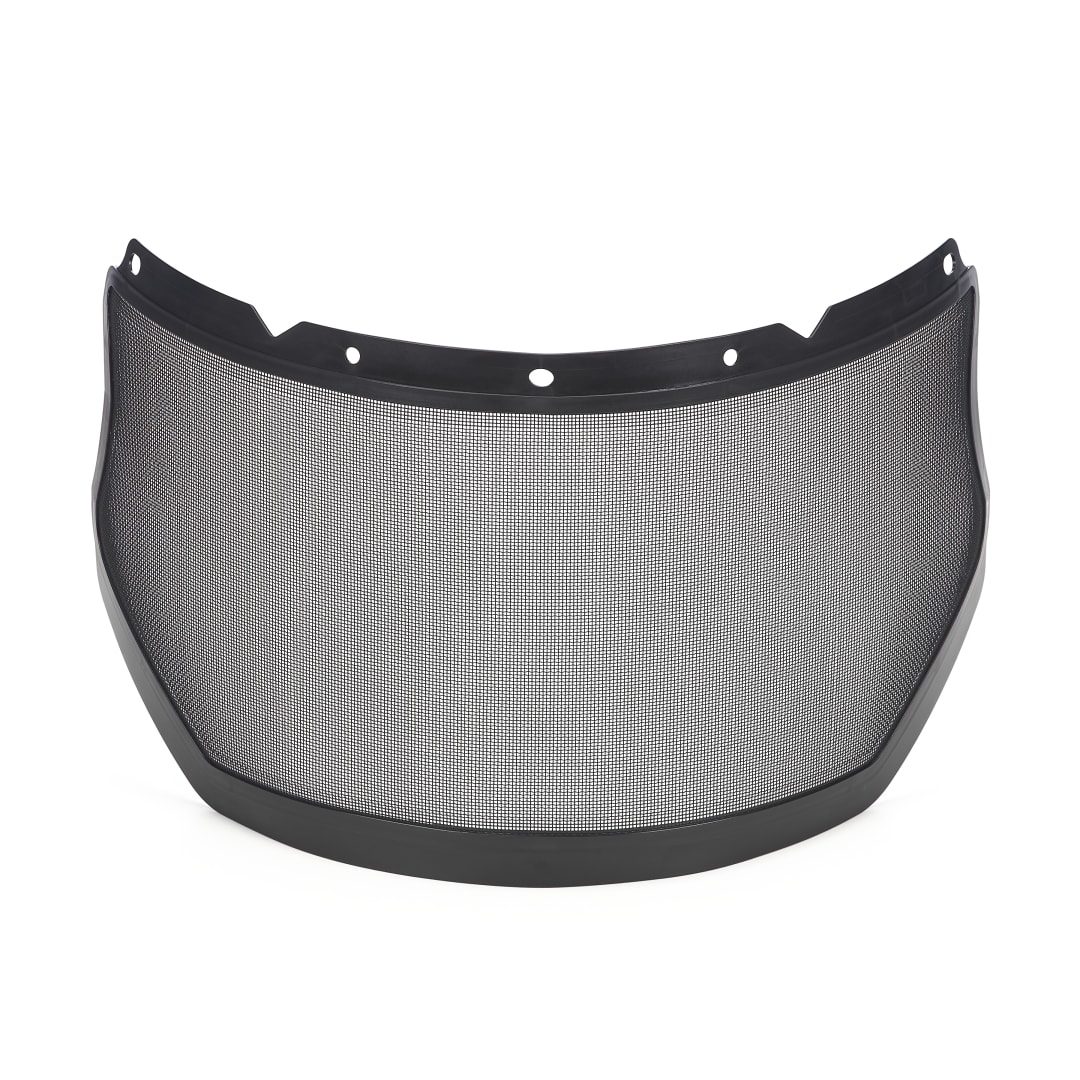

V-Gard® Mesh Visors for General Purpose Applications
MainDownload

V-Gard® Mesh Visors for General Purpose Applications

10116557

    • MSA Part Number10116557
      DescriptionV-Gard Visor, Plastic Edged Wire Mesh, (8"x17")
      Product SizeOne Size Fits All
      ColorBlack
      CompositionEpoxy-Coated Steel Mesh
      Approvals/Standards
      • ANSI/ISEA Z87.1-2020
      • ANSI/ISEA Z89.1-2014
      Item Height (Imperial-INCHES)3.27
      Item Length (Imperial - INCHES)15.87
      Item Width (Imperial- INCHES)8.15
      Item Dimension UOM (IMP)IN
      Item Weight (Imperial-LBS)0.26
      Item Weight UOM (IMP)LB
      UPC641817025819
      UNSPSC46181709
      HeadlineGreat for outdoor use
      OverviewMSA V-Gard Mesh Visors are lightweight and durable and provide maximum ventilation in humid working conditions. They can be combined with helmet-mounted earmuffs and are great for outdoor applications such as brush clearing and trimming.
      Product Features
      • Wide face coverage
      • Can be perfectly combined with helmet-mounted earmuffs
      • Special visors, called nitrometers, are designed to work with V-Gard Retractable or Standard Chin Protector
      • Not for use against splash, impact
      • Plastic mesh visors designed for use with V-Gard Frames and V-Gard Headgear
      • Aluminum edged mesh visor designed for use with most V-Gard Frames and not recommended for use with V-Gard Metal Frames
      Options

       Aluminum-edged mesh visor:

      • 8" (20.3 cm) x 16.5" (41.9 cm) x 0.10” (.25 cm).
      • Durable, epoxy-coated 20 x 20 steel mesh, bound with heavy-duty aluminum.
      • Not recommended for use with V-Gard Metal Frames

      Plastic-edged mesh visor:

      • 8" (20.3 cm) x 17” (43.2 cm).
      • Durable, epoxy-coated 20 x 20 steel mesh, bound with plastic

      Not for use against splash, impact, electrical or UV hazards


      Markets
      • Construction
      • General Industry
      • Oil & Gas
      • Utilities
      • Mining
      ApplicationsForestry
