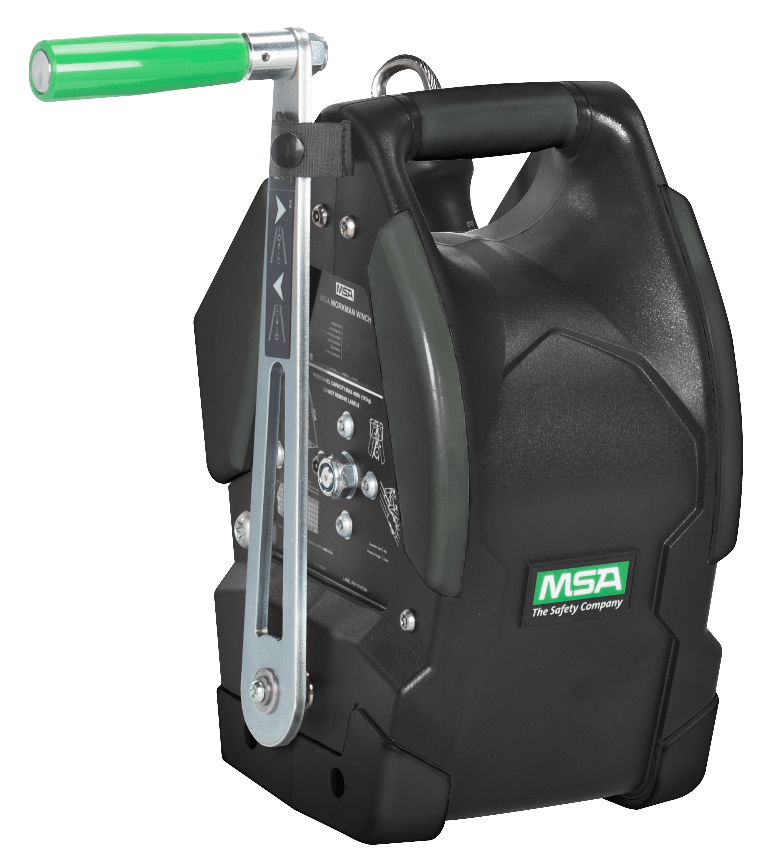

MSA Winch
10147296
MSA Part Number 10147296 UPC 9314415008324 UNSPSC 46182312 Headline Confined Space Personnel & Material Hoist Overview The MSA Winch is rugged, versatile and economical and made for lifting, lowering and positioning personnel and materials within confined space applications. Designed for a maximum 140 kg workload for personnel and 225 kg for materials, the MSA Winch is built with a tough thermoplastic housing to ensure high performance within the harshest environments. The MSA Winch offers an integral, ergonomic carrying grip and a unique, foldable handle for simple storage. The patent-pending bracket design allows for easy, rapid assembly. Product Features - Maximum ANSI/OSHA workload: 400 lbs for personnel, 620 lbs for materials
- Maximum EN workload: 140 kg for personnel, 225 kg for materials
- Patent-pending bracket attachment for easy installation
- Ergonomic carry grip
- Foldable crank handle
- Includes integral RFID technology
- Includes self-locking swivel 36C snaphook
- Steel cable or synthetic rope
- Available in various lengths from 33 ft to 95 ft (10 m to 30 m)
Composition - Steel
- Stainless Steel
- Aluminum
Markets - Construction
- General Industry
- Oil & Gas
- Utilities
- Mining
Applications - Confined Space
- Working at Heights
Item Length 282.00 Item Width 207.00 Item Height 341.00 Dimension UOM MM Item Weight 13.00
