VISOR,V-GD,PC,ARC,AS,SHXSTDXTHK,W/CHIN
MainDownload

VISOR,V-GD,PC,ARC,AS,SHXSTDXTHK,W/CHIN

10118480

  • Impact-rated protection
  • Part number 10115847 features an extended length and width for greater coverage of face and neck - dimensions: 9.25” (23.5 cm) x 18” (45.7 cm) x .065” (1.7 mm)
  • Part number 10118480 Includes V-Gard Standard Chin Protector (required to achieve arc rating) and must be assembled onto visor by user - dimensions: 8” (20.3 cm) x 17.25” (43.8 cm) x .065” (1.7 mm) + 3.02” (7.7 cm ) (chin protector length)
  • MSA Part Number10118480

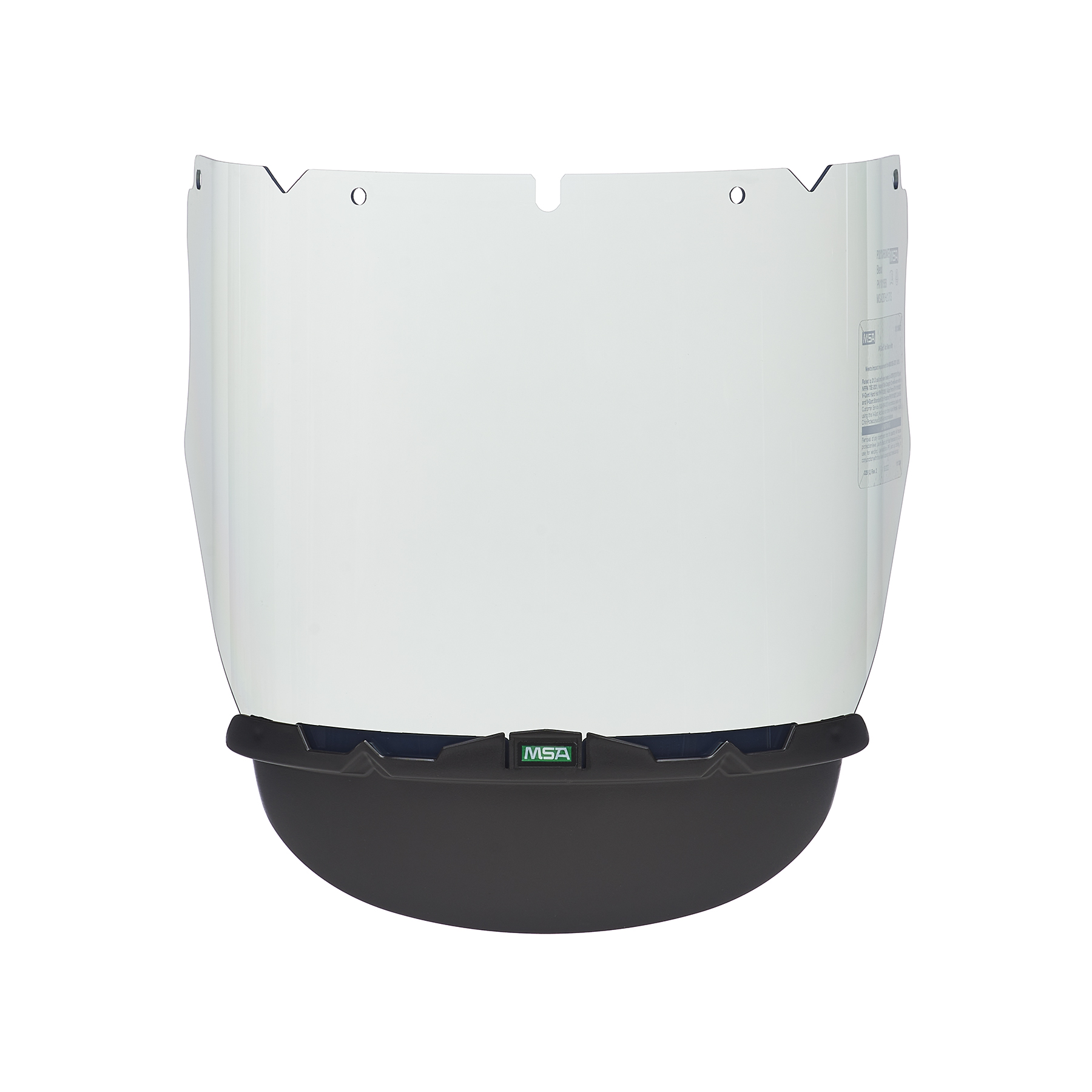

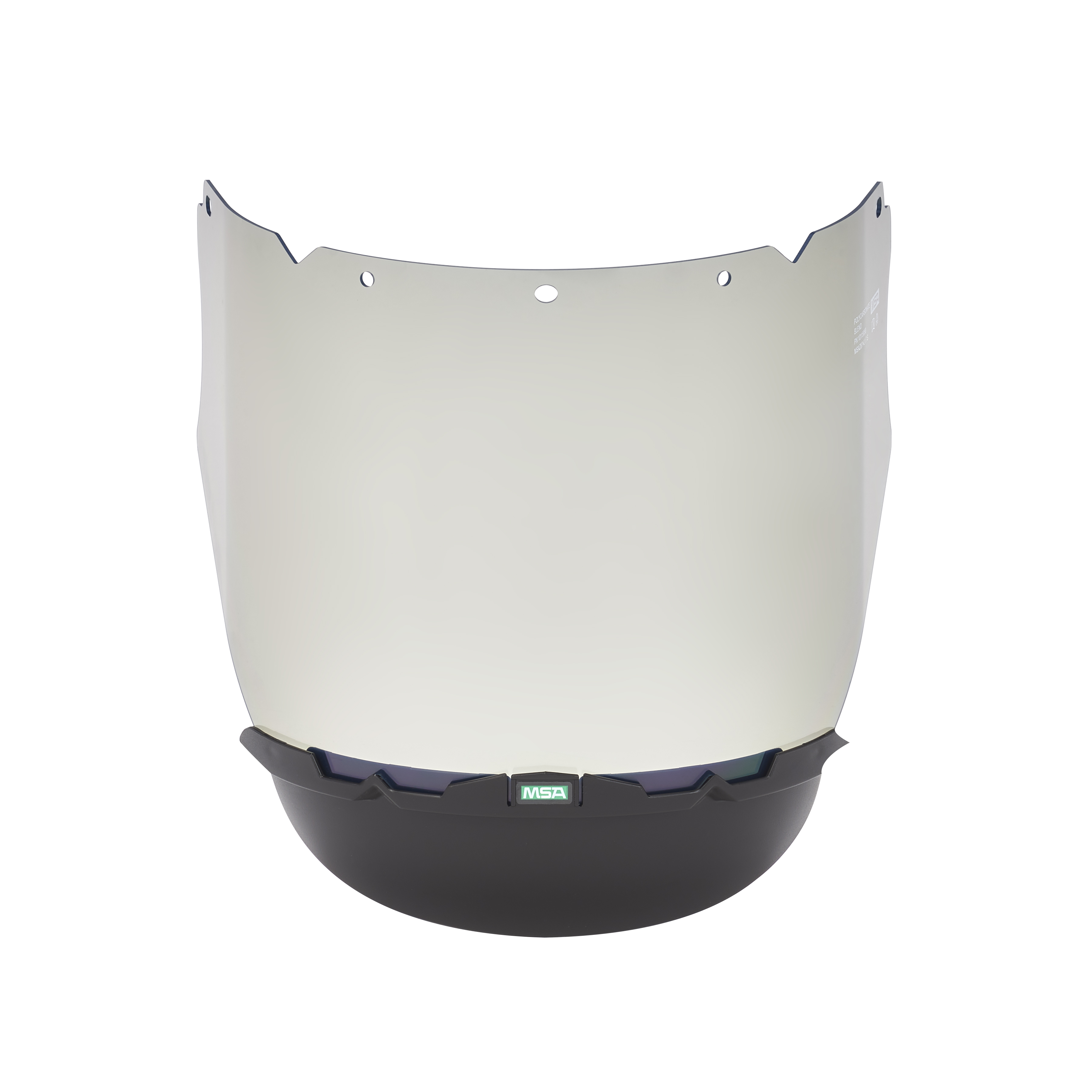

    DescriptionV-Gard Visor, PC, Arc-Rated (Special Purpose Tint), Molded, (8"x 17.25"x .065"), Use w/designated V-Gard Chin Protector
    Short DescriptionVISOR,V-GD,PC,ARC,AS,SHXSTDXTHK,W/CHIN
    Product SizeOne Size Fits All
    ColorGreen
    CompositionPolycarbonate
    Approvals/Standards
    • ANSI/ISEA Z87.1-2020
    • ANSI/ISEA Z89.1-2014
    • ANSI/ISEA 125-2014
    Item Height (Imperial-INCHES)6.97
    Item Length (Imperial - INCHES)9.06
    Item Width (Imperial- INCHES)10.08
    Item Dimension UOM (IMP)IN
    Item Weight (Imperial-LBS)0.46
    Item Weight UOM (IMP)LB
    EAN/UPC641817026175
    UNSPSC46181709
    HeadlineIdeal for working with high-voltage connection
    Overview

    These PC visors are engineered to help protect against impact and dangerous arc flash hazards. They are perfect for electrical workers and electricians working with high-voltage connections.

     Note: V-Gard Arc Visors are intended to be used only with dielectric frames and helmets.
    Product Features
    • Impact-rated protection
    • Part number 10115847 features an extended length and width for greater coverage of face and neck - dimensions: 9.25” (23.5 cm) x 18” (45.7 cm) x .065” (1.7 mm)
    • Part number 10118480 Includes V-Gard Standard Chin Protector (required to achieve arc rating) and must be assembled onto visor by user - dimensions: 8” (20.3 cm) x 17.25” (43.8 cm) x .065” (1.7 mm) + 3.02” (7.7 cm ) (chin protector length)
    Markets
    • Construction
    • General Industry
    • Oil & Gas
    • Utilities
    • Mining
    Applications
    • Working at Heights
    • Turnarounds & Plant Maintenance
    • Confined Space
    • Utility
