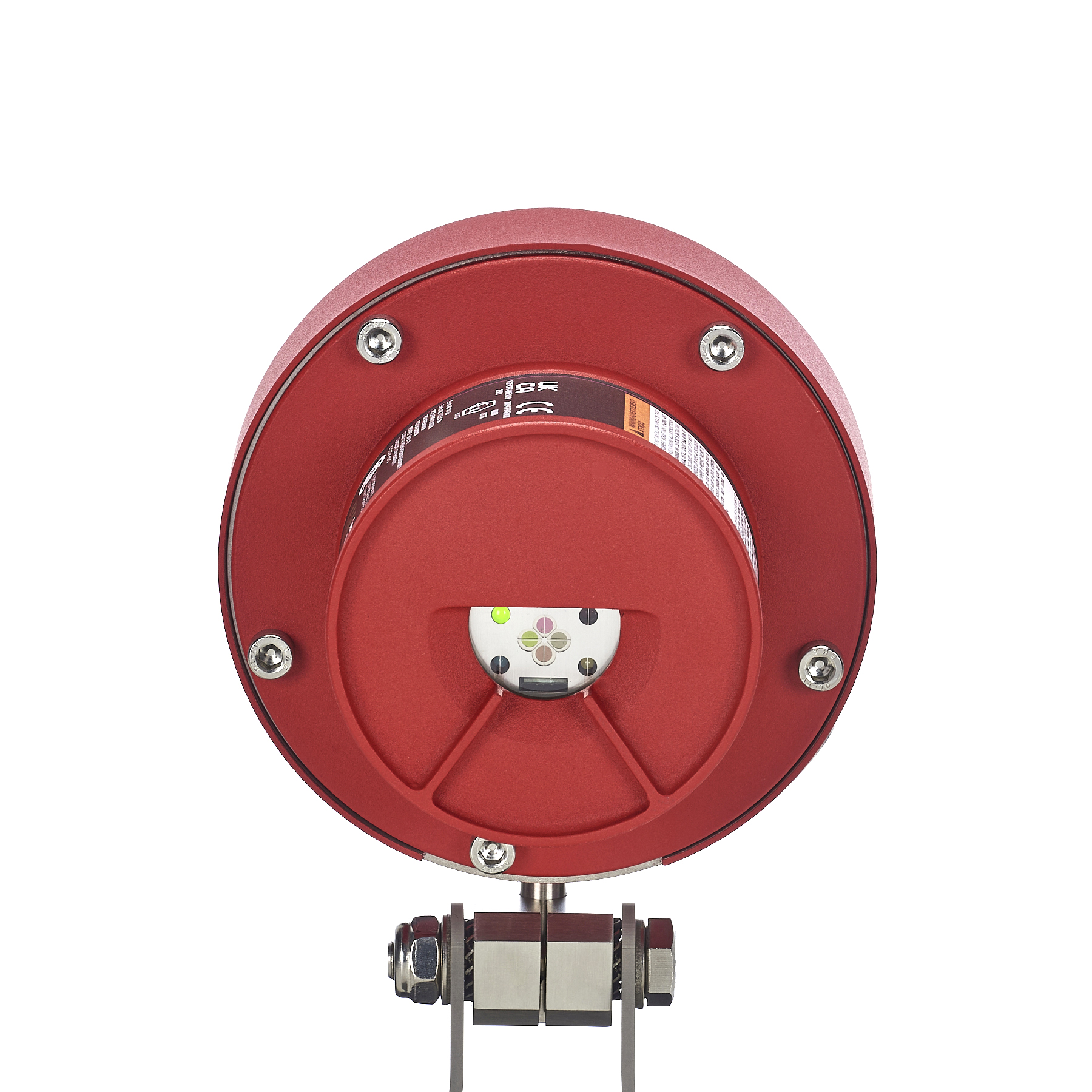

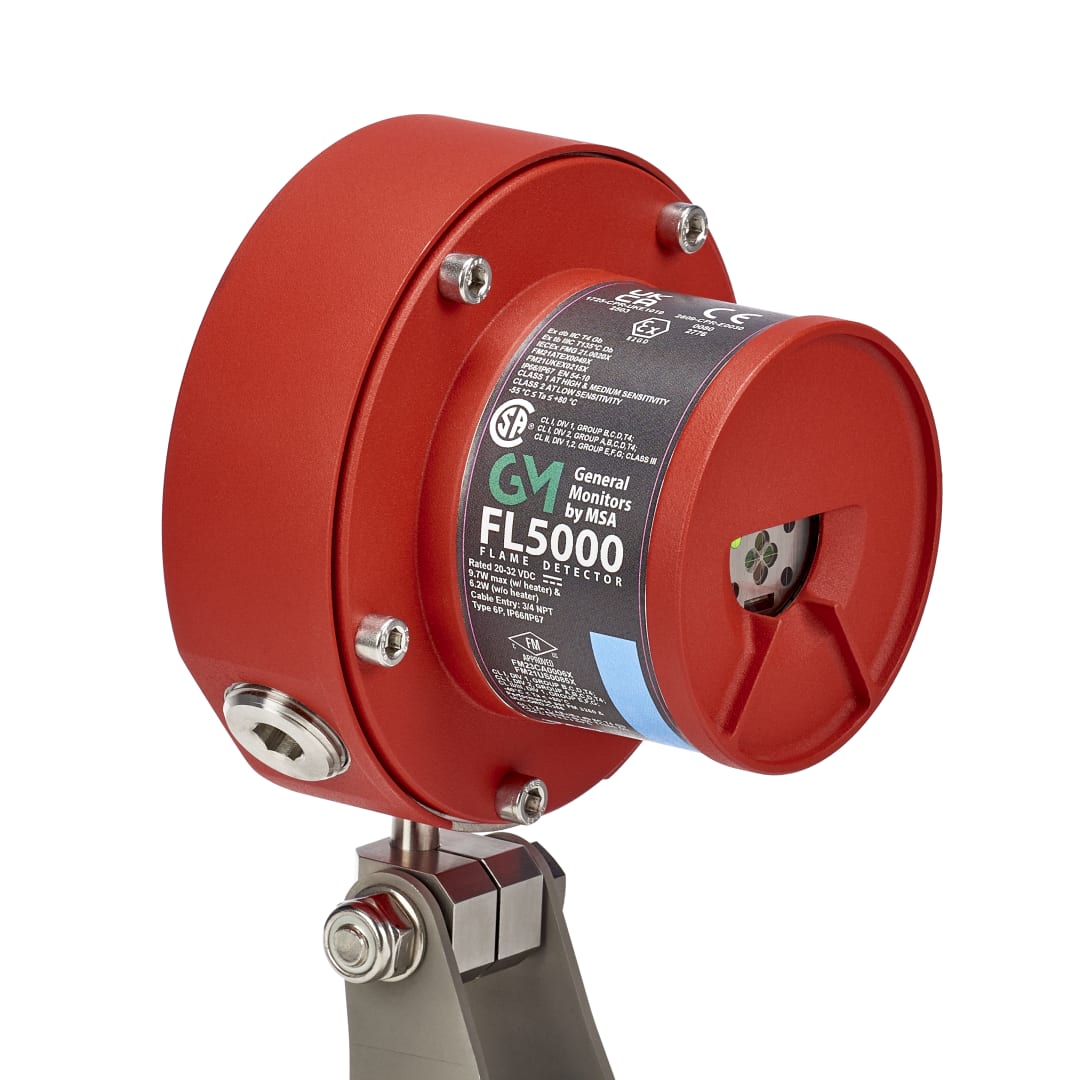

FL5000 MSIR Flame Detector
MainDownload

FL5000 MSIR Flame Detector

10225125

    • Part Number10225125
      DescriptionFL5000 Flame Detector
      ColorRed
      CompositionStainless Steel
      Approvals/Standards
      • ANSI/UL 121201:2021
      • CSA C22.2
      Item Length (Imperial - INCHES)5.98
      Item Height (Imperial-INCHES)4.21
      Item Width (Imperial- INCHES)5.43
      Item Weight (Imperial-LBS)7.8
      UPC641817338148
      UNSPSC46171613
      HeadlineExtend your detection range and reduce false alarms with the FL5000 MSIR Flame Detector
      Overview

      The MSA General Monitors® FL5000 is an advanced multi-spectrum infrared (MSIR) flame detector that provides superior false alarm discrimination over long distances. The FL5000 employs a multi-spectral optical IR sensing array with sophisticated Artificial Neural Networks (ANN) to reliably discriminate between actual flames and the vast majority of false alarm sources.

      Product Features
      • Offers solid performance and reliability, backed by a five-year warranty
      • Built-in optical heater helps suppress false alarms caused by frost or condensation build up
      • Swift setup and diagnostics enables easy configuration and event log downloads from mobile devices
      OptionsDownloads
      Markets
      • General Industry
      • Oil & Gas
      • Utilities
      Applications
      • Compressor Stations
      • Refineries
      • Offshore Platforms
      • Fuel Loading Facilities
      • Aircraft Hangars
