Primary
90830-096

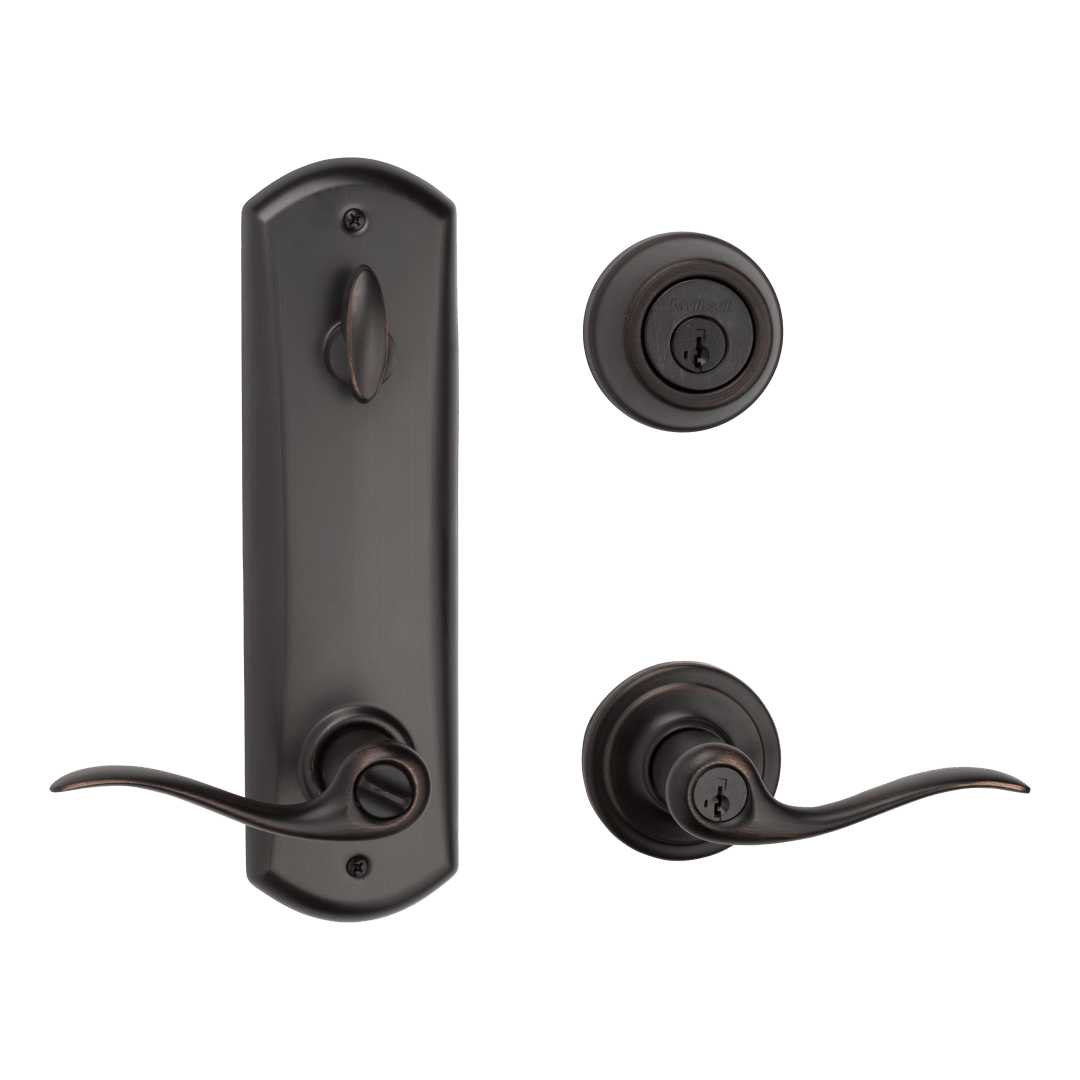

Tustin Deadlatch Interconnect UL Keyed Entry Lever featuring SmartKey Security™ in Venetian Bronze
506TNL 11P SMT 23/8NFL
Combined
Combined
Clipped
Clipped
Brand Kwikset Series Light Commercial Sales Status OBSOLETE MFG Pro # 90830-096 Desc 1 506TNL 11P SMT 23/8NFL Desc 2 3028 UL GR UPC 883351149525 Family Tustin Function Interconnect Finish Venetian Bronze Type Lever ANSI Grade Grade 2 Hardware Type Commercial Features - Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Latch has narrow faceplate
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- ANSI/BHMA grade 2 certified
- Latch has 2 3/8 in. backset
- Locking mechanism functions with turn piece on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Fully reversible lever, can be installed on both right handed and left handed doors
- Easily installs in minutes with just a screwdriver
- Lifetime Mechanical, 5 Year Finish
Assembled Height 2-5/8 Assembled Length 2-23/32 Assembled Width 5-1/2 Projection 2-3/32 Lever Grip Length 4-7/32 Lever Rose Shape Round Style Traditional Throw Length 1/2 Cross Bore 2-1/8" Strike Code Default Entry Has SmartKey Yes Entry # Of Keys 2
