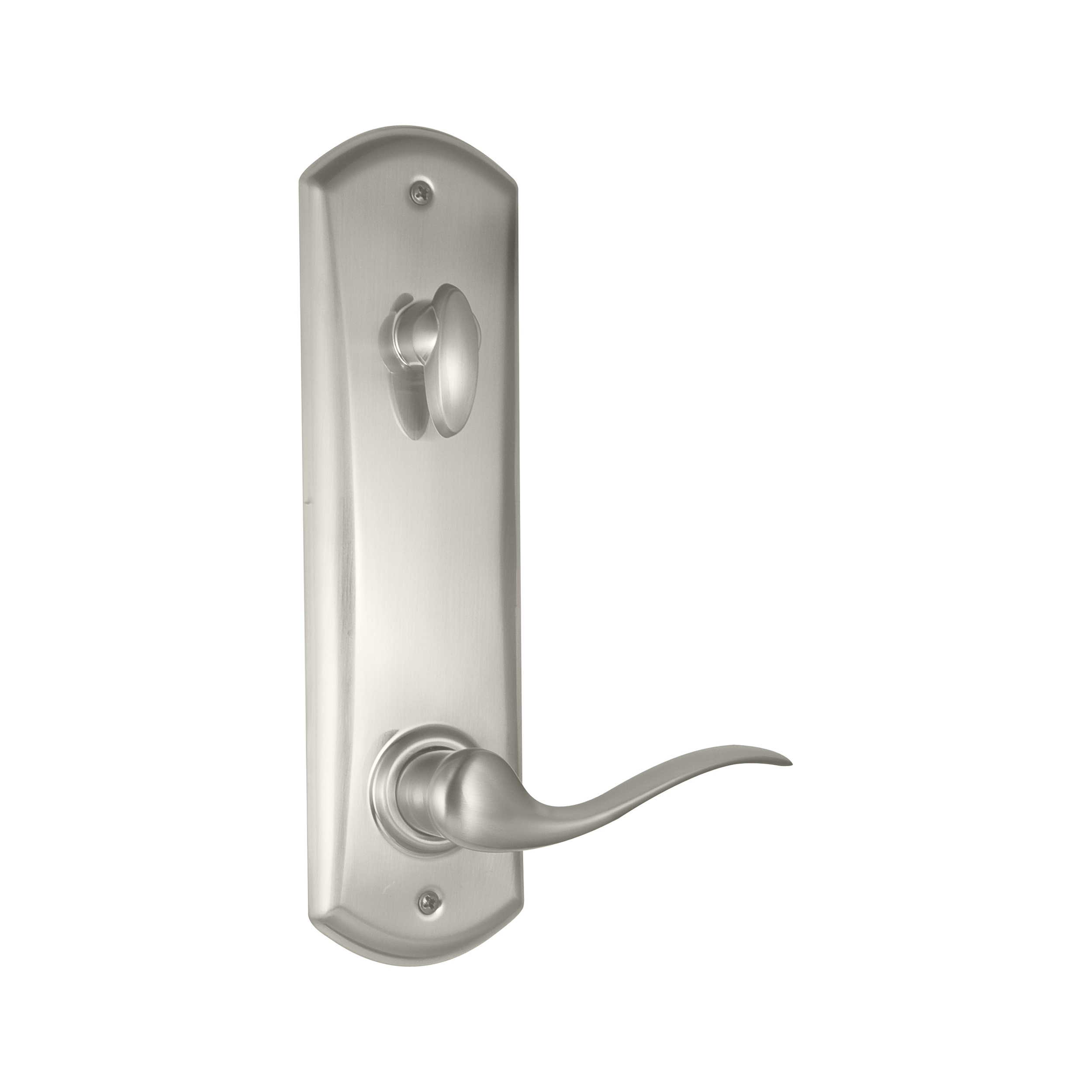

Tustin Hall/Closet Interconnect Keyed Entry UL Lever featuring SmartKey Security™ in Satin Nickel

508TNL 15 SMT 23/8NFL

Lock Finish

Clipped

Features

Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
Comes with 2 keys
Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
ANSI/BHMA grade 2 certified
Locking mechanism functions with turn piece on the interior of the lock
Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
Fully reversible lever, can be installed on both right handed and left handed doors
Easily installs in minutes with just a screwdriver
Lifetime Mechanical, 5 Year Finish

Assembled Height 2-5/8
Assembled Length 2-23/32
Assembled Width 5-1/2
Projection 2-3/32
Lever Grip Length 4-7/32
Lever Rose Shape Round
Style Traditional
Throw Length 1/2
Cross Bore 2-1/8"
Strike Code Default
Entry Has SmartKey Yes
Entry # Of Keys 2
