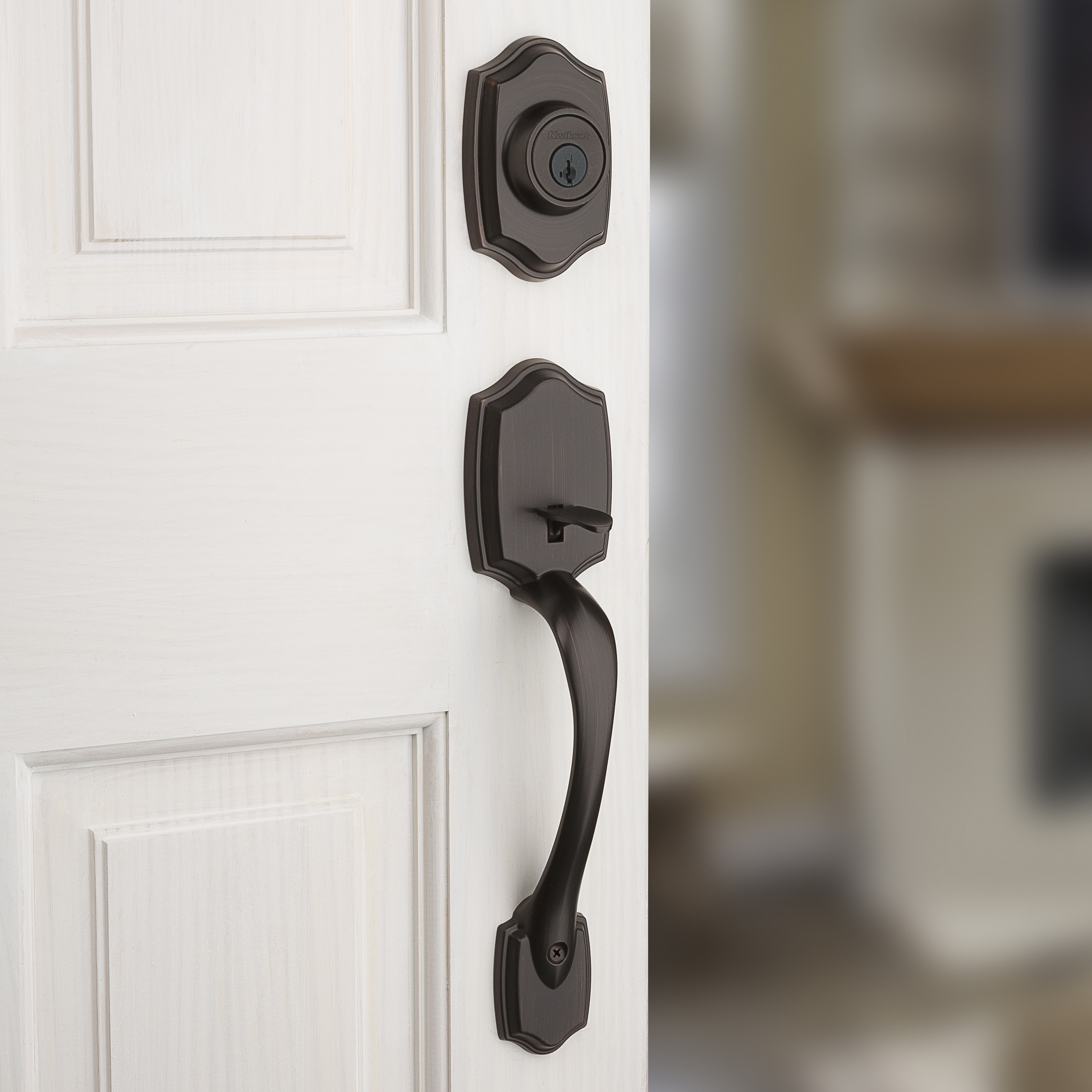

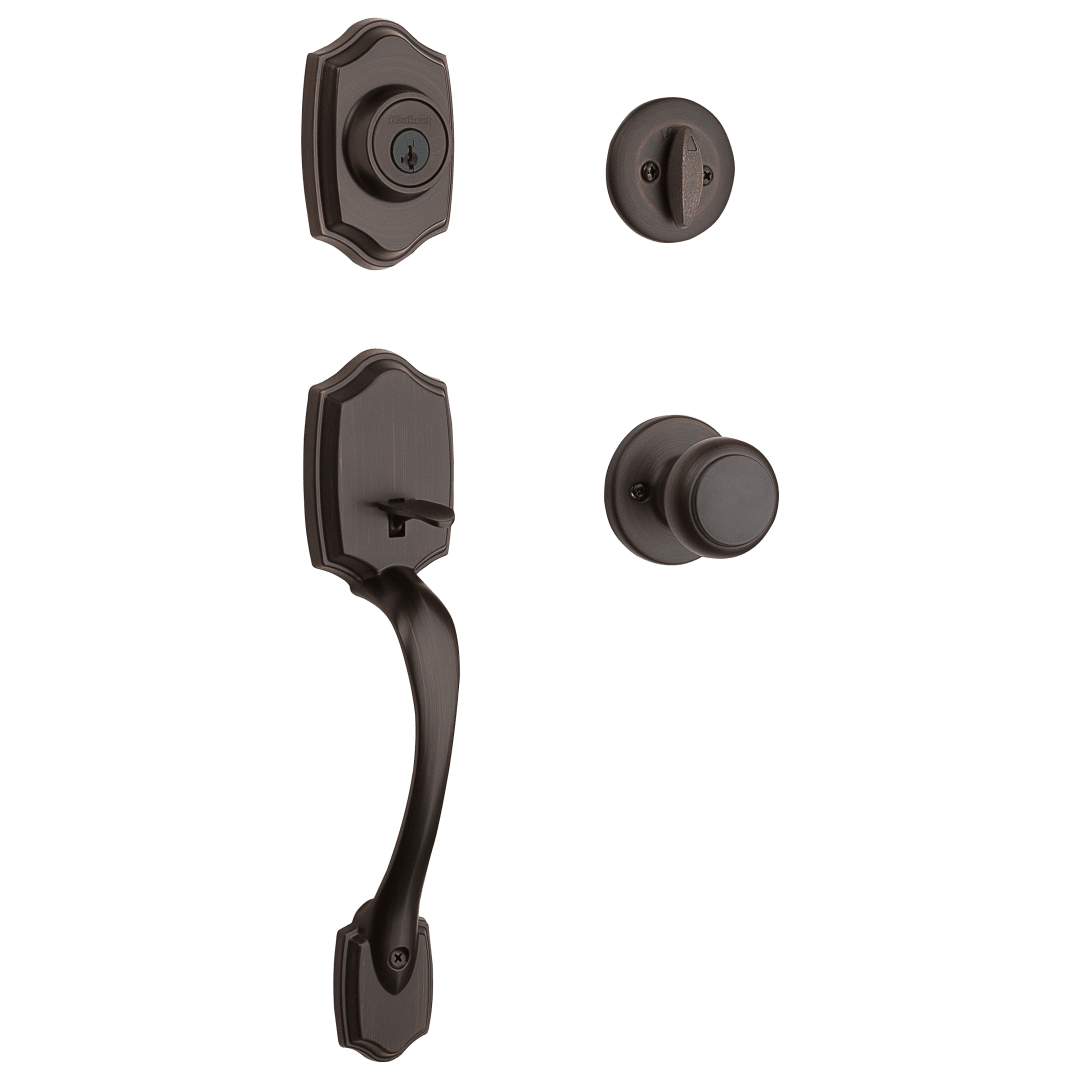

Belleview Single Cylinder Handleset w/Cove Knob featuring SmartKey Security™ in Venetian Bronze
687BWXCV 11P SMT CP
Handlset with Deadbolt: Use on exterior front doors with two bore holes, comes with interior knob and locking deadbolt turn piece, key operated from outside
SmartKey Security: Kwikset’s SmartKey Security technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
Easy Install: Do it yourself, installs in minutes with just a screwdriver, if door is missing a bottom handleset support hole you will need a drill, directions provided
Fits Standard Doors: Fits standard size doors 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" by sliding the adjustment pin during installation
Traditional Design: Available in a classic, traditional door hardware style with simple, unique details to match your home décor
Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details
Vignette
Vignette
Vignette
Vignette
Vignette
Combined
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Enhanced Gallery
Clipped
Brand
Kwikset
Series
Security Series
Sales Status
ACTIVE
MFG Pro #
96870-100
Desc 1
687BWXCV 11P SMT CP
UPC
883351276511
Family
Belleview
Function
Combo Pack
Finish
Venetian Bronze
Type
Handleset
ANSI Grade
Handleset Grade 3
Hardware Type
Residential
Product Description
The beveled design of the Belleview adds elegance to its traditional arched shape.
Features
For use on exterior doors where keyed entry and security is needed
Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
Comes with 2 keys

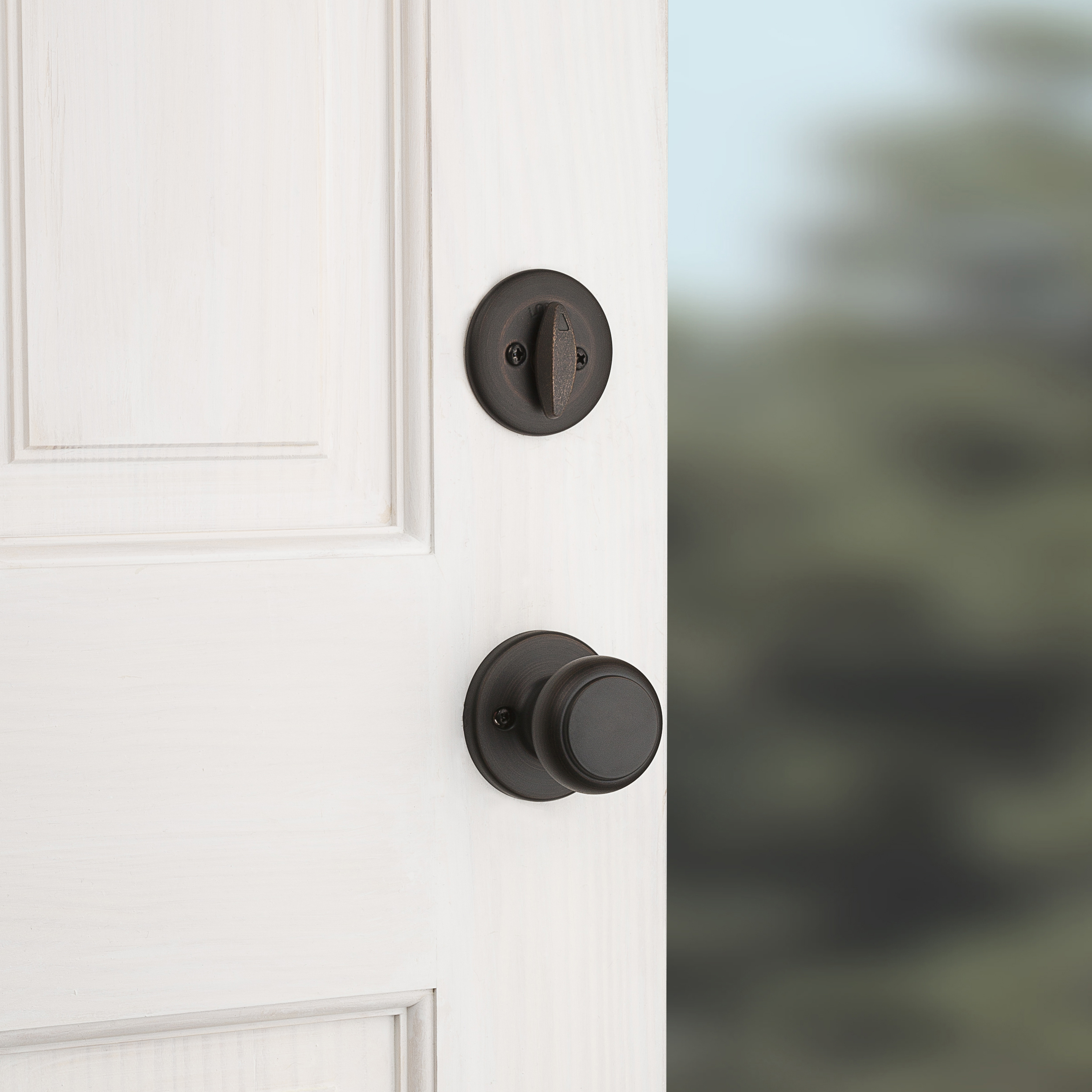

Interior knob with universal handing; fits both right handed and left handed doors
Latch has 2 interchangeable faceplates; round corner and square corner
Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
Handleset Deadbolt ANSI/BHMA Grade 3 Certified

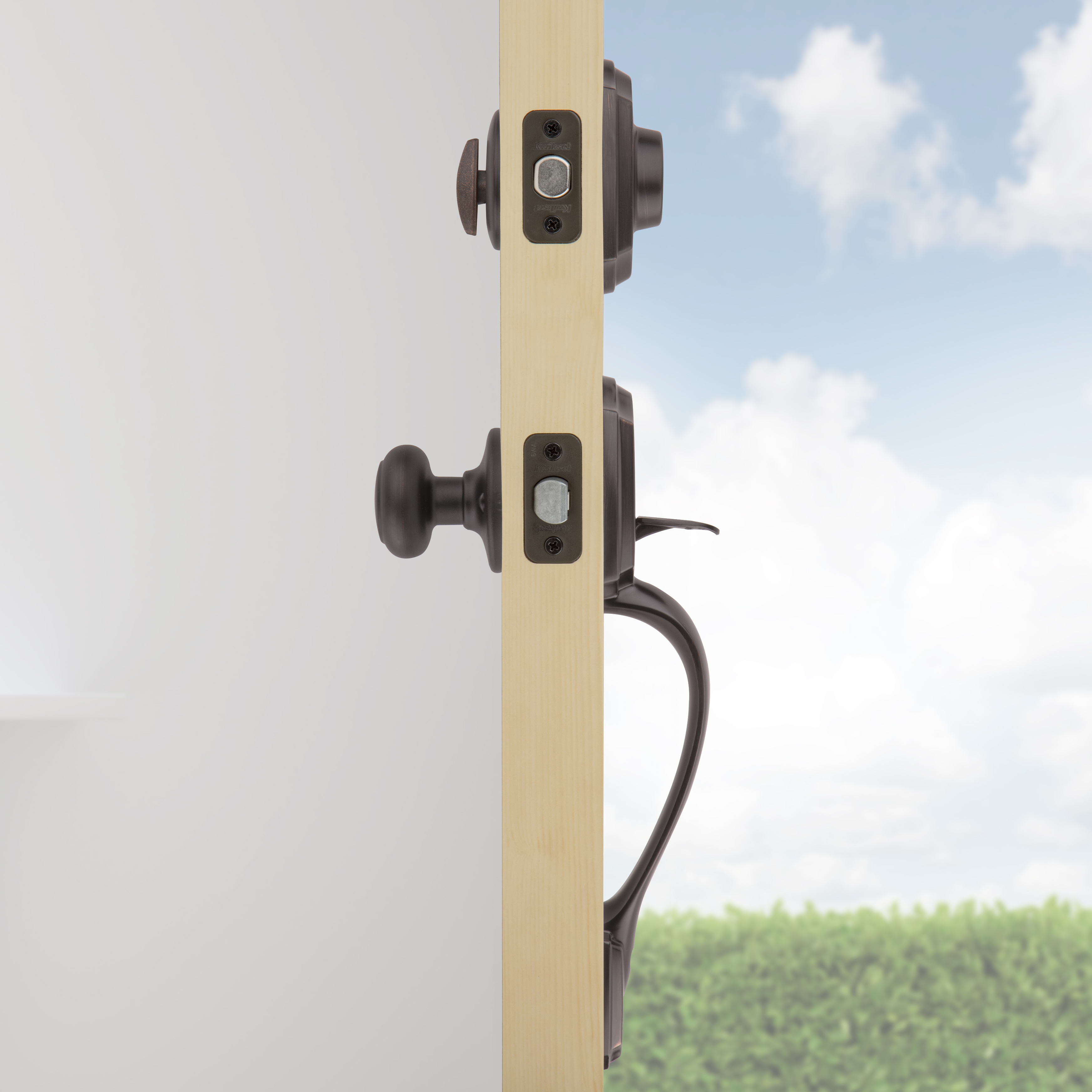

Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
Includes both deadbolt and full lip round strikes
1 in. deadbolt throw
Locking mechanism functions with turn piece on the interior of the lock
Easily installs in minutes with just a screwdriver
Lifetime mechanical and finish warranty
Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
